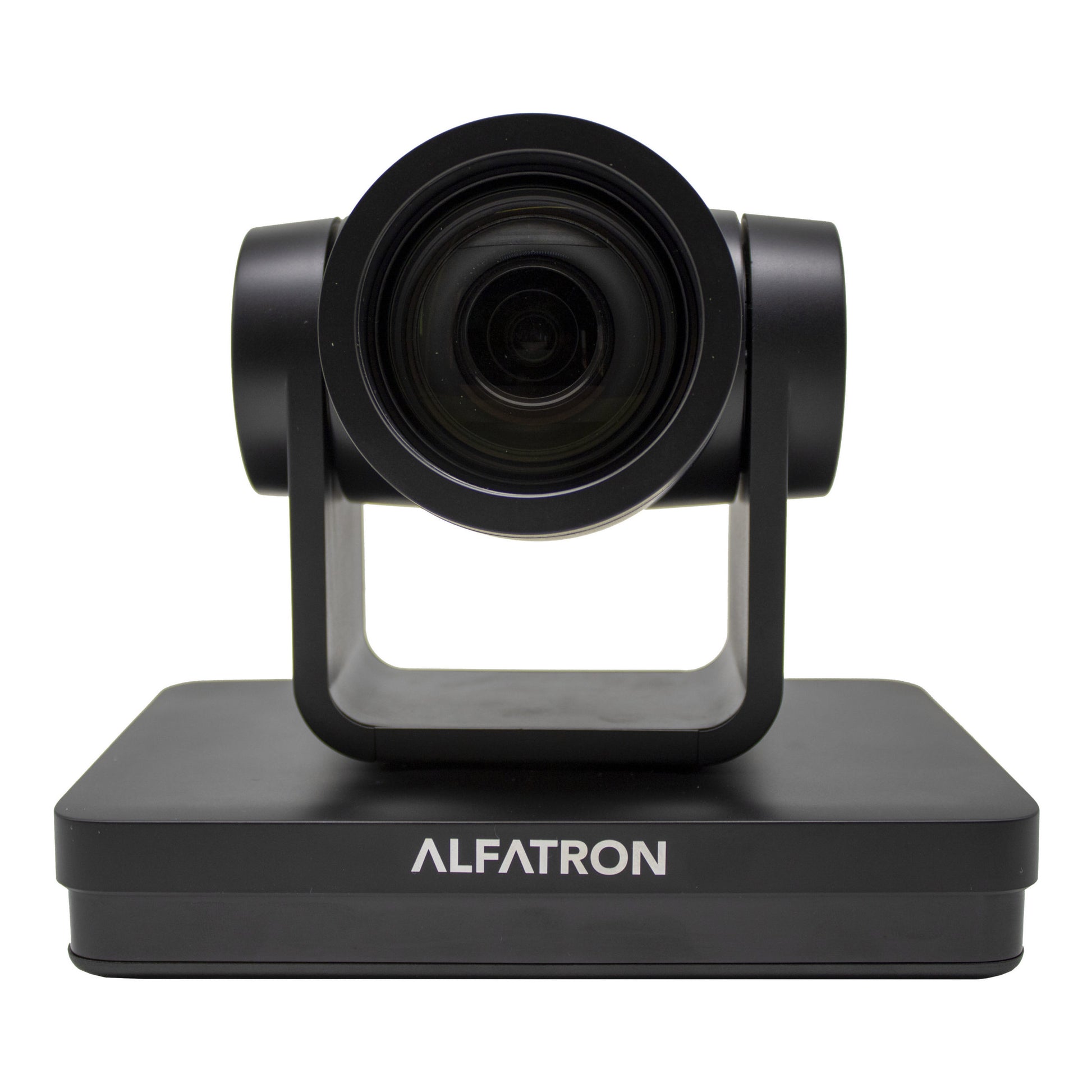

• Alfatron Electronics 20X-SDIC SDI PTZ Camera

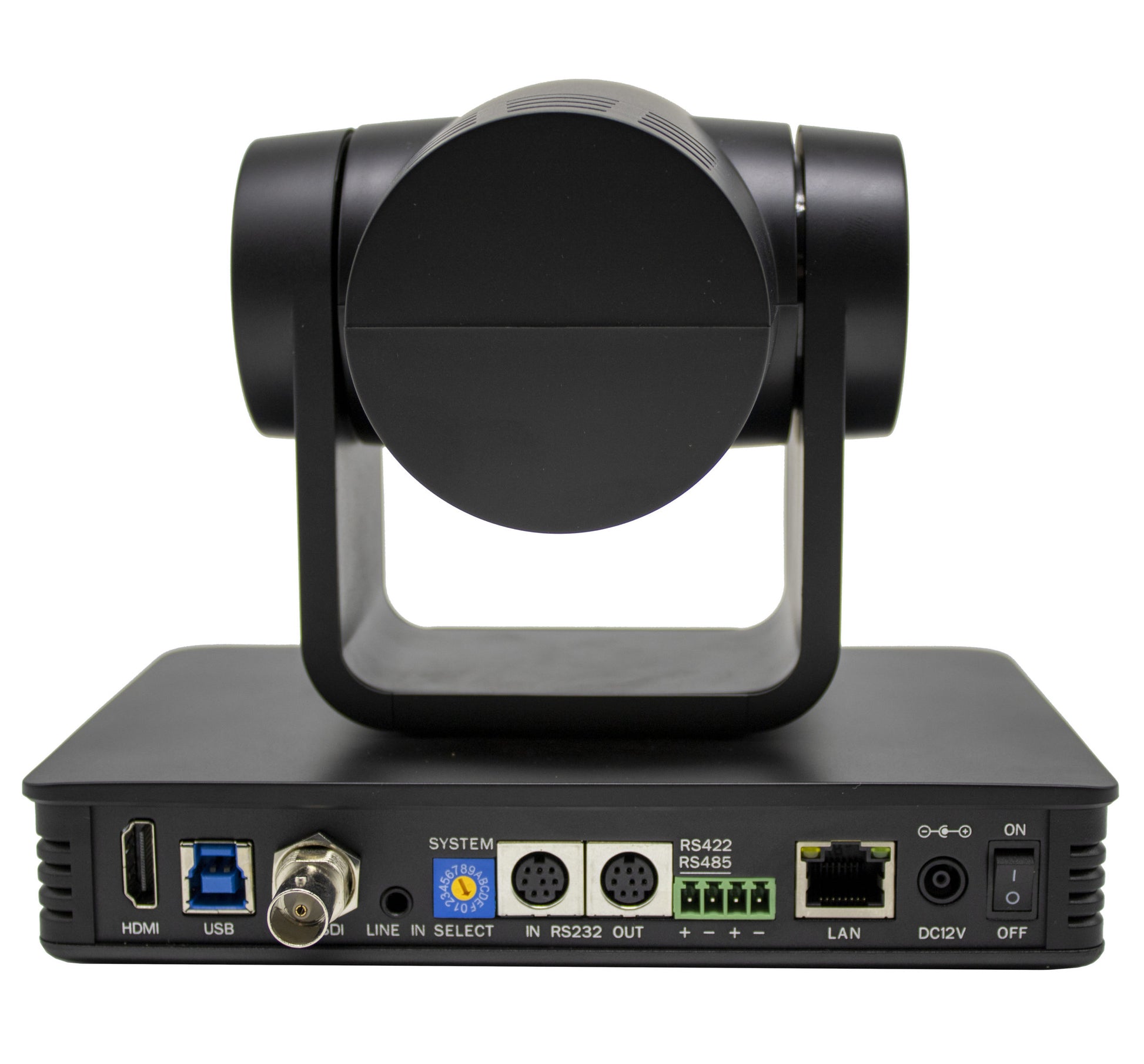

  • Alfatron Electronics 20X-SDIC SDI PTZ Camera back

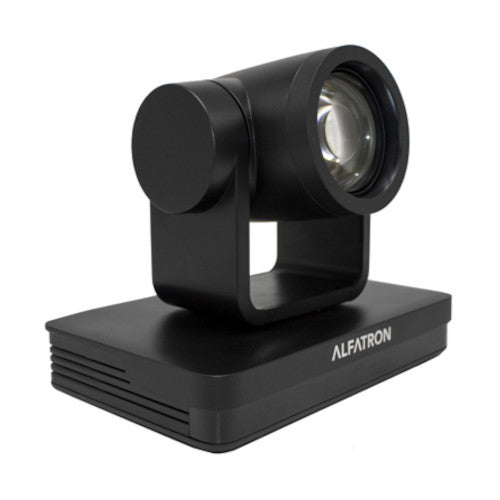

  • Alfatron Electronics 20X-SDIC SDI PTZ Camera side
1 3

Alfatron Electronics 20X-SDIC SDI PTZ Camera

Alfatron Electronics 20X-SDIC SDI PTZ Camera

SoundPro Item: 111953 | Part Number: 20X-SDIC

$1,549.99
$1,645.00 $1,549.99
Your Price Sold out
MSRP: $1,645.00 | MAP: $1,549.99

Usually ships in 5-7 business days

  • 1080P video with a Frame rate up to 60fps
  • 20x Zoom Lens gives a clear and a fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • Field of view 3.3°(Tele) – 54.7°(Wide)
  • USB3.0, HDMI, SDI, CVBS, LAN, RS-232, audio input and is supplied with an IR remote control
  • PC control using Sony Visca or Pelco-D/P commands
  • 12V DC or POE Powered
Log in or register for YOUR best price

The ALF-20X-SDIC is an HD PTZ 1080p equipped camera with a 20x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, conference venues, and houses of worship. Alfatron ALF-20X-SDIC is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

View full details
  • Camera Parameter
    • Optical Zoom
      • 20X
      • f=5.5~110mm
    • Sensor: 1/2.8-inch-high quality HD CMOS sensor
    • Effective Pixels: 16: 9, 2.07 megapixel
    • Video Format
      • HDMI/SDI video format: 1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97
      • USB3.0 interface video format: 1920X1080@60fps Max
    • View Angle
      • 3.3°(tele)
      • 54.7°(wide)
    • AV: F1.6 – F3.5
    • Digital Zoom: 10X
    • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
    • DNR: 2D & 3D DNR
    • White Balance: Auto / Manual/ One Push/ 3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    • Focus/Aperture/Electronic Shutter: Auto/Manual/One Push Focus
    • Iris: Auto/Manual
    • Shutter: Auto/Manual
    • BLC: ON/OFF
    • WDR: OFF/ Dynamic level adjustment
    • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
    • SNR: >55dB
  • Input/output Interface
    • Video Interfaces: ALF-20X-SDIC Interfaces: USB3.0 (compatible with USB2.0), HDMI, SDI, LAN (POE), RS232-IN/OUT, RS422(compatible with RS485), A-IN, Rotary dial code, on-off switch
    • Video Output: HDMI, SDI, LAN, USB3.0, USB2.0
    • Video Stream: Dual stream output
    • Video Compression Format
      • LAN Interface: H.265, H.264, Dual stream output
      • USB2.0 Interface: H.265, H.264, MJPEG
      • USB3.0 Interface: YUV
    • Audio Input Interface: Double track 3.5mm linear input
    • Audio Output Interface: HDMI, SDI, LAN
    • Audio Compression Format: AAC/MP3/G.711A
    • Network Protocol
      • RTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocol
      • Support remote upgrade, remote restart, remote reset
    • Control Interface: RS232, RS485
    • Control Protocol: VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/9600/4800/2400bps
    • Power Interface: HEC3800 outlet (DC12V), POE
    • Input Voltage: DC12V±10%
    • Input Electric Current: Maximum: 1A
    • Power Consumption: Maximum: 12W
  • PTZ Parameter
    • Pan/Tilt Rotation: ±170°, -30°~+90°
    • Pan Control Speed: 0.1 -60°/sec
    • Tilt Control Speed: 0.1-30°/sec
    • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
    • Preset Number: 255 presets (10 presets by remote controller)
  • Other Parameter
    • Stored Temperature: -10°C~+60°C
    • Storage Humidity: 20%~95%
    • Working Temperature: -10°C~+50°C
    • Working Humidity: 20%~80%
    • Dimension: 178x115.5x150.9mm
    • Weight: 1.38KG
