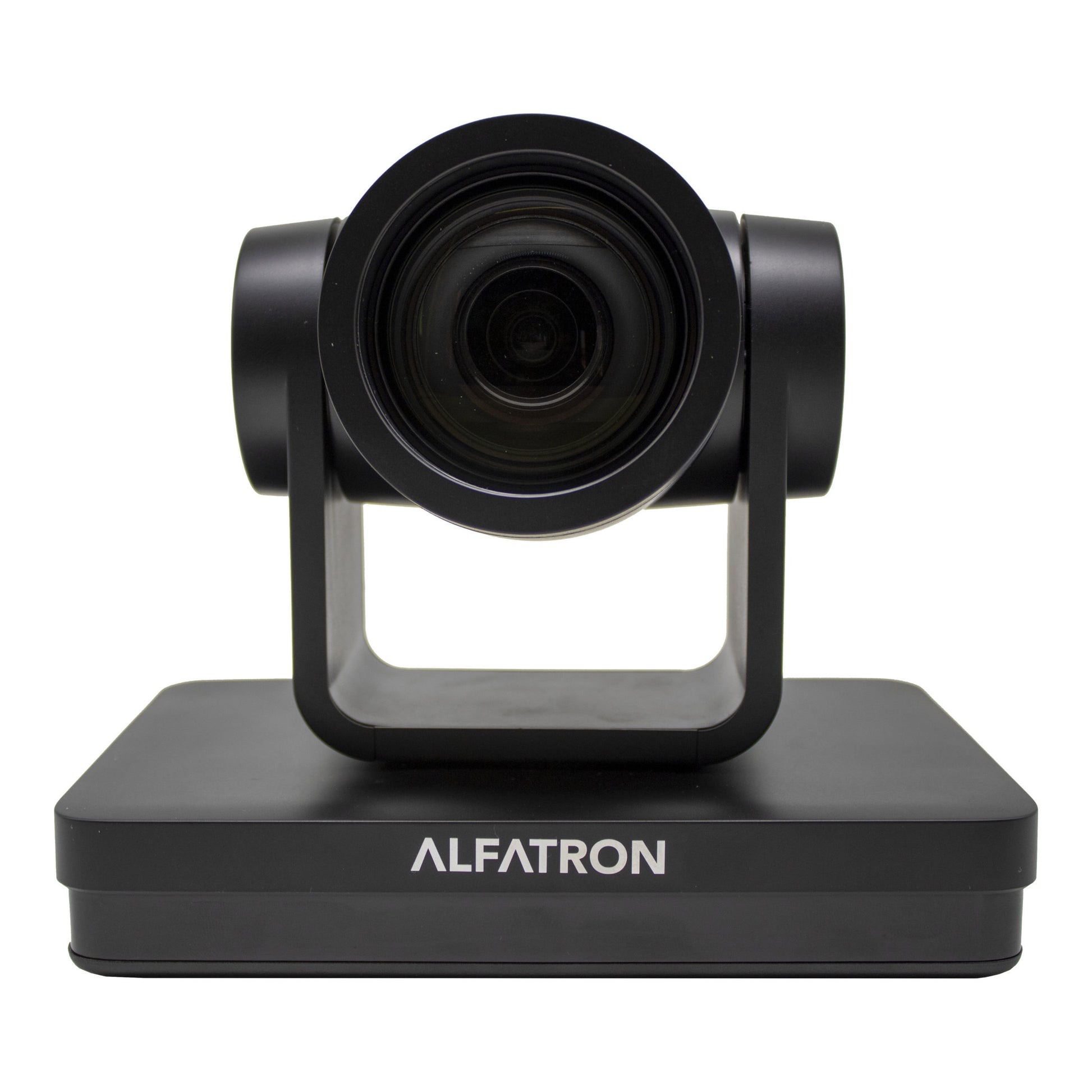

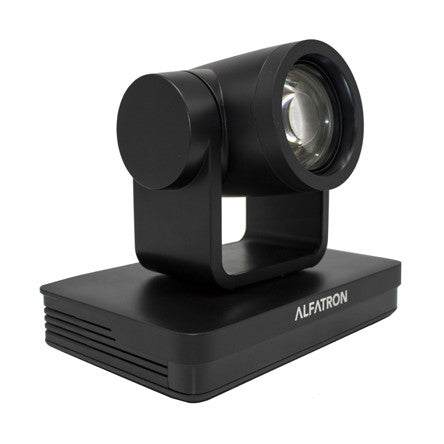

Alfatron Electronics 30X-SDIC SDI PTZ Camera

Alfatron Electronics 30X-SDIC SDI PTZ Camera

SoundPro Item: 111954 | Part Number: ALF-30X-SDIC

$1,699.99
$1,800.00 $1,699.99
Your Price Sold out
MSRP: $1,800.00 | MAP: $1,699.99

Usually ships in 5-7 business days

  • 1080P video with a Frame rate up to 60fps
  • 30x Zoom Lens gives a clear and fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • Field of view 2.34°(Tele) – 65.1°(Wide)
  • USB3.0, HDMI, SDI, CVBS, LAN, RS-232, audio input and is supplied with an IR remote control
  • PC control using Sony Visca or Pelco-D/P commands
  • 12V DC or POE Powered
Log in or register for YOUR best price

The ALF-30X-SDICW is an HD PTZ 1080p equipped camera with a 30x Zoom Lens. This PTZ camera is suitable for medium to large-sized meeting rooms, boardrooms, conference venues, and houses of worship. Alfatron ALF-30X-SDIC is compatible with video meeting software, such as Teams and Zoom. The Full HD 1080P camera is equipped for a high-quality video stream and high definition real-time synchronization.

View full details

Specifications

Dimensions
Dimensions
178x115.5x150.9mm
Electrical
Input Electric Current
Maximum: 1A
Power Consumption
Maximum: 12W
Audio
SNR
>55dB
Audio Input Interface
Double track 3.5mm linear input
Audio Output Interface
HDMI, SDI, LAN
Audio Compression Format
AAC/MP3/G.711A
Optics
Digital Zoom
10X
Focus
Auto/Manual/One Key Push Focus
Connectivity
Video Format HDMI/SDI Video Format
1080P60/50/30/25/59.94/29.97, 1080I60/50/59.94, 720P60/50/30/25/59.94/29.97USB3.0 interface video format: 1920X1080@60fps Max
Video Output
HDMI, SDI, LAN, USB3.0, USB2.0
Input/output Interface
Network Protocol RTSP, RTMP, ONVIF, GB/T28181, Support network VISCA control protocolSupport remote upgrade, remote restart, remote reset
Controls
Control Protocol
VISCA/Pelco-D/Pelco-P
Environmental
Storage Temperature
-10°C~+60°C
Storage Humidity
20%~95%
Working Temperature
-10°C~+50°C
Working Humidity
20%~80%
Shipping
Weight
1.38KG
General
Camera Parameter
Optical Zoom 30Xf=4.3~129mm, View Angle 2.34°(tele)65.1°(wide)
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
16: 9, 2.07 megapixel
AV
F1.6 – F4.7
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Aperture/Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/ Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Video Interfaces

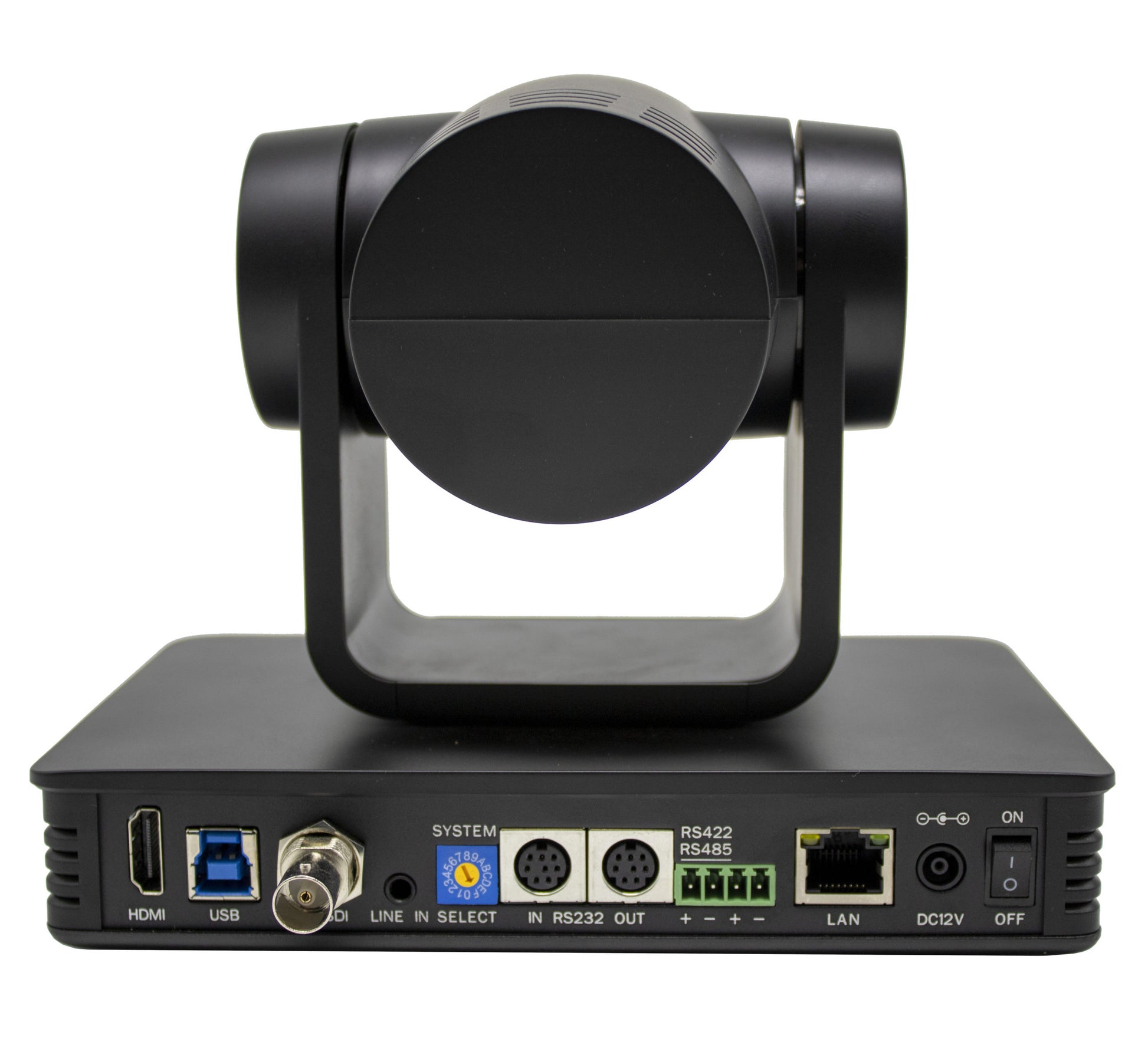

ALF-20X-SDIC Interfaces: USB3.0 (compatible with USB2.0), HDMI, SDI, LAN (POE), RS232-IN/OUT, RS422(compatible with RS485), A-IN, Rotary dial code, on-off switch
Video Stream
Dual stream output
Video Compression LAN Interface
H.265, H.264
Dual Stream outputUSB2.0 Interface
H.265, H.264
MJPEGUSB3.0 Interface
YUV
Control Interface
RS232, RS485
Baud Rate
115200/9600/4800/2400bps
Power Interface
HEC3800 outlet (DC12V), POE
Pan/Tilt Rotation
±170°, -30°~+90°
Pan Control Speed
0.1 -60°/sec
Tilt Control Speed
0.1-30°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by the remote controller)
Power
Input Voltage
DC12V±10%
