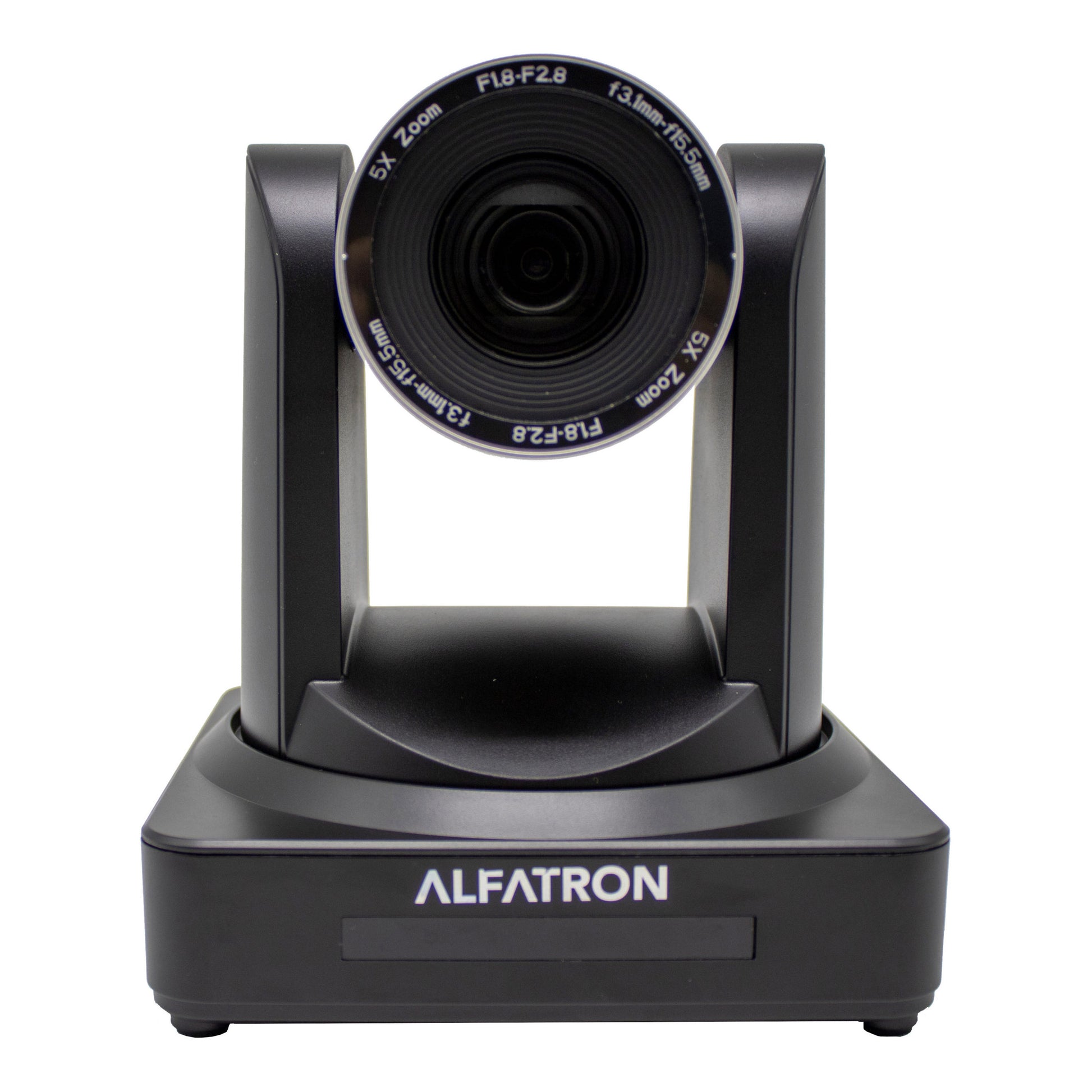

• Alfatron Electronics 5X-CAM USB3.0 PTZ Camera

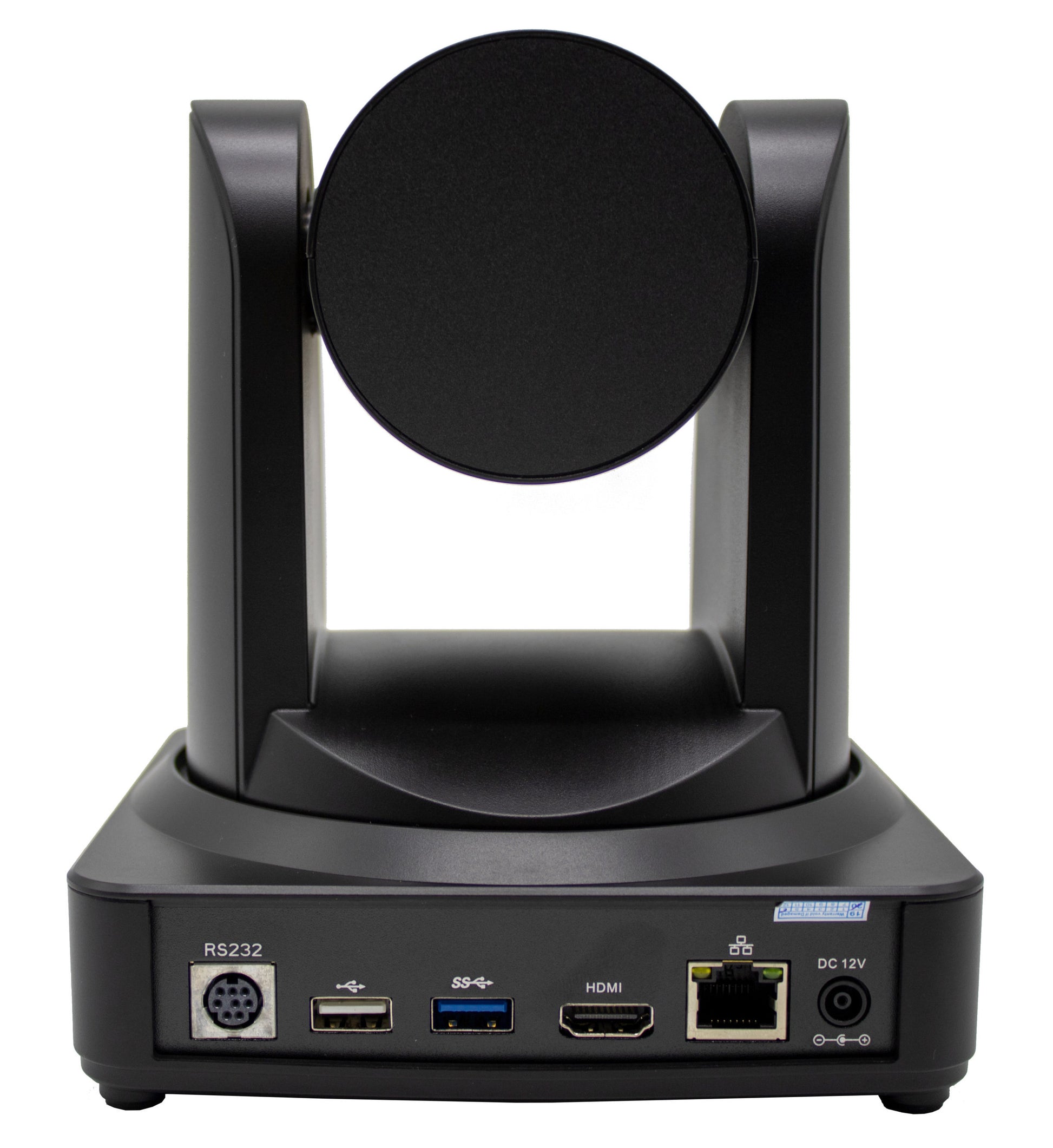

  • Alfatron Electronics 5X-CAM USB3.0 PTZ Camera back

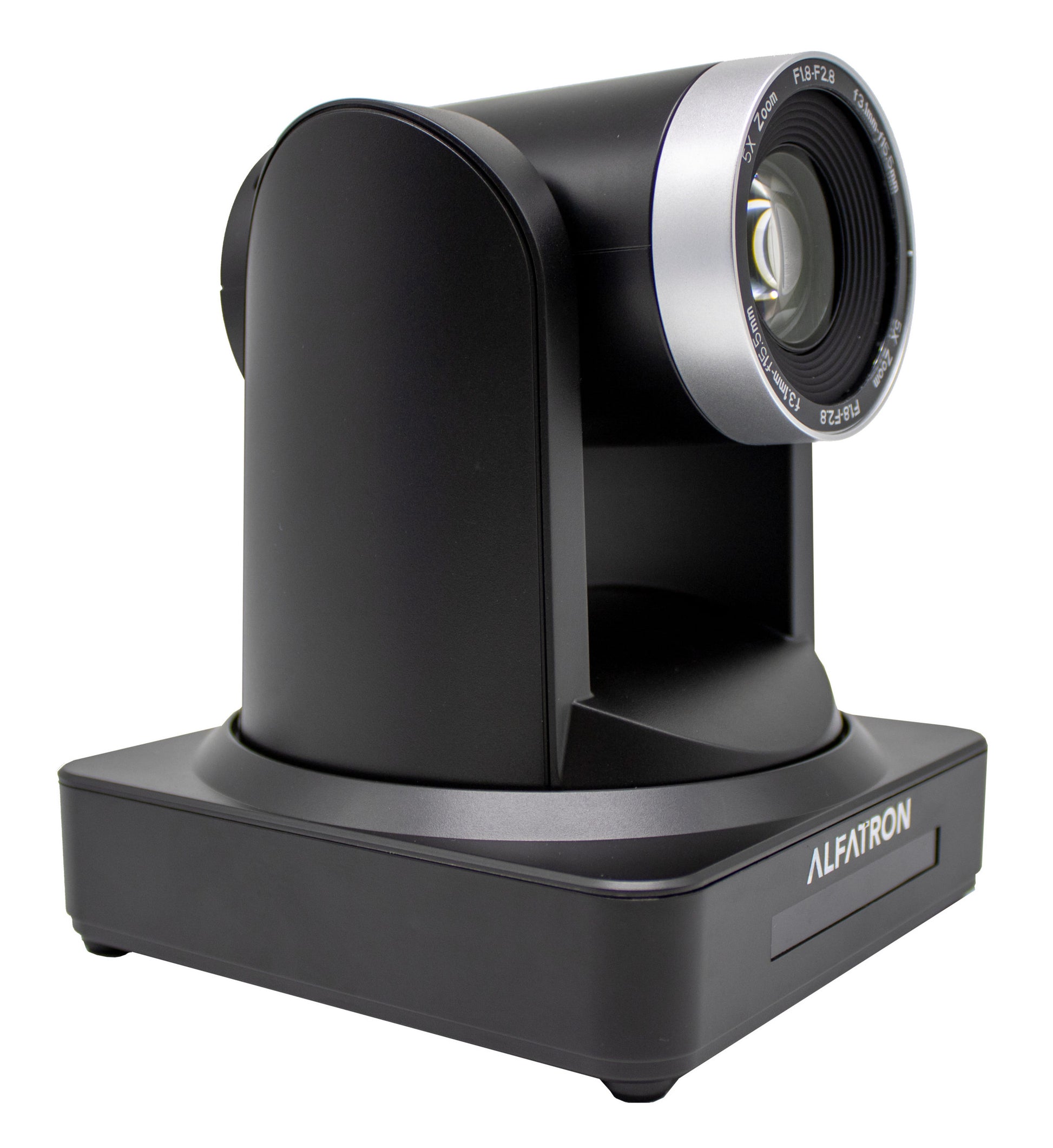

  • Alfatron Electronics 5X-CAM USB3.0 PTZ Camera side
1 3

Alfatron Electronics 5X-CAM USB3.0 PTZ Camera

Alfatron Electronics 5X-CAM USB3.0 PTZ Camera

SoundPro Item: 111948 | Part Number: ALF-5X-CAM

$1,249.99
$1,322.00 $1,249.99
Your Price Sold out
MSRP: $1,322.00 | MAP: $1,249.99

Usually ships in 5-7 business days

  • 1080P video with a Frame rate up to 60fps
  • 5x Zoom Lens gives you clear and fluent image
  • Leading Auto Focus Technology
  • Low Noise and High SNR
  • Quiet PTZ
  • 255 Presets
  • RS232 Cascade Function
  • Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
  • Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
  • 12V DC or USB Powered
  • Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems
Log in or register for YOUR best price

The ALF-5X-Cam is an HD PTZ camera equipped with 1080p with a 5x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms and conference venues. The ALF-5X-Cam is compatible with video meeting software, such as Teams and Zoom. The 1080P HD camera is equipped for a high-quality video stream and high definition real-time synchronization.

View full details

Specifications

Dimensions
Dimensions
150x150x167.5mm
Electrical
Input Current
1A(Max)
Optics
Digital Zoom
10X
Focus
Auto/Manual
Connectivity
Video Format HDMI/ Video Format
10080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97Interface video format: 1)1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30
Input/output Interface Video Interfaces
ALF-5X-CAM USB2.0, USB3.0, HDMI, LAN
RS232(input)Image Code Stream
Double streams output simultaneouslyVideo
Controls
RS-485Control Protocol
VISCA/Pelco-D/Pelco-P
Visca Control Protocolnetwork Protocol
RTSP/RTMP
Environmental
Store Temperature
-10°C to +60°C
Store Humidity
20% – 95%
Working Temperature
-10°C to +50°C
Working Humidity
20%–80%
Shipping
Weight
1.4KG
General
Sensor
1/2.8-inch-high quality HD CMOS sensor
Effective Pixels
16: 9 2.07 megapixel
Camera Parameter
Optical Zoom 5Xf=3.6~18mm, View Angle 16.43°(tele)80.9°(wide)
AV
F1.8 – F2.8
Minimum Illumination
0.5Lux (F1.8, AGC ON)
DNR
2D & 3D DNR
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
ON/OFF
WDR
OFF/Dynamic level adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
Compression Format
H.264
H.265Control Signal Interface
RS-232 Ring through RS232 output
Baud Rate
115200/9600/4800/2400bpsHD
IP Interface
100M IP port(100BASE-TX); 5G WiFi (optional), support IP
ONVIFPower Interface
HEC3800 outlet (DC12V)
Pan Rotation
±170°
Tilt Rotation
-30°~+90°
Pan Control Speed
0.1 -180°/sec
Tilt Control Speed
0.1-80°/sec
Preset Speed
Pan: 60°/sec, Tilt: 30°/sec
Preset Number
255 presets (10 presets by the remote controller)
Supply Adapter
AC110V-AC220V to DC12V/2A
Consumption
12W (Max)
Working Environment
Indoor
Remote Operation (IP)
Remote Upgrade, Reboot, and Reset
Power
Input Voltage
DC12V±10%
