Alfatron Electronics 60W-UB 60W Compact Mixer Amplifier
Alfatron Electronics 60W-UB 60W Compact Mixer Amplifier
SoundPro Item: 111991 | Part Number: 60W-UB
Usually ships in 5-7 business days
- Speaker output of 100V or 70V & 4 -16 Ohms rated power output of 60W
- USB, FM Radio & Bluetooth with remote control
- 2 MIC inputs, 1 EMC input, 2 Line inputs, 1 Line output
- Individual volume control for Mic 1-2, Aux 1-2, bass/treble, and master volume control
- Supports both AC100-240V & 24V power supply
- Priority: EMC > MIC1>Others
- LED indicators for power, clip, protect and signal
- With short-circuit, clip, overload and high temp protection
- Ideal for small venues such as classrooms, retail stores, coffee shops, restaurants, etc

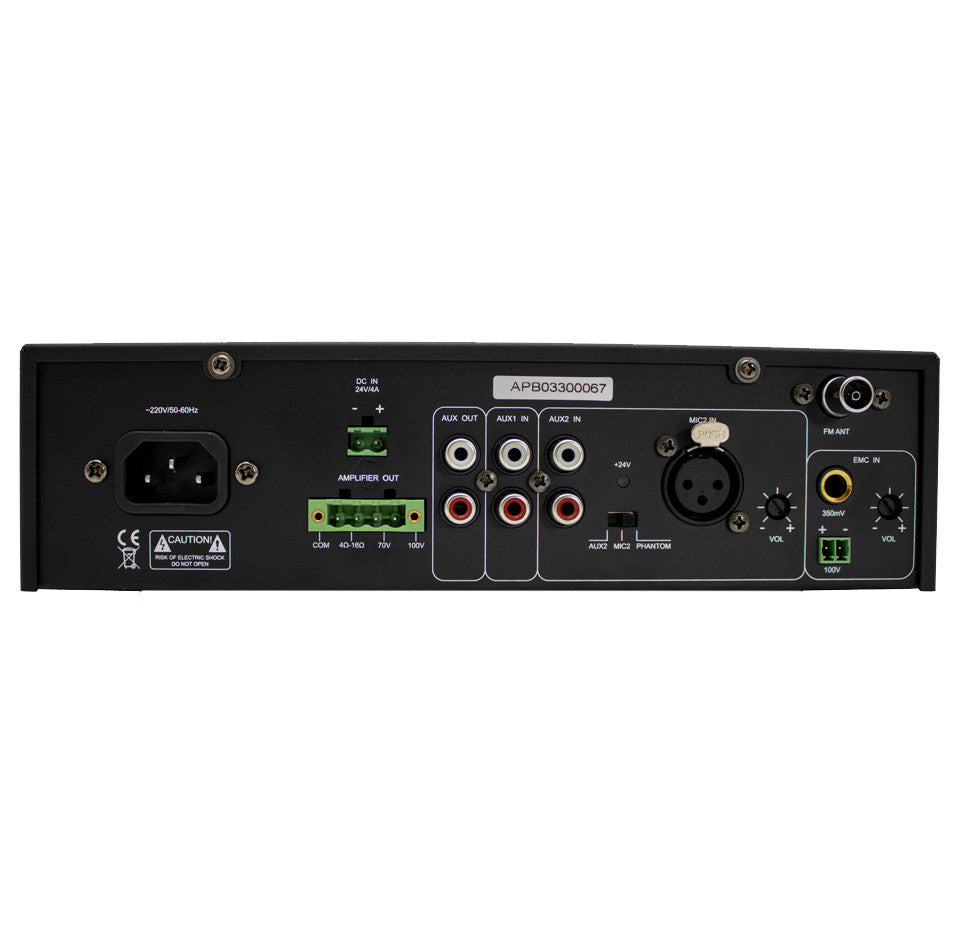

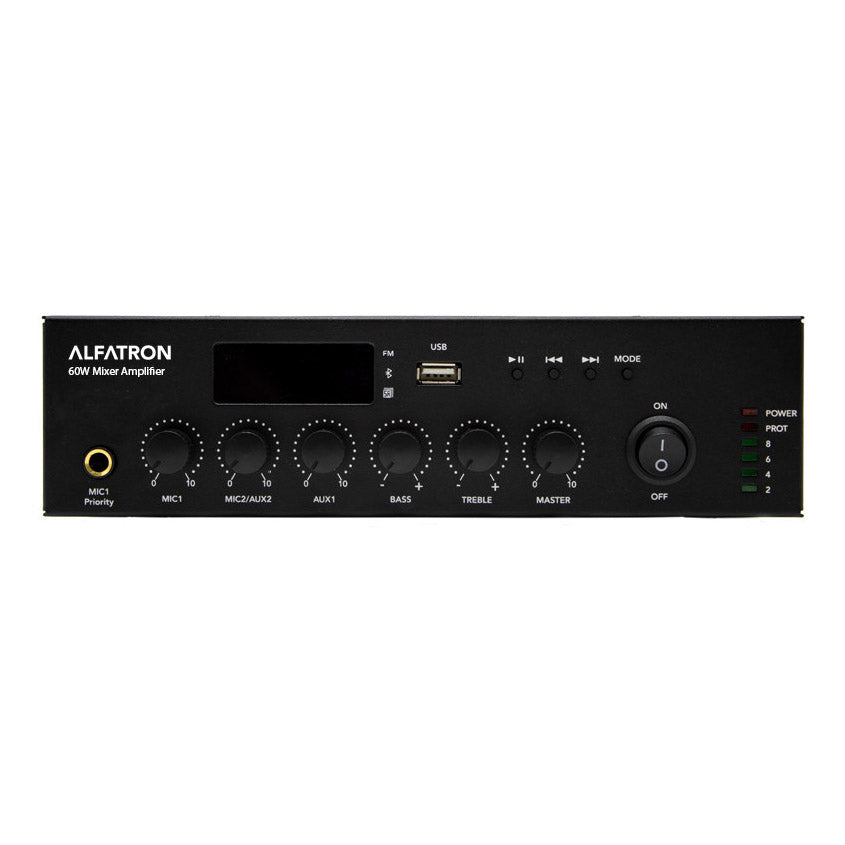

The Alfatron 60W-UB Compact Mixer amplifier has a built-in media player with Bluetooth, onboard tuner and MP3 player. Unit has front panel mic input with priority function, rear panel balanced mic input with phantom power. There is also an emergency input function, dual RCA line inputs, and RCA aux out. Operates at 60W at 70/100V and 4-16 Ohms, and has 24V backup power input.
- Description PA Amplifier with USB/SD & FM & Bluetooth
- Rated power 60W
- Speaker Outputs 100V or 70V & 4Ohms-8 Ohms-16 Ohms
- Connector
- Mic1 input by unbalance jack MIC 2 balance XLR socket
- Line1-2 inputs by RCA; Line output by RCA
- Attenuation Microphone1-2, line1-2 and Mp3/FM, bass/treble and master
- MIC1 input sensitivity 5mV
- MIC2 input sensitivity 5mV
- MIC3 input sensitivity 5mV
- AUX1 input sensitivity 350mV
- AUX2 input sensitivity 350mV
- EMC input sensitivity 350mV
- MIC frequency response 180Hz~10kHz(±3dB)
- AUX frequency response 70Hz~16kHz(±3dB)
- Noise <5mV (4 ohm load output terminal)
- THD <1%1KHz
- Protection Short-circuit, clip, overload and high temp protection
- Treble adjustment 10dB(±2)
- Bass adjustment 10dB(±2)
- Rated power Supply AC~110-220V
- Rated output voltage 60W/4Ω, AC220V
- Priority EMC > MIC1 > others
- Machine size(L×W×H) 247*198*66mm
- Packing size 343*302*121mm (1PS)
- Maximum packing size 630*355*283mm (4PS)
- Net Weight 2.6kg
- Gross Weight 3.25Kg
