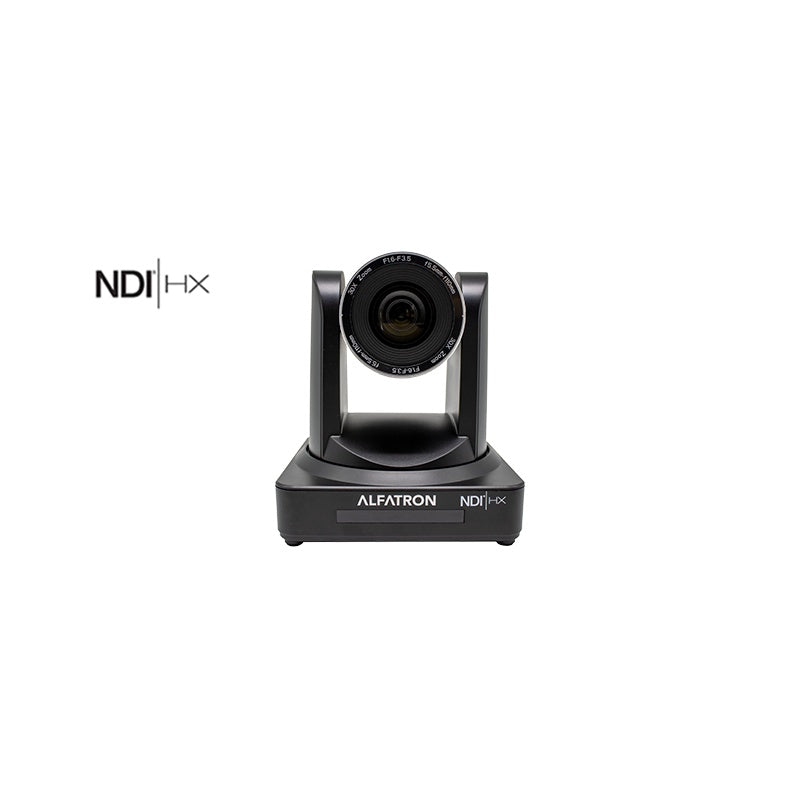

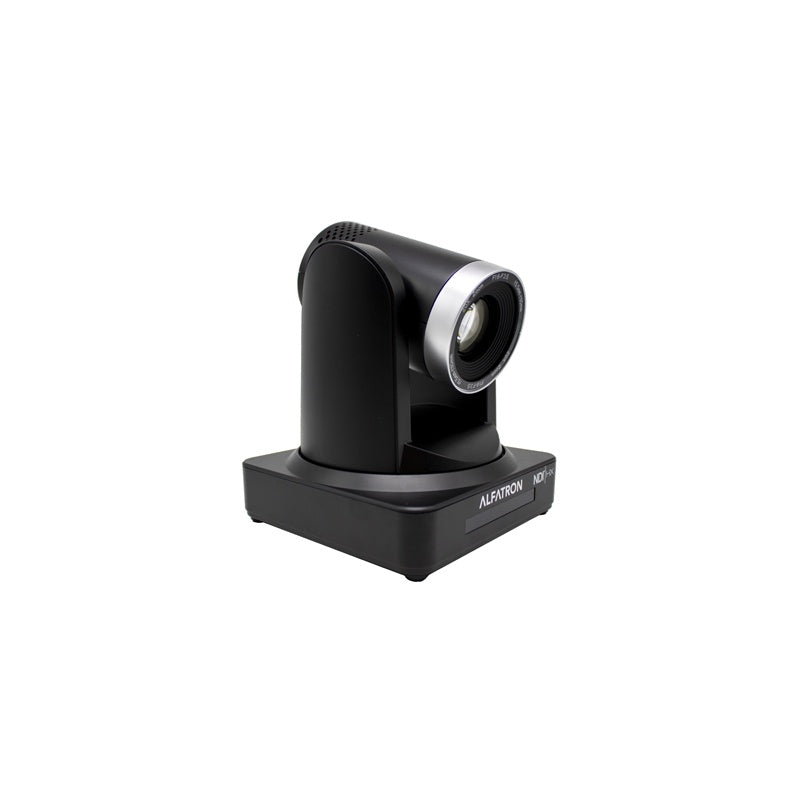

Alfatron ALF-12X-NDIC Full HD NDI PTZ Camera With 12x Zoom

Alfatron ALF-12X-NDIC Full HD NDI PTZ Camera With 12x Zoom

SoundPro Item: 124263 | Part Number: ALF-12X-NDIC

Regular price $1,799.99
Regular price $1,900.00 Sale price $1,799.99
Your Price Sold out
MSRP: $1,900.00 | MAP: $1,799.99

Usually ships in 5-7 business days

  • NDI|HX2 Network Output Enables IP-Based Production Without Additional Hardware
  • 12x Optical Zoom Covers Large Venues From A Fixed Camera Position
  • 255 Programmable Presets Support Complex Multi-Shot Production Workflows
  • Multi-Protocol Control Integrates With Existing VISCA, Pelco, And ONVIF Systems
  • PoE Power Support Simplifies Cable Routing In Permanent Installations
  • Quiet PTZ Mechanism Maintains Silent Operation In Sensitive Recording Environments
  • 2D And 3D DNR With High SNR Delivers Clean Images In Low-Light Conditions

The Alfatron ALF-12X-NDIC is a Full HD PTZ camera built for professional AV environments where reliable image quality, flexible connectivity, and remote manageability are non-negotiable. With NDI|HX2 network video output alongside simultaneous SDI and HDMI, it fits naturally into IP-based production workflows, broadcast studios, and permanently installed AV systems without requiring additional distribution hardware. The 12x optical zoom and 1/2.8-inch CMOS sensor deliver clean 1080p video at frame rates up to 60fps, making it practical for large lecture halls, houses of worship, courtrooms, and teleconferencing suites where the camera must cover significant distance without sacrificing image clarity.

For integrators, the ALF-12X-NDIC covers the full spectrum of control requirements. VISCA IP, PELCO-D, PELCO-P, PELCO-C, and ONVIF are all supported, meaning the camera drops into existing control systems without protocol adapters. Network protocols include RTSP, RTMP, ONVIF, and NDI|HX2, and the 100M IP port supports PoE power delivery on units shipped after September 2020, simplifying cable runs in installed environments. The 3.5mm audio input embeds audio into the network stream for webcasting and lecture capture applications. With 255 programmable presets, 2D and 3D DNR, and a quiet PTZ mechanism, the camera suits any setting where silence and precision repositioning matter. A ceiling or wall mount bracket is included, and the 7-year warranty reflects a commitment to long-term installed deployments.

Downloads

View full details

Specifications

Camera
Sensor
1/2.8-inch HD CMOS
Effective Pixels
2.07 megapixel, 16:9
Optical Zoom
12x (f=3.9-46.8mm)
Digital Zoom
10x
View Angle (Wide)
72.5
View Angle (Tele)
6.3
Aperture
F1.8 - F2.4
Minimum Illumination
0.1 Lux
SNR
>55dB
DNR
2D & 3D DNR
White Balance
Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
Focus
Auto / Manual / One Key Focus
Aperture/Electronic Shutter
Auto / Manual
BLC
On/Off
WDR
Off / Dynamic Level Adjustment
Video Adjustment
Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve
Video
Video Format (HDMI/SDI)
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
Video Compression
H.264, H.265, Dual Stream Output
Audio Compression
AAC / MP3 / G.711A
PTZ
Pan Rotation
+/-170
Tilt Rotation
-30 to +90
Pan Control Speed
0.1-60/sec
Tilt Control Speed
0.1-30/sec
Preset Speed
Pan: 60/sec, Tilt: 30/sec
Preset Number
255 (10 via remote controller)
Connectivity
Video Interfaces

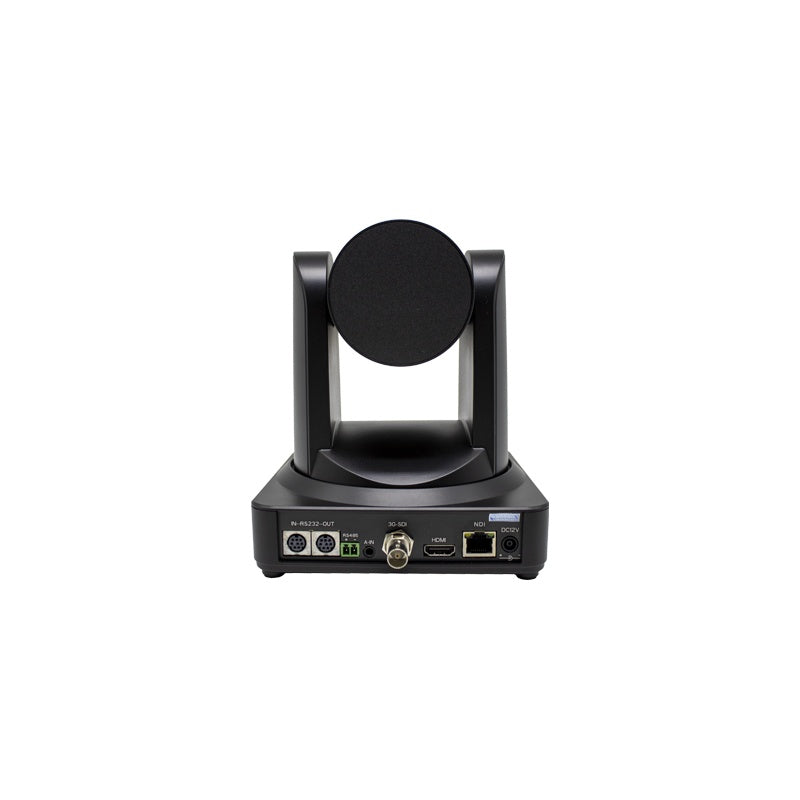

SDI, HDMI, LAN (NDI), RS232 (In & Out), RS485, A-IN
Video Output
HDMI, SDI, LAN
Audio Input
3.5mm stereo linear input (network stream embedding only)
HD IP Interface
100M IP Port (10/100BASE-TX), PoE
Control Protocol
VISCA / Pelco-D / Pelco-P; Baud Rate: 115200 / 9600 / 4800 / 2400 bps
Network Protocol
RTSP, RTMP, ONVIF, GB/T28181, NDI|HX2
Power Interface
HEC3800 Outlet (DC12V), PoE
Electrical
Supply Adapter
AC110V-AC220V to DC12V/1.5A
Input Voltage
DC12V +/-10%
Input Current
1A (Max)
Consumption
12W (Max)
Dimensions
Camera Dimensions
150mm x 150mm x 167.5mm
Shipping Length
9.843"
Shipping Width
9.843"
Shipping Height
10.236"
Weight
Camera Weight
1.4 kg
Shipping Weight
6.94 lbs
Environmental
Working Temperature
-10C to +50C
Working Humidity
20%-80%
Storage Temperature
-10C to +60C
Storage Humidity
20%-95%
Included Items
Accessories
12V/1.5A power supply, RS232 cable, remote control, manual, warranty card
Mount
Wall or ceiling mount bracket
Warranty
7 Years
Identifiers
UPC
737186699802
