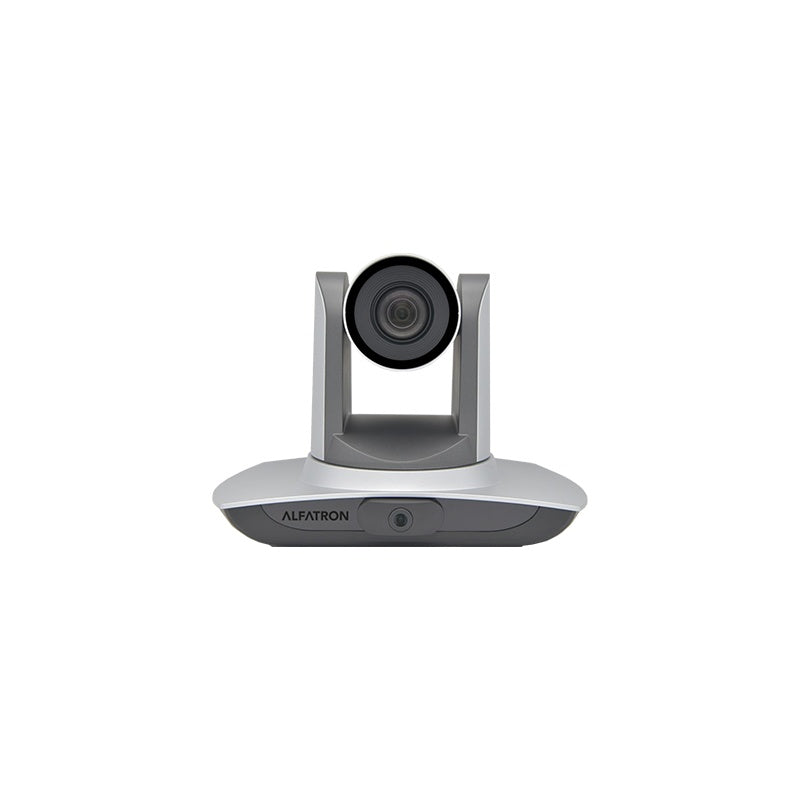

Alfatron ALF-20X-SD-TC Auto Tracking PTZ Camera With SDI

Alfatron ALF-20X-SD-TC Auto Tracking PTZ Camera With SDI

SoundPro Item: 124266 | Part Number: ALF-20X-SD-TC

$1,979.99
$2,090.00 $1,979.99
Your Price Sold out
MSRP: $2,090.00 | MAP: $1,979.99

Usually ships in 5-7 business days

  • Dual-Camera Design Covers Both Presenter Detail And Full Room Context Simultaneously
  • Auto Tracking Reduces Operator Workload In Education And Conference Environments
  • SDI Output Connects Directly To Broadcast Switchers And Recording Systems
  • Multi-Protocol Network Streaming Supports RTSP, RTMP, ONVIF, And GB/T28181
  • RS-232 And RS-485 Control Ports With VISCA And Pelco Protocol Compatibility
  • Up To 255 Programmable Presets For Flexible Scene Management
  • Remote Upgrade, Restart, And Reset Via Network Port Simplifies Maintenance
Log in or register for YOUR best price

The Alfatron Electronics ALF-20X-SD-TC is a dual-camera auto tracking PTZ designed for AV integrators and production teams serving education, corporate, and house of worship environments. The primary 20X optical zoom camera pairs with a fixed panoramic lens to simultaneously cover presenter close-ups and wide room context, giving operators and auto tracking systems the coverage they need without a second PTZ unit or manual switching.

SDI output makes the ALF-20X-SD-TC a direct fit for production switchers and recording systems already built around broadcast-standard signal paths. Network streaming via RTSP, RTMP, ONVIF, and GB/T28181 adds flexibility for IP distribution, remote monitoring, and software-based production workflows. RS-232 and RS-485 control ports with VISCA, Pelco-D, and Pelco-P protocol support integrate cleanly into existing AMX, Crestron, and third-party control systems without additional conversion hardware.

With 255 programmable presets, wide pan and tilt range, and remote upgrade and reset capability over the network port, the ALF-20X-SD-TC is built for permanent installed environments where reliability and remote management reduce on-site service calls. The dual 3.5mm audio inputs allow local source pickup to be embedded directly into the stream, eliminating a separate audio interface for basic presentation and conferencing applications.

Downloads

View full details

Specifications

Optics (Primary Camera)
Optical Zoom
20X
Focal Length
f= 4.7-94mm
Visual Angle
2.9 degrees (Narrow) to 55.4 degrees (Wide)
Digital Zoom
10X
Aperture Coefficient
F1.6 - F3.5
Minimum Illumination
0.5 Lux (F1.8, AGC ON)
Image (Primary Camera)
Image Sensor
1/2.8 inch high-quality CMOS sensor
Effective Pixels
2,070,000 (16:9)
Video Signal
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97
Video Resolutions
1920x1080P60/50/30/25; 1280x720P60/50/30/25; 960x540P30; 640x360P30; 640x480P30; 352x288P30
SNR
>55dB
DNR
2D and 3D Digital Noise Reduction
White Balance
Manual/Auto/One-Key/3000K/4000K/5000K/6500K
Focus
Auto/Manual
Aperture Control
Auto/Manual
Electronic Shutter
Auto/Manual
BLC
On/Off
WDR
Off/Dynamic Grade Adjustment
Video Regulation
Brightness, Hue, Saturation, Contrast Ratio, Sharpness, Gamma
Optics (Panoramic Lens)
Image Sensor
1/2.8 inch high-quality CMOS sensor
Effective Pixels
2,100,000
Focus
Manual
Field Angle (D/H/V)
112 degrees / 82 degrees / 57.6 degrees
Connectivity

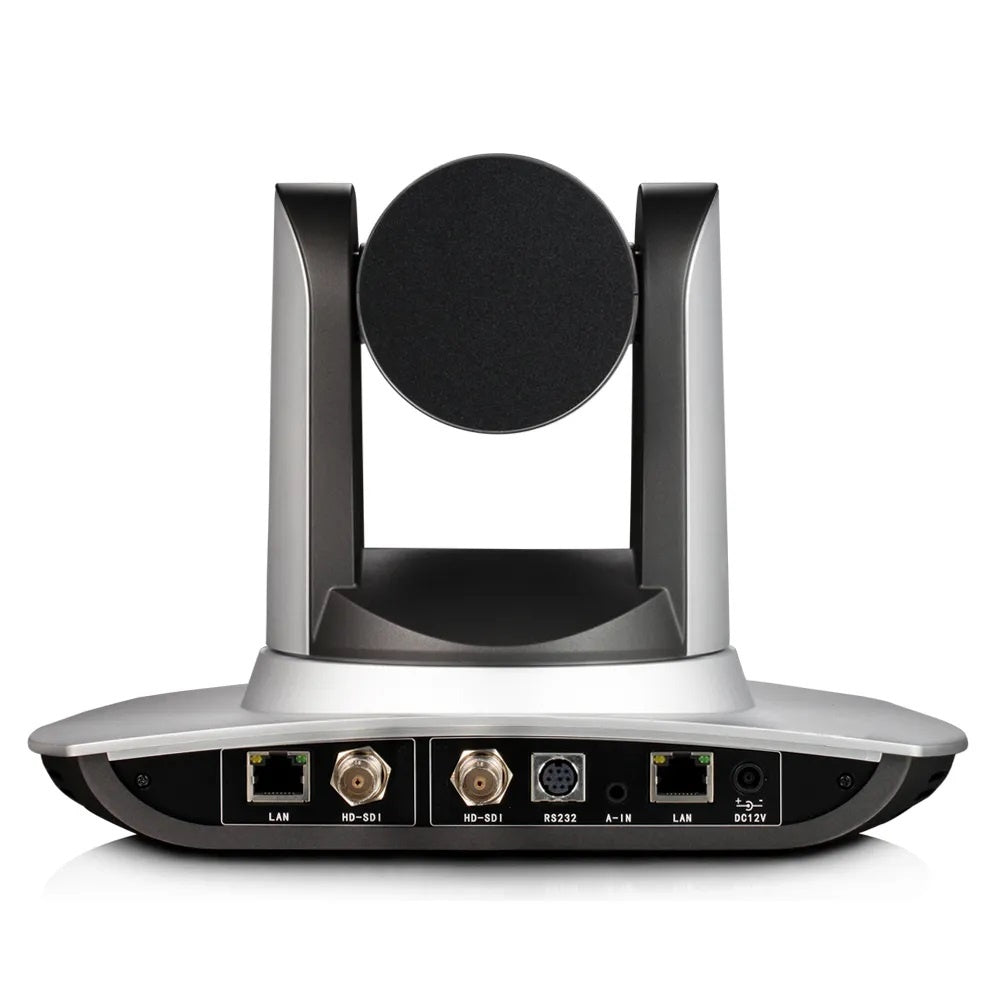

Ports
SDI, LAN, 2-channel 3.5mm linear audio input, RS232 (input)
Network Port
100M (10/100BASE-TX)
Control Signal Port
RS-232/485
Audio Input Port
Dual track 3.5mm linear input
Power Port
HEC3800 power socket (DC12V)
Panoramic Output Port
SDI, LAN
Networking
Network Protocol
RTSP, RTMP, ONVIF, GB/T28181
Video Compression
H.265, H.264
Audio Compression
AAC, MP3, PCM
Stream Output
Dual-stream
VISCA Control
Supported via network port
Control
Control Protocol
VISCA/Pelco-D/Pelco-P
Baud Rate
115,200 / 9,600 / 4,800 / 2,400 bps
Preset Quantity
255 presets (user-defined)
Pan/Tilt
Horizontal Rotation
+170 degrees to -170 degrees
Vertical Rotation
-30 degrees to +90 degrees
Horizontal Control Speed
0.1-100 degrees/s
Vertical Control Speed
0.1-45 degrees/s
Preset Speed
Horizontal: 100 degrees/s; Vertical: 45 degrees/s
Electrical
Power Adapter Input
AC110V-AC220V
Power Adapter Output
DC12V/2.5A
Input Voltage
DC12V +/-10%
Input Current
1.5A (maximum)
Power Consumption
18W (maximum)
Dimensions
Dimensions (W x H x D)
254mm x 144mm x 174mm
Shipping Length
14"
Shipping Width
11"
Shipping Height
10"
Weight
Product Weight
1.50 kg
Shipping Weight
8.37 lbs
Environmental
Operating Temperature
-10 degrees C to +50 degrees C
Storage Temperature
-10 degrees C to +60 degrees C
Operating Humidity
20%-80%
Storage Humidity
20%-95%
Operating Environment
Indoor
Included Items
Standard Accessories
12V/2.5A power adapter, RS232 control line, remote control, operation manual, warranty card
Optional Accessories
Installation support
Identifiers
UPC
788115542287
