Alfatron ALF-21E-CODEC HDMI 2.0 2x1 Auto Presentation Switcher
Alfatron ALF-21E-CODEC HDMI 2.0 2x1 Auto Presentation Switcher
SoundPro Item: 111904 | Part Number: ALF-21E-CODEC
Usually ships in 5-7 business days
- Auto Input Switching Keeps Presentations Moving Without Manual Source Selection
- CEC And RS232 Display Control Consolidates Power, Mute, And Volume Commands
- USB-C Port Carries Video, USB Data, And Up To 40W Charging Simultaneously
- Peripheral USB Devices Switch Automatically With The Active Video Input
- Balanced Analog Audio De-Embedding Feeds Room DSP Or Amplification Directly
- Smart EDID Management Prevents Compatibility Issues Across Source And Display Pairings
- Front Panel Buttons Provide Standalone Control Without External Control System

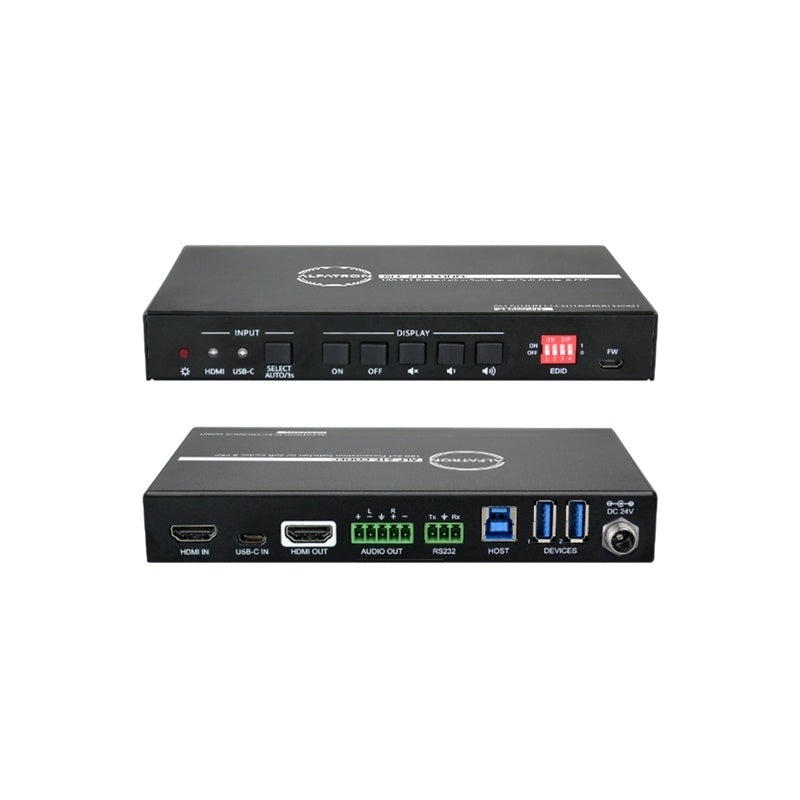

The Alfatron Electronics ALF-21E-CODEC is a compact 2x1 auto presentation switcher designed for AV integrators deploying BYOD-ready collaboration spaces, huddle rooms, and boardrooms. It accepts one HDMI 2.0 source and one USB-C source, automatically routing the active input to a single HDMI 2.0 output at resolutions up to 4Kx2K at 60Hz. The switcher handles HDCP 2.2 protected content and passes HDR 10, making it a straightforward drop-in for modern display environments without compatibility compromises.
Beyond video routing, the unit addresses the practical demands of soft-codec conferencing setups. The USB-C port delivers up to 40W of charging power to connected laptops while simultaneously carrying 4K video and USB 3.0 data. Peripheral devices such as cameras and microphones connect via Type-A USB ports and are automatically switched alongside the active video input, keeping the host computer in sync without manual intervention. A balanced stereo analog audio output on a 5-pin terminal block enables clean audio de-embedding for room DSP or amplification with strong SNR and crosstalk isolation specs suited to professional install standards.
Control options cover front panel buttons, RS232, and CEC, so display power, muting, and volume can be managed from a single point. Smart EDID management accommodates a range of downstream displays and source devices. The low-profile form factor and wide operating temperature range make it practical for rack shelves, furniture cavities, or under-table mounting in permanent installs.
Downloads
Downloads
Specifications
