Alfatron ALF-CP1L OLED Wall Panel Controller for DSP

Alfatron ALF-CP1L OLED Wall Panel Controller for DSP

SoundPro Item: 134744 | Part Number: ALF-CP1L

Regular price $459.99
Regular price $480.00 Sale price $459.99
Your Price Sold out
MSRP: $480.00 | MAP: $459.99

Usually ships in 5-7 business days

  • 2-Line OLED Display Provides Clear, Customizable Room-Side Menu Readout
  • Rotary Encoder With Push-To-Select Enables Tactile, Intuitive DSP Navigation
  • PoE Powered Over Single RJ45 Connection Eliminates Local Power Supply Requirements
  • Configured Directly In Alfatron DSP Software For Streamlined System Integration
  • Supports Volume, Preset Recall, Matrix, Button, And External Command Control
  • USA Single-Gang Form Factor Fits Standard North American Wall Box Installations

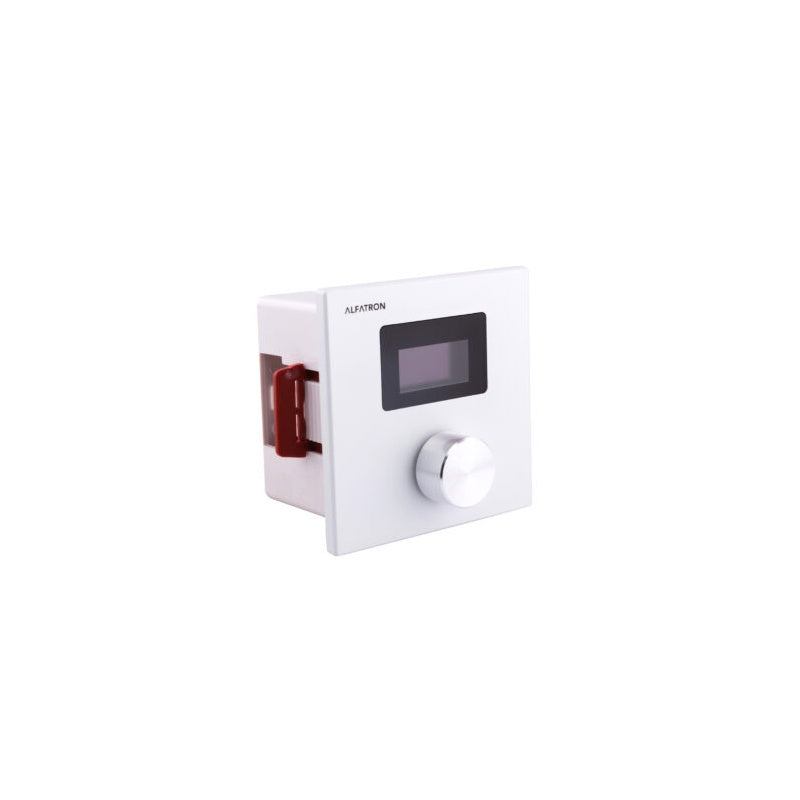

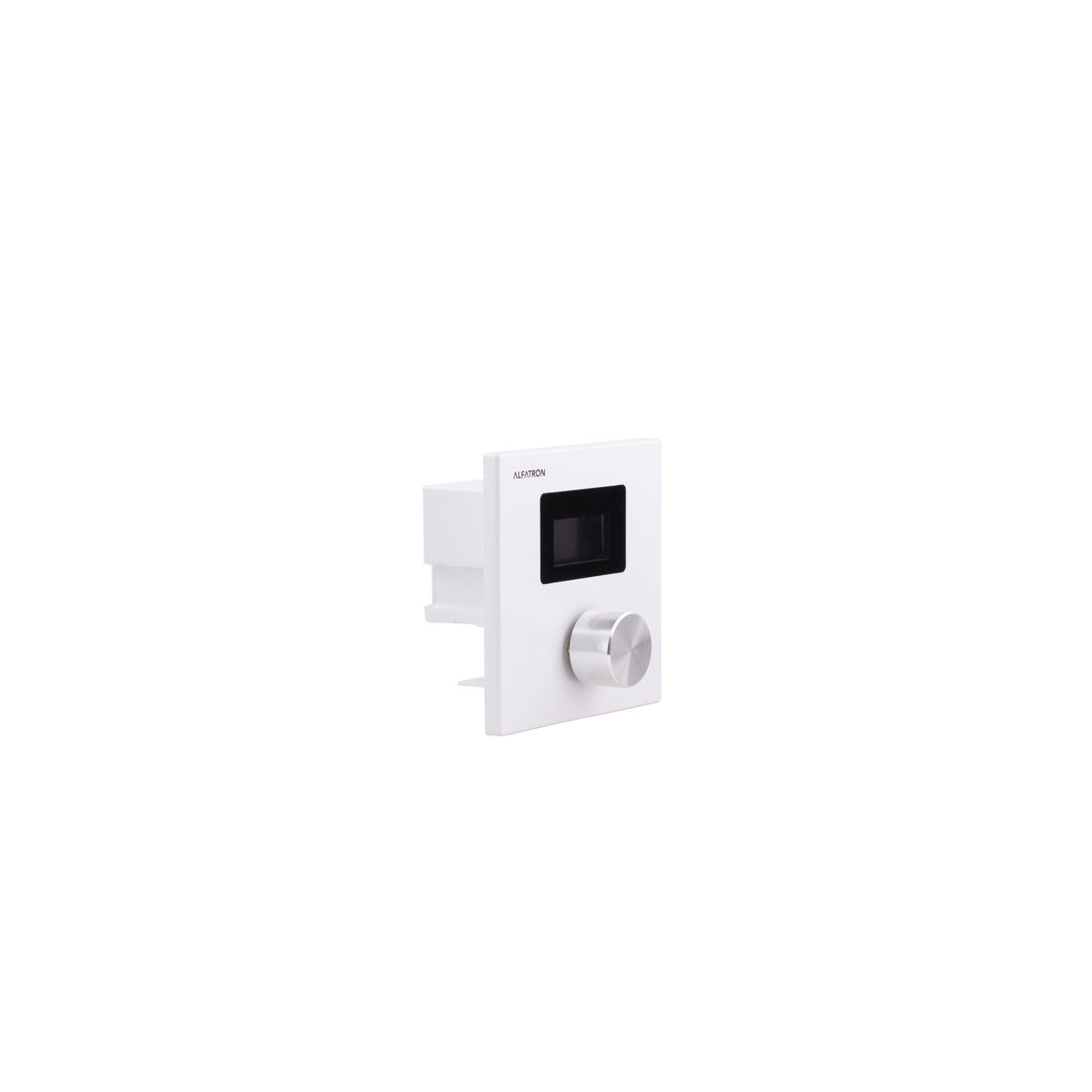

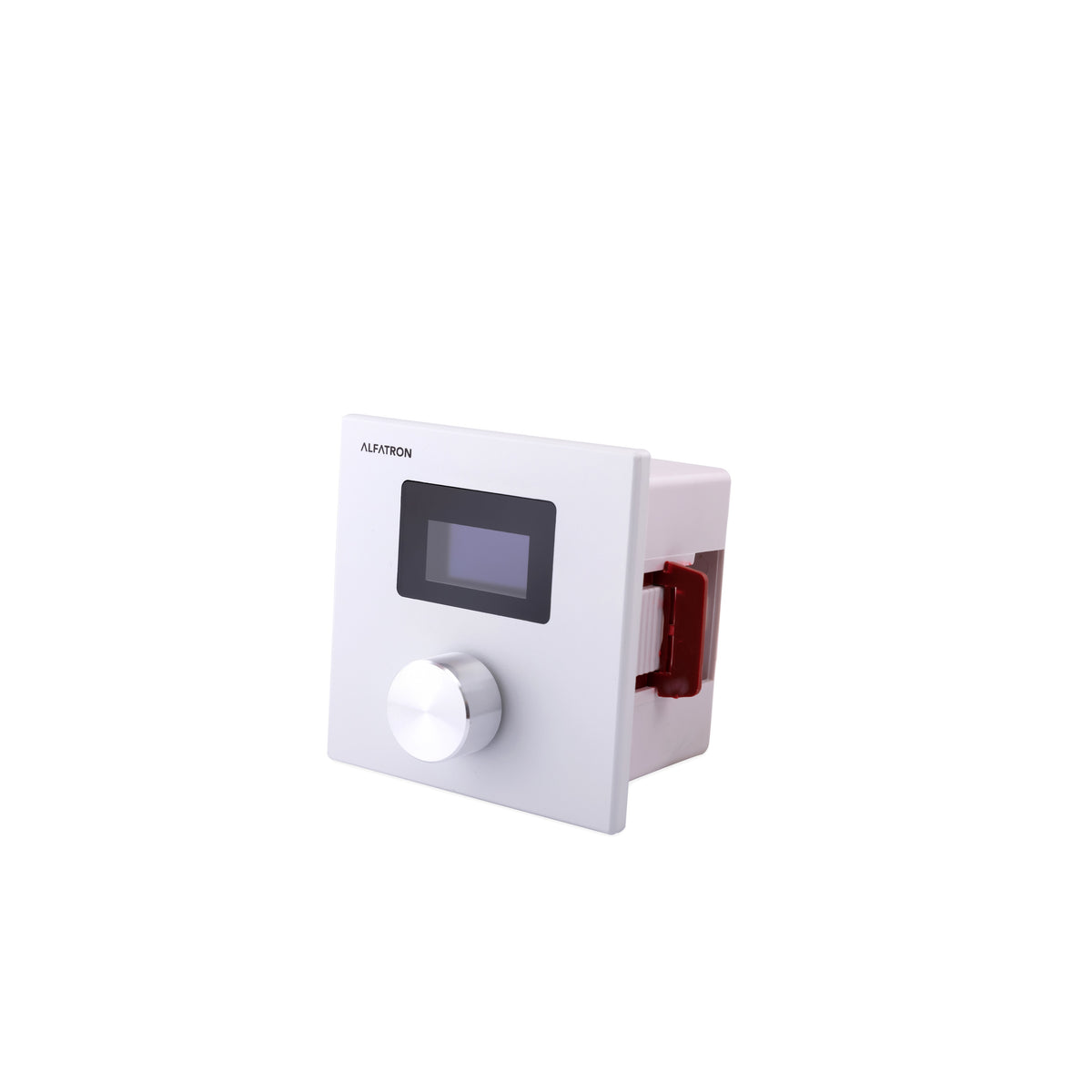

The Alfatron Electronics ALF-CP1L is a wall-mounted control panel designed for AV integrators and installed sound engineers who need a clean, room-side interface for Alfatron DSP systems. Its 1.3" OLED display presents customized menus at a glance, while the rotary encoder with push-to-select gives users tactile, intuitive control without the confusion of unlabeled buttons or touchscreen lag. Fits a USA single-gang wall box, making it a straightforward drop-in for any standard North American installation.

For integrators managing corporate AV rooms, houses of worship, education facilities, or hospitality installs, the ALF-CP1L eliminates the need for separate control processors or proprietary wall plates. Programming is handled directly through the Alfatron DSP Software interface, keeping configuration on the same platform already used for system design. PoE powering over a single RJ45 connection removes the need for a local power supply, reducing both cost and installation complexity.

The panel supports volume control, preset recall, button control, external commands, and matrix switching, covering the core control tasks found in virtually any installed AV application. At a maximum draw of 100mW, it places minimal demand on the network switch. The white finish with silver rotary encoder suits professional architectural environments where discreet, purpose-built hardware is expected over consumer-grade alternatives.

Downloads

View full details

Specifications

Display
Screen Type
OLED
Screen Size
29.5mm x 14.5mm
Controls
Button Type
Rotary Encoder with Push to Select
Connectivity
Connection
Ethernet
Connection Type
RJ45
Programmable Control Functions
Volume Control
Yes
Preset Recall
Yes
Button Control
Yes
External Commands
Yes
Matrix
Yes
Power
PoE Power Requirements
PoE
Maximum Power Consumption
100mW
Dimensions
Panel Dimensions (H x W x D)
62mm x 57mm x 30mm
Wall Box Dimensions (H x W x D)
83mm x 83mm x 50mm
Shipping Dimensions (L x W x H)
7.5" x 5" x 3"
Environmental
Operating Temperature
0 - 40°C
Construction
Color
White, with Silver Rotary Encoder
Weight
Product Weight
0.9 lbs
Shipping Weight
0.4kg
Identifiers
UPC
658325230451
