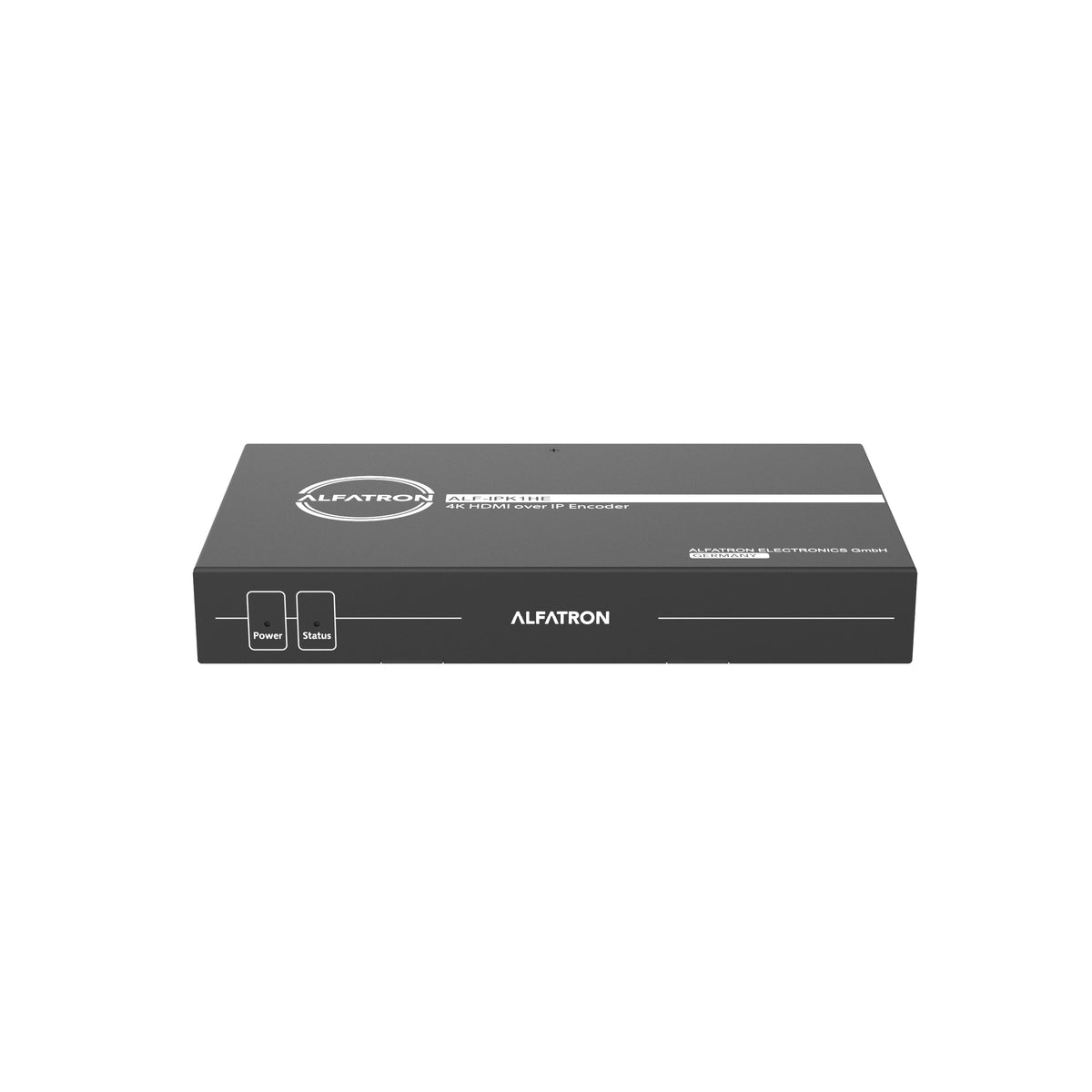

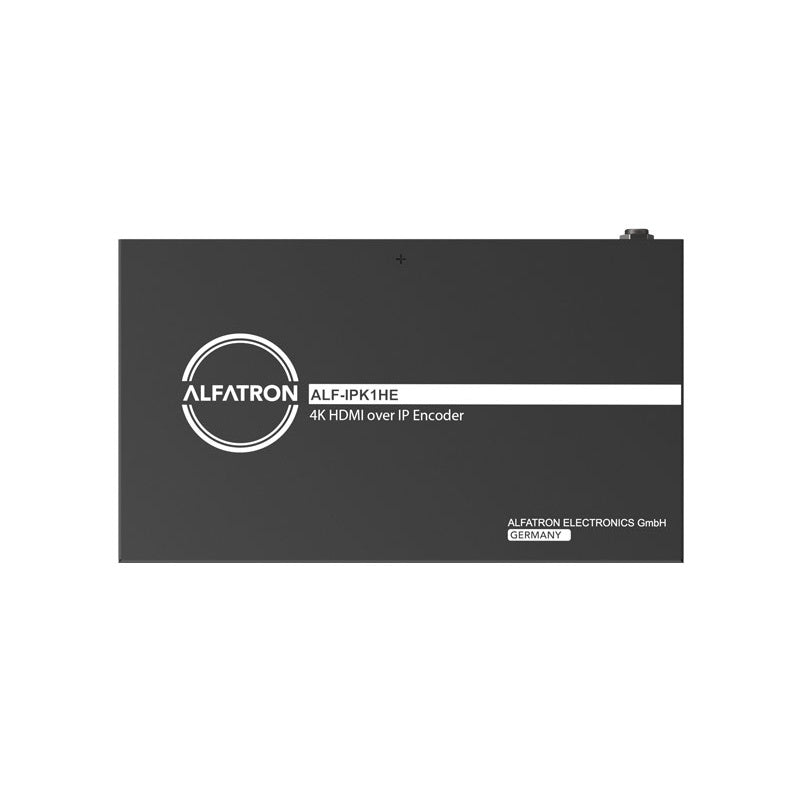

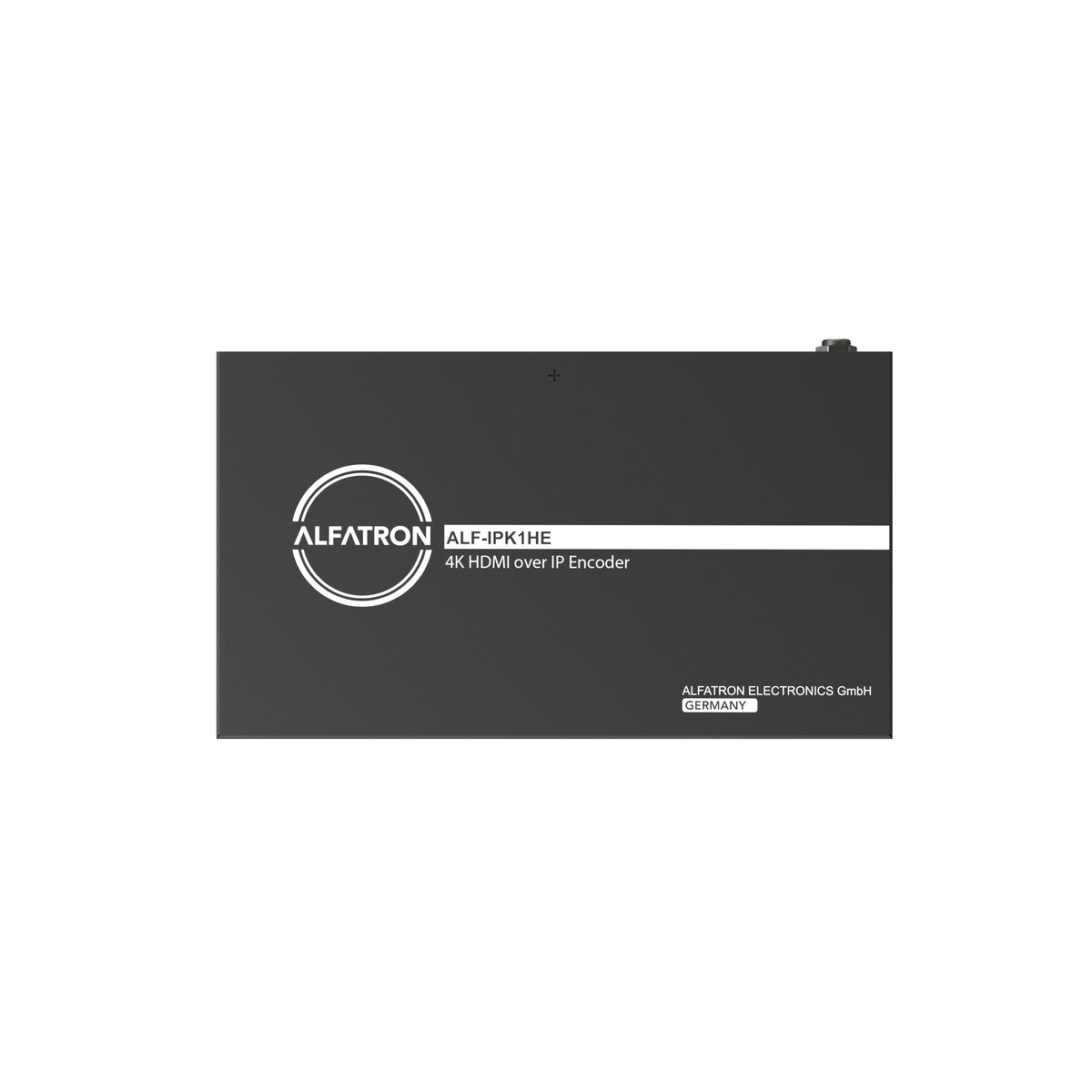

Alfatron ALF-IPK1HE 4K AV Over IP H.265 Encoder
Alfatron ALF-IPK1HE 4K AV Over IP H.265 Encoder
SoundPro Item: 146145 | Part Number: ALF-IPK1HE
Usually ships in 5-7 business days
- H.265 Compression Enables Bandwidth-Efficient 4K Video Transport Over IP
- HDCP 2.2 Compliance Supports Protected Content Distribution Across Installations
- PoE Or DC Power Input Simplifies Cabling In Rack And Surface Installations
- Plug-And-Play Ethernet Operation Requires No Switch Configuration
- Drag-And-Drop Source Management Provides Visual Control Of Multi-Display Layouts
- RS232 Routing Follows Video Source Switching For Streamlined Control Integration

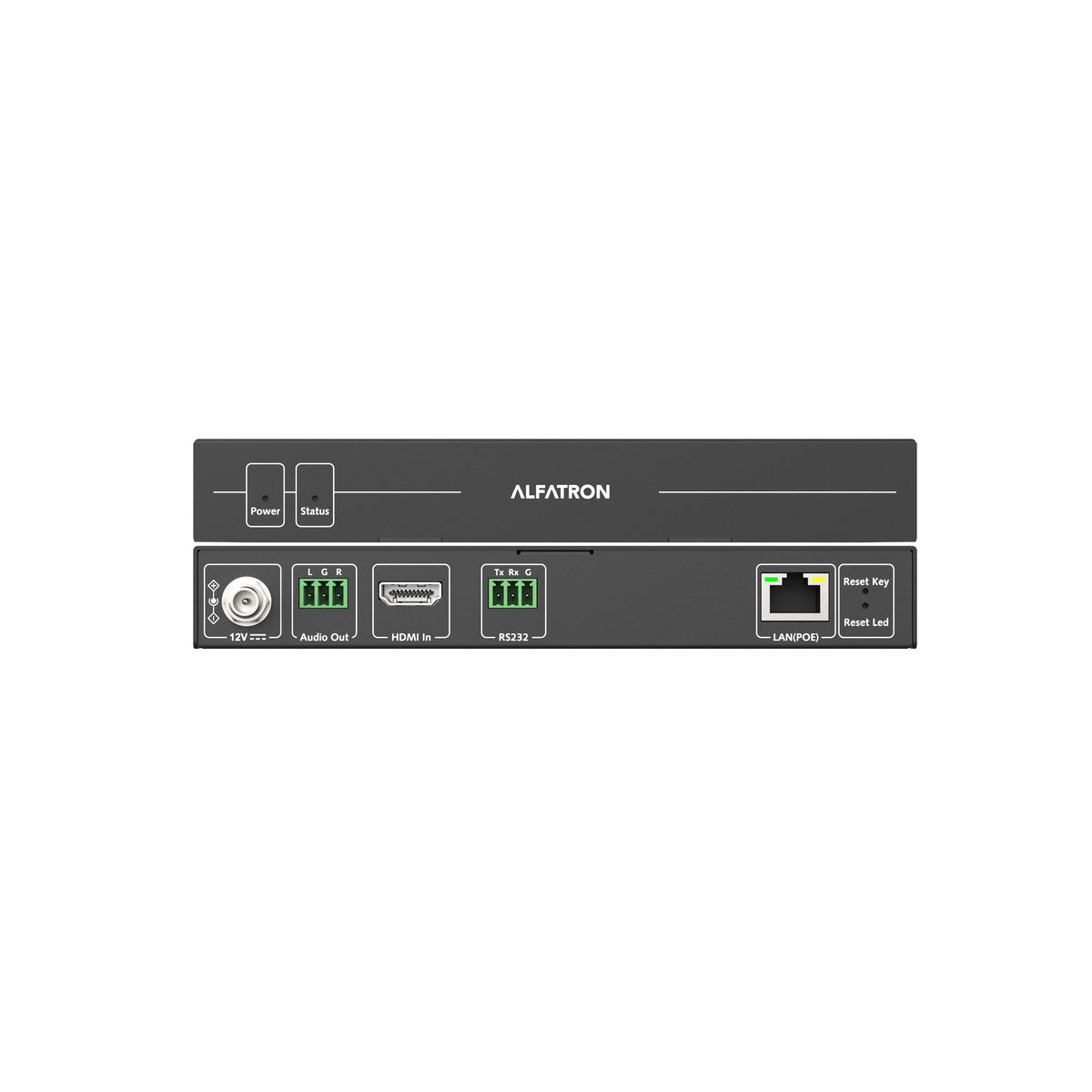

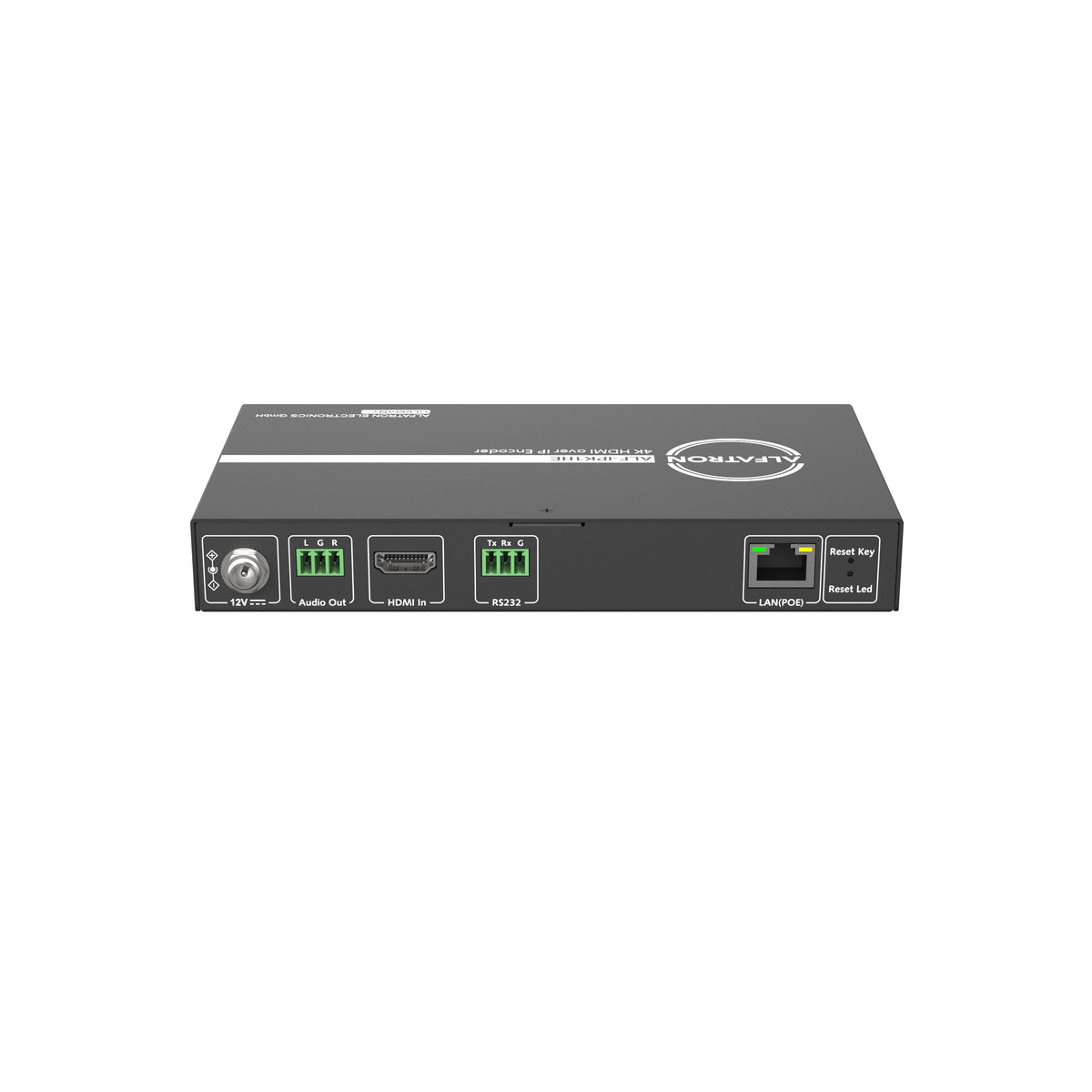

- LAN And Line Out Audio Outputs Support Embedded And Breakout Audio Needs
The Alfatron Electronics ALF-IPK1HE is built for AV integrators and installation teams who need to distribute 4K video across a network without dedicated video cabling. Using H.265 compression, it encodes HDMI signals at resolutions up to 4K at 30Hz and transmits them over a standard managed Ethernet switch. This approach makes it a practical fit for digital signage arrays, multi-display conference room systems, and campus-wide distribution where pulling dedicated AV cable is not cost-effective.
What separates the ALF-IPK1HE from basic streaming encoders is its zero-configuration plug-and-play operation. There is no switch programming required for basic deployment, and a drag-and-drop preview interface allows operators to assign sources to displays without touching network configuration. For installations that need an IP matrix or a video wall, the encoder pairs with compatible decoders that include a built-in scaler and support seamless source switching. RS232 routing follows video source switching automatically, which reduces the complexity of control system programming in boardrooms and command centers.
Audio is carried as MPEG4-AAC or LPCM stereo, either embedded over LAN or broken out to a line output. The unit accepts DC 12V or PoE, keeping rack and table installations clean. With a compact form factor and broad HDCP 2.2 compliance, the ALF-IPK1HE fits deployments where content protection is a requirement alongside high-resolution distribution.
