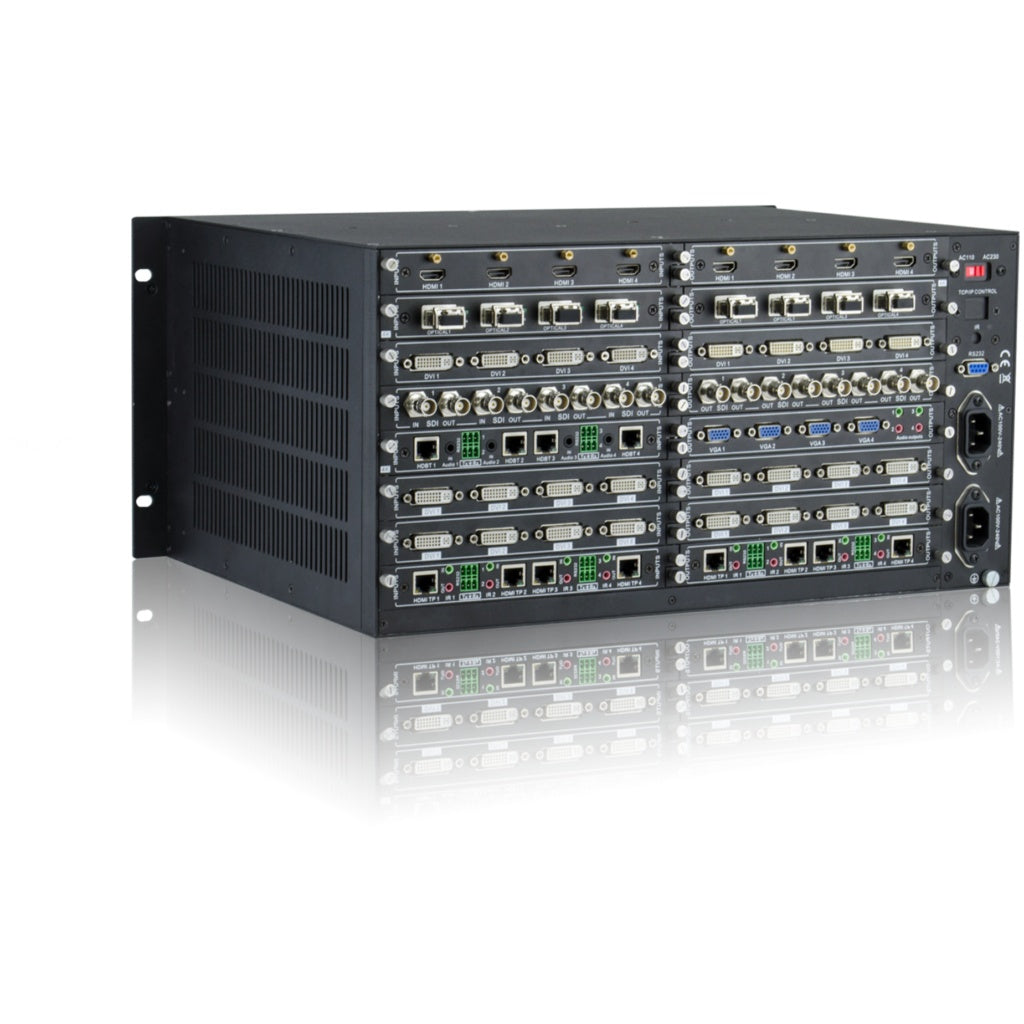

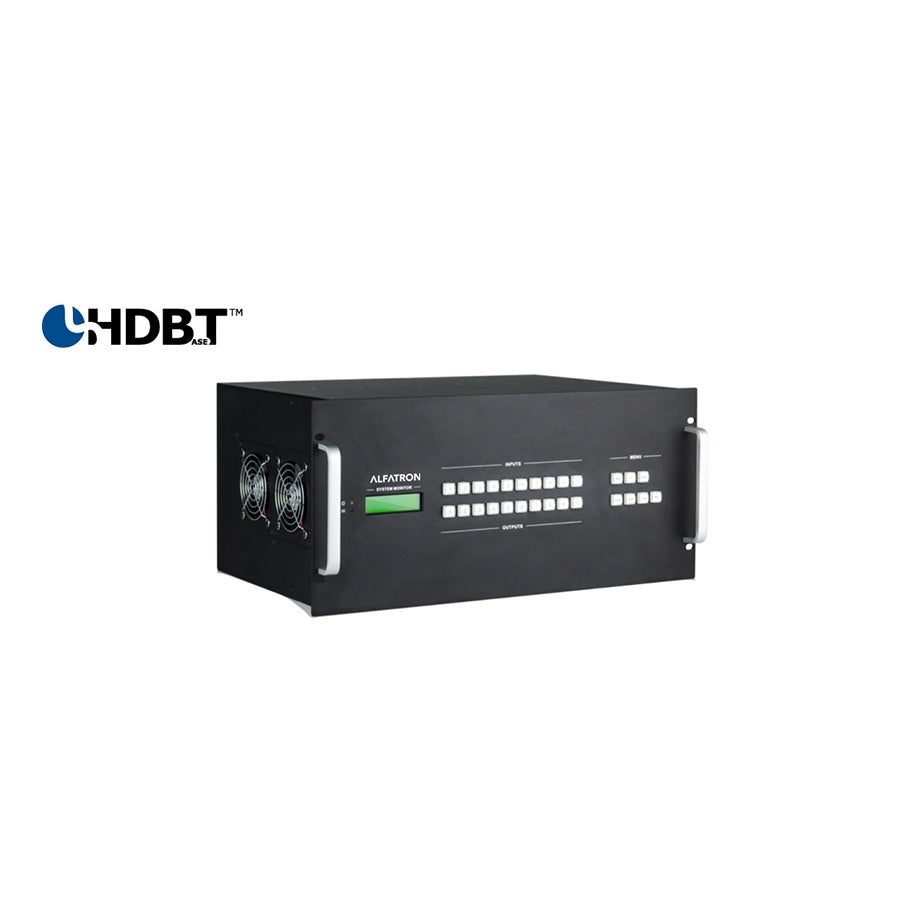

Alfatron ALF-MMX3232-N 32x32 Modular Matrix Switcher Chassis

Alfatron ALF-MMX3232-N 32x32 Modular Matrix Switcher Chassis

SoundPro Item: 114200 | Part Number: ALF-MMX3232-N

Regular price $7,999.99
Regular price $8,596.00 Sale price $7,999.99
Your Price Sold out
MSRP: $8,596.00 | MAP: $7,999.99

Usually ships in 5-7 business days

  • Modular 32x32 Architecture Supports Up To 8 Input And 8 Output MMX Cards
  • Redundant Power Supply Ensures Continuous Operation In Mission-Critical Installs
  • Audio Break-Out Switching Enables Independent Audio Routing Alongside Video
  • Backlit Front Panel Buttons Allow Confident Operation In Low-Light Environments
  • RS232 And Optional TCP/IP Control For Flexible System Integration
  • Compatible With Multiple Card Types Including HDMI, HDBaseT, And VGA Options

The Alfatron Electronics ALF-MMX3232-N is a 32x32 modular matrix switcher chassis built for integrators and production teams who need flexible, large-scale AV signal routing in a single rack unit. Accepting up to 8 MMX input cards and 8 MMX output cards, the chassis supports a range of signal types depending on which cards are installed, including 4K HDMI, HDBaseT, and VGA options, making it adaptable to installed AV environments, rental staging, broadcast facilities, and corporate presentation systems.

Control options include RS232, front panel button operation, and optional TCP/IP, giving system operators the flexibility to integrate the matrix into both simple and networked control architectures. Backlit buttons simplify operation in low-light environments, while the redundant power supply supports mission-critical installations where downtime is not acceptable. Audio break-out switching adds value for systems that require independent audio routing alongside video.

Unlike fixed-configuration matrix switchers, the modular card design allows the ALF-MMX3232-N to be configured precisely to match a project's signal requirements, and reconfigured as those requirements change over time. This reduces the need to replace the entire chassis when signal formats or distribution topologies evolve, making it a long-term investment for permanent installations and large-venue production environments.

Downloads

View full details

Specifications

General
Form Factor
5U Modular Chassis
Input Slots
8 x MMX Input Card Slots
Output Slots
8 x MMX Output Card Slots
Matrix Size
32x32
Control
Serial Control
RS232
Panel Control
Front Panel Button
Network Control
Optional TCP/IP
Dimensions
Length
22"
Width
16"
Height
14"
Weight
Product Weight
22 lbs
Identifiers
UPC
788115559810
