Alfatron ALF-MMX88A-N 8x8 Modular Matrix Switcher Chassis

Alfatron ALF-MMX88A-N 8x8 Modular Matrix Switcher Chassis

SoundPro Item: 114198 | Part Number: ALF-MMX88A-N

$2,599.99
$2,602.00 $2,599.99
Your Price Sold out
MSRP: $2,602.00 | MAP: $2,599.99

Usually ships in 5-7 business days

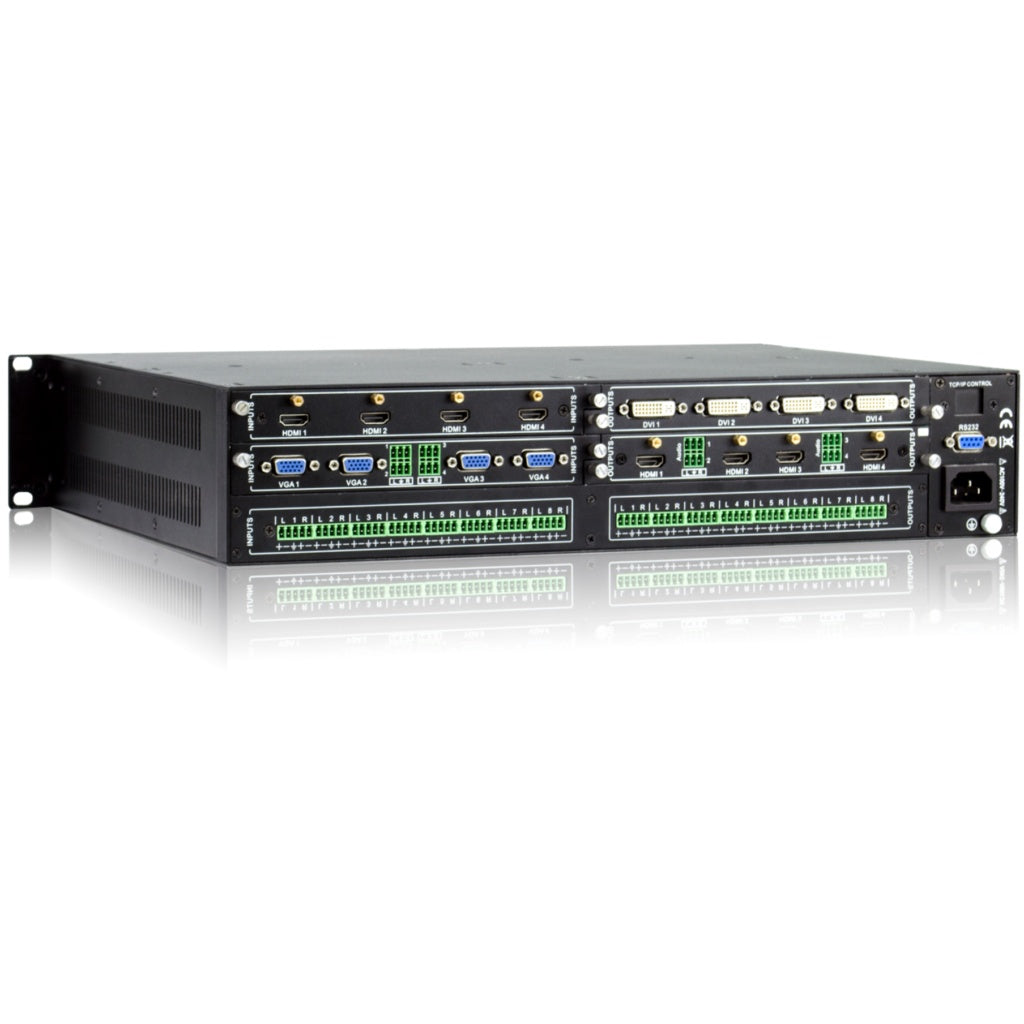

  • Modular Card Architecture Allows HDMI, HDBaseT, And SDI Signal Types In One Chassis
  • Audio Breakaway Switching Enables Independent Video And Audio Routing
  • Redundant Power Supply Support Protects Against Single-Point Failures In Fixed Installs

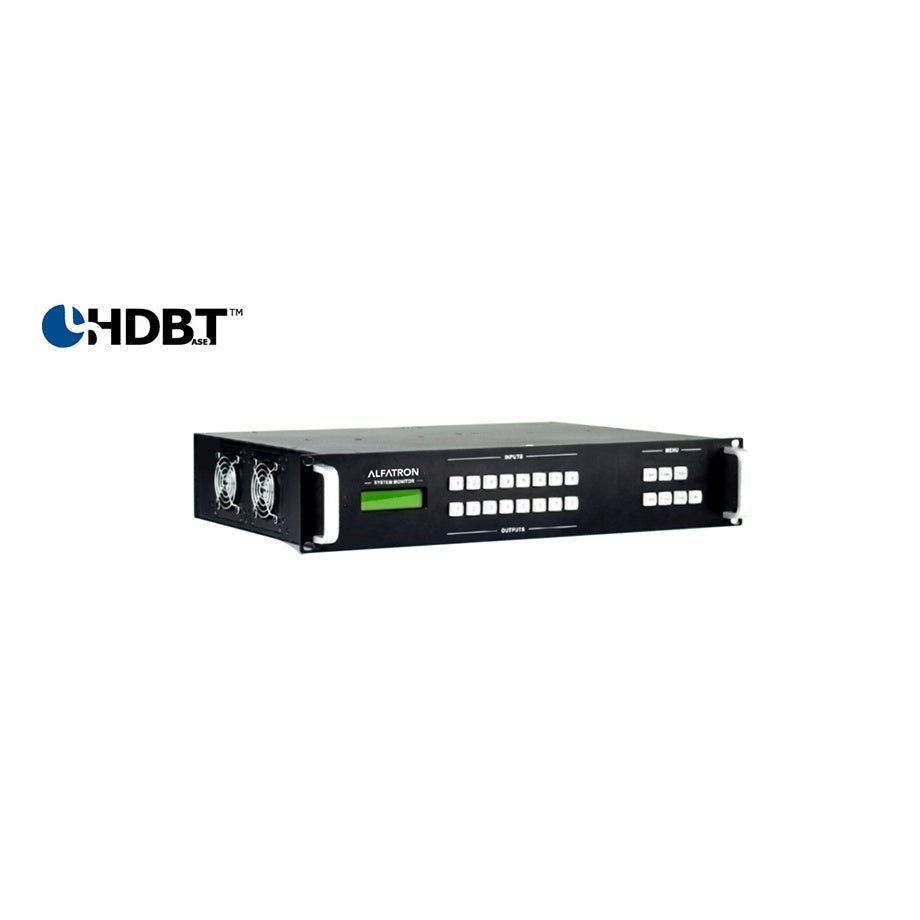

  • Backlit Front-Panel Buttons Provide Direct Local Control Without External Software
  • RS232 And Optional TCP/IP Control Enable Integration With Room Automation Systems
  • Rack-Mountable 2U Form Factor Fits Standard Equipment Racks In Any Install Environment
Log in or register for YOUR best price

The Alfatron Electronics ALF-MMX88A-N is a 2U rack-mountable modular matrix switcher chassis designed for AV integrators and production teams who need a scalable, signal-agnostic routing solution. The chassis accommodates up to two MMX input cards and two MMX output cards, allowing integrators to mix and match HDMI, HDBaseT, and SDI card types within a single frame to match the exact demands of a boardroom, lecture hall, house of worship, broadcast control room, or live event production environment.

Card options span 4K HDMI, 4K HDBaseT, seamless HDBaseT, and 1080p SDI, giving teams the flexibility to route sources across different signal formats without an external converter. Audio breakaway switching decouples audio routing from video, a critical capability for broadcast and installed AV applications where program audio must be managed independently. Control options include front-panel backlit buttons, RS232 via a 9-pin D-sub connector, and optional TCP/IP for integration with room control systems and automation platforms.

Redundant power supply support protects mission-critical installations from single-point failures, making the ALF-MMX88A-N a practical choice for fixed installations where downtime is not acceptable. Its modular architecture means signal format upgrades can be handled at the card level without replacing the entire chassis, protecting the infrastructure investment over the life of a facility.

Downloads

View full details

Specifications

General
Rack Height
2U
Installation
Rack Mountable
Power Supply
100VAC - 240VAC, 50/60Hz
Power Consumption
23W (Max, no load)
Net Weight
About 3KG (no signal card)
Dimensions (W x H x D)
483mm x 88mm x 320mm
Operation Temperature
-10 degrees C to +55 degrees C
Storage Temperature
-25 degrees C to +70 degrees C
Relative Humidity
10%-90%
Control
Serial Control Port
RS232, 9-pin female D connector
RS232 Pin Configuration
2 = TX, 3 = RX, 5 = GND
Front Panel Control
Buttons (backlit)
Optional Control
TCP/IP
Connectivity
Input Card Slots
2
Output Card Slots
2
Matrix Configuration
8 inputs x 8 outputs
Identifiers
UPC
788115489414
