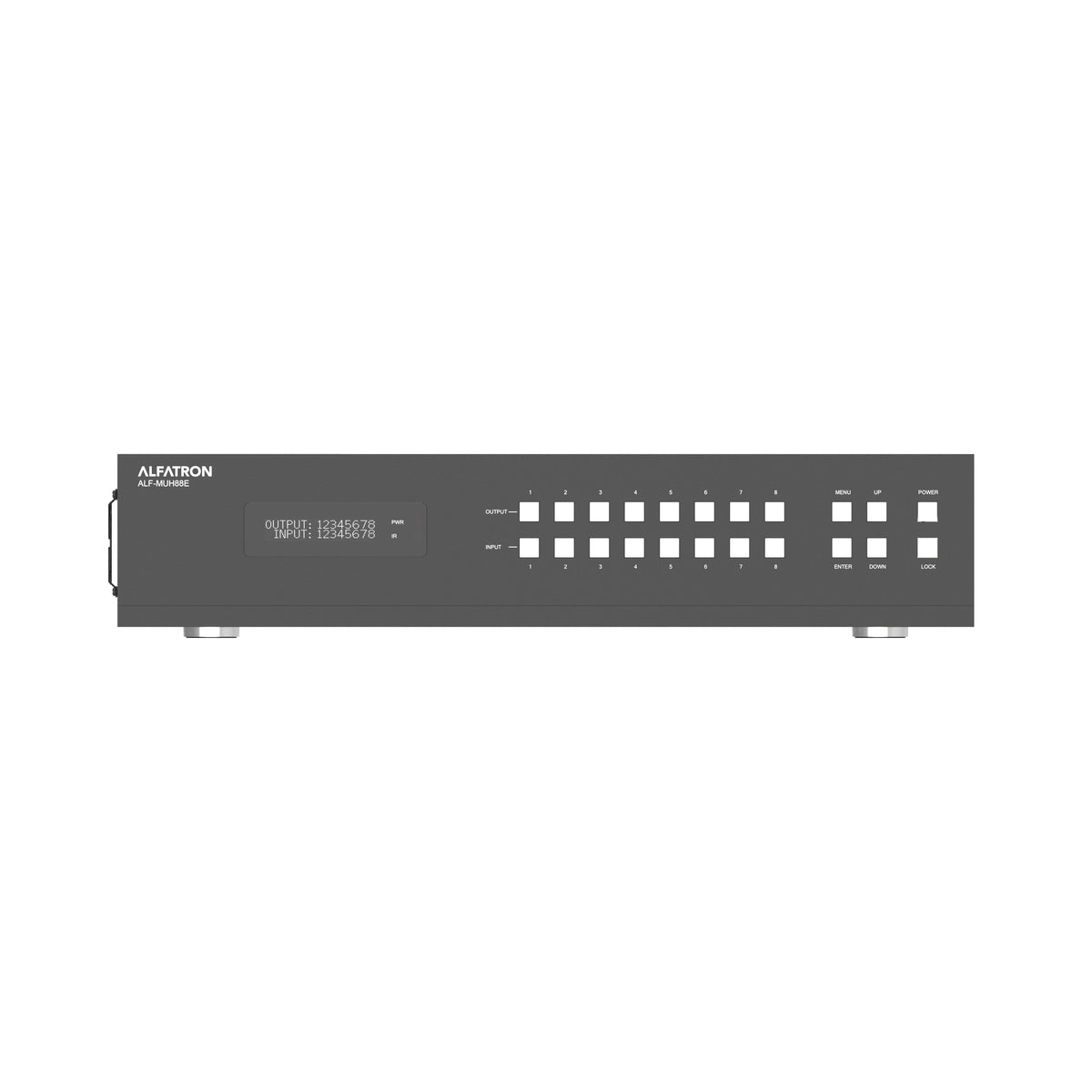

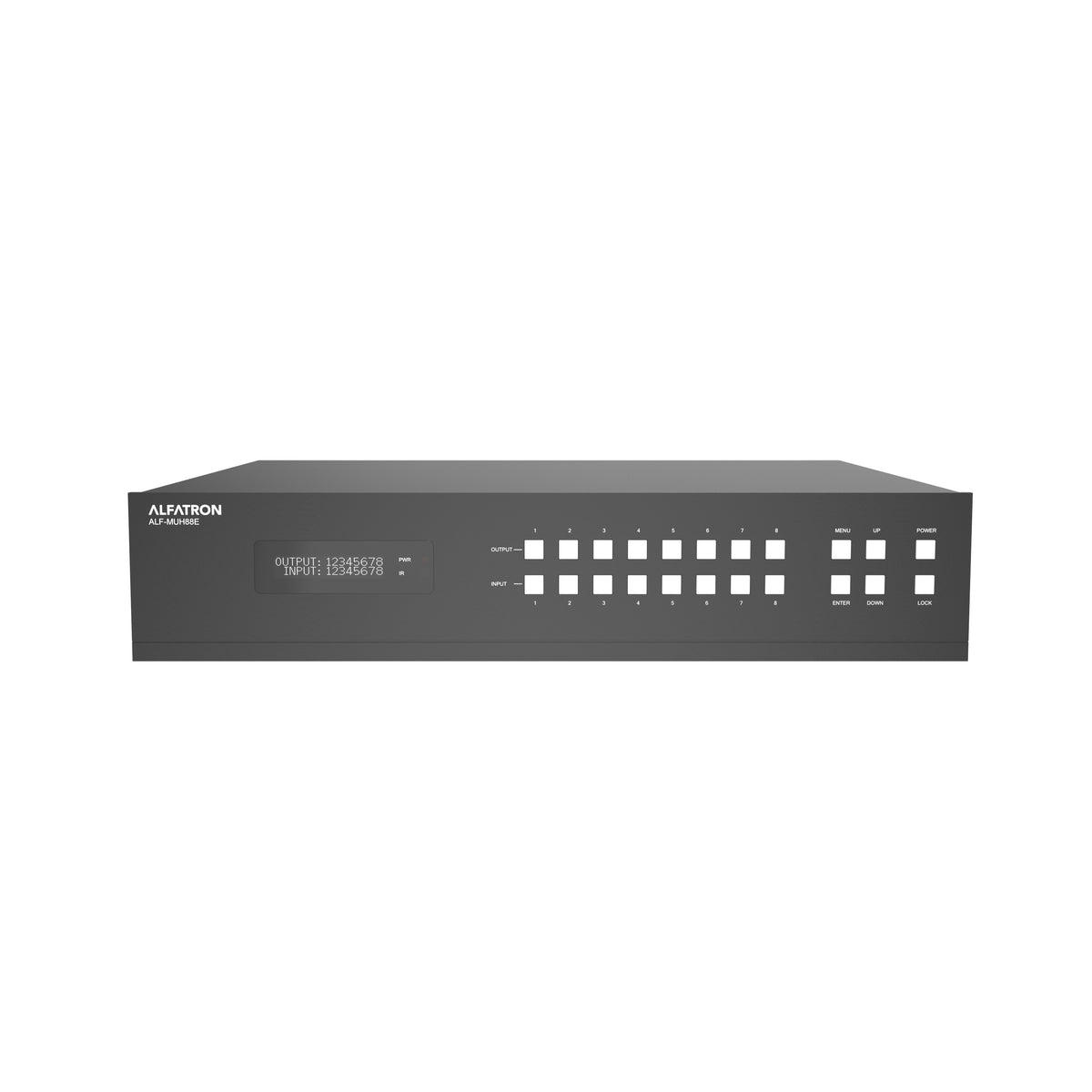

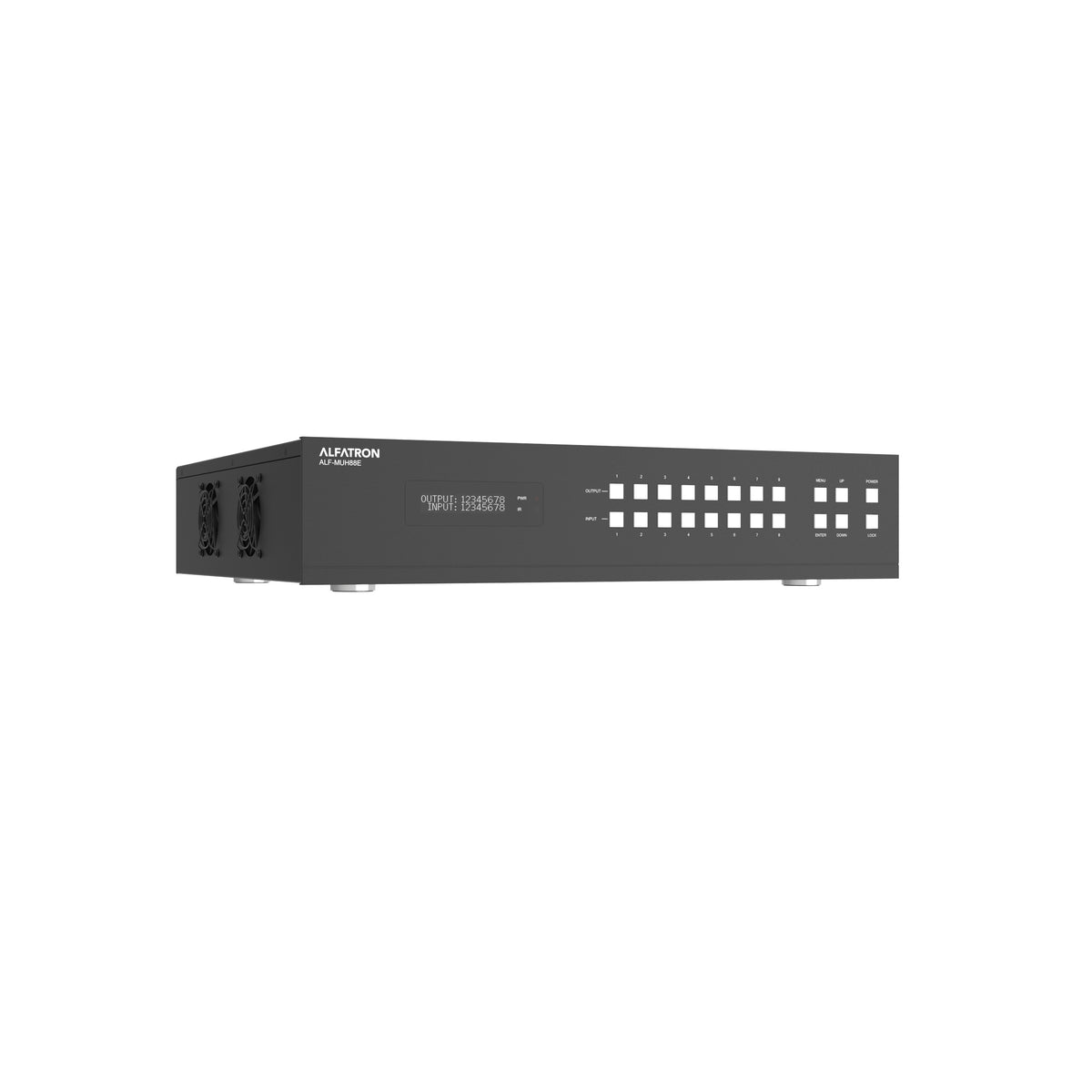

Alfatron ALF-MUH88EGEN2 18G 8x8 HDBaseT Matrix With Receivers

Alfatron ALF-MUH88EGEN2 18G 8x8 HDBaseT Matrix With Receivers

SoundPro Item: 147043 | Part Number: ALF-MUH88EGEN2

Regular price $4,699.99
Regular price $5,206.00 Sale price $4,699.99
Your Price Sold out
MSRP: $5,206.00 | MAP: $4,699.99

Usually ships in 5-7 business days

  • 18Gbps Lossless Video Bandwidth Preserves Full 4K60 Signal Quality Across All Ports

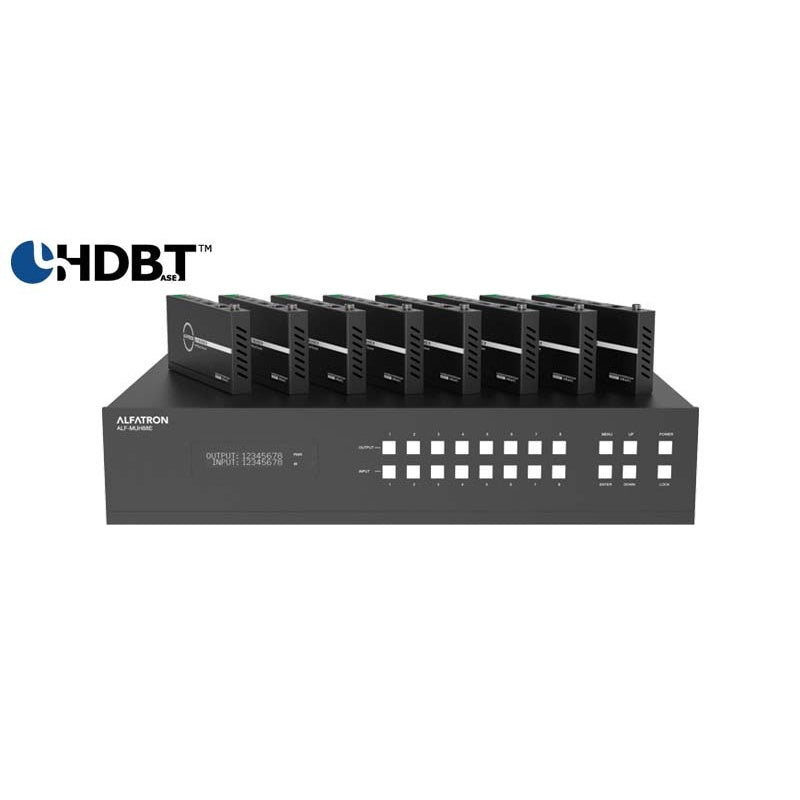

  • 8 Included HDBaseT Receivers Provide A Complete Distribution System Ready To Deploy
  • Per-Port 4K To 1080p Downscaling Ensures Compatibility With Legacy Displays
  • HDBaseT Extension Over CAT 6/7 Reduces Cabling Infrastructure Cost In Large Venues
  • Audio De-Embedding Via Analog And Coaxial Outputs Supports Flexible Audio Routing
  • Multiple Control Interfaces Including RS-232, LAN, And Web GUI For Integration Flexibility
  • 24V Power Over Cable On All HDBaseT Ports Simplifies Receiver Installation

The Alfatron ALF-MUH88EGEN2 is an 18 Gbps 8x8 HDBaseT matrix designed for AV integrators and system designers who need to distribute high-resolution content across large installed environments. With 8 HDMI inputs, 8 mirrored HDMI outputs, and 8 HDBaseT outputs, the matrix can simultaneously feed up to 16 displays from a single unit. Eight HDBaseT receivers are included, making this a complete distribution solution out of the box rather than a chassis that requires separate receiver purchases.

Targeted at corporate AV, education, houses of worship, and command-and-control installations, the matrix handles 4K2K at 60Hz with YUV 4:4:4 color space on both HDMI and HDBaseT ports, and supports HDR10, HDR10+, and HLG for modern display ecosystems. HDBaseT runs extend up to 492ft at 1080p or 328ft at 4K over a single CAT 6 or CAT 7 cable, eliminating the cost of additional fiber infrastructure in mid-size facilities. Per-port 4K-to-1080p downscaling provides backward compatibility with legacy displays without additional converters.

System control is covered across every common integration protocol: front panel buttons, IR remote, RS-232, LAN, and a web GUI all provide access, making the unit compatible with Crestron, AMX, and other third-party control systems. Audio de-embedding via analog and coaxial outputs, 7.1-channel HD audio passthrough, advanced EDID management, CEC control, and 24V Power over Cable on all HDBaseT ports round out the feature set for a fully managed AV distribution backbone.

Downloads

View full details

Specifications

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 and HDCP 1.x
Video Bandwidth
18Gbps
Video Resolution
Up to 4K2K@50/60Hz (4:4:4)
Color Space
RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth
8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K2K@60Hz YUV 4:4:4); 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0)
HDR Formats
HDR10, HDR10+, HLG
HDMI Audio Formats
LPCM 2.0 / 2.1 / 5.1 / 6.1 / 7.1, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coax Audio Formats
PCM 2.0
Analog Balanced Audio Formats
PCM 2.0CH
Vmax
2Vrms
SNR
>90dB
THD+N Ratio
<0.1% (Vmax); 0.001%-0.01% (Vbest)
Crosstalk
>80dB
Frequency Response
20Hz-20kHz +/- 0.5dB
ESD Protection
Human-body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)

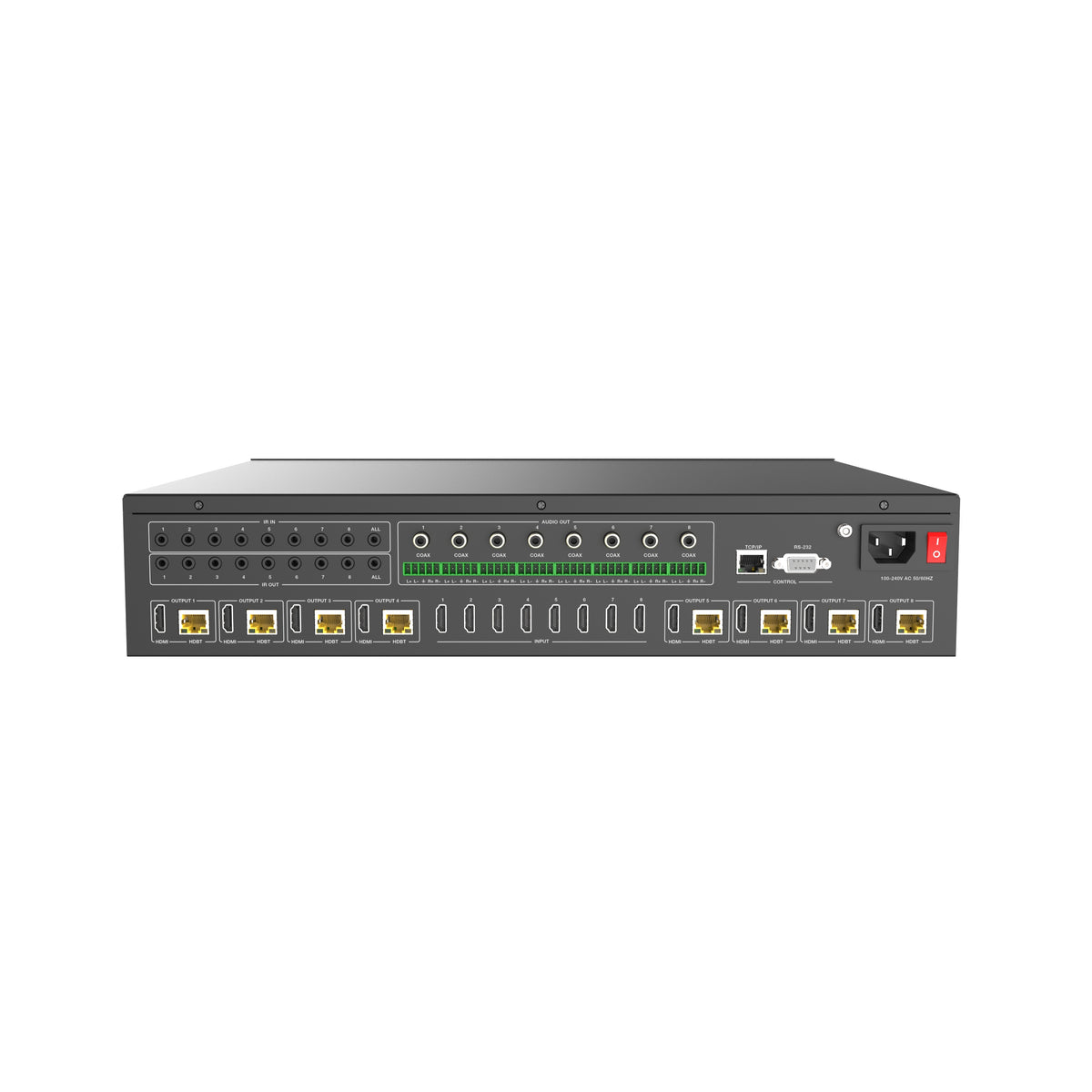

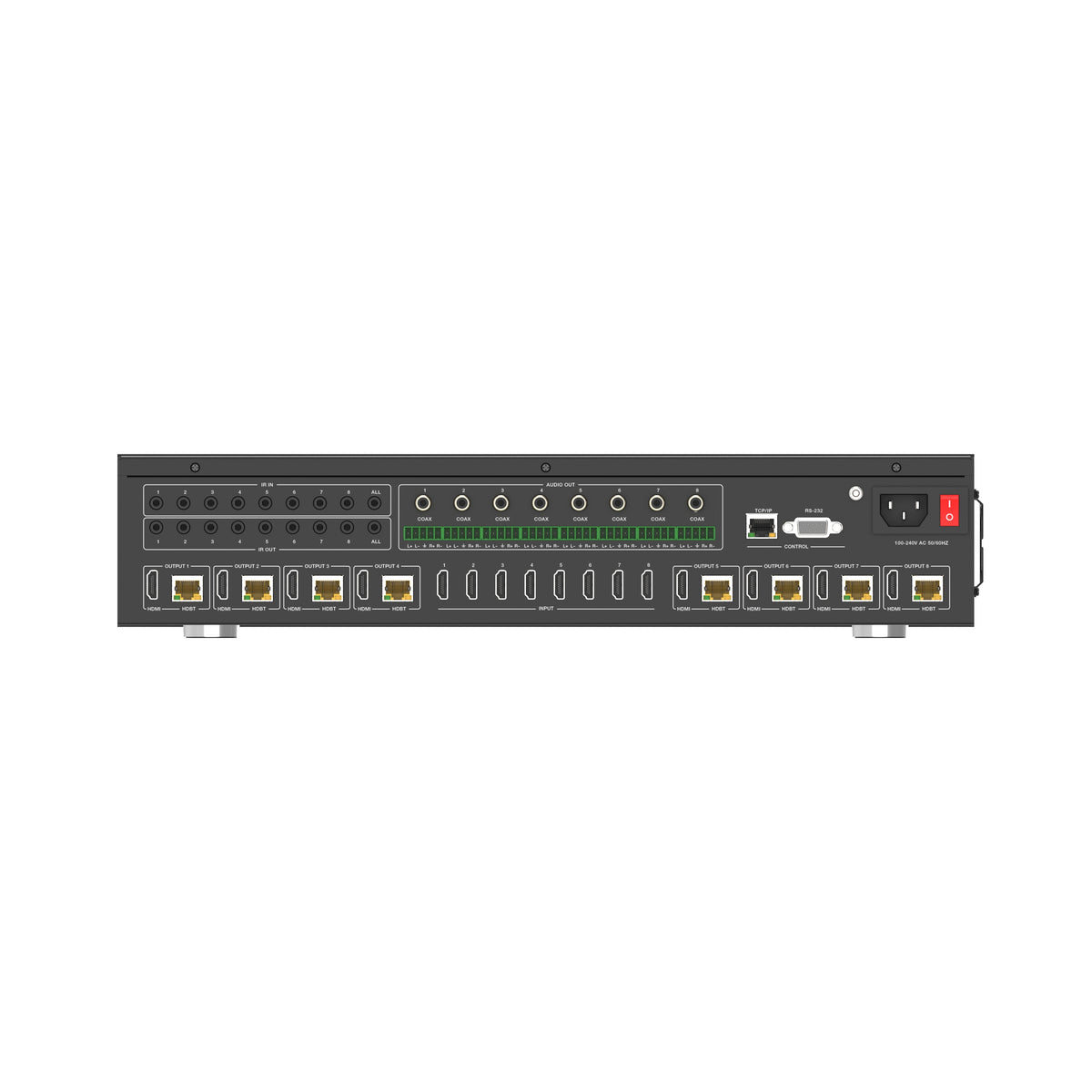

Connectivity
Matrix Inputs
8 x HDMI Type A (19-pin female)
Matrix HDMI Outputs
8 x HDMI Type A (19-pin female)
Matrix HDBaseT Outputs
8 x HDBaseT (RJ45)
Matrix Coaxial Audio Outputs
8 x 3.5mm Stereo Mini-jack
Matrix Analog Audio Outputs
8 x 5-pin Phoenix connector (balanced)
Matrix IR Inputs
9 x 3.5mm Stereo Mini-jack
Matrix IR Outputs
9 x 3.5mm Stereo Mini-jack
Matrix Network Control
1 x TCP/IP (RJ45)
Matrix RS-232
1 x D-Sub 9
Receiver HDBaseT Input
1 x RJ45 (8-pin female)
Receiver HDMI Output
1 x HDMI Type A (19-pin female)
Receiver Audio Output
1 x 3.5mm Stereo Mini-jack
Receiver IR Input
1 x 3.5mm Stereo Mini-jack
Receiver IR Output
1 x 3.5mm Stereo Mini-jack
Receiver RS-232
1 x 3-pin Phoenix connector
Receiver Service Port
1 x Mini-USB
Performance
HDBaseT Distance at 1080p
492ft / 150m (CAT 6/7)
HDBaseT Distance at 4K
328ft / 100m (CAT 5e/6/7)
HDMI Distance at 4K60
16ft / 5m
HDMI Distance at 4K30
32ft / 10m
HDMI Distance at 1080p60
50ft / 15m
Construction
Housing
Metal Enclosure
Color
Black
Rack Size
2U
Dimensions
Matrix Dimensions (W x D x H)
440mm x 374mm x 88.6mm
Receiver Dimensions
140mm x 65mm x 18mm
Product Dimensions (L x W x H)
15.354" x 21.654" x 5.906"
Weight
Matrix Weight
6.54 kg
Receiver Weight
155g
Product Weight
12.1 lbs
Electrical
Power Supply
AC 100-240V 50/60Hz
Power Consumption
125W (Max)
Environmental
Operating Temperature
0°C - 40°C / 32°F - 104°F
Storage Temperature
-20°C - 60°C / -4°F - 140°F
Relative Humidity
20-90% RH (non-condensing)
Identifiers
UPC
781159725081
