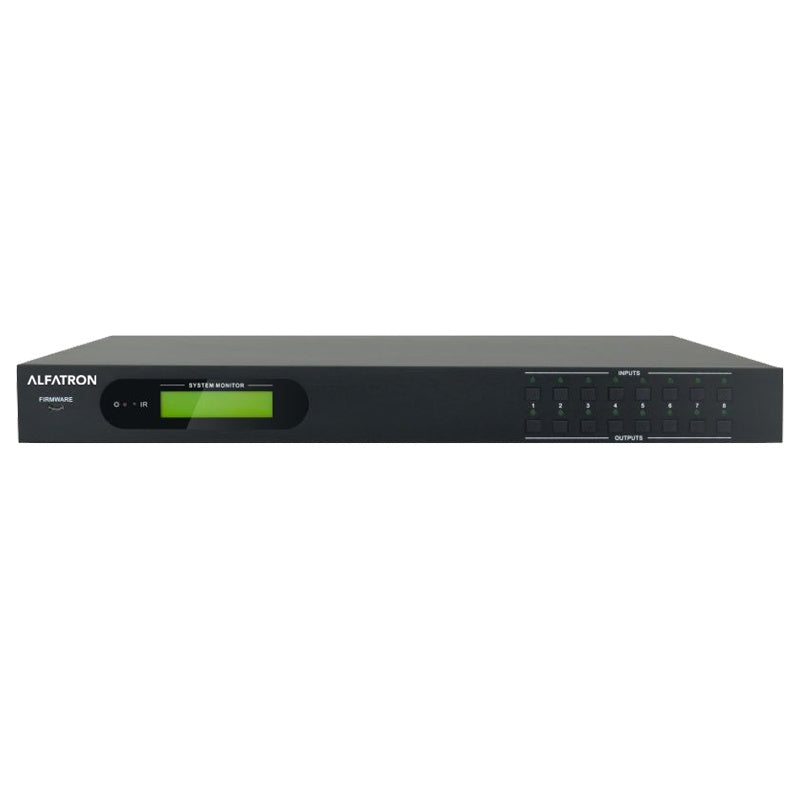

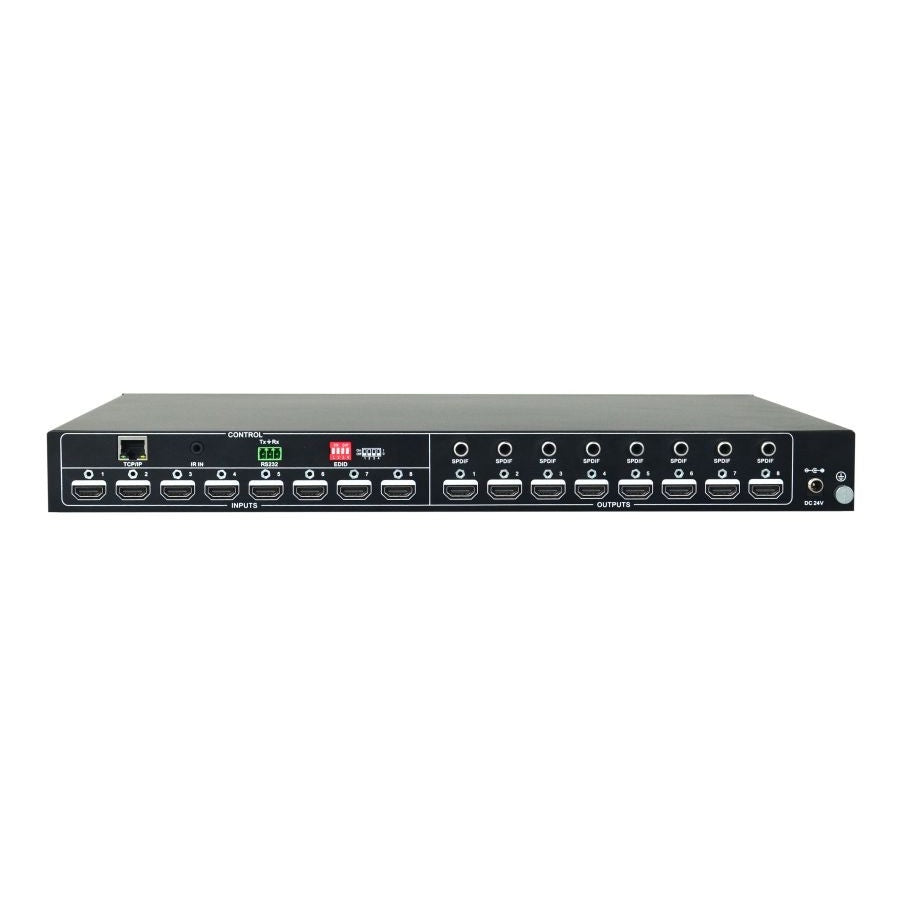

Alfatron ALF-MUK88A-N 4K 8x8 HDMI 2.0 Matrix Switcher
Alfatron ALF-MUK88A-N 4K 8x8 HDMI 2.0 Matrix Switcher
SoundPro Item: 131199 | Part Number: ALF-MUK88A-N
Usually ships in 5-7 business days
- Eight Independent SPDIF Outputs For Simultaneous HDMI Audio De-Embedding
- HDMI 2.0 And HDCP 2.2 With Backward Compatibility For Mixed Installations
- Multiple Control Methods Including IR, RS232, TCP/IP, And Web-Based GUI
- Built-In EDID Management Selectable Via DIP Switch, RS232, Or Web GUI
- LCD Screen Displays Real-Time I/O Connection Status At A Glance
- Micro USB Port Enables Convenient In-Field Firmware Upgrades
- Rack-Mount Design Simplifies Integration Into Permanent AV Installations
The Alfatron Electronics ALF-MUK88A-N is built for AV integrators and production engineers who need reliable, high-density video routing in boardrooms, houses of worship, broadcast facilities, or multi-display installations. It accepts eight HDMI 2.0 sources and simultaneously routes them to any combination of eight HDMI outputs and eight independent SPDIF audio outputs, making it a practical choice for installations where audio must be broken out to separate processing or amplification systems without additional hardware.
Where many matrix switchers in this class require third-party control systems for automation, the ALF-MUK88A-N supports front-panel button, IR, RS232, and TCP/IP control natively, including a web-based GUI that allows remote management without on-site access. The LCD screen provides real-time I/O status at a glance, reducing troubleshooting time during live events or after signal changes. Built-in EDID management, selectable via DIP switch, RS232 command, or the web GUI, eliminates the source-display handshake problems that commonly disrupt 4K installations. A rack-mount form factor and Micro USB firmware upgrade port further reduce integration overhead for permanent installs.
Supporting resolutions from 640x480 up to 4Kx2K at 60Hz 4:4:4 and 1080p 3D, and carrying Dolby Digital, DTS, and DTS-HD audio, the ALF-MUK88A-N handles both legacy and current signal formats without compromise. HDCP 2.2 compliance with backward compatibility protects content-sensitive installations while preserving compatibility with existing infrastructure.
Downloads
Downloads
Specifications
