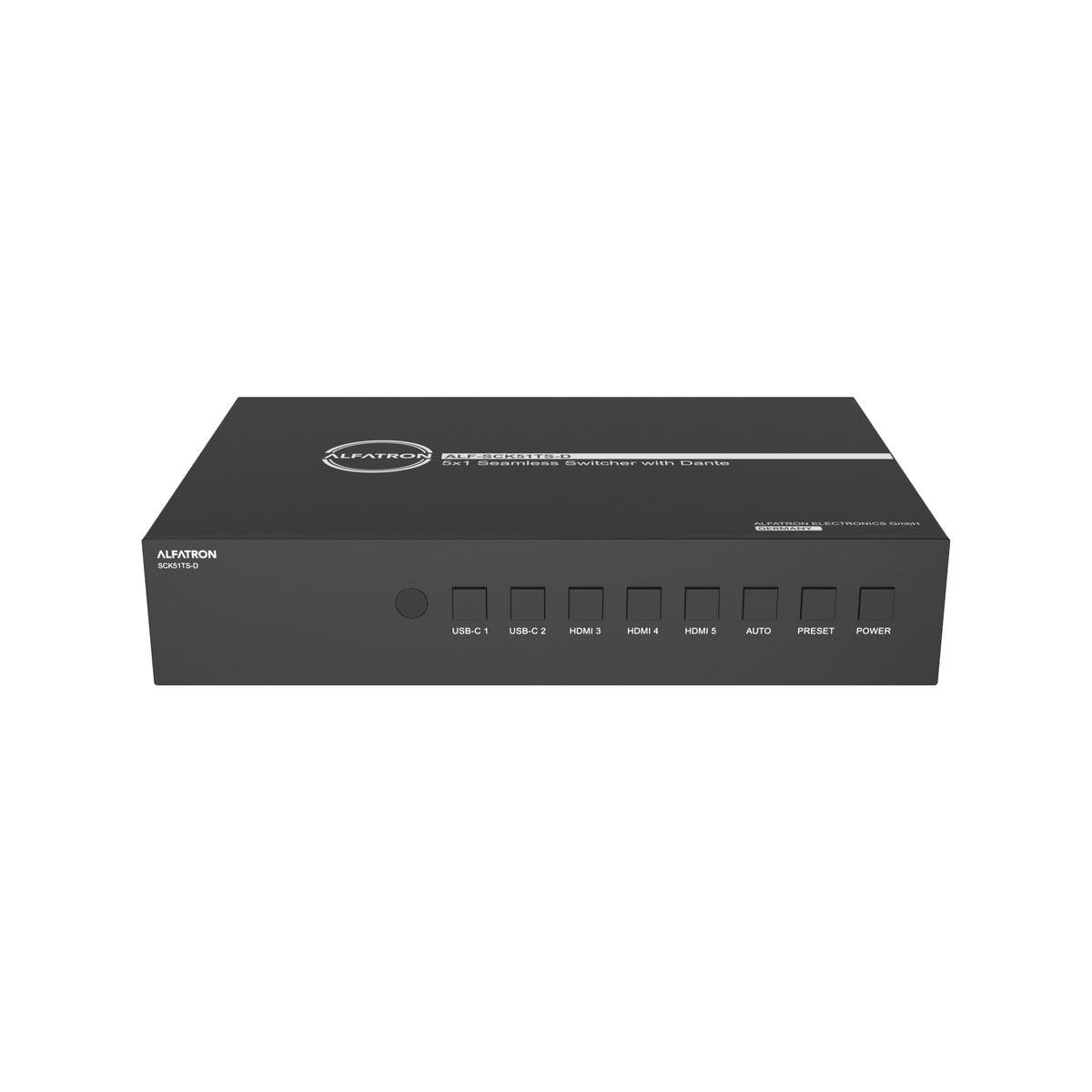

Alfatron ALF-SCK51TS-D 5x1 Seamless Switcher With HDBaseT and Dante

Alfatron ALF-SCK51TS-D 5x1 Seamless Switcher With HDBaseT and Dante

SoundPro Item: 147047 | Part Number: ALF-SCK51TS-D

$2,099.99
$2,285.00 $2,099.99
Your Price Sold out
MSRP: $2,285.00 | MAP: $2,099.99

Usually ships in 5-7 business days

  • 5x1 Seamless Switching With Multi-Viewer For Flexible Source Presentation
  • USB-C Inputs Support Alt DP Mode, USB 2.0, 100M Ethernet, And 60W Charging
  • Dante 2x2 Audio I/O On Both Transmitter And Receiver For Networked Audio Routing
  • POE Over HDBaseT Powers The Receiver Directly From The Switcher
  • USB KVM Switching And USB 2.0 Extension Over HDBaseT Reduces Cable Runs
  • Audio DSP With Gain, EQ, Volume, And Delay For Integrated Signal Processing
  • Multiple Control Methods Including Web GUI, RS-232, TCP/IP, And Front Panel
Log in or register for YOUR best price

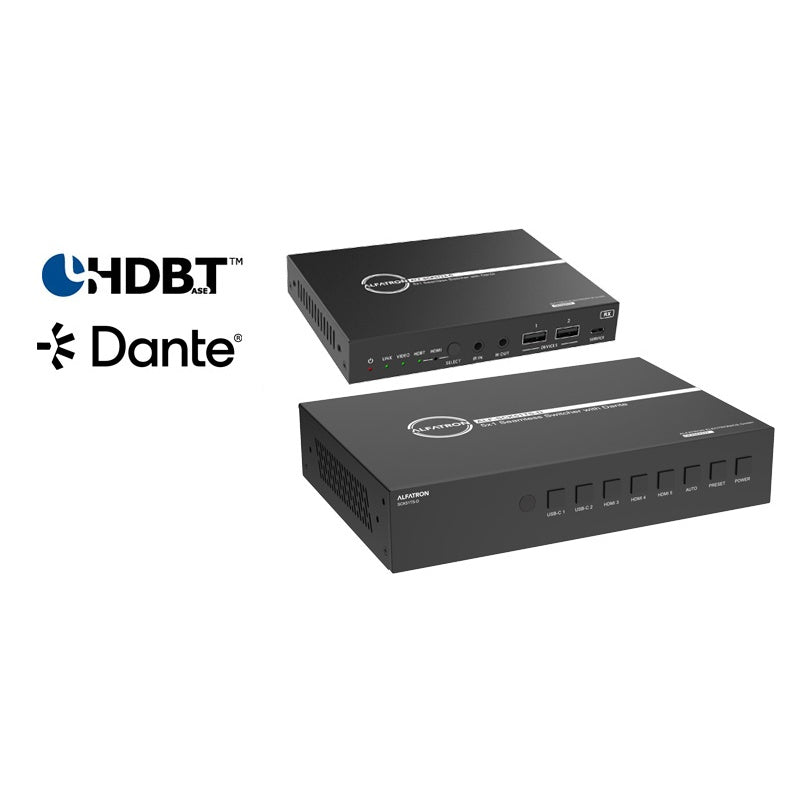

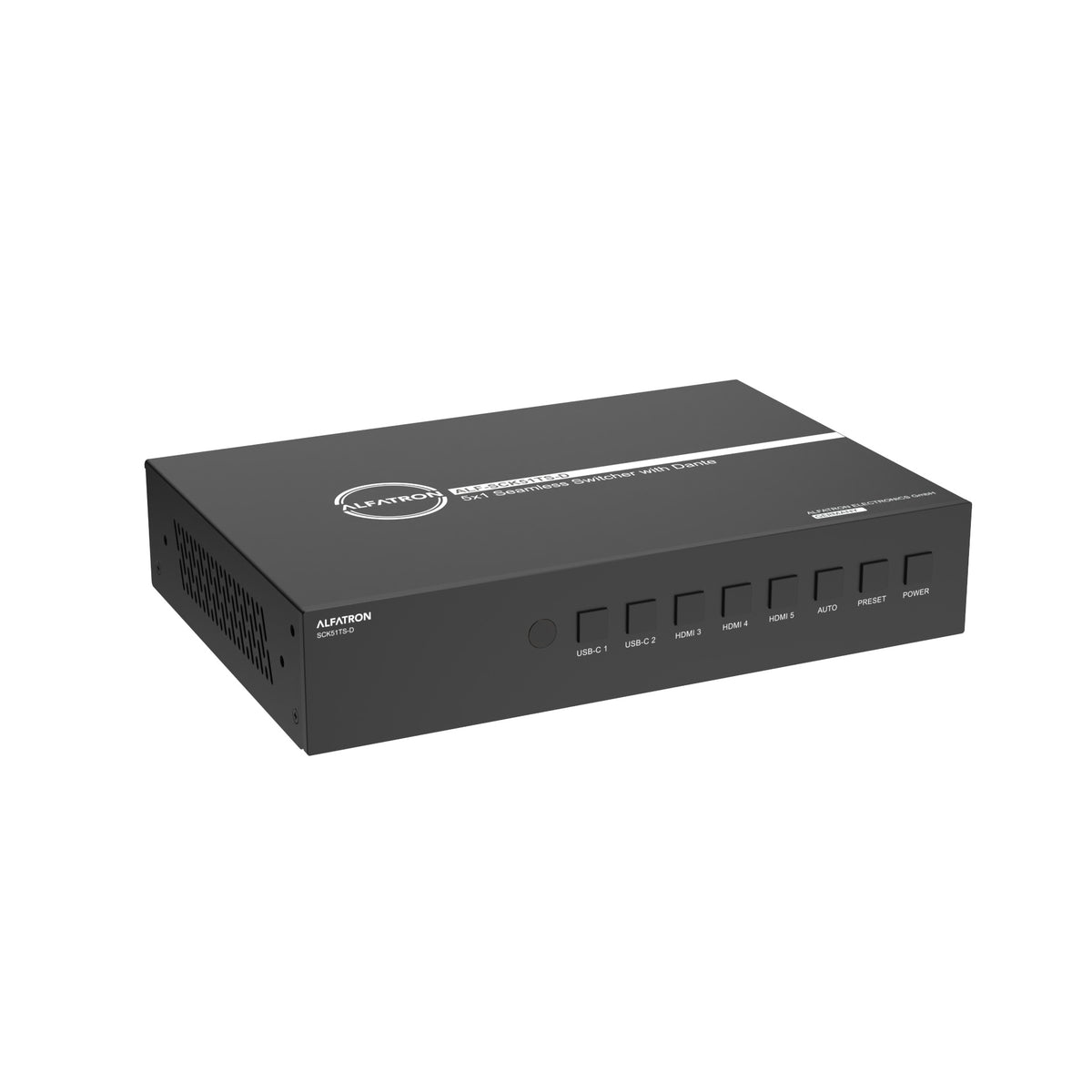

The Alfatron ALF-SCK51TS-D is built for corporate AV integrators and presentation system designers who need a single, consolidated solution for multi-source switching, USB KVM, and networked audio in one rack-unit package. With two USB-C inputs supporting Alternate DisplayPort mode, three HDMI 2.0b inputs, 100W Power over HDBaseT to the included receiver, and Dante 2x2 I/O on both the transmitter and receiver, this switcher eliminates the need for separate audio and KVM extenders in conference rooms, training spaces, and collaborative environments.

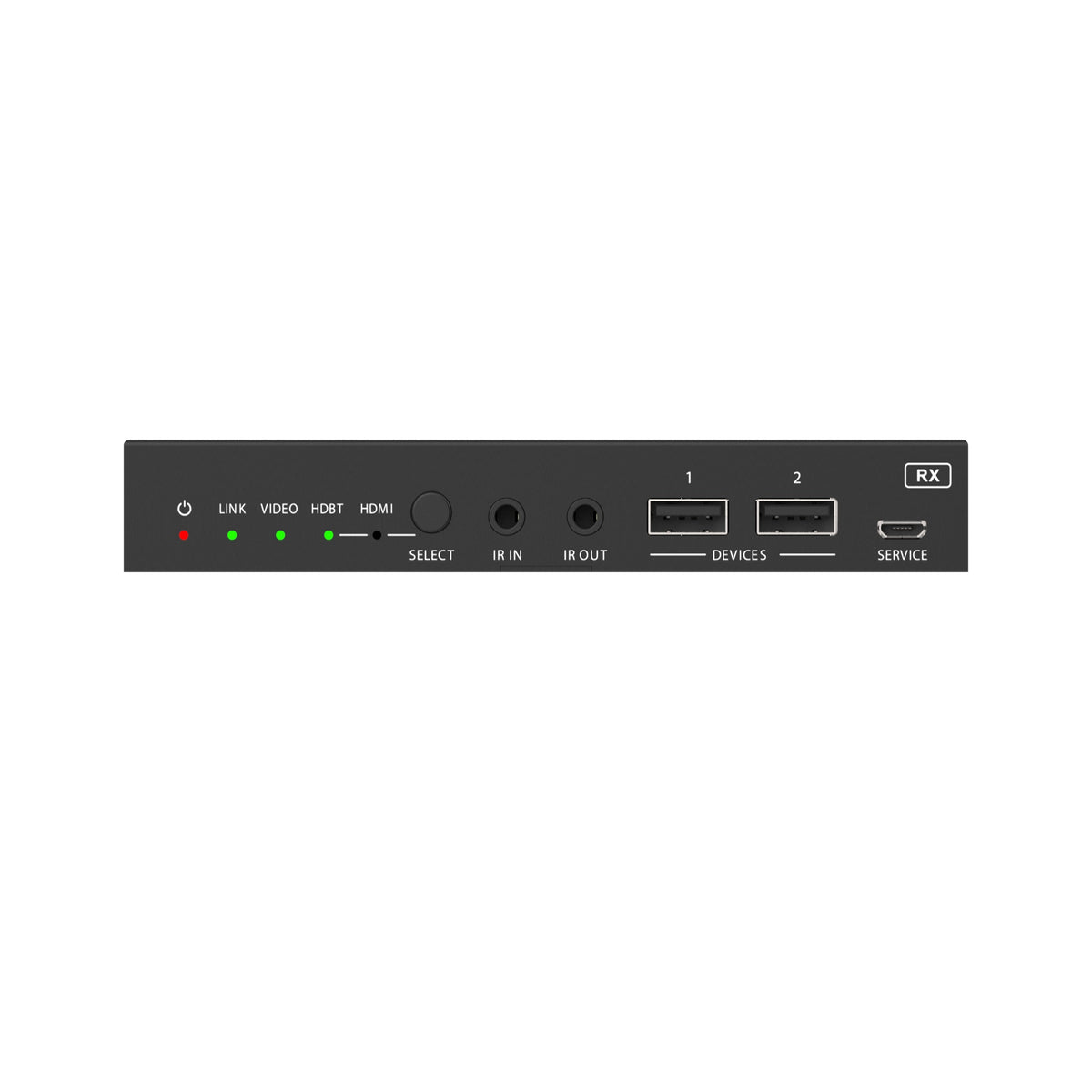

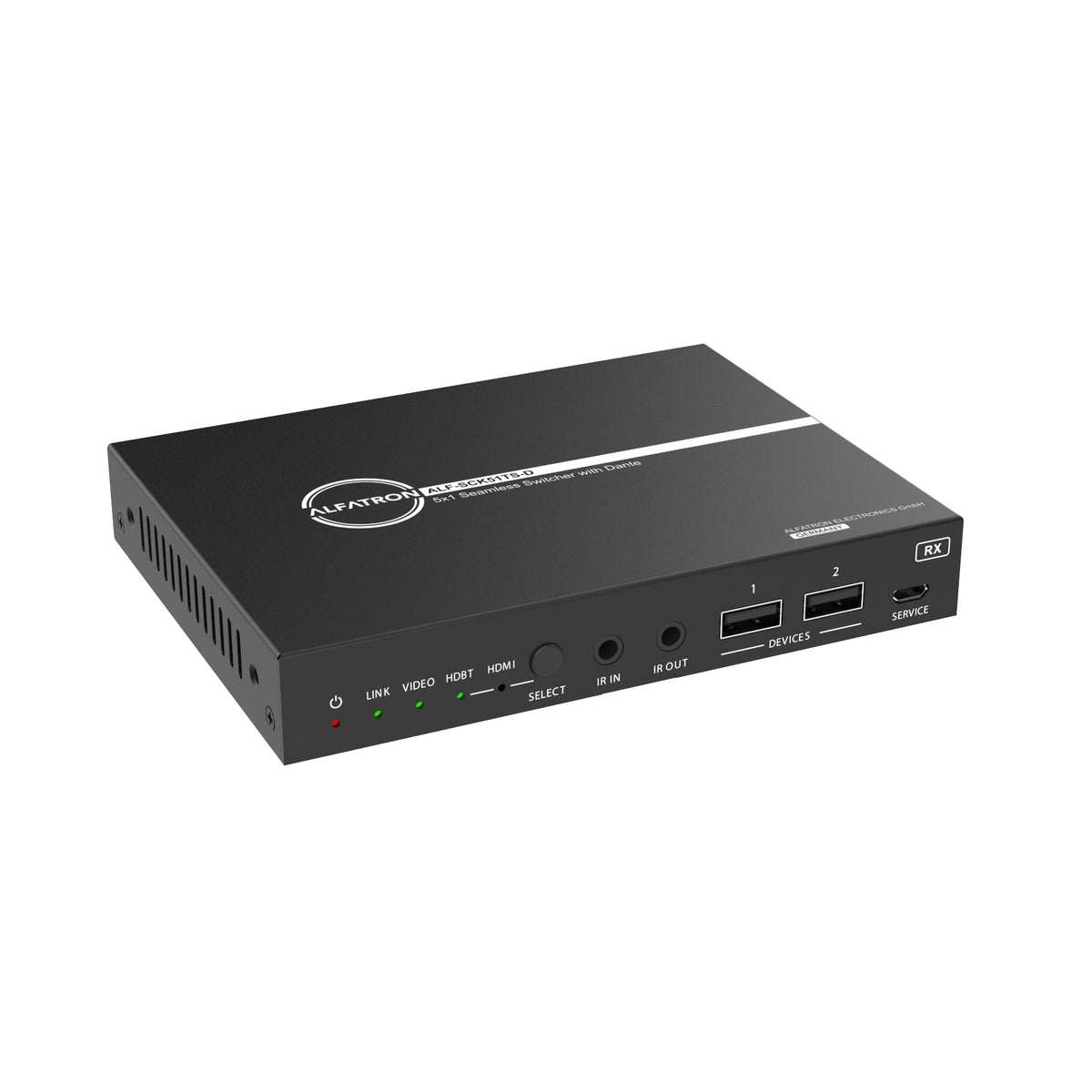

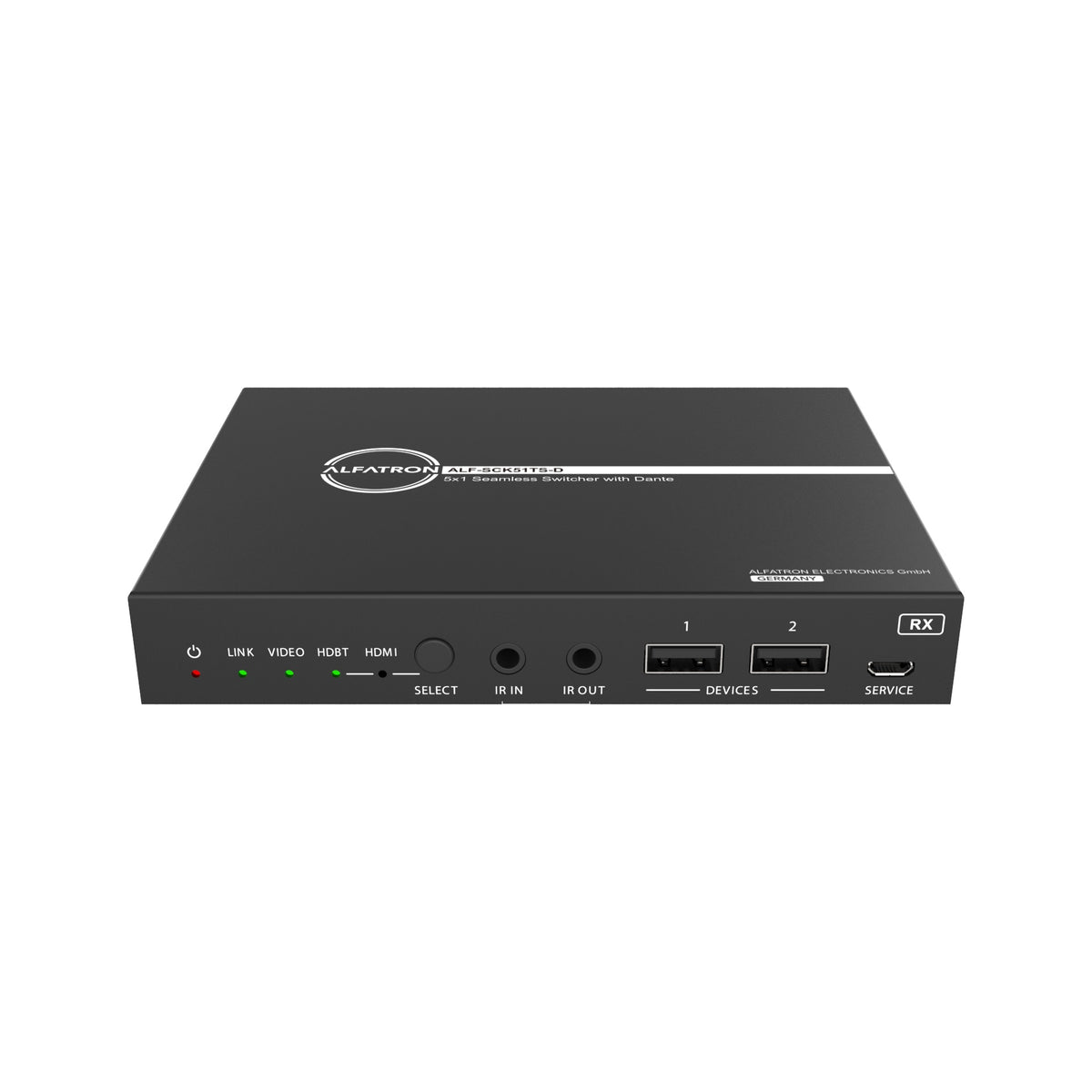

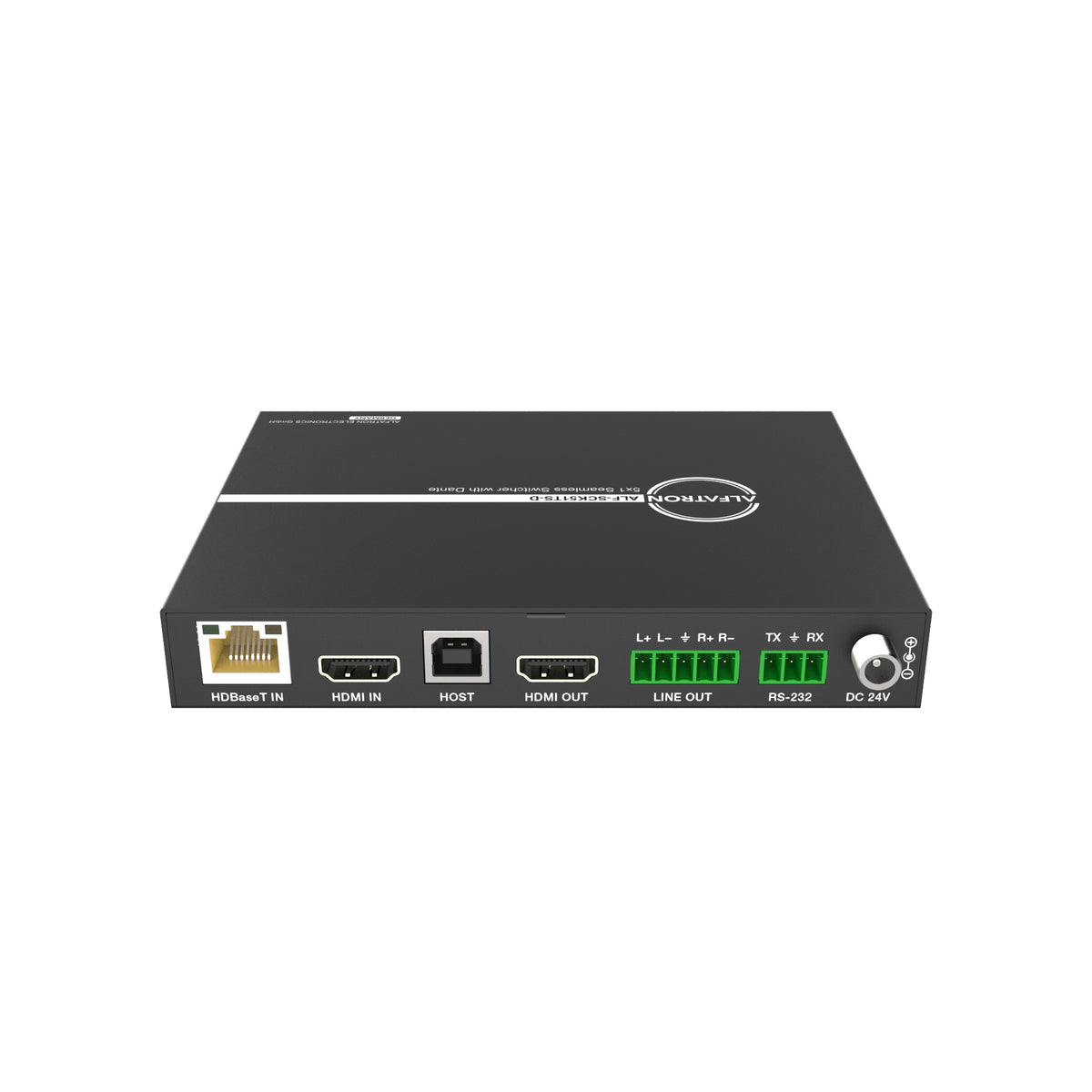

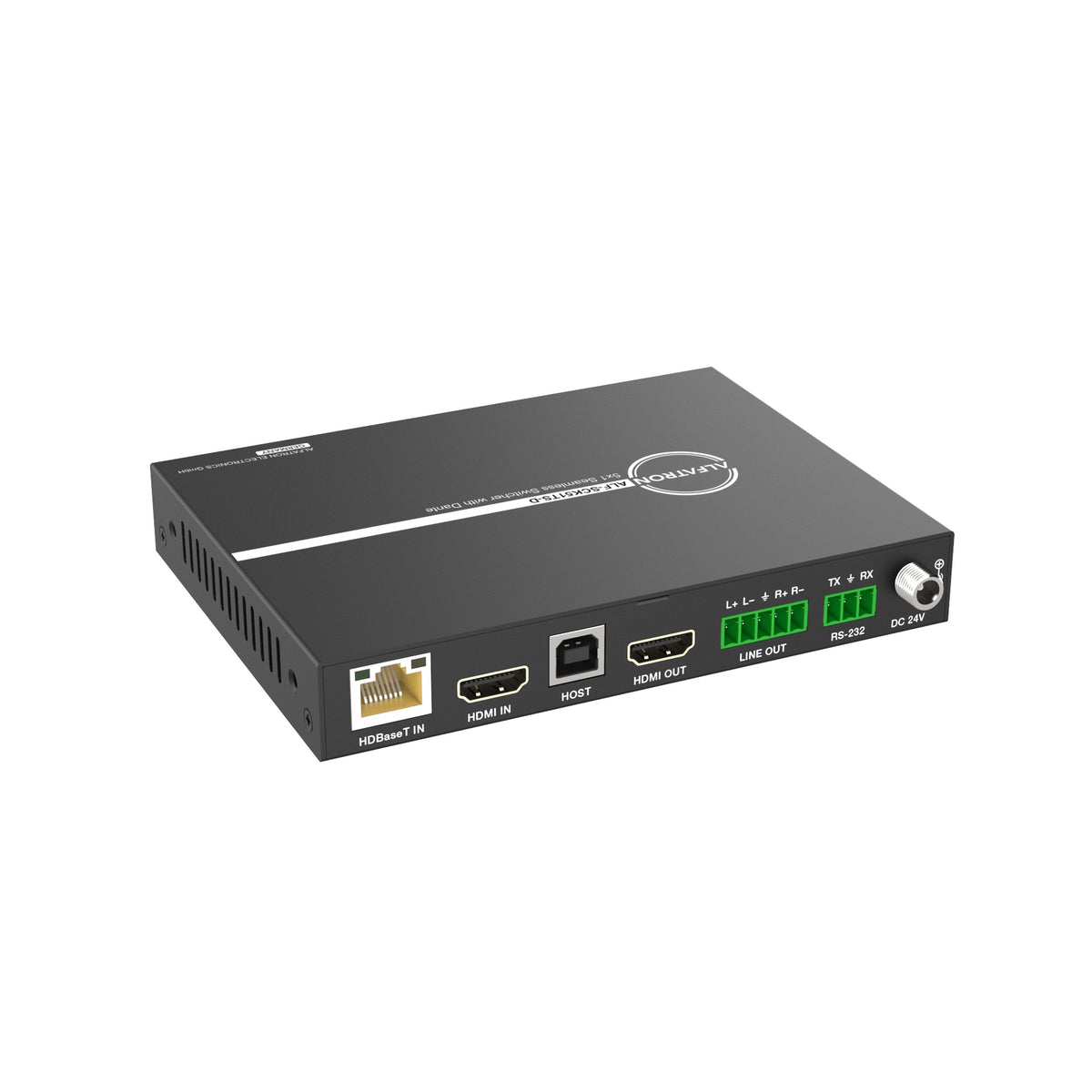

The HDBaseT3.0 output delivers uncompressed 4K at 30Hz up to 230 feet and 4K60 up to 131 feet over a single Cat6a cable, keeping infrastructure costs low without sacrificing image quality. Mirrored HDMI and HDBaseT outputs allow simultaneous local and remote display distribution. The included receiver adds a local HDMI input and analog audio output at the display end, making the kit self-contained for most standard room deployments.

Control flexibility covers front panel buttons, IR remote, RS-232, TCP/IP, and a web GUI, giving integrators multiple commissioning and runtime options. Audio DSP with gain, EQ, volume, and delay adjustment, plus embedded and de-embedded analog audio, reduces the need for outboard processing. EDID management and CEC/RS-232 device control round out a feature set that positions this unit above basic matrix switchers for technically demanding installed AV rooms.

Downloads

View full details

Specifications

Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
DP Version
DP 1.2
Video Bandwidth
18Gbps
USB Bandwidth
TX USB Devices to TX Host/USB-C: 480Mbps; RX USB Devices to TX Host/USB-C: 350Mbps; RX USB Devices to RX Host: 480Mbps
Network Bandwidth
100Mbps
Input Video Resolution
480i-1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@50/60Hz 4:4:4
Output Video Resolution
Auto, 3840x2160p60, 3840x2160p50, 4096x2160p60, 4096x2160p50, 3840x2160p30, 3840x2160p25, 1920x1200p60RB, 1920x1080p60, 1920x1080p50, 1360x768p60, 1280x800p60, 1280x720p60, 1280x720p50, 1024x768p60
Color Depth
Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4); Output: 8-bit
Color Space
RGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
HDR
Input supports HDR; output does not support HDR
IR Level
12Vp-p
IR Frequency
Wideband 20K-60KHz
Transmission Distance
1080P and 4K30: 230ft/70m; 4K60: 131ft/40m
ESD Protection
Human-body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge)
Audio
Audio Formats
LPCM 2.0
Audio Sample Rate
48KHz
Input Impedance
10K Ohms
Output Impedance
330 Ohms
Line Input Level (Maximum)
8.2dBu (2Vrms) balanced or unbalanced
Line Output Level (Maximum)
8.2dBu (2Vrms) balanced; 2.2dBu (1Vrms) unbalanced
Frequency Response
(+0.5dB, -1dB) 20Hz to 20kHz
Audio Output Sync Delay
0 to 50ms
Audio S/N Ratio
93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N
<0.1% @ 0dBV, 1kHz
Connectivity

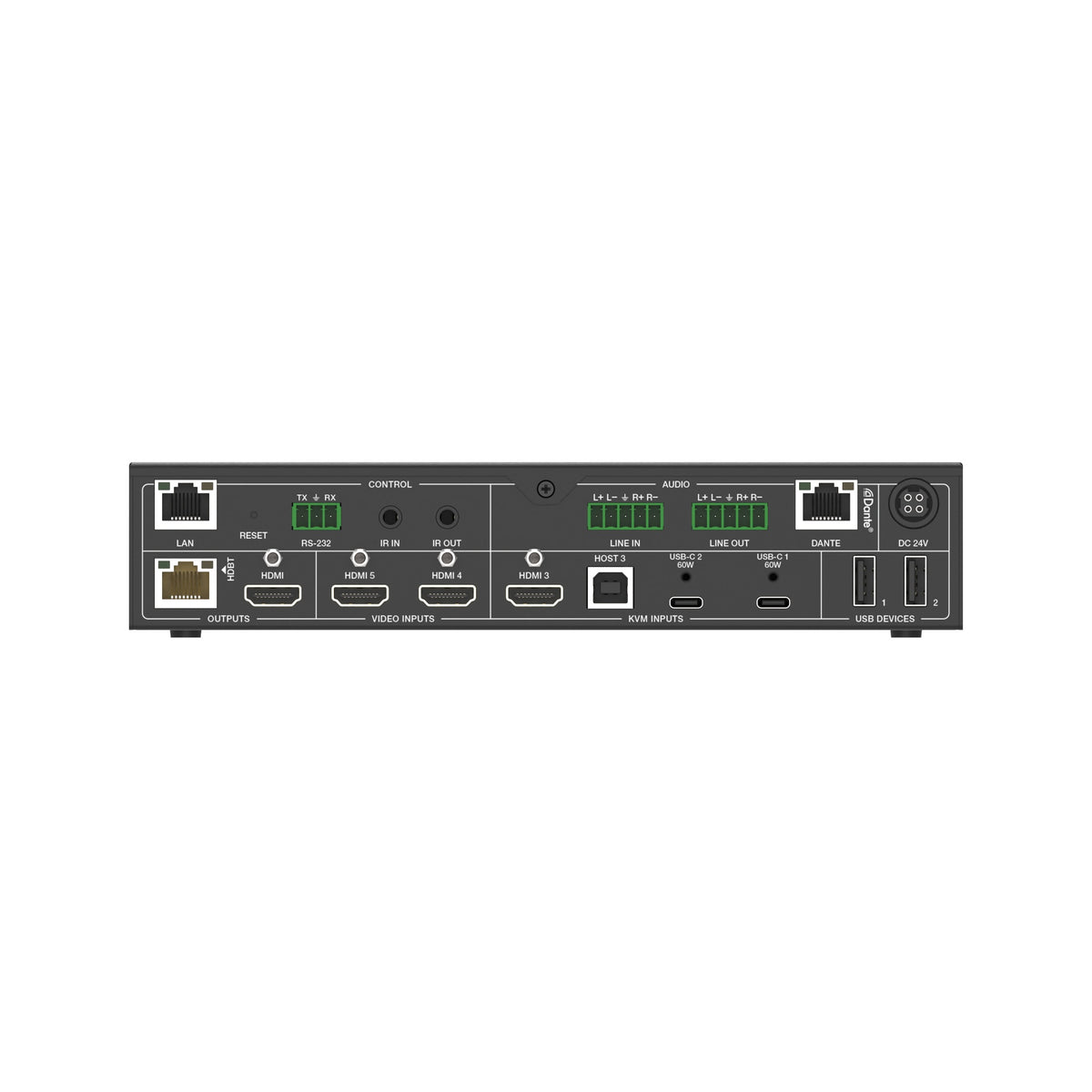

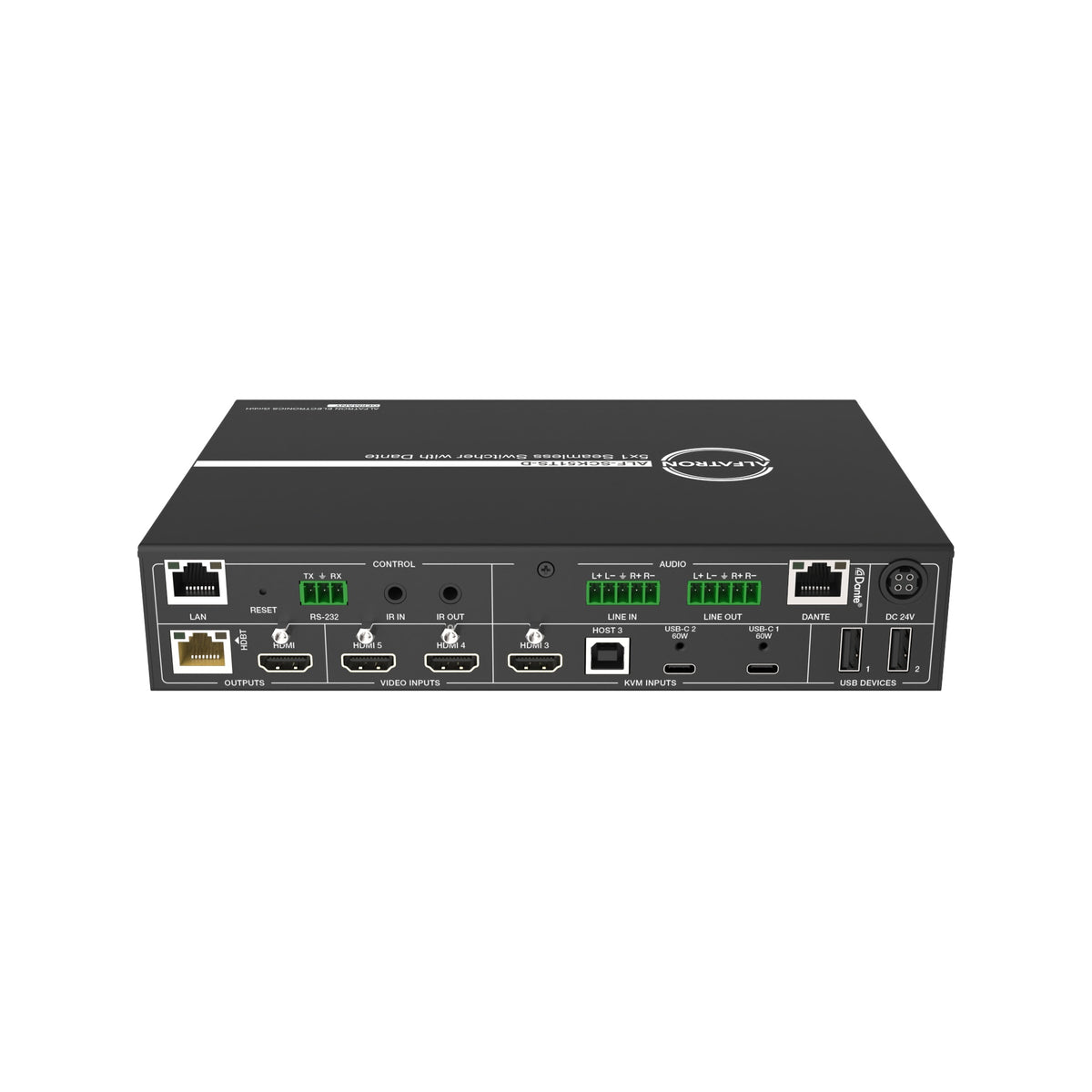

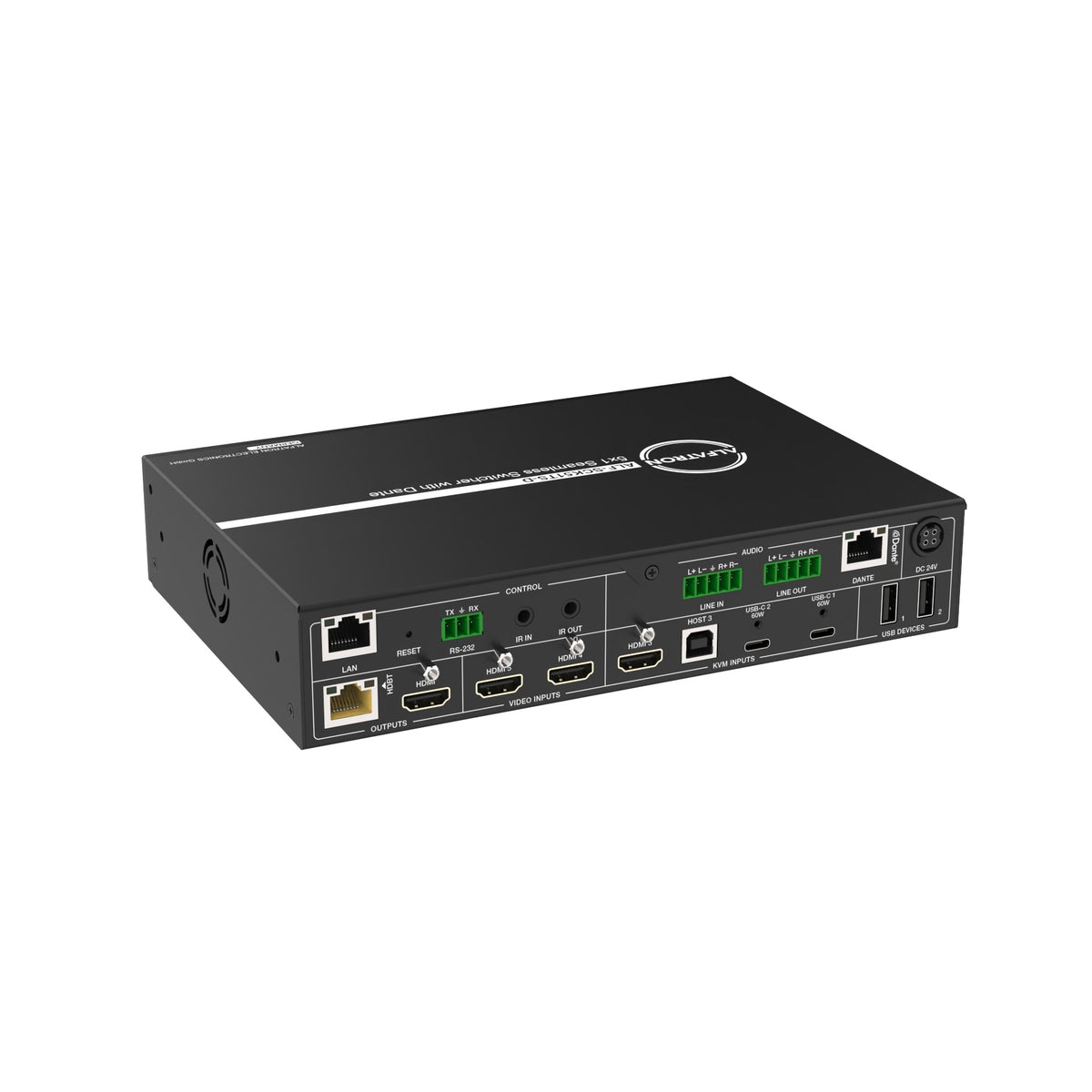

Switcher Inputs
2x USB-C, 3x HDMI, 1x Analog Audio, 1x Dante 2ch, 1x USB Host, 2x USB Peripheral
Switcher Outputs
1x HDMI, 1x HDBaseT (mirrored), 1x Analog Audio, 1x Dante 2ch

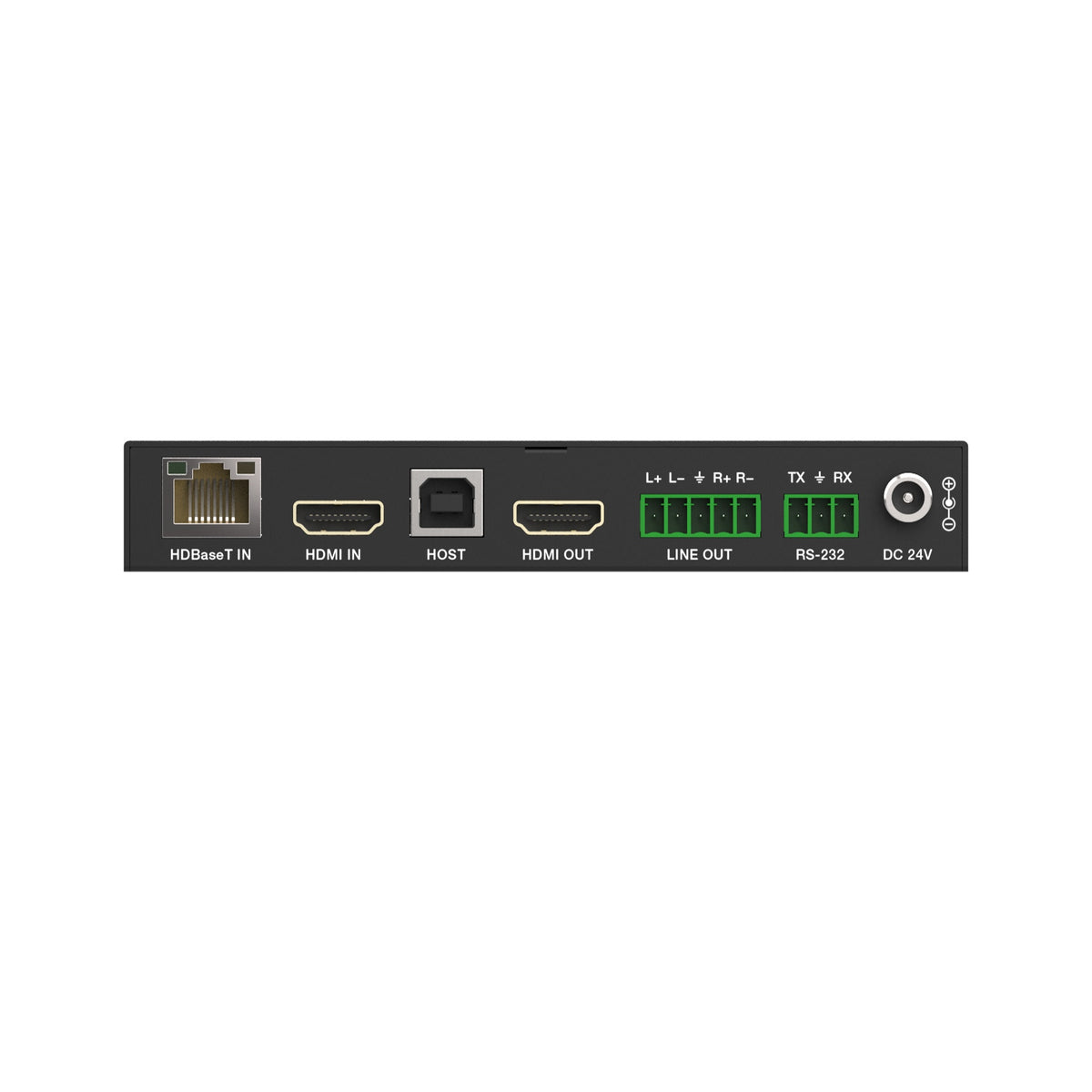

Receiver Inputs
1x HDMI, 1x HDBaseT, 1x USB Host
Receiver Outputs
1x HDMI, 1x Analog Audio, RS-232
Dimensions
Length
12"
Width
10"
Height
6"
Weight
Product Weight
6.8 lbs
Identifiers
UPC
658325231175
