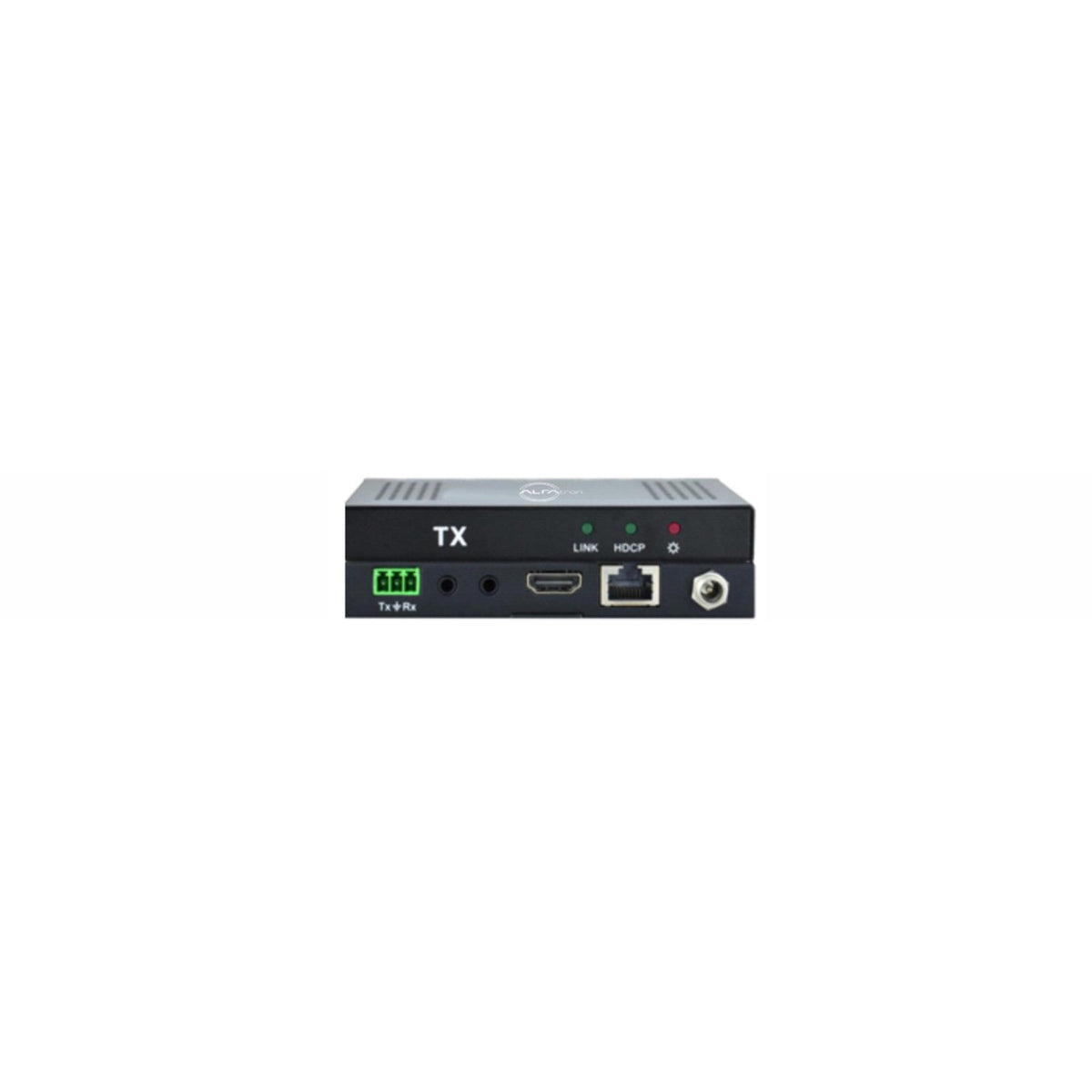

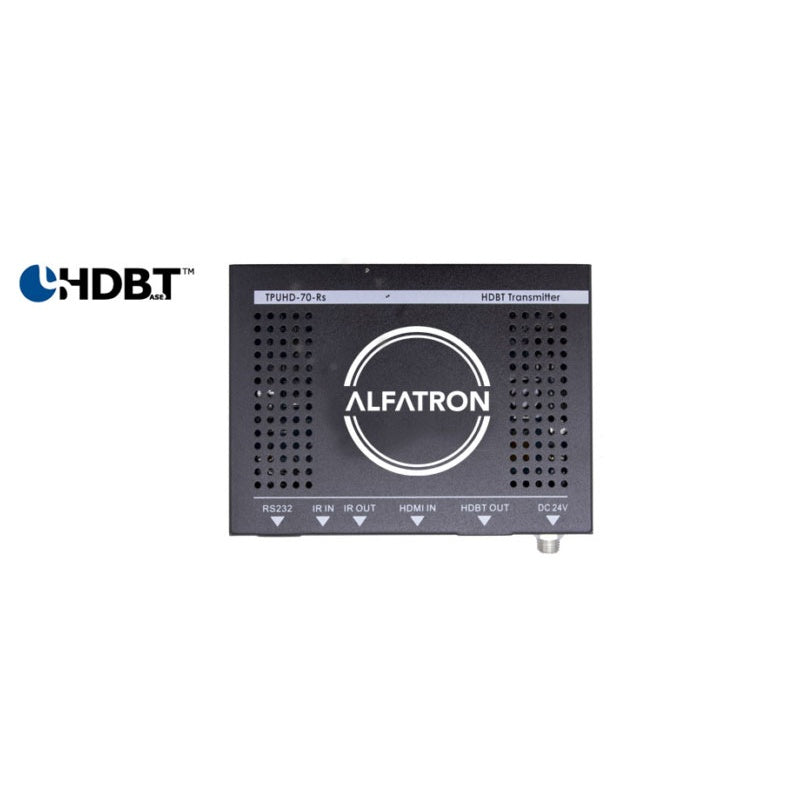

Alfatron ALF-TPUHD70-T HDBaseT HDMI Extender Transmitter

Alfatron ALF-TPUHD70-T HDBaseT HDMI Extender Transmitter

SoundPro Item: 124256 | Part Number: ALF-TPUHD70-T

$289.99
$325.00 $289.99
Your Price Sold out
MSRP: $325.00 | MAP: $289.99

Usually ships in 5-7 business days

  • HDBaseT Technology Extends HDMI Over A Single CAT6a Cable
  • HDCP 2.2 Compliance Ensures Compatibility With Protected Content Sources
  • Bidirectional RS232 And IR Passthrough Eliminates Separate Control Wiring
  • CEC Support Enables Display Control From The Source End
  • Mini Form Factor Simplifies Podium And Media Plate Installations
  • LED Status Indicators Speed Up Commissioning And On-Site Troubleshooting
Log in or register for YOUR best price

The Alfatron Electronics ALF-TPUHD70-T is a compact HDBaseT transmitter designed for AV integrators and system designers who need reliable long-distance HDMI signal extension without running dedicated fiber or complex cabling infrastructure. Pairing with a compatible HDBaseT receiver, this transmitter extends signals up to 70 meters at 1080p or up to 40 meters at 4K over a single CAT6a cable, making it a practical fit for conference rooms, classrooms, hospitality installations, and digital signage deployments where source and display are separated by significant distances.

What sets this unit apart from basic HDMI extenders is its support for CEC, bidirectional IR, and RS232 passthrough over the same HDBaseT link. Integrators can manage displays and control devices at the far end without running separate control wiring, simplifying rack design and reducing cable runs. HDMI 1.4 support with HDCP 2.2 compliance covers the majority of commercial display and source combinations in the field. The mini form factor fits neatly at the source end, whether rack-mounted with a bracket solution or installed at a podium or media plate, and LED status indicators give field technicians an immediate visual read on link integrity during commissioning and troubleshooting.

Downloads

View full details

Specifications

Connectivity
Inputs
( 1) HDMI; (1) IR; (1) RS232
Input Connectors
(1) Female HDMI; (1) 3.5mm Mini Jack; (1) 3p Captive Screw Connector
Outputs
(1) HDBaseT; (1) IR; (1) RS232
Output Connectors
(1) RJ-45; (1) 3.5mm Mini Jack; (1) 3p Captive Screw Connector
Audio
Audio
Digital audio, transmitted through HDMI audio
Performance
Resolution Range
640x480@60Hz - 4Kx2K@30Hz
Transmission Mode
HDBaseT
Transmission Distance
1080p up to 70m (230 ft); 4Kx2K up to 40m (131 ft)
Bandwidth
10.2Gbps
HDMI Standard
HDMI 1.4, HDCP 2.2
Impedance
75 Ohm
Electrical
Power Supply Input
100VAC - 240VAC, 50/60Hz
Power Supply Output
DC 24V, 1.25A
Power Consumption
14W
Environmental
Operating Temperature
0 - 50 degrees C
Humidity
10% - 90%
Dimensions
Unit Dimensions (W x H x D)
115mm x 16.2mm x 109mm
Shipping Length
7.874"
Shipping Width
5.708"
Shipping Height
2.952"
Weight
Net Weight
193g
Shipping Weight
1 lbs
Identifiers
UPC
737186687656
