Alfatron ALF-TRUK100-RS 4K HDBaseT Auto-Switching Wall Plate Kit
Alfatron ALF-TRUK100-RS 4K HDBaseT Auto-Switching Wall Plate Kit
SoundPro Item: 147050 | Part Number: ALF-TRUK100-RS
Usually ships in 5-7 business days
- 4K Auto-Switching Selects Active HDMI Or USB-C Source Without Manual Input Selection
- HDBaseT 2.0 Transport Carries Video, USB, RS232, CEC, And Ethernet Over One Cable
- USB-C Power Delivery Charges Connected Laptops At Up To 100W Through The Wall Plate
- De-Embedded Audio At Receiver Provides Balanced Analog And Optical Outputs For Install
- HDCP 2.2 And EDID Management Via DIP Switch Simplifies Display Compatibility
- 48V PoC Powers The Transmitter From The Receiver, Reducing AC Requirements At The Table

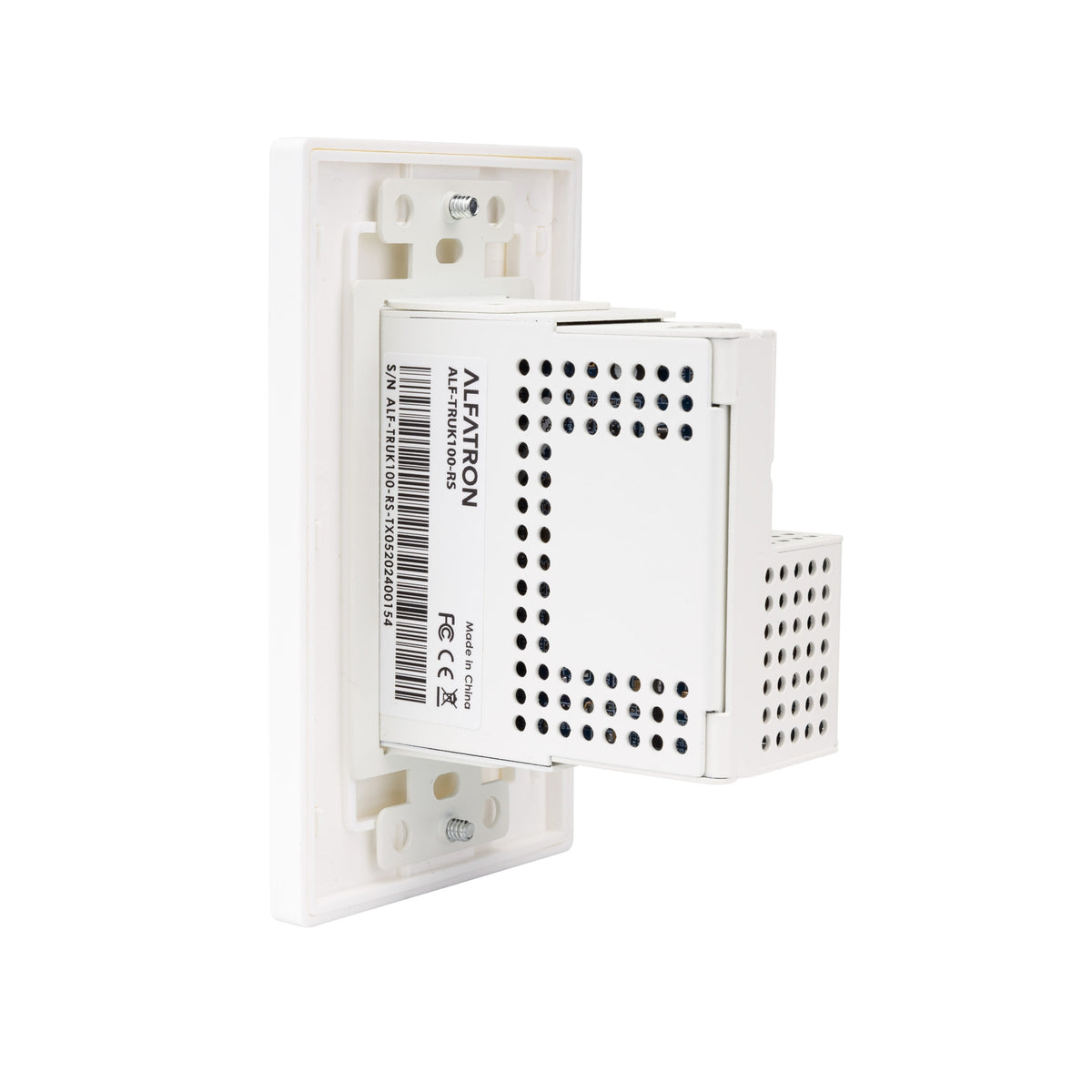

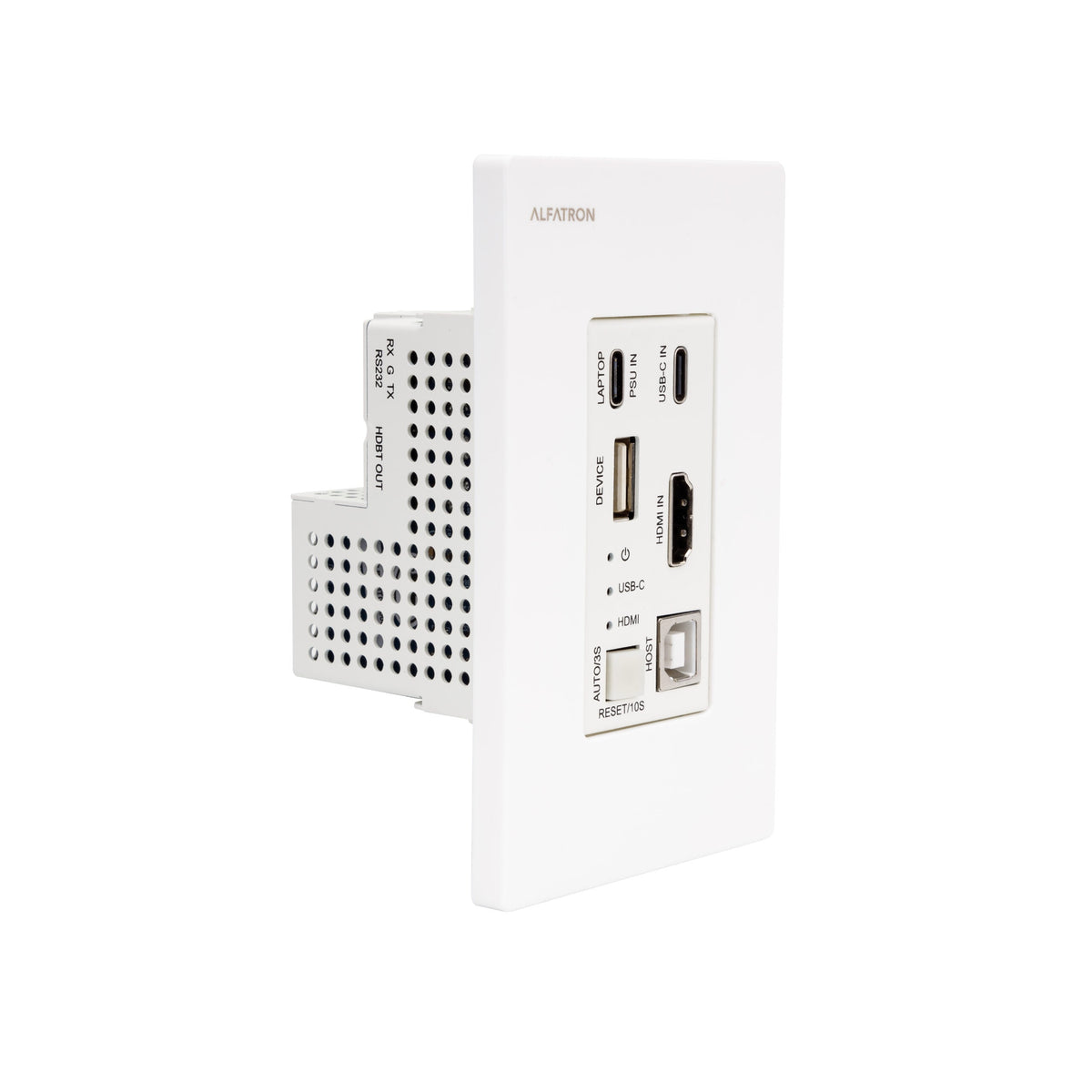

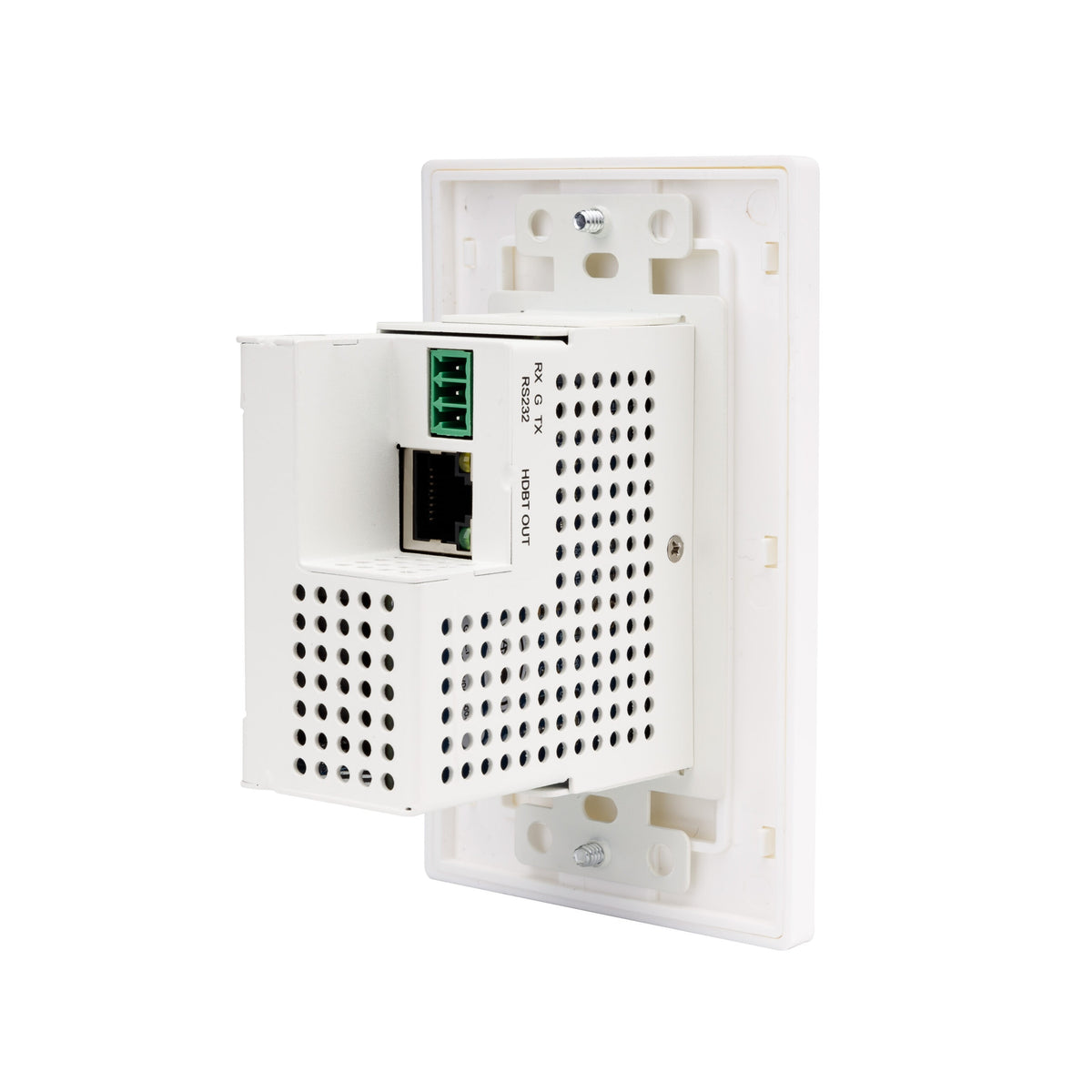

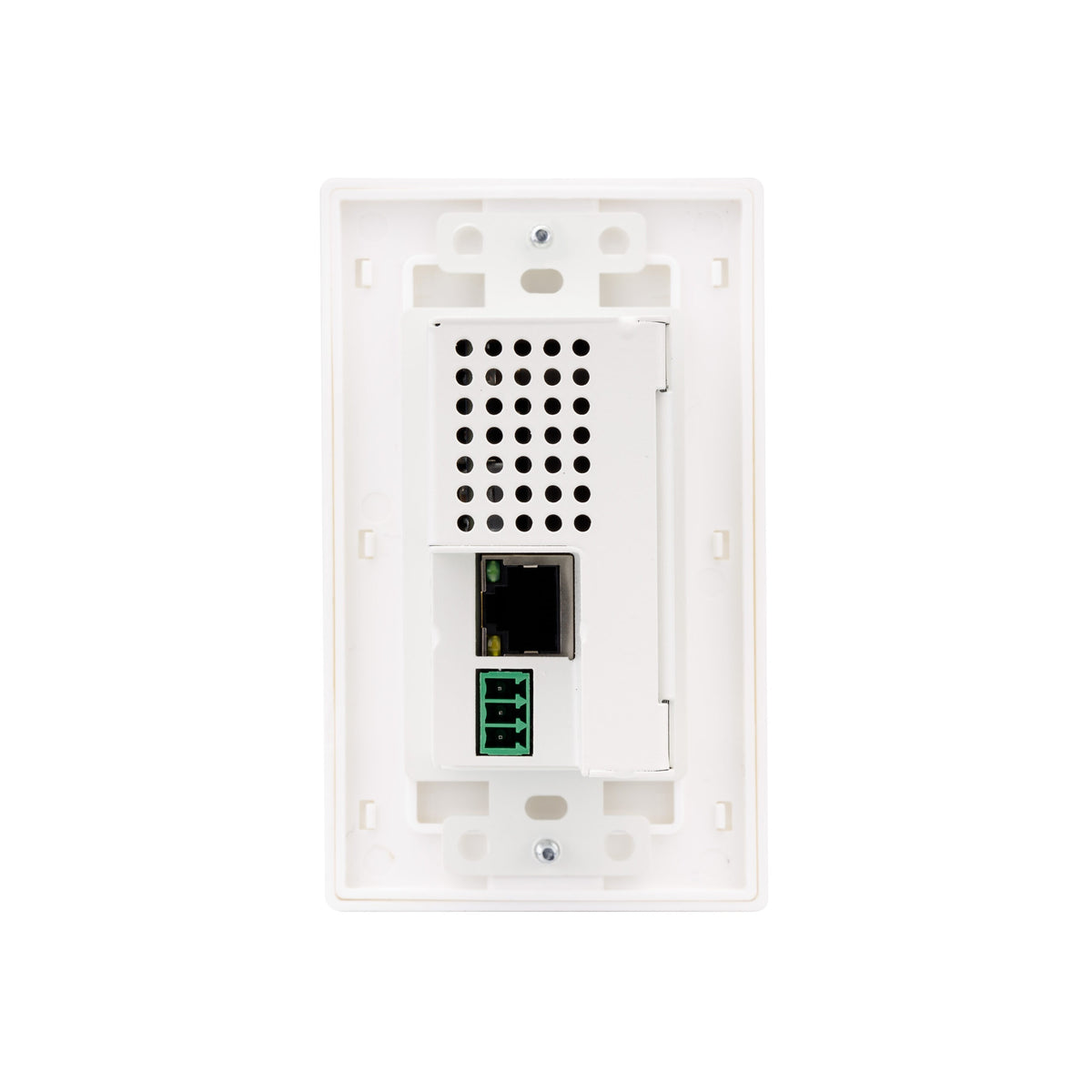

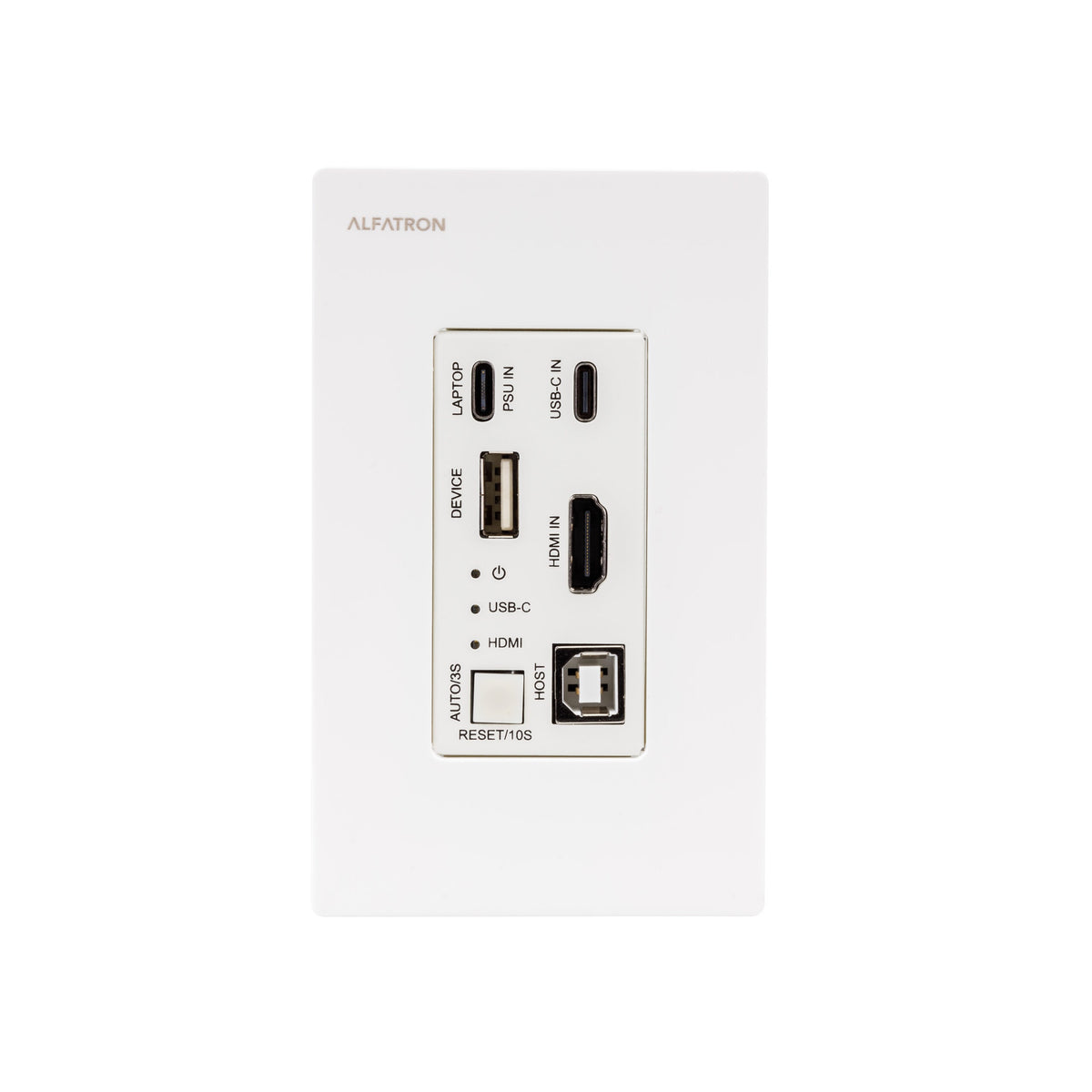

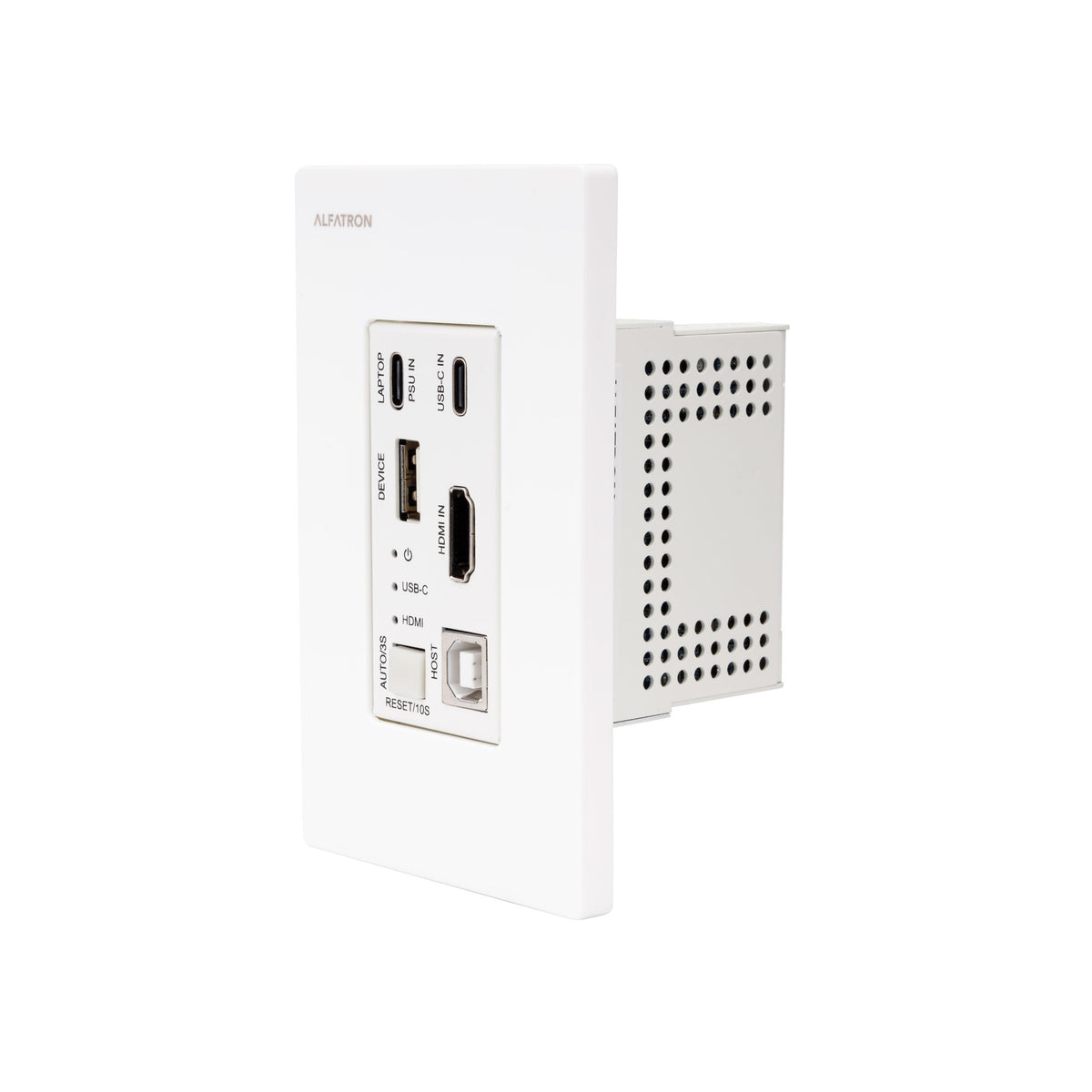

- Decora-Style Single-Gang Transmitter Fits Standard US Wall Plate Cutouts

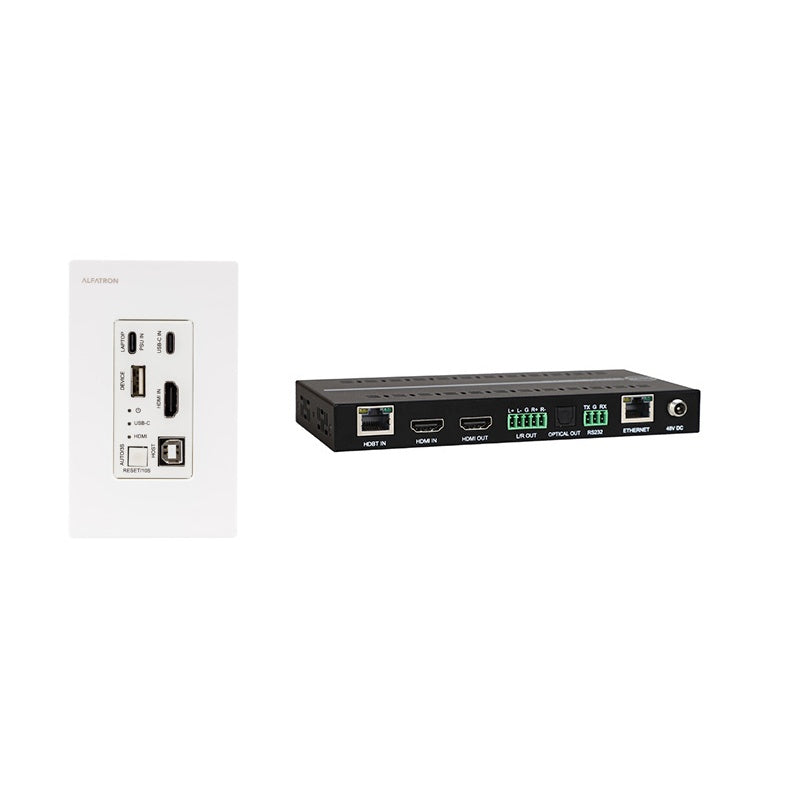

The Alfatron Electronics ALF-TRUK100-RS is a complete transmitter and receiver kit built for AV integrators deploying BYOD-ready collaboration spaces, boardrooms, and classrooms. The Decora-style single-gang wall plate transmitter accepts HDMI 2.0 and USB-C sources and automatically selects the active input, while extending 4K video, USB 2.0, RS232, CEC, and Ethernet over a single HDBaseT 2.0 link to the included receiver unit up to 100m on CAT6 STP cable.
For integrators who need more than a simple extender, this kit delivers a full feature set in a single purchase. The USB-C port supports up to 100W Power Delivery, keeping a connected laptop charged without a separate power brick. De-embedded audio at the receiver provides both balanced analog and optical outputs for integration into installed sound systems. HDCP 2.2 management, a 16-entry built-in EDID library with DIP switch control, and RS232 pass-through cover the control and compatibility requirements of most corporate and higher-education installations without additional hardware.

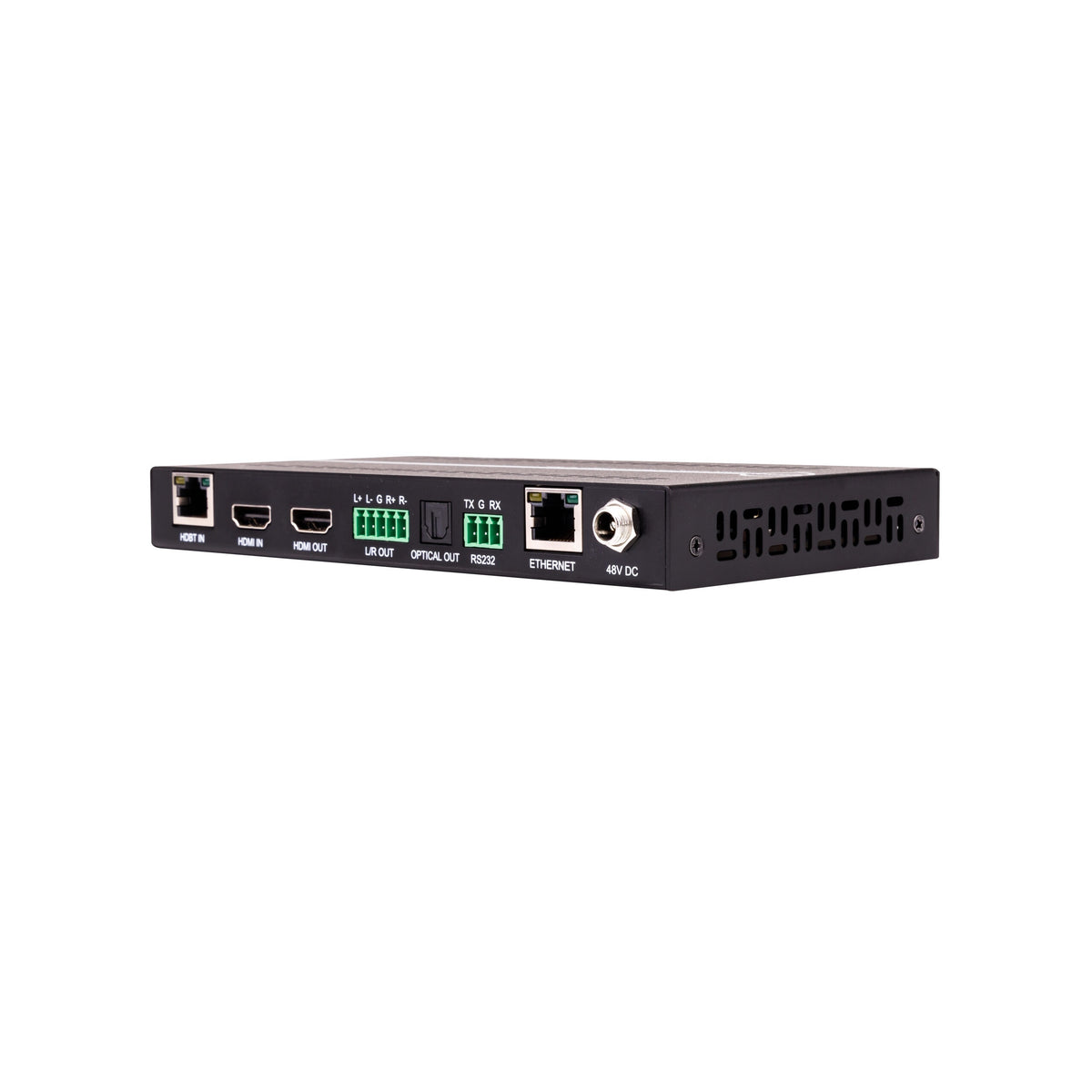

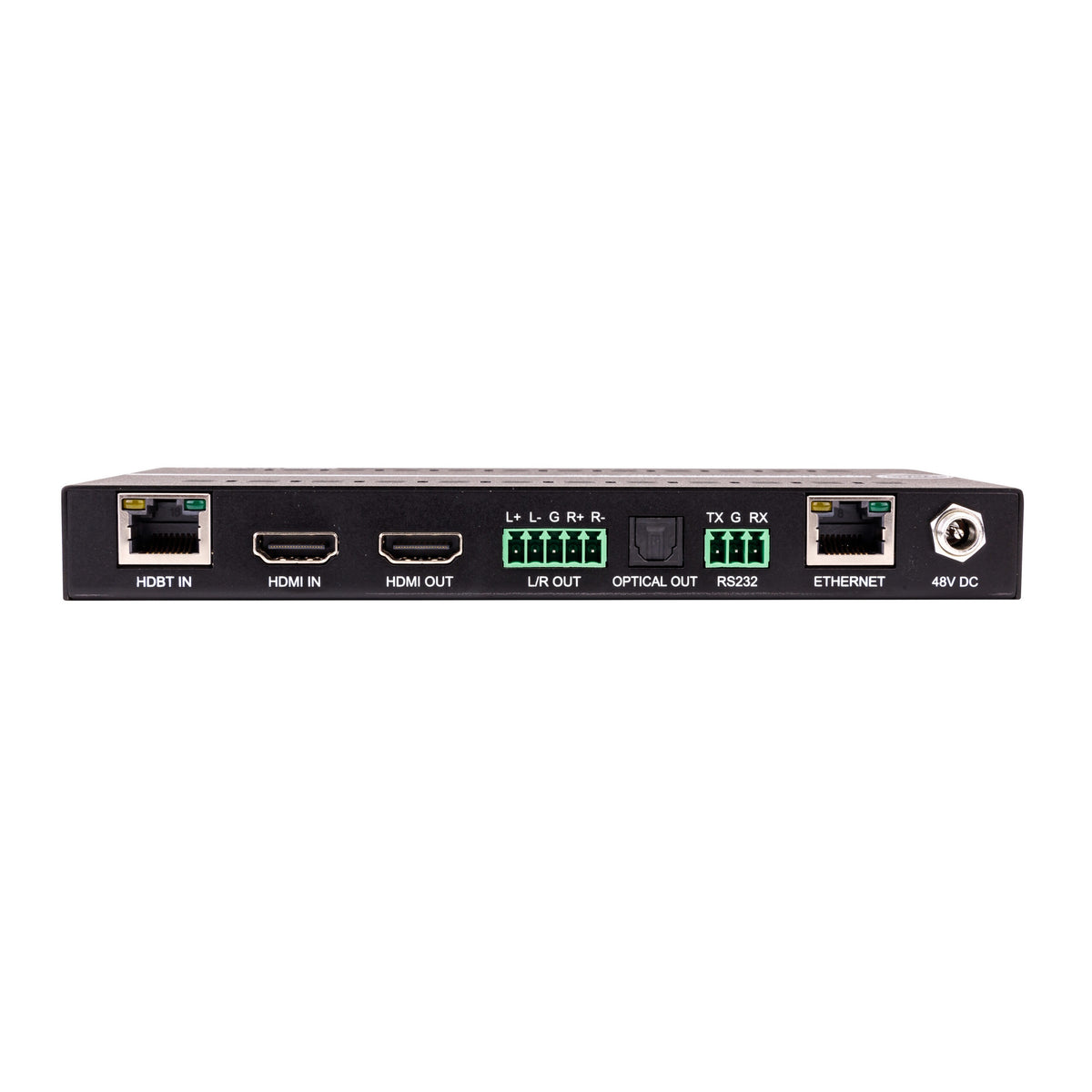

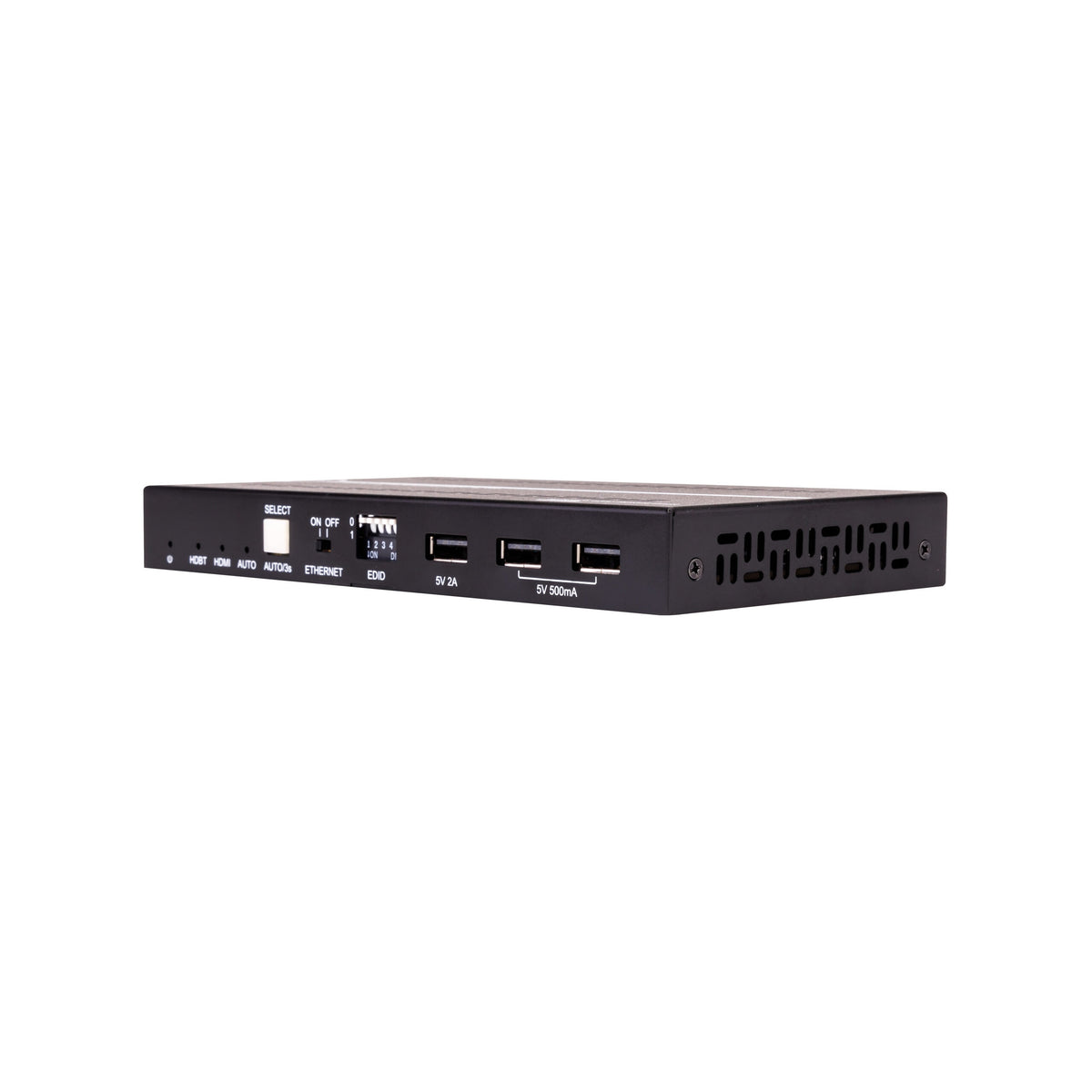

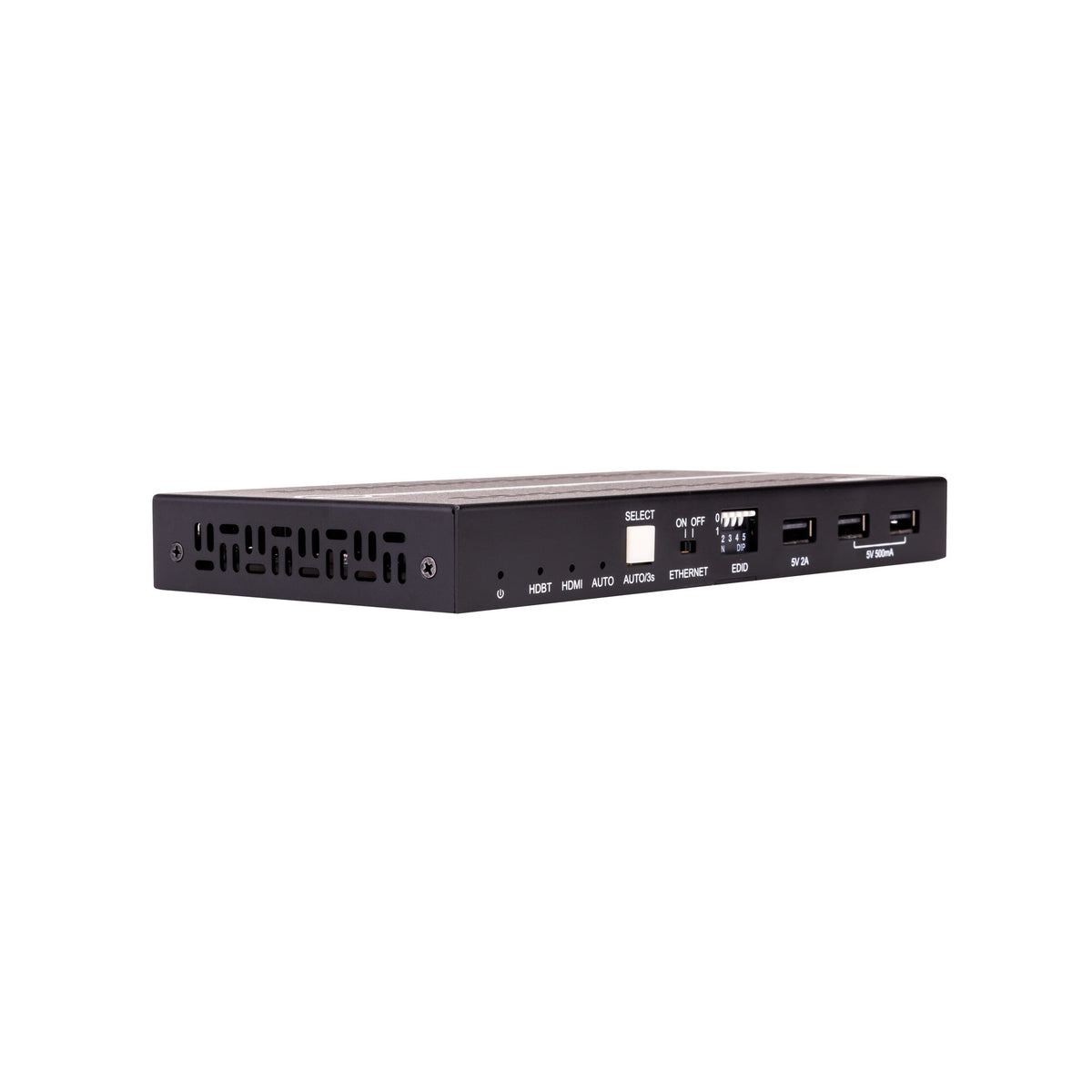

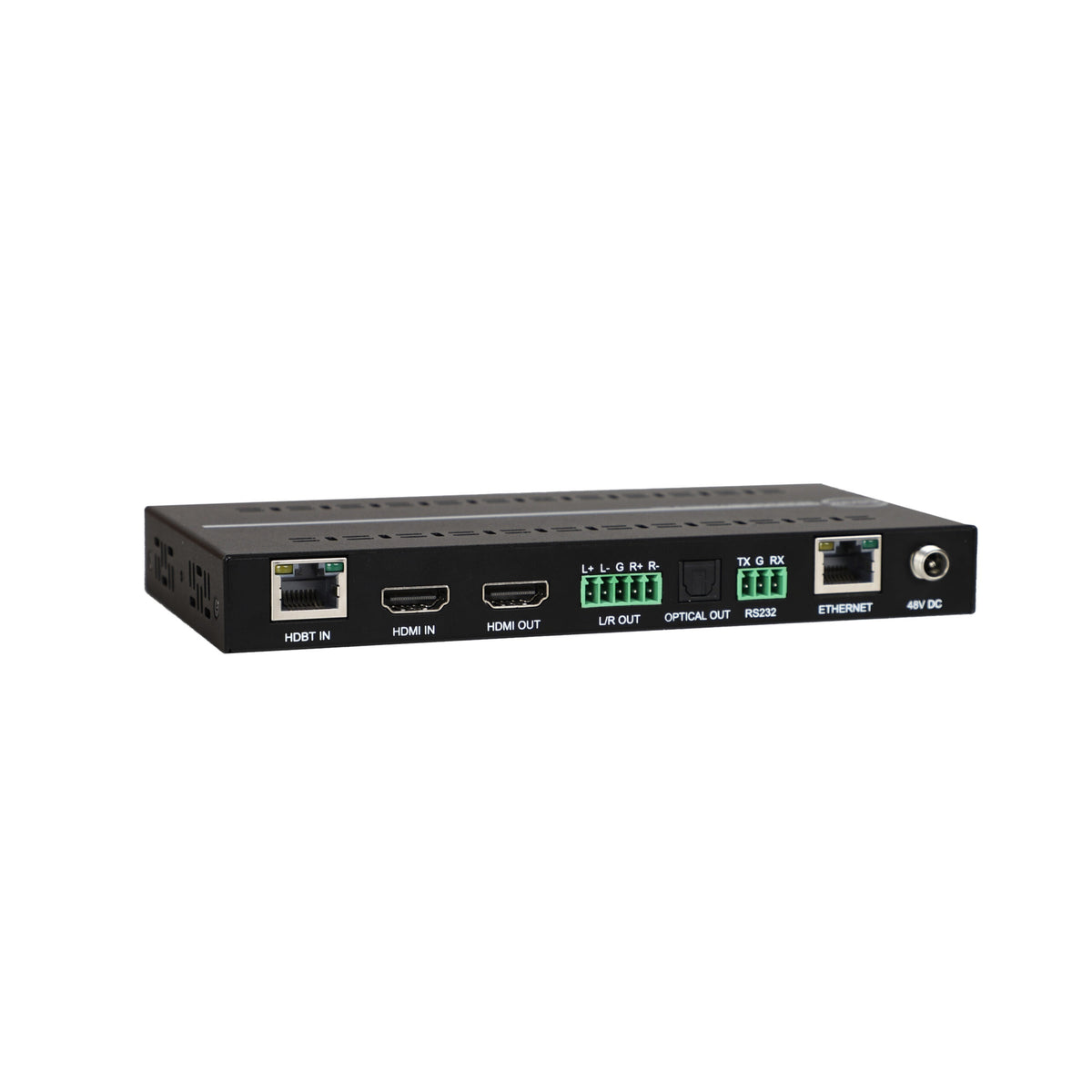

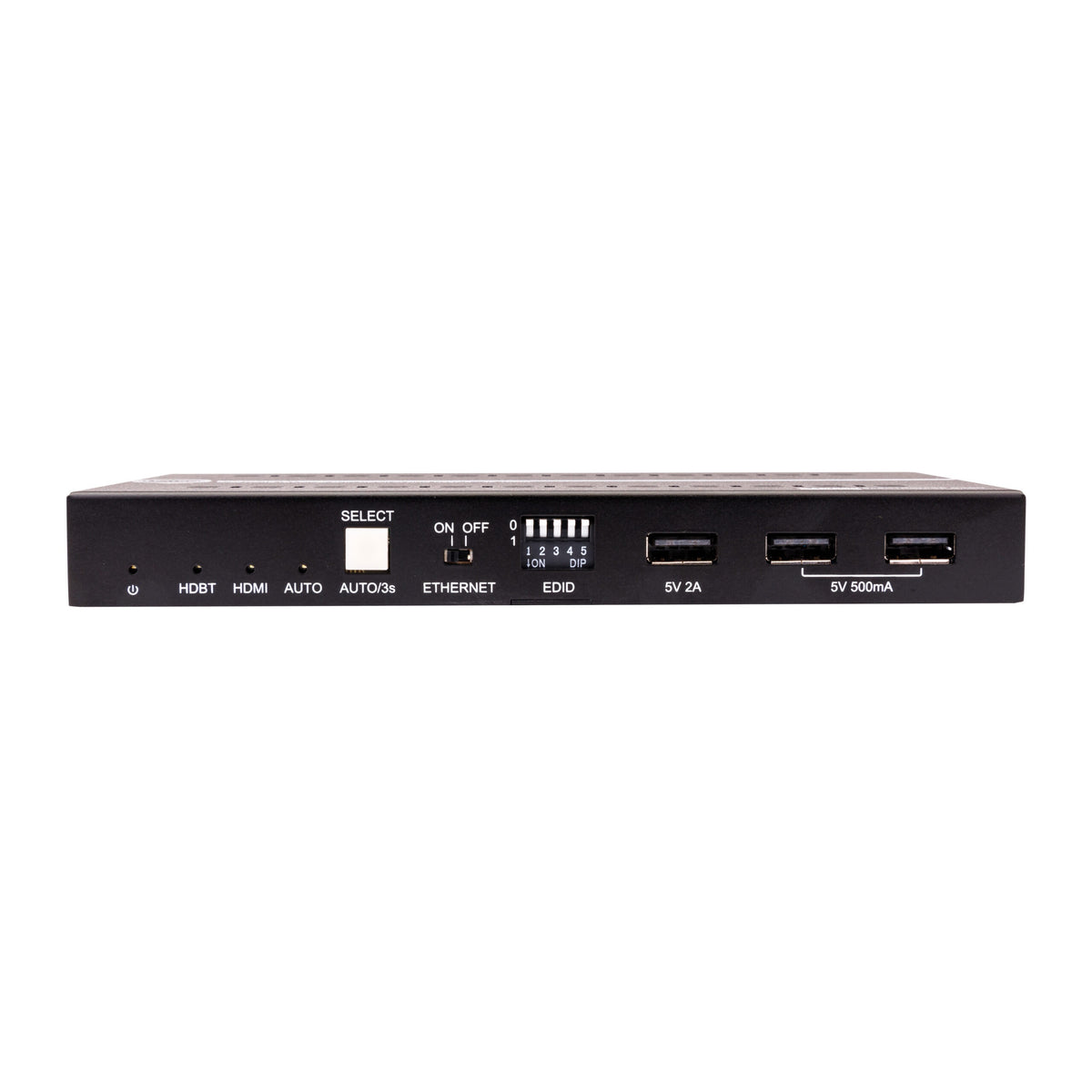

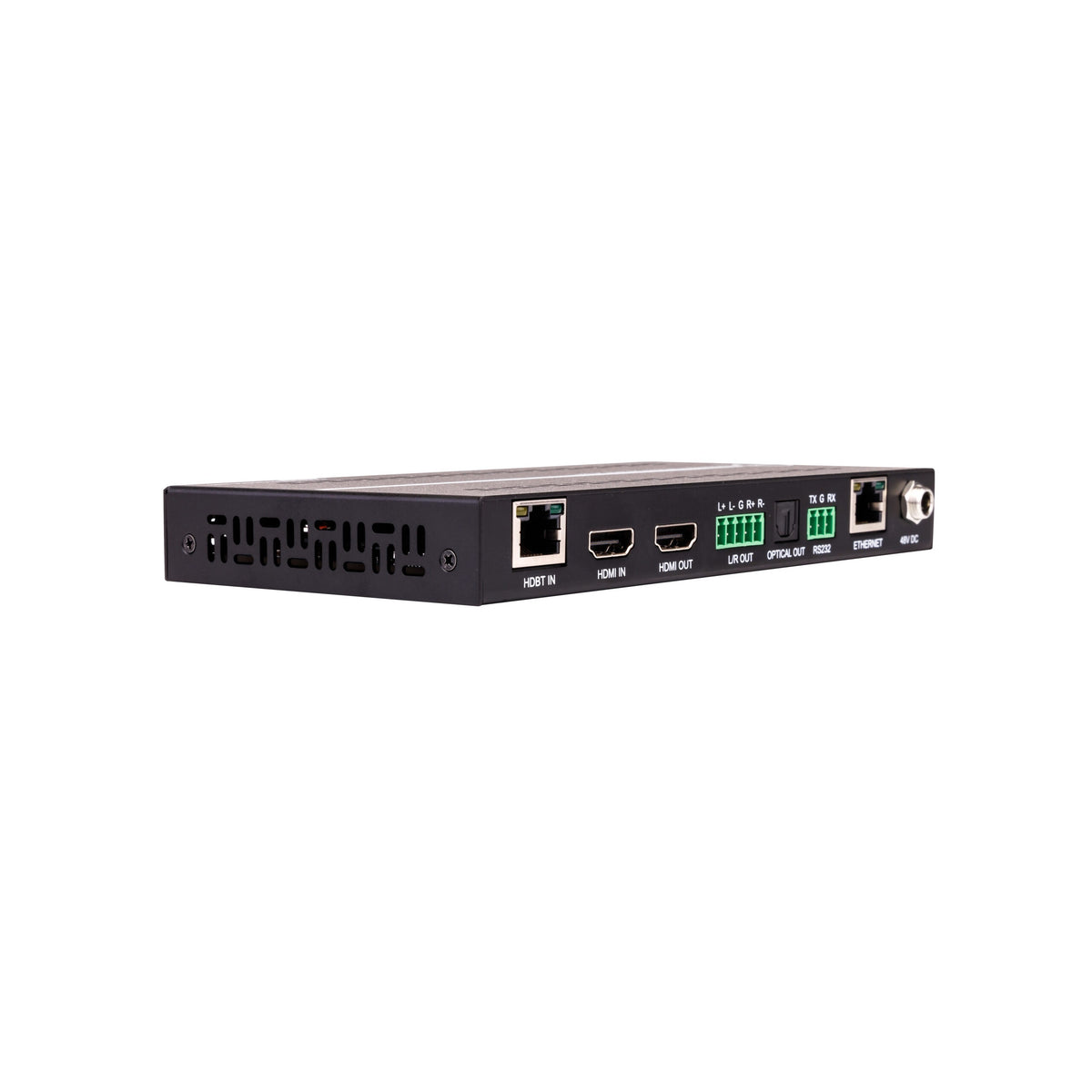

The receiver adds a second HDMI input for local BYOD connection with its own auto-switch logic, and an Ethernet port shared by USB-C and USB-B gives networked laptops connectivity through the same cable run. Firmware updates are handled via RS232 or USB-A on the receiver, and 48V PoC powers the wall plate transmitter from the receiver side, simplifying AC requirements at the table end.
