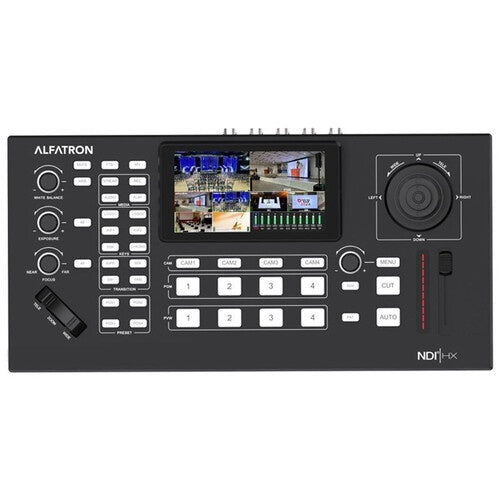

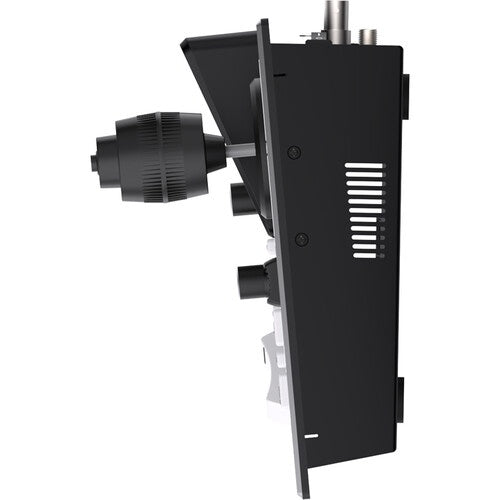

Alfatron Electronics ALF-VM-52 Quad Camera Video Switcher

Alfatron Electronics ALF-VM-52 Quad Camera Video Switcher

SoundPro Item: 207113 | Part Number: ALF-VM-52

Regular price $1,649.99
Regular price $1,699.00 Sale price $1,649.99
Your Price Sold out
MSRP: $1,699.00 | MAP: $1,649.99

Usually ships in 5-7 business days

  • 5-Channel 4K60 Input Flexibility Accepts Mixed HDMI And SDI Sources Without Conversion Hardware
  • Integrated PTZ Camera Control Eliminates Standalone Controller Requirements For Multi-Camera Productions
  • NDI®|HX Network Integration Enables IP-Based Workflows Over Standard Ethernet Infrastructure
  • Built-In Full HD Monitoring Surface Provides Real-Time Preview And Program Display At The Control Position
  • Simultaneous UVC And Network Streaming Outputs Support Multi-Platform Distribution From Single Source
  • Dual XLR Microphone Preamps With Line Inputs Deliver Complete Audio Mixing Without External Consoles
  • Local SD Card Recording Captures Archive And Post-Production Material During Live Events

The Alfatron Electronics ALF-VM-52 is engineered for live production teams and installation professionals who need comprehensive camera management and switching in a single-rack solution. Designed for broadcast studios, house of worship venues, corporate AV installations, and mobile production rigs, this switcher consolidates video routing, camera control, preview monitoring, and streaming output without requiring separate controller hardware or external monitors. Its NDI®|HX integration enables IP-based production workflows over standard Ethernet infrastructure, while simultaneous UVC and network streaming outputs support multi-platform distribution from a single source.

Operators gain direct PTZ camera positioning from the switcher interface, eliminating the need for standalone joystick controllers in small to mid-size production environments. The built-in full HD display provides program and preview monitoring at the control surface, reducing rack space and cabling complexity compared to traditional multi-box switcher configurations. Dual microphone preamps with dedicated line inputs allow for complete audio mixing without external consoles, while DB-9 tally output integrates with professional camera systems and talent cue lighting. Local SD card recording enables simultaneous archive capture during live streaming events, providing redundancy and post-production source material without additional capture devices.

View full details

Specifications

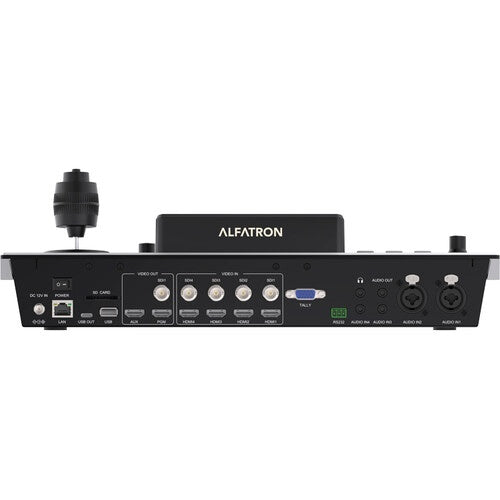

Video Inputs
HDMI Inputs
4
SDI Inputs
4 x 3G-SDI
Video Outputs
HDMI Outputs
2 (PGM, AUX)
SDI Output
1 x 3G-SDI
USB-C UVC Output
1
Audio Inputs
XLR Mic Inputs
2
3.5mm Line Inputs
2
Audio Outputs
3.5mm Headphone Output
1
3.5mm Line Output
1
Connectivity
Network
1 x RJ-45
USB-A Port
1
SD Card Slot
1
Tally Output
1 x DB-9
Display
Built-In LCD
5.5" Full HD
Shipping
Package Weight
7.55 lbs
Package Dimensions
18.89" x 9.92" x 6.96"
