Alfatron ALF-VM-MINI Portable Quad HDMI Video Switcher
Alfatron ALF-VM-MINI Portable Quad HDMI Video Switcher
SoundPro Item: 147060 | Part Number: ALF-VMIX-MINI
Usually ships in 5-7 business days

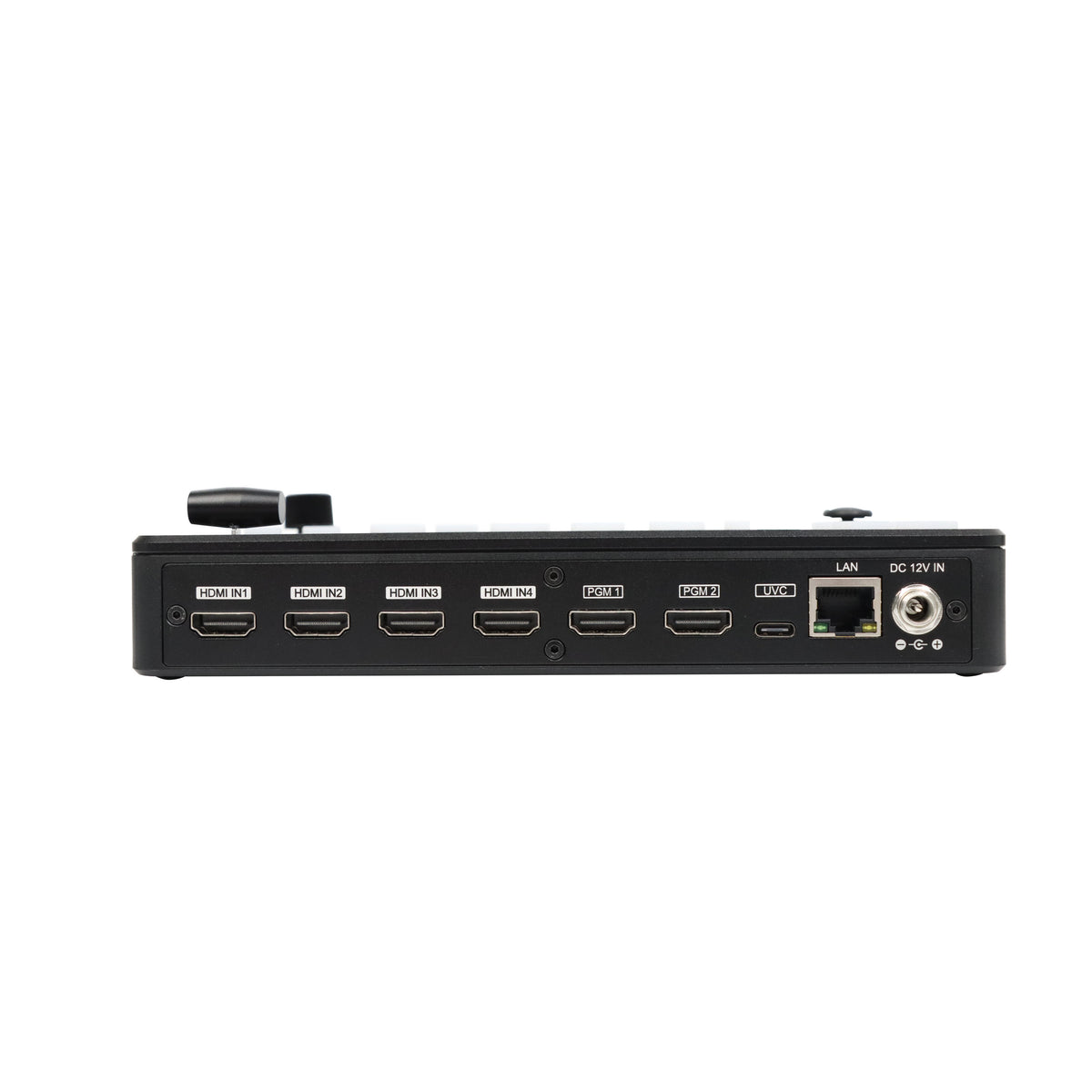

- Quad HDMI Input With Dual HDMI Program Output Plus UVC Streaming Port

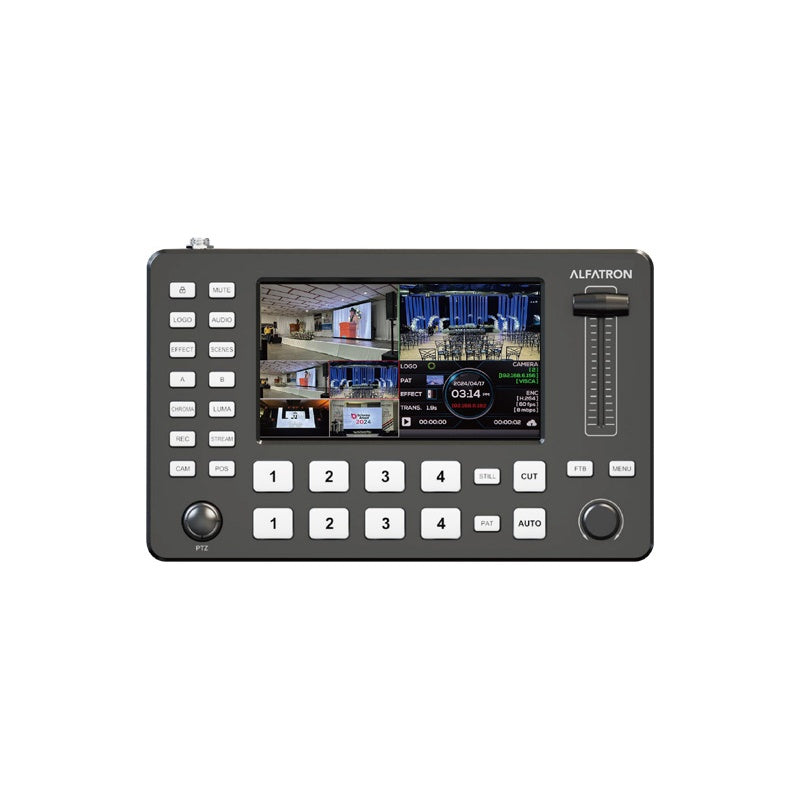

- Built-In 5" Wide Gamut FHD LCD For Multiview Preview Without External Monitor
- Film-Grade Chroma Key And Luma Key For Compositing On Compact Productions
- RTMP Multi-Platform Live Streaming With Adjustable Bit Rate And One-Key Start

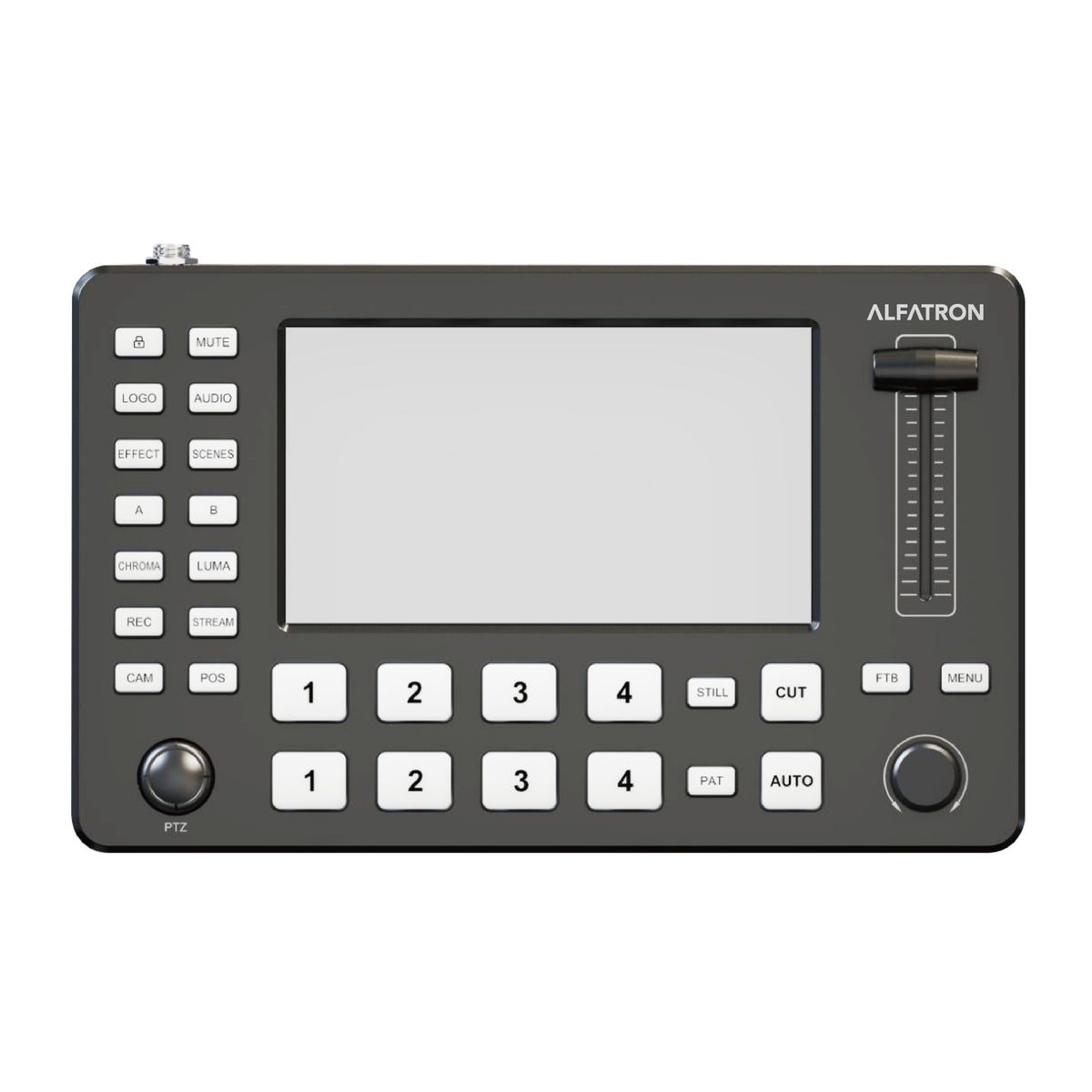

- T-Bar, AUTO, And CUT Switching With More Than 30 Transition Effects
- Five-Way Rocker Enables PTZ Focus, White Balance, And Position Control
- Internal Media Library Supports User-Defined And Imported PNG Logos With Alpha Channel
The Alfatron Electronics ALF-VM-MINI is built for production engineers and AV integrators who need a full-featured video switcher in a compact, field-ready unit. It accepts four HDMI sources simultaneously, outputs dual HDMI program feeds plus a UVC stream for direct USB capture, and supports RTMP multi-platform broadcast with adjustable bit rate. This combination of local output and simultaneous streaming makes it a practical choice for house-of-worship installs, corporate AV deployments, educational institutions, and small-format live events where a full-size production switcher is neither practical nor cost-effective.
The 5-inch wide-gamut FHD LCD gives operators a clear multiview preview without a secondary monitor, and the T-bar with more than 30 transition effects, including WIPE, MIX, DIP, and FTB, delivers the switching flexibility expected in professional broadcast environments. Luma key and film-grade chroma key support compositing workflows that typically require much larger systems. Built-in PTZ control via a five-way rocker, local video recording, and a user-definable media library with PNG logo support with alpha channel round out a feature set that punches well above the unit's size and price point.

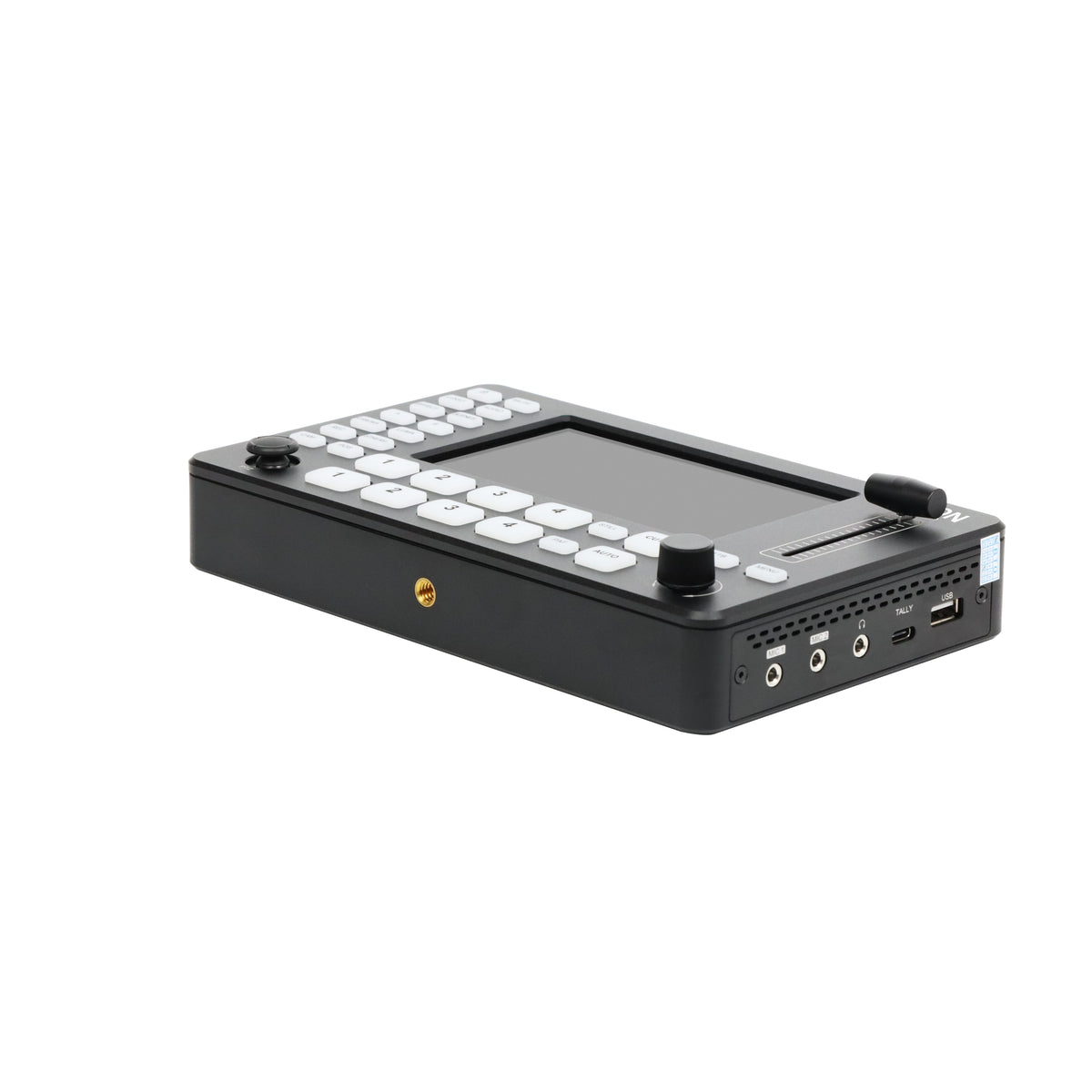

On the audio side, two 3.5mm inputs accept both microphone and line-level signals alongside four HDMI-embedded audio sources, with adjustable audio delay up to five seconds for sync correction. Running on DC 7-12V at under 12W, the unit is power-efficient enough for battery or portable power supply operation on location, making it equally at home in a fixed rack or a run-and-gun production bag.
Downloads
Downloads
Specifications
