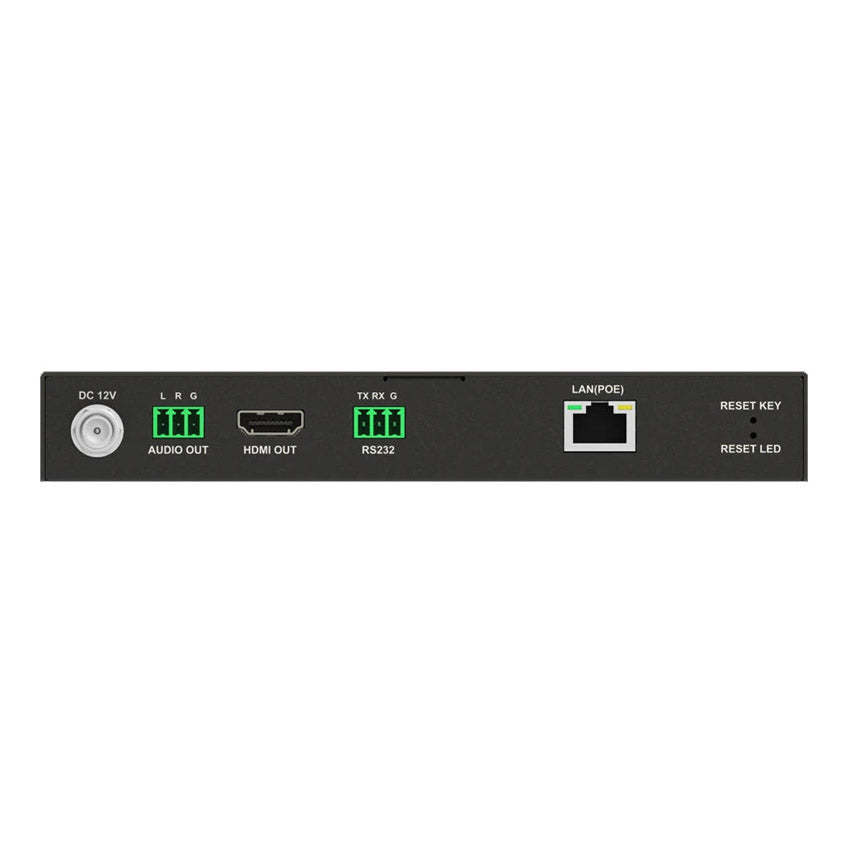

Alfatron Electronics IP2HD AV Over IP Networked AV Decoder
Alfatron Electronics IP2HD AV Over IP Networked AV Decoder
SoundPro Item: 111914 | Part Number: IP2HD
Usually ships in 5-7 business days
- Works easily with an Ethernet switch, no need to configure; real plug and play solution
- Supports high-efficiency H.264/265 video codec, HDCP 1.4
- Supports MPEG4-AAC and LPCM stereo audio
- Effortless preview management: drag-and-drop sources to the desired displays for visual control
- Easy to build an IP matrix or a video wall
- The decoder has a built-in scaler to achieve fast and seamless switching
- The RS232 route follows the switching of video source
The ALF-IP2HD is a networked AV over IP decoder adopting the latest H.265 compression. The decoder can be configured in an IP video matrix or video wall setup using the VDirector mobile app (IOS). Works easily with an Ethernet switch, so there's no need to configure IP’s; real plug and play solution. Supports high-efficiency H.264/265 video codec with MPEG4-AAC and LPCM stereo audio. Built-in scaler for fast and seamless switching. RS-232 route follows the switching of video source. INPUT: 1 x LAN (PoE) OUTPUT:1 x HDMI, 1 x Line out, 1x RS-232
- Video Decoder
- Input Port: 1 x LAN
- Input Resolutions: up to 1080P@60Hz
- Output Port: 1 x HDMI
- Output Resolutions: up to 1080P@60Hz
- Video Protocol: H.265 Video Compression
- Audio Decoder
- Input Port: 1 x LAN
- Output Port: 1 x HDMI, 1 x Line Out
- Audio Format: MPEG4-AAC and LPCM Stereo
- Operating Temperature
- +32°F ~ +113°F (0°C ~ +45°C)
- 10% ~ 90%, non-condensing
- Storage Temperature
- -4°F ~ 140°F (-20°C ~ +70°C)
- 10% ~ 90%, non-condensing
- Power SupplyDC12V 1A /PoE
- Power Consumption Decoder: 6W (Max)
- ESD Protection: Human body model
- ±8kV (air-gap discharge)
- ±4kV (contact discharge)
- Dimensions each for encoder and decoder (WxHxD)6.9x0.98x3.9” 175x25x100.2mm
- Net Weight (each for TX and RX)1.32lbs (0.6kg)
