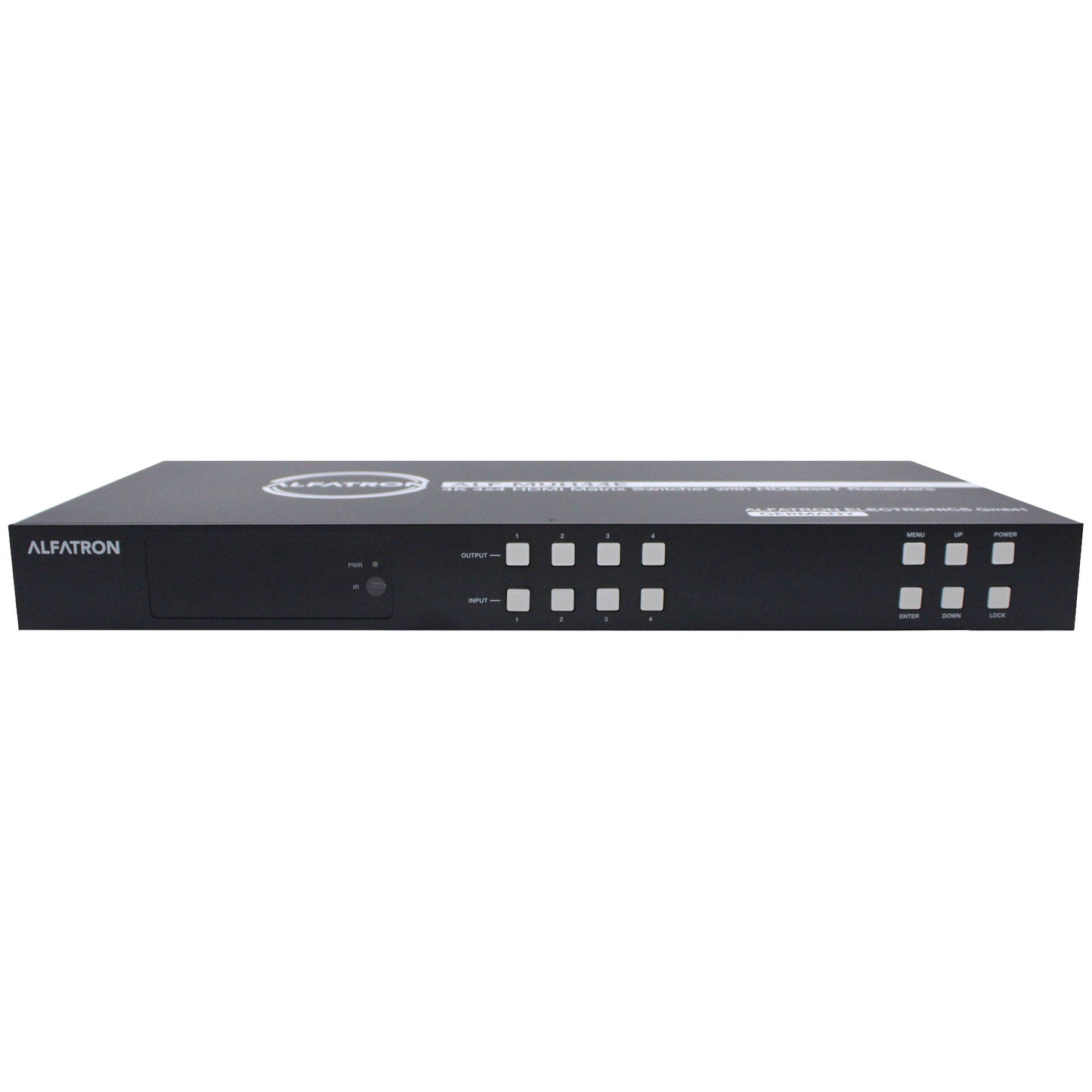

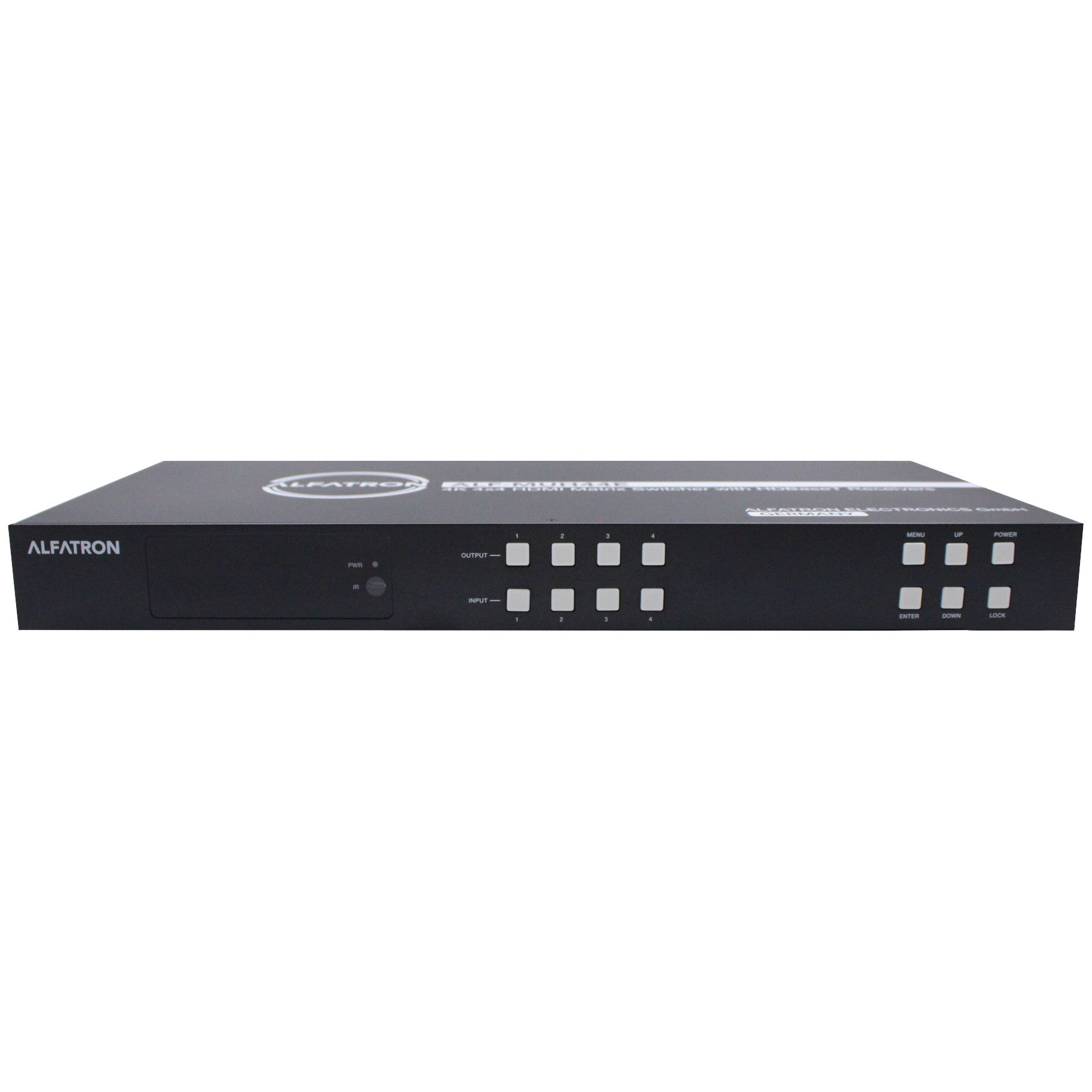

  • Alfatron Electronics MUH44E 4K HDBaseT Home Distribution Hub Kit front

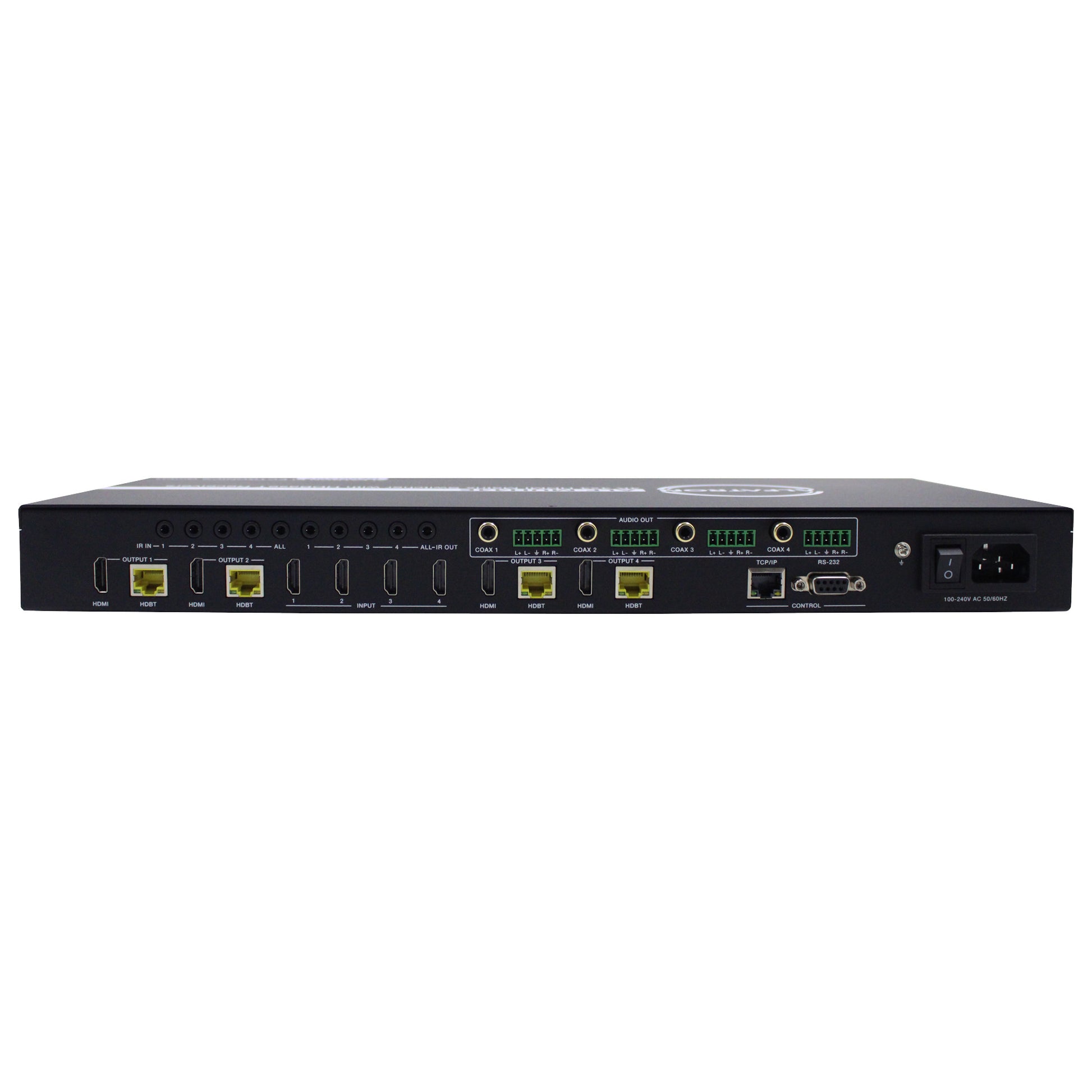

  • Alfatron Electronics MUH44E 4K HDBaseT Home Distribution Hub Kit back
1 3

Alfatron Electronics MUH44E 4K HDBaseT Home Distribution Hub Kit

Alfatron Electronics MUH44E 4K HDBaseT Home Distribution Hub Kit

SoundPro Item: 111909 | Part Number: MUH44E

$1,999.99
$2,272.00 $1,999.99
Your Price Sold out
MSRP: $2,272.00 | MAP: $1,999.99

Usually ships in 5-7 business days

  • Support HDMI 1.4 & HDCP 2.2, and compliant with lower standards, capable to transmit 4Kx2K@60Hz 4:2:0 & 1080p 3D
  • Support manual HDCP management and auto-detecting
  • Transmit 4Kx2K signal for 8m via HDMI port, 40m Via HDBT port
  • Audio source selectable via RS232 command
  • 3 HDBaseT outputs distance up to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6
  • HDBaseT Receivers are powered by the matrix switcher 12VDC by PoC technology
  • LED indicators show real-time switching status
  • Controllable via the front panel, RS232, IR and TCP/IP support bi-directional IR control
  • Built-in GUI for TCP/IP control
  • Powerful EDID management
  • Support non-volatile memory (NVM) for reliable operation
  • Support firmware upgrade through Micro USB port
  • Easy installation with a rack-mounting design
Log in or register for YOUR best price

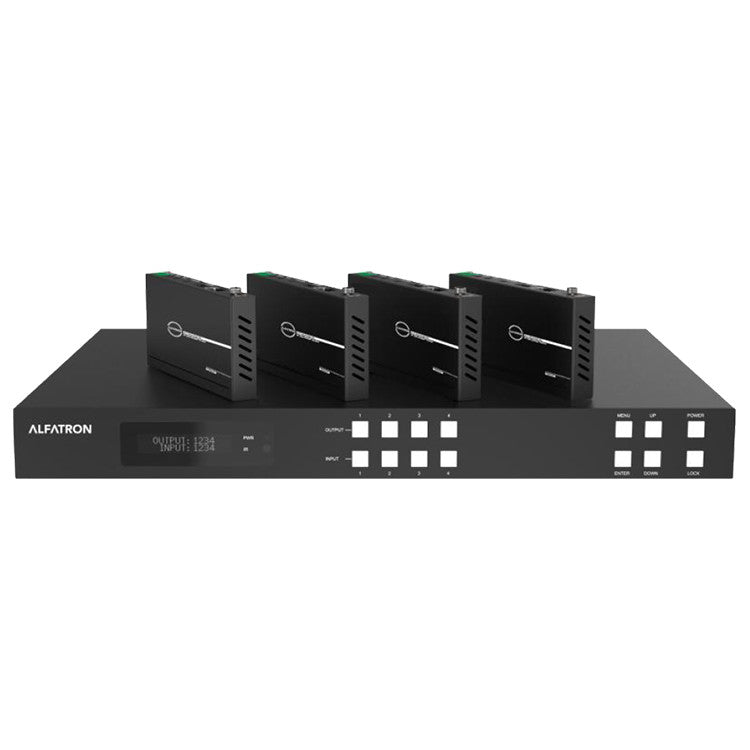

The professional MUH44E 4K HDBaseT Home Distribution Hub Kit consists of a 4K HDBase T Matrix Switcher, 3 HDBaseT Receivers and accessories.

The 4K HDBaseT Matrix Switcher is a professional 4×4 HDBaseT Matrix Switcher that consists of the following inputs and outputs: 4 HDMI InN (4K x 2K@60Hz signal at max), 3 IR IN, 1IR EYE, 4 IR OUT, 3 HDBaseT OUT, 1 HDMI OUT, 1 SPDIF OUT, 1 L&R RCA OUT, and TCP/IP, RS232 control port via phoenix connector. The HDBaseT Receiver is and HDBaseT Receiver that consists of the following inputs and outputs, 1 HDBaseT IN, 1 IR OUT and HDMI OUT.

The receiver is powered directly by the Matrix Switcher. All HDMI inputs can be selected by either the front panel buttons, IR, RS232 or GUI. The selected source is delivered to HDBaseT zoned outputs 1 ~3 & HDMI Output. The Matrix Switcher is capable of delivering 4K signals up to 40m, 1080p up to 70m and powering the receivers via a single CAT5e cable, but it is recommended to use good quality CAT6 cable. The Matrix Switcher supports EDID management and is HDCP 2.2, 1.4 compliant. Audio sources can be selected via RS232 commands and TCP/IP at the Matrix Switcher or by 3rd Party control.

View full details
  • Specification
    • HDMI Compliance: HDMI 2.0b
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth: 18Gbps
    • Video Resolution: Up to 4K2K@50/60Hz (4:4:4)
    • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
    • Color Depth
      • 8-bit, 10-bit, 12-bit (1080p@60Hz)
      • 8-bit (4K2K@60Hz YUV4:4:4)
      • 8-bit 0-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0
    • HDR: HDR10, HDR10+, HLG
    • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
    • Coax Audio Formats: PCM 2.0, DTS 2.0/5.1
    • Analog Balanced Audio Formats: PCM2.0CH
    • Vmax: 2Vrms
    • SNR: >90dB
    • THD+N Ratio: < 0.1% V max) .001%~0.01% V best)
    • Crosstalk: > 80dB
    • Frequency Response: 20Hz~20kHz ± 0.5dB
    • ESD Protection
      • Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
    • HDBaseT Receivers: 4 x Included
  • Connection
    • Matrix
      • Inputs: 4 x HDMI Type A [19-pinfemale]
      • Outputs:
        • 4 x HDMI Type A [19-pin female]
        • 4 x HDBaseT port [RJ45]
        • 4 x Coaxial audio [3.5mm Stereo Mini-jack]
        • 4 x Balanced analog audio
        • [5-pin Phoenix connector]
      • Controls:
        • 5 x IR IN [3.5mm Stereo Mini-jack]
        • 5 x IR OUT [3.5mm Stereo Mini-jack]
        • 1 x TCP/IP [RJ45]
        • 1 x RS-232 [D-Sub 9]
    • HDBaseT Receiver
      • Input: 1 x HDBT IN [RJ45, 8-pin female]
      • Outputs:
        • 1 x HDMI Type A [19-pin female]
        • 1 x AUDIO OUT [3.5mm Stereo Mini-jack]
      • Controls:
        • 1 x IR IN [3.5mm Stereo Mini-jack]
        • 1 x IR OUT [3.5mm Stereo Mini-jack]
        • 1 x RS-232 [3-pin Phoenix connector]
        • 1 x SERVICE [Mini-USB, Update port]
  • Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions (WxDxH)
      • Matrix: 440x004.5mm
      • Receiver: 140x65x18mm
    • Weight
      • Matrix: 3.1kg
      • Receiver: 155g
    • Power Supply: AC 100 – 240V 50/60Hz
    • Power Consumption: 60W (Max)
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C~ 60°C/ -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (non-condensing)
    • Resolution / Distance: 4K60 – Feet / Meters
    • CAT6/7: 328ft / 100M
    • Resolution/ Cable Length: 4K60 – Feet / Meters; 4K30 – Feet / Meters; 1080P60 – Feet / Meters HDMI IN / OUT 16ft / 5M; 32ft / 10M; 50ft / 15M
  • NoteThe use of “Premium High-Speed HDMI” cable is highly recommended.
