Specifications
Dimensions
Dimensions (W*H*D)
148x44x165 mm
Electrical
THD+ Noise
1%@1KHz 50W
Voltage Gain
32dB
Power Consumption
1.48W
Audio
Input Impedance
>10KΩ
Output
Output Signal 1x LOOP2x Stereo audio/ 1 Mono audio
SNR
80dB
Output Power
1×100W@4Ω/2×50W@8Ω
Connectivity
Input Signal
1x L+R stereo audio 1x 3.5mm analog audio 1x Optical Fiber audio
Input

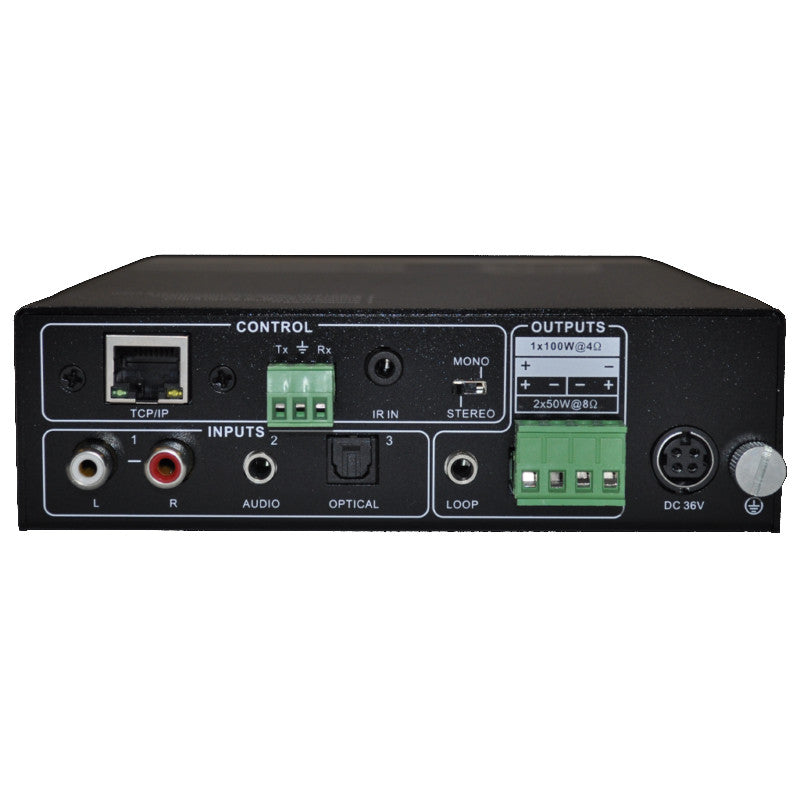

Connectors 2x RCA1x 3.5mm TRS plug 1x SPDIF
Connectors
1x 3.5mm jack 1x 4-pin 5.08mm connector
Environmental
Work Temperature
0~50°C
Shipping
Weight
0.72kg
General
Damping Coefficient
>100
Control
Control Ports 1x RS232 (3-pin pluggable terminal block) 1x IR IN (3.5mm female)1x TCP/IP (RJ45 female, optional)

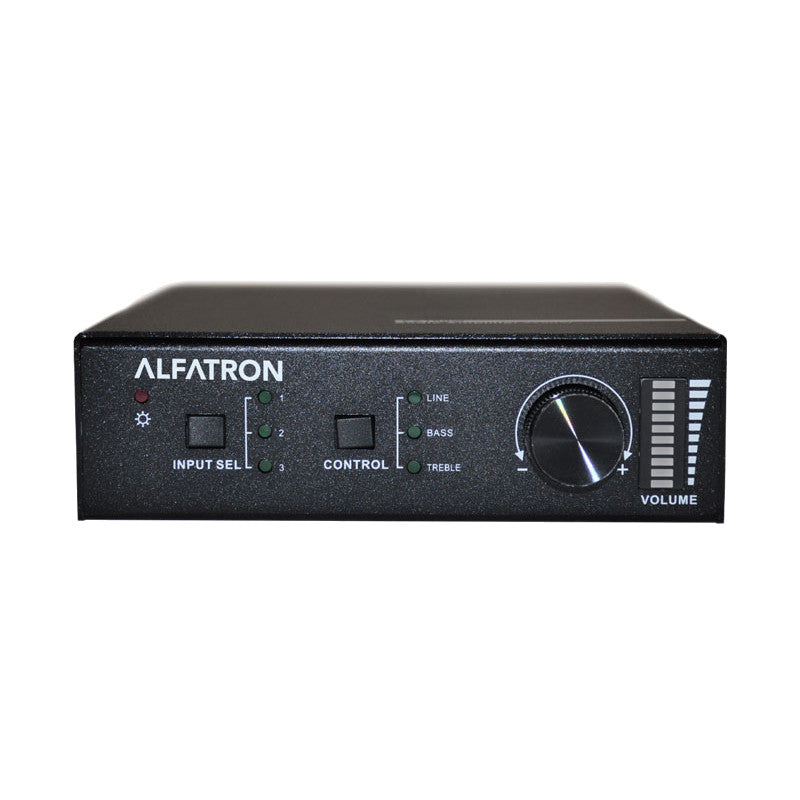

Panel Control
Front panel buttons& rear panel switcher
Separation
75dB 20Hz~20KHz
Power Supply
DC 36V 2.66A
Reference Humility
10%~90%
