Alfatron Electronics PA2B 2x20W Low Impedance Mixer Amplifier
Alfatron Electronics PA2B 2x20W Low Impedance Mixer Amplifier
SoundPro Item: 111994 | Part Number: PA2B
Usually ships in 5-7 business days
- 2 x 20 Watt@40hm as the default amplifier output
- Bridge connection function. User can switch the PA2B to be 1 x 40Watt@80hm by bridge connection
- Two stereo audio inputs, switchable by button, IR remote & RS232
- Volume/Base/Treble controllable by buttons IR remote & RS232
- MIC port can support balance/unbalance signal, suppress the external noise effectively
- Line audio output at 3.5mm jack, with volume controllable
- Dual-mono up the stereo audio to two times mono audio. MIC mixer function
- The microphone will be mixed to the line audio output, and be controlled separately
- MIC input supports 48V phantom power, dynamic MIC and Wireless MIC
- Auto noise gate. It keeps detecting the audio and MIC input, will mute the output when there is no input
- Ultra low inrush current, no need for power sequencing and this allows multiple PA2B to be powered on simultaneously without overloading power circuits
- Convection cooled, the fan is not needed
- Anti-static case design: providing good protection for long-term and stable performance
The ALF-PA2B is a compact-sized digital amplifier (Class-D) with 3 inputs (2 lines in and 1 balanced MIC). It is integrated with powerful functions, including bridge connection, dual-mono, EQ control, microphone mixer etc. It has a good application in different places, including classroom, small meeting room, lecture hall, bar, pub etc.

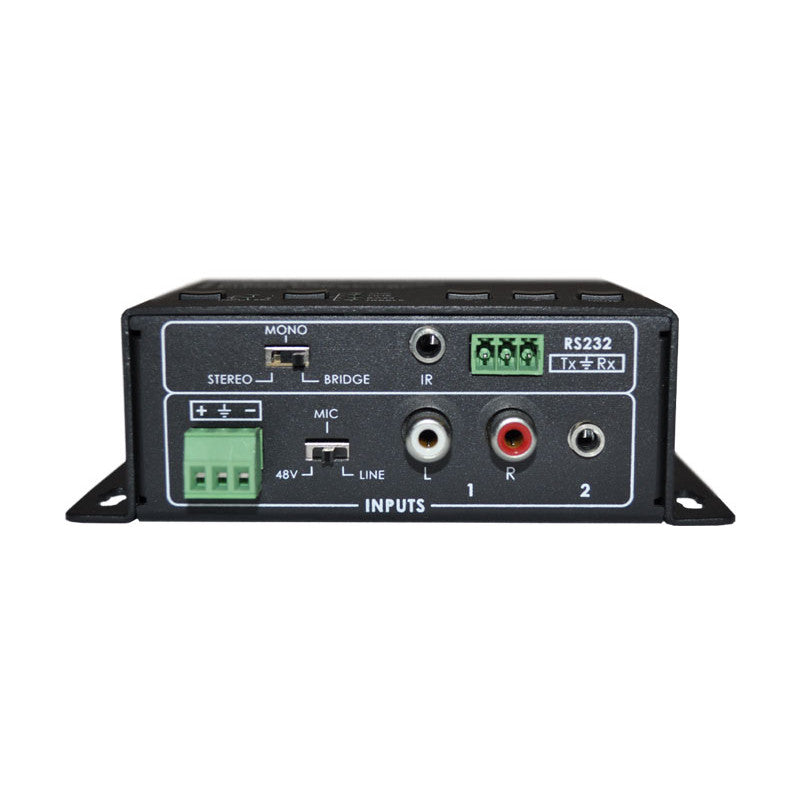

- Audio Input
- Input: 2 stereo audio, 1 MIC
- Input Connector
- 2 RCA
- 1 3.5mm jack
- 1 pluggable terminal block (3P,3.81mm)
- Input Impedance: >10KΩ

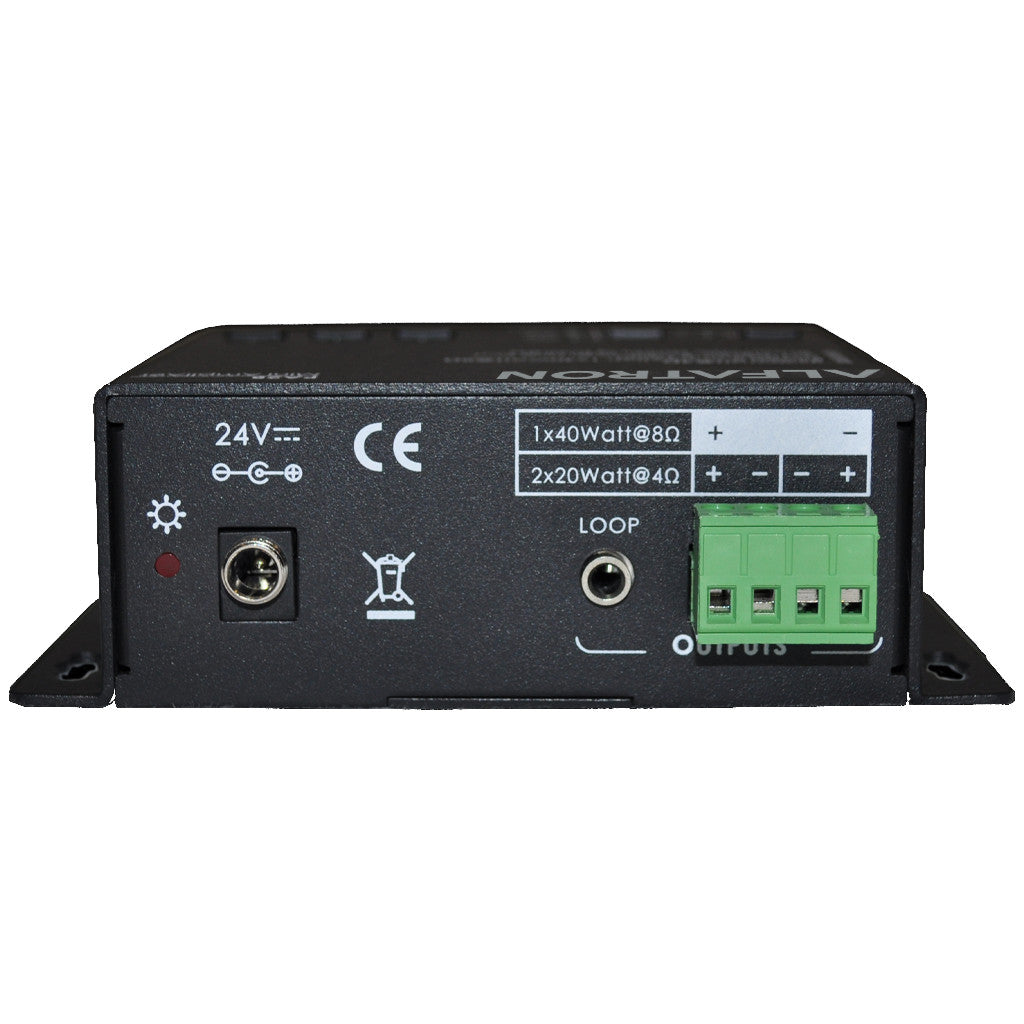

- Audio Output
- Output: 1 amplifier, 1 stereo audio
- Output Connector
- 1 3.5mm jack
- 1 pluggable terminal block (4P, 5.08mm)
- Output Impedance: 50Ω/stereo, 4~8Ω/Amplifier
- Audio General
- Frequency Response: 20Hz ~ 20KHz CMRR >70dB@20Hz~20KHz
- SNR: 80dB at maximum output
- Bandwidth: 20Hz ~ 25KHz
- Stereo Channel Separation: >75dB@20Hz to 20KHz
- THD + Noise: 1%@1KHz, 0.3%@20KHz at nominal level
- Voltage Gain: 32dB
- Power Output: 2×20 Watts (4 Ohms)
- Control Function
- RS232 Control: 3-hole phoenix connector
- Panel Control: Optional button control
- IR Remote: Optional IR remote
