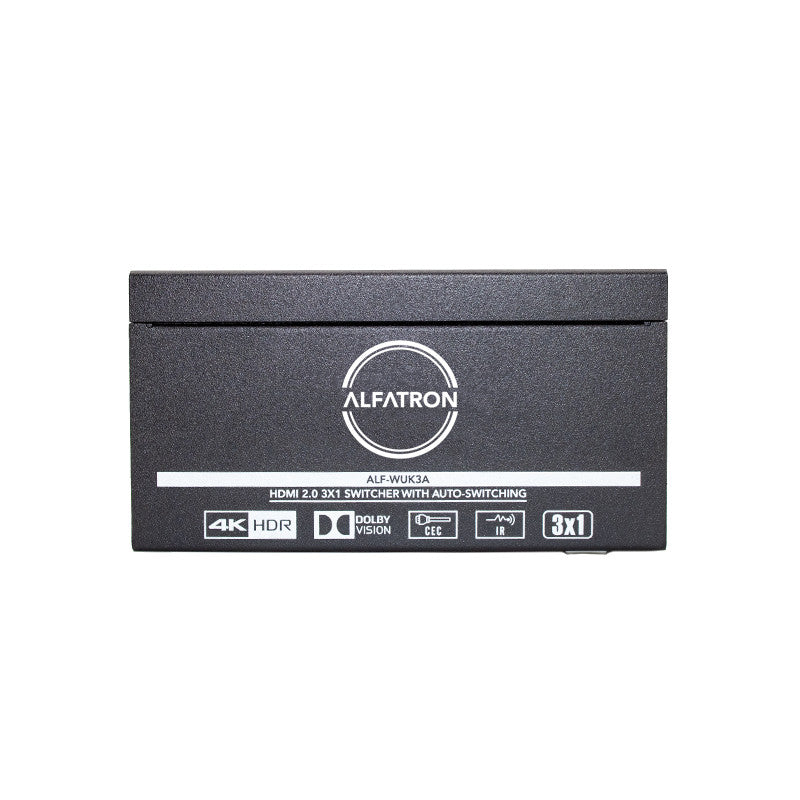

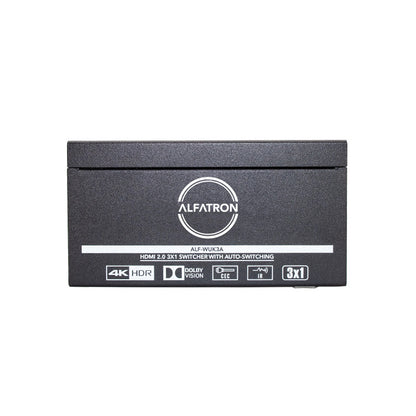

Alfatron Electronics WUK3A 3x1 4K HDMI Switcher
Alfatron Electronics WUK3A 3x1 4K HDMI Switcher
SoundPro Item: 111929 | Part Number: WUK3A
Usually ships in 5-7 business days
- Supports Video resolutions up to 4Kx2K@60Hz 4:4:4 and 1080P
- Supports HDR 10 and Dolby Vision
- High bandwidth: 18Gbps
- Compliant with HDMI 2.0, capable to transmit 4K signal
- HDCP2.2 compliant, support auto-detecting for input HDCP compliant status
- Support EDID management, including 5 embedded EDID data, 10(max) user-definable EDID data, and EDID data automatically captured and copied
- Supports CEC pass-through
- 3 HDMI inputs
- Support Hot-Plug
- Intuitive indicators for power, switch mode, I/O connection status, and audio output signal
- Convenient Online firmware update
The ALF-WUK3A is a Full 4Kx2K@60Hz 4:4:4 HDMI Auto Switcher with 3x HDMI inputs and 1x HDMI Output.

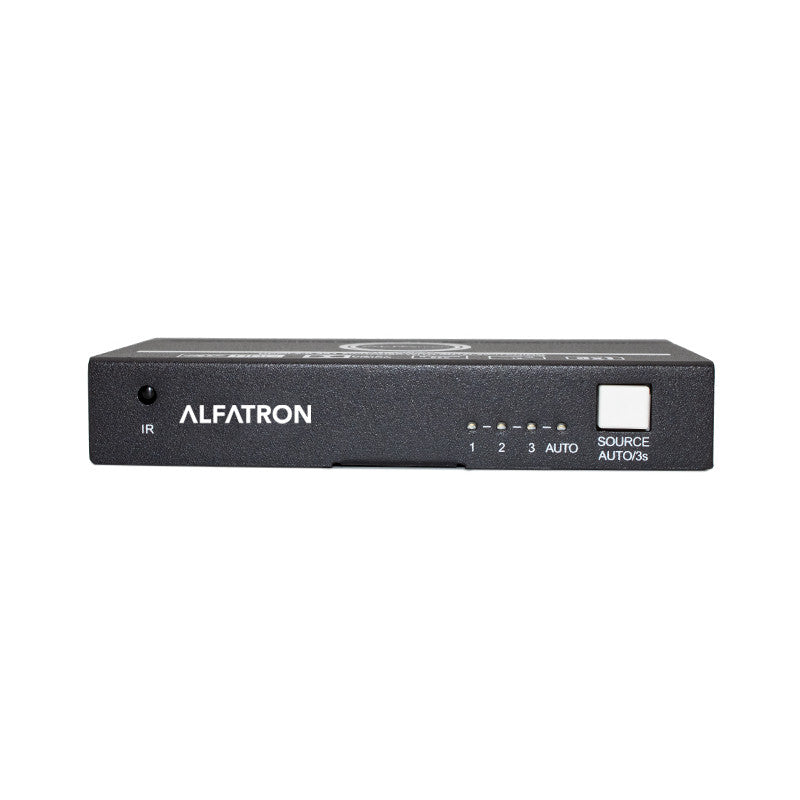

It is controllable by selecting any of the inputs on the front panel or via IR Remote. It is compliant with HDMI2.0 and HDCP 2.2. The HDMI Switcher can transmit an uncompressed 4K (at max) signal.
Comprehensive audio capacities including PCM, Dolby Digital, DTS, and DTS-HD. It also provides an ARC audio output socket to transfer ARC audio to ARC speakers and amplifiers.
- Video Input

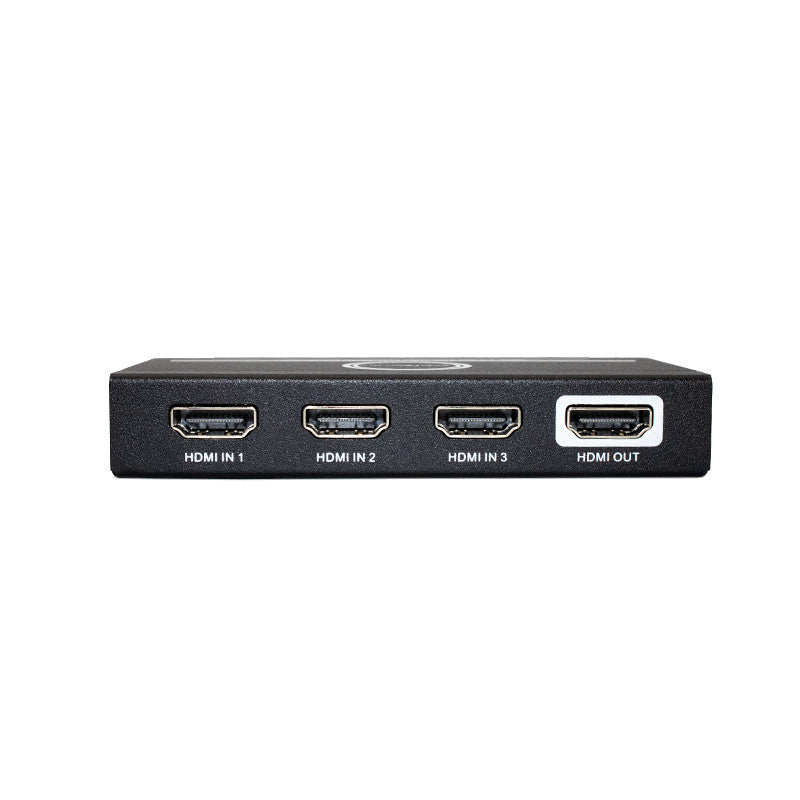

- Input: (3) HDMI
- Input Connector: (4) Female type-A HDMI
- HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4
- Video Output
- Output: (1) HDMI
- Output Connector: (1) Female type-A HDMI
- HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4
- HDMI Standard 2.0
- HDCP Version 2.2
- HDR Supported
- Dolby Vision Supported
- CEC Pass-through Supported
- HDCP Pass-through Supported
- EDID Pass-through Supported
- Hot-plug Supported
- HDMI Audio Format Supports LPCM 7.1 audio, DTS:X™, and DTS-HD® Master Audio™ pass- through.
- HDMI Cable Length
- From source to display device:
- 1080p@60Hz ≤ 20m, 4K@60Hz(4:2:0) ≤ 10m, 4K@60Hz(4:4:4) ≤ 4m
- Bandwidth 18Gbps
- Operation Temperature -5°C ~ +55°C
- Storage Temperature -25°C ~ +70°C
- Relative Humidity 10%-90%
- Power Supply Powered by HDMI input source
- Power Consumption 0.1W (Max)
- Dimension (W*H*D) 105x55x18mm
- Net Weight 150g
