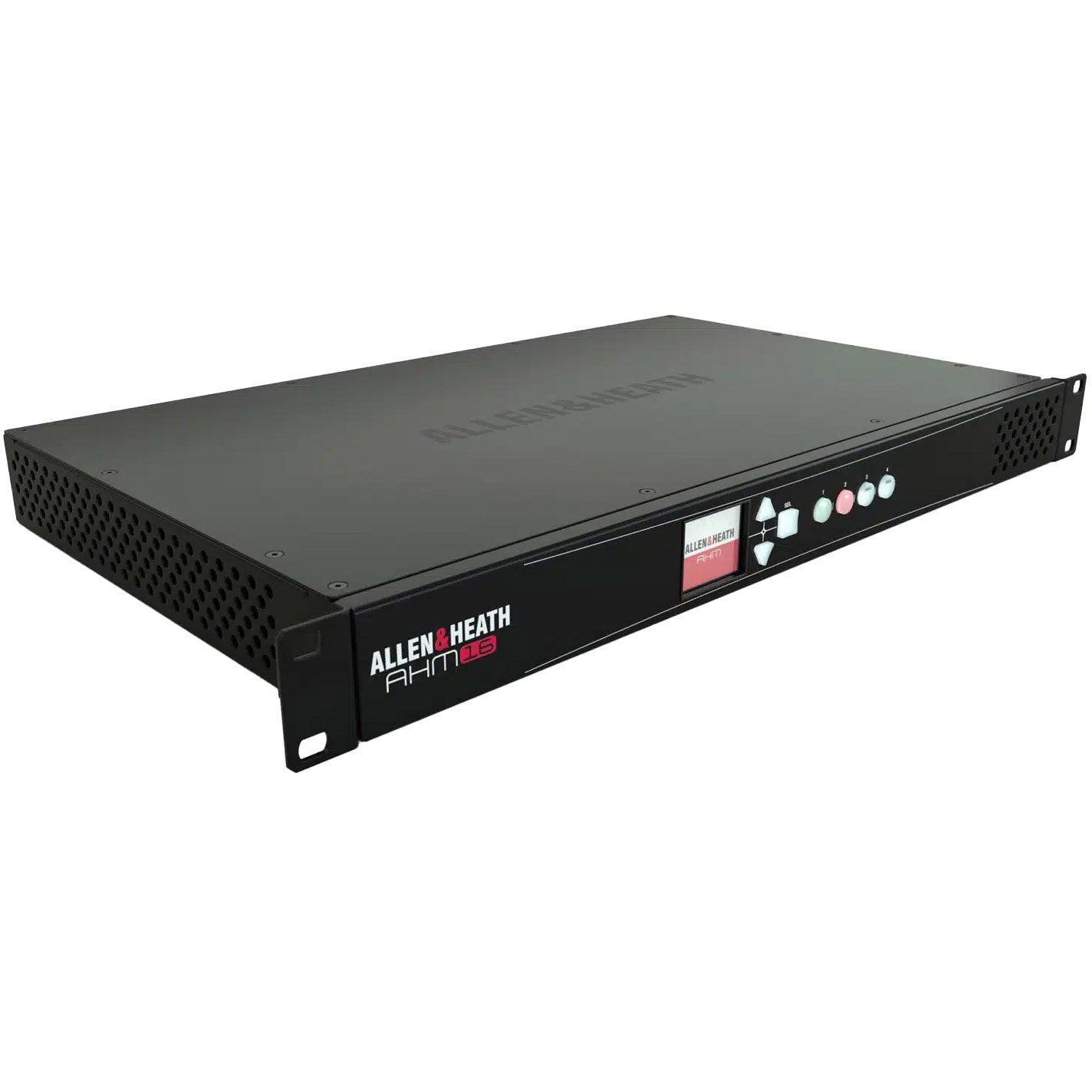

• Allen & Heath AHM-16 Audio Matrix Processor

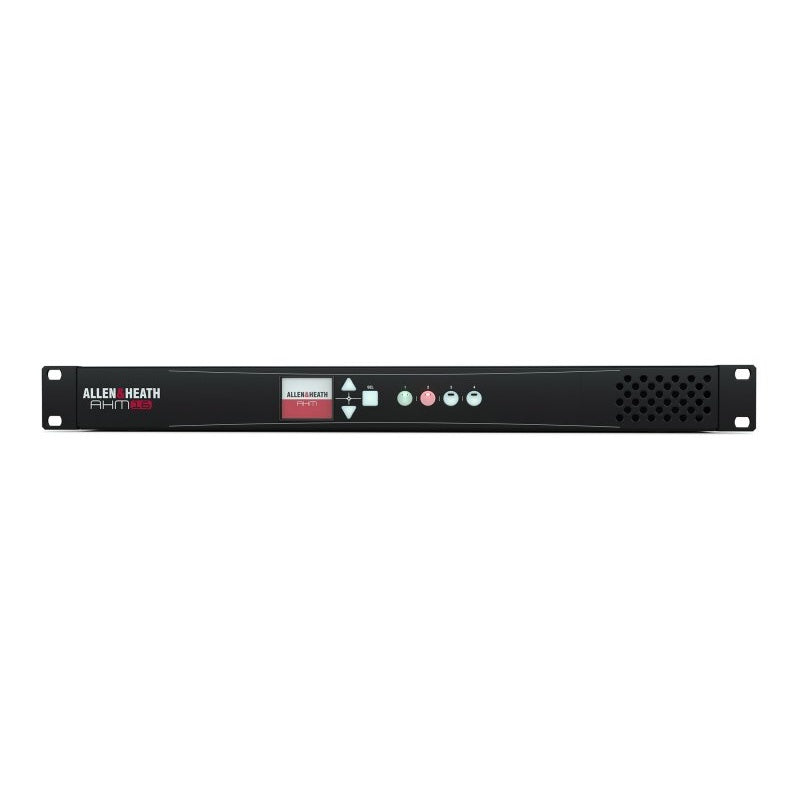

  • Allen & Heath AHM-16 audio matrix processor front panel with LCD display, navigation keys and rack ears

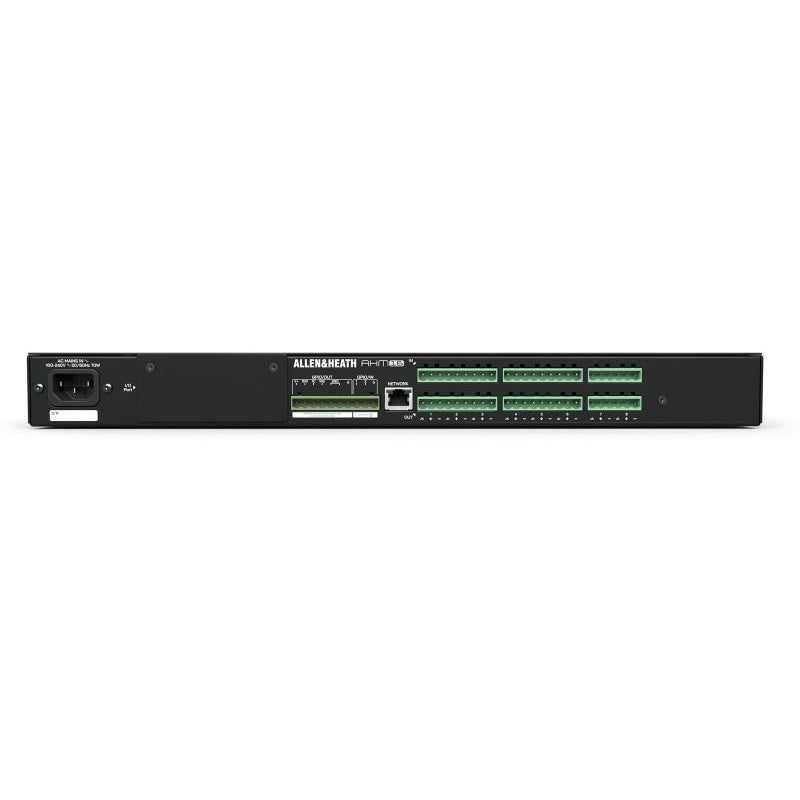

  • Allen & Heath AHM-16 rear panel with IEC power inlet, GPIO terminals, network port and green Phoenix I/O blocks
1 3

Allen & Heath AHM-16 Audio Matrix Processor

Allen & Heath AHM-16 Audio Matrix Processor

SoundPro Item: 129977 | Part Number: AH-AHM-16

$1,499.00
$1,899.00 $1,499.00
Your Price Sold out
MSRP: $1,899.00 | MAP: $1,499.00

In stock and ready to ship

  • 16x16 processing matrix
  • 8x8 local analogue I/O
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz option card (AES67 and DDM ready)
  • SLink 128x128 option card for audio expansion
  • 16 configurable processing outputs – mono / stereo zones or speaker processing
  • 96kHz FPGA core with ultra-low latency
  • Front panel screen and navigation
  • 4x SoftKeys
  • Compatible with IP1, IP6, IP8 remote controllers
  • 2x2 local GPIO plus networkable GPIO interface
  • TCP/IP protocol for third party integration
  • Crestron, AMX and Extron drivers
  • Mac / Windows System Manager software
  • Custom Control app and editor for BYOD
  • 4 user profiles
  • Integrated stereo playback
  • Event scheduler
Log in or register for YOUR best price

With an unrivalled price-performance ratio, AHM-16 delivers a 16x16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.

AHM is a family of powerful Audio Matrix Processors supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. Designed to excel in corporate, retail, hospitality and education environments, AHM matrix processors allow integrators to quickly create systems that build from a single boardroom to a complete campus.

View full details

Specifications

Dimensions
Dimensions (WxDxH)
19" x 10.6" x 1.7"
Electrical
THD+N (analogue in to out)
0.005% @ +16dBu output, 1kHz +5dB gain
Audio
Input Sensitivity
-60 to +15dBu
Analogue Gain
+5 to +60dB, 1dB steps
Input Impedance
>3kΩ (Pad out), >8kΩ (Pad in)
Output Impedance
<75Ω
Frequency Response
20Hz - 20kHz +0/-0.5dB
Connectivity
Mic/Line Inputs
Balanced, +48V phantom power
Max. Input Level
+30dBu (PAD in)
Analogue Outputs
Balanced, Relay protected
Nominal Output
+4dBu = 0dB meter reading
Max. Output Level
+21dBu
Residual Output Noise
-92dBu (muted, 22-22kHz)
No I/O Port Installed
31dBA
With I/O Port Installed
33dBA
Environmental
Operating Temperature
32°F to 104°F (0°C to 40°C)
Shipping
Weight
8.4 pounds
General
Mic/Line Preamp
fully recallable
Pad
-20dB Active PAD
Mic EIN
-127dB with 150Ω source
System
Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
Dynamic Range
108dB
System Signal to Noise
-92dB
Headroom
+18dB
Sampling Rate
96kHz +/- 20 PPM
Mains Power
100-240V AC, 50-60Hz, 65W max
