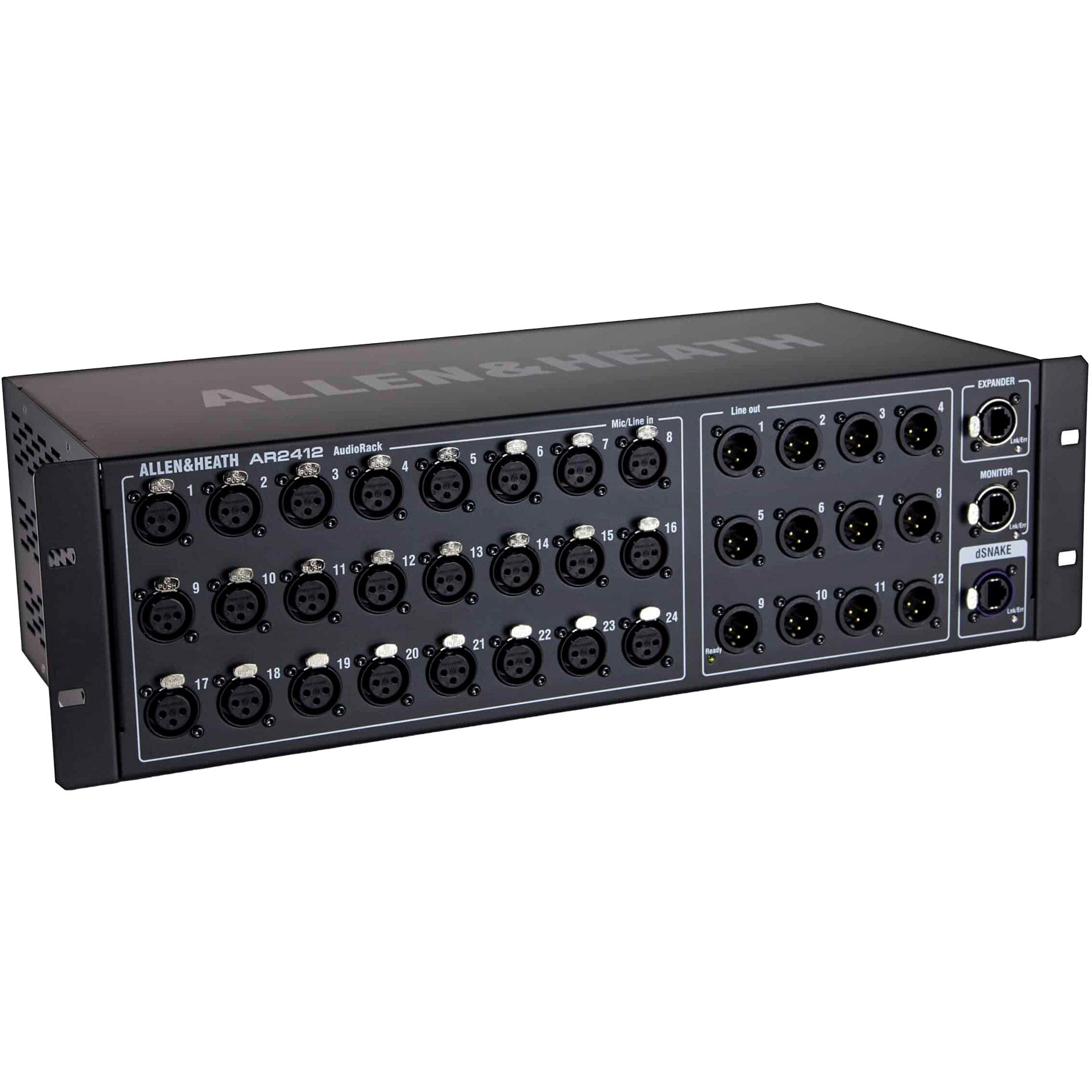

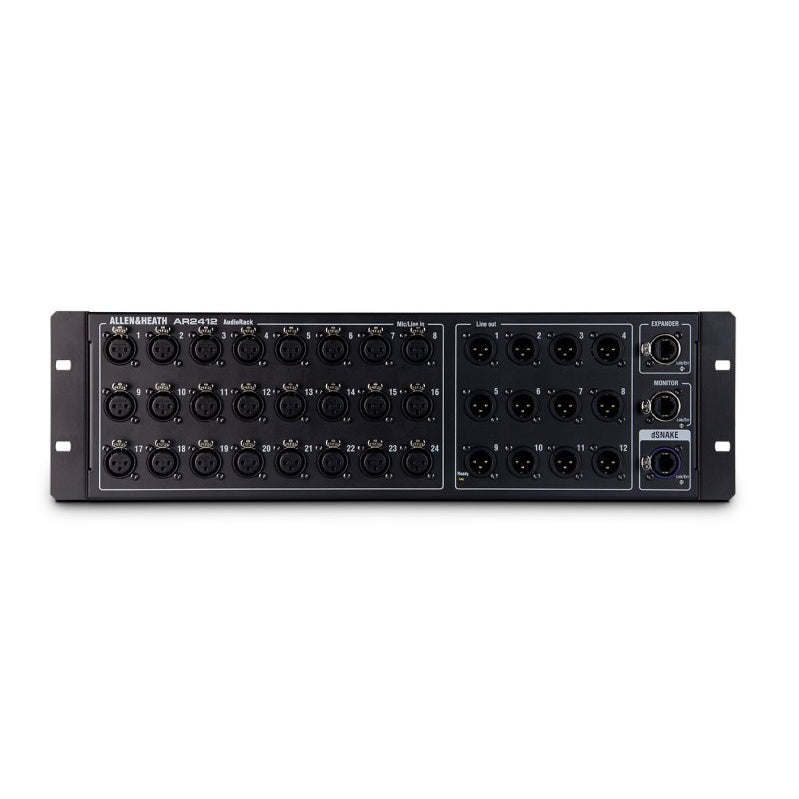

Allen & Heath AR2412 AudioRack Expander
Allen & Heath AR2412 AudioRack Expander
SoundPro Item: 64133 | Part Number: AR2-2412
In stock and ready to ship
- 24 Mic Preamps on XLR
- 12 XLR Line Outs
- dSNAKE Connection with locking Ethercon port
- Expander Ethercon port for connection to an AR84 or AB168
- Dedicated port for ME personal mixing system
- Rack mountable
Couldn't load pickup availability
Give your creativity more space to spread out with Allen & Heath’s AR2412 AudioRack Expander. Running on Allen & Heath’s dSNAKE protocol, the AR2412 lets you connect some—or all—of your I/O gear up to 100m (approximately 328 feet) away from the mixer, using a single Cat5 cable. This 48kHz AudioRack is compatible with Qu, Avantis, and SQ series mixers, as well as with the AHM-64 audio matrix processor (all sold separately).
Enjoy the freedom of expanded I/O with the AR2412’s 24 remote-controlled XLR mic/line preamps and its 12 XLR line outputs. A built-in Monitor port allows you to connect to ME-1 personal mixers and supplies 40 channels of audio signals, and compatability with the Aviom® Pro16 monitoring system. Use the Expander connection to scale your options up even further by connecting an AR84 or AB168 AudioRack for even more system I/O.
Packed with features that ensure your installed setup delivers optimal sound no matter what the venue, the AR2412 utilizes an Ethernet protocol that provides control to the remote preamp and scene-recallable mic preamps. Keep your unit firmware effortlessly up-to-date with this AudioRack expander’s automatic update functionality. Included with the AR2412’s wide range of connectivity options is a local Ethernet port/RJ45 socket with an EtherCon locking ring.
The AR2412 boasts a rugged steel construction for long-term durability in installed applications. Its 19” chassis is 3U in height for simple rack-mounting. This AudioRack expander features a built-in power supply that accepts AC mains voltages of 100-240V, 50/60Hz, 70W max via the earthed 3-pin IEC male connector that’s mounted on the back of the unit. A designated switch is mounted near the main inlet to safely isolate your mixer from the incoming mains supply.
- Inputs
- XLR Mic/Line Inputs: Balanced
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB
- Maximum Input Level: +32dBu
- Input Impedance >4kΩ (Pad out), >10kΩ (Pad in)
- Mic/Line Channel noise: 20-20kHz, Direct Out @ unbalanced out
- Mic EIN: -127dB with 150Ω source
- Unity gain (Pad in): -90dBu
- Low gain (5dB, Pad out): -93dBu
- Mid gain (30dB, Pad out): -89dBu
- Mic/Line Channel THD+N: 20-20kHz, Direct Out @ unbalanced out
- Unity gain (Pad in): 0.005% -86dBu @ 1kHz, 0dBu output
- Low gain (5dB, Pad out): 0.003% -89dBu @ 1kHz, 0dBu output
- Mid gain (30dB, Pad out): 0.004% -88dBu @ 1kHz, 0dBu output
- XLR Mic/Line Inputs: Balanced
- Outputs
- XLR Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -91dBu (muted, 20-20kHz)
- XLR Outputs: Balanced, Relay protected
- Operating Temperature
- 0 deg C to 35 deg C
- (32 deg F to 95 deg F)
- Mains Power100-240V, 50/60 Hz, 70W max
