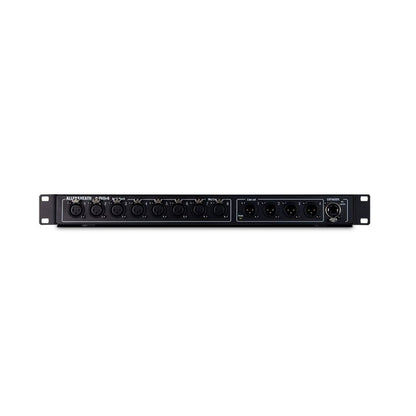

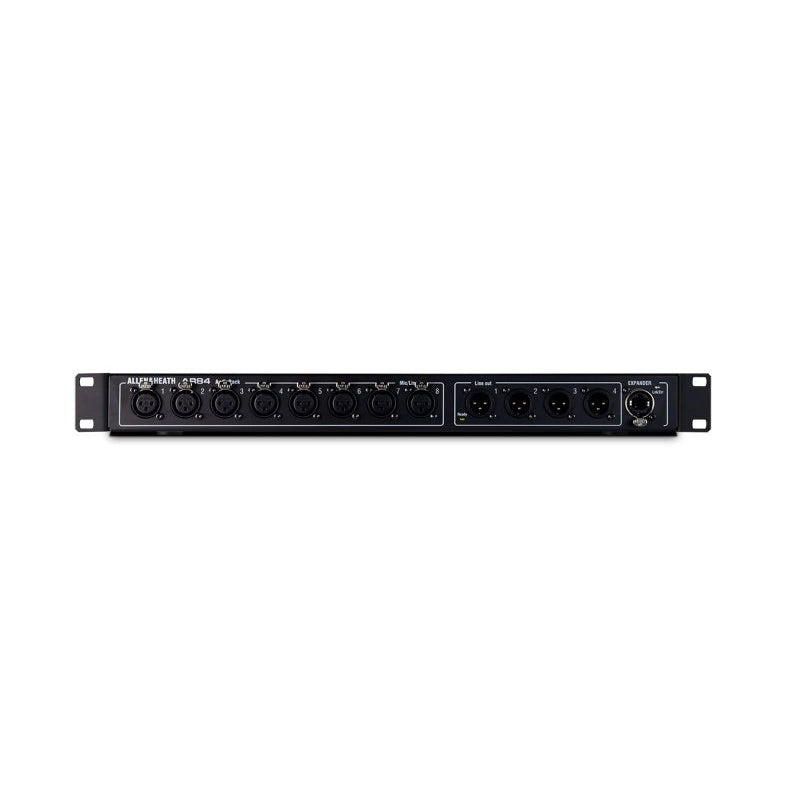

  • Allen & Heath AR84 AudioRack expander front panel with XLR mic/line inputs, line outs and rack ears
1 2

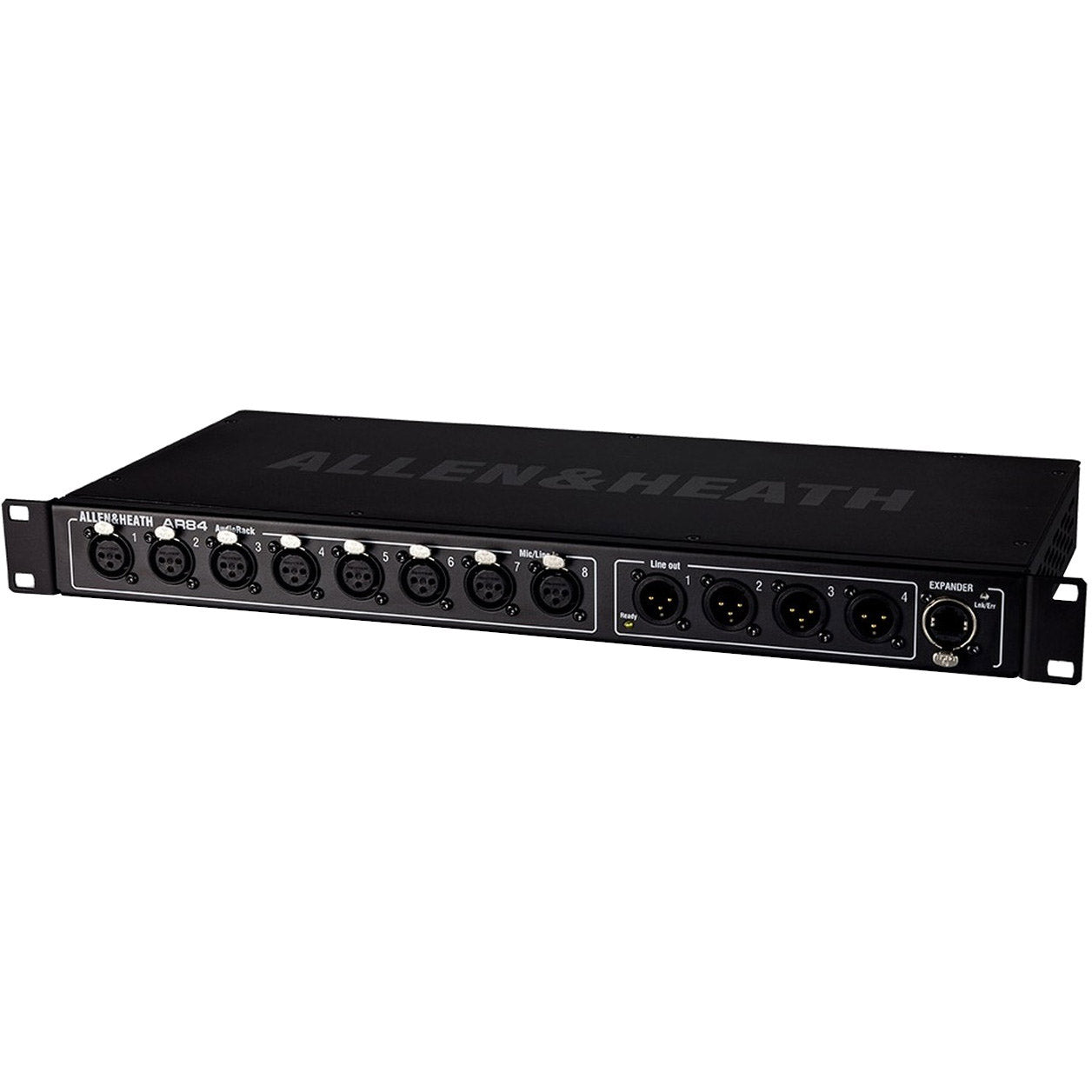

Allen & Heath AR84 AudioRack Expander

Allen & Heath AR84 AudioRack Expander

SoundPro Item: 90370 | Part Number: AH-AR2-84-BLK

$1,199.00
$1,499.00 $1,199.00
Your Price Sold out
MSRP: $1,499.00 | MAP: $1,199.00

Usually ships in 5-7 business days

  • 8 Mic Preamps on XLR
  • 4 XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • Rack mountable
Log in or register for YOUR best price

Give your creativity more space to spread out with Allen & Heath’s AR84 AudioRack Expander. Running on Allen & Heath’s dSNAKE protocol, the AR84 lets you connect I/O gear up to 100m (approximately 328 feet) away from the mixer, using a single Cat5 cable. This 48kHz AudioRack is compatible with Qu, Avantis, GLD, and SQ series mixers, as well as with the AHM-64 audio matrix processor (all sold separately).

View full details

Specifications

Electrical
Relay Protected Output Impedance
<75ΩNominal
Audio
Unity Gain (Pad in)
0.005% -86dBu @ 1kHz, 0dBu outputLow gain (5dB
Output
+4dBu = 0dB meter readingMaximum
Connectivity
XLR Mic/Line Inputs
Balanced Mic/Line Preamp: Fully recallableInput Sensitivity: -60 to +15dBuAnalogue Gain: +5 to +60dB, 1dB stepsPad: -20dBMaximum Input Level: +32dBuInput Impedance: >4kΩ (Pad out), >10kΩ (Pad in)Mic/Line Channel Noise: 20-20kHz, Direct Out @ unbalanced outMic EIN: -127dB with 150Ω sourceUnity gain (Pad in): -90dBuLow gain (5dB, Pad out): -93dBuMid gain (30dB, Pad out): -89dBu
XLR Outputs
Balanced
Output Level
+22dBuResidual
Output Noise
-91dBu (muted, 20-20kHz)
Environmental
Operating Temperature
0 deg C to 35 deg C, (32 deg F to 95 deg F)
General
Pad out)
0.003% -89dBu @ 1kHz, 0dBu outputMid gain (30dB
Mains Power
100-240V, 50/60 Hz, 20W max
