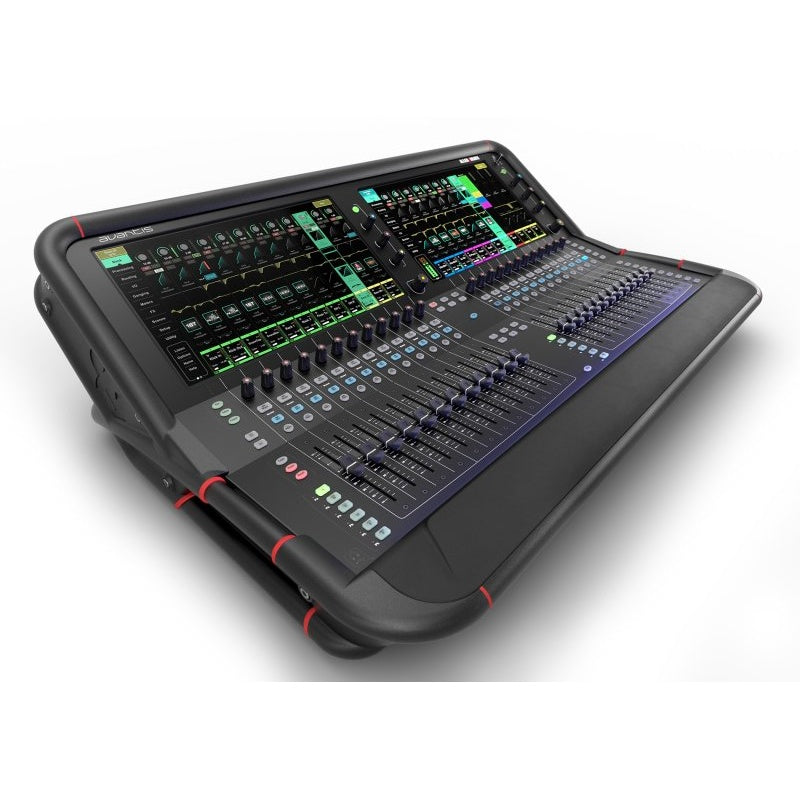

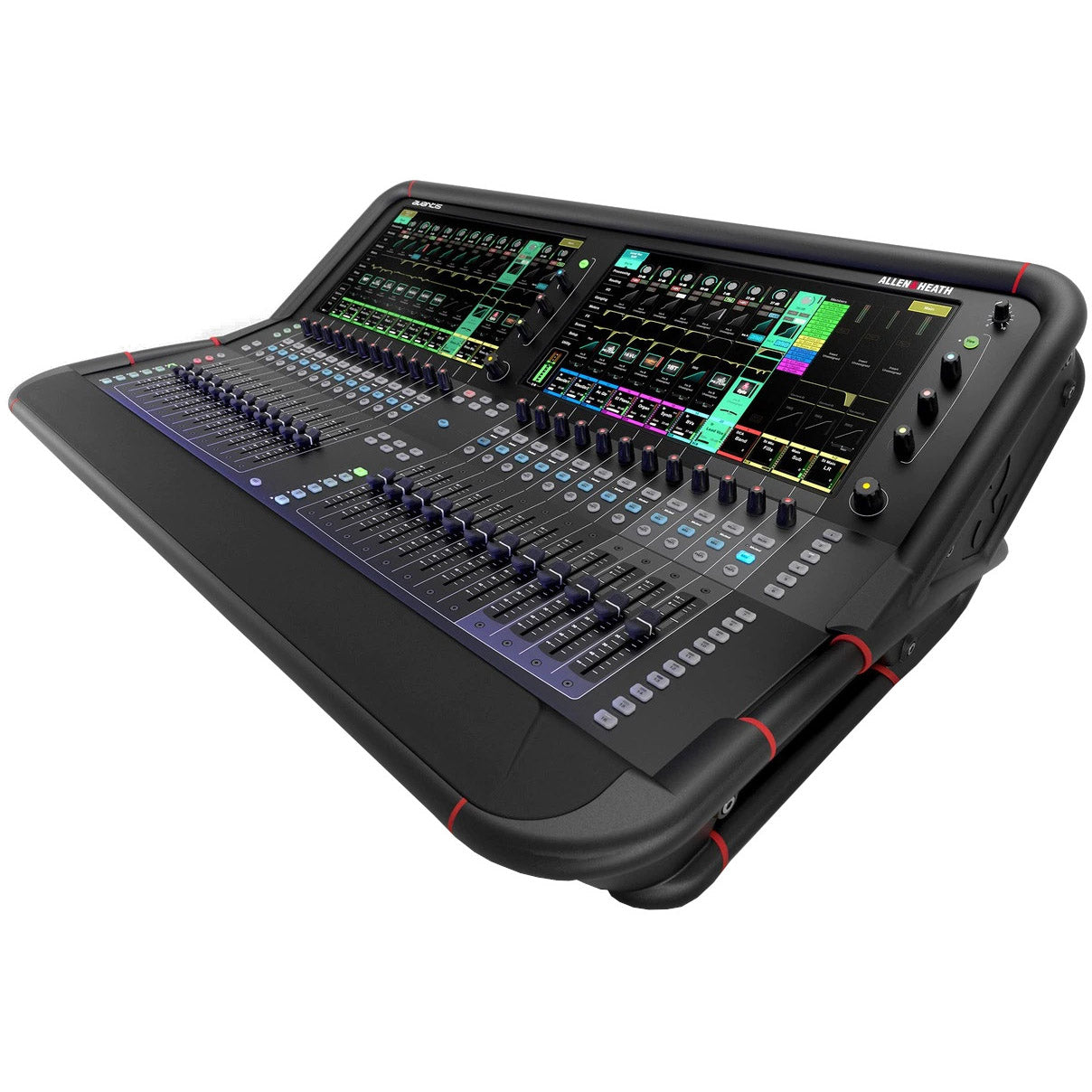

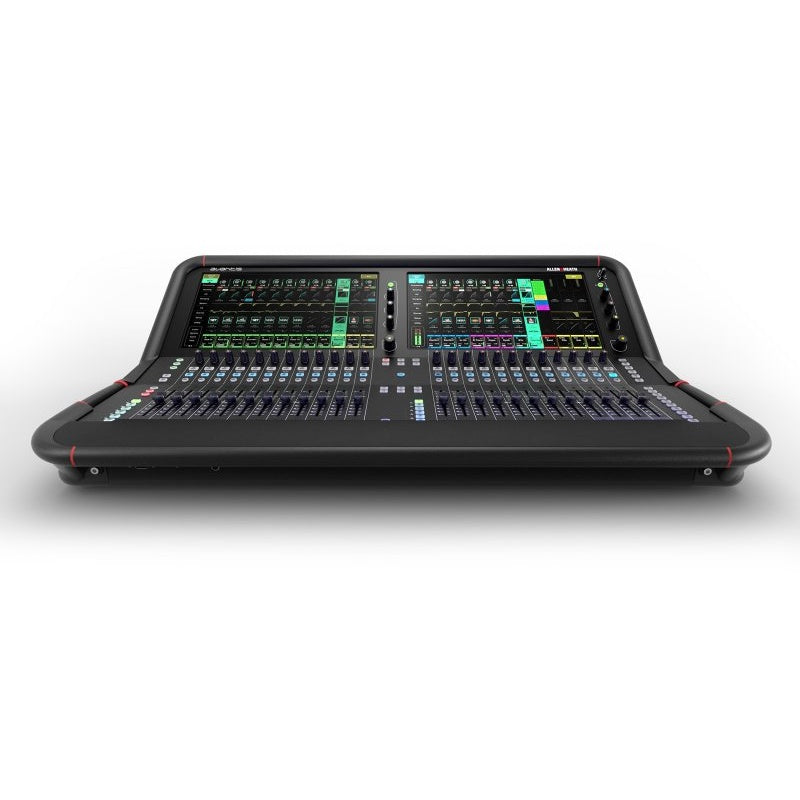

Allen & Heath Avantis 64-Channel Digital Mixer with dPack
Allen & Heath Avantis 64-Channel Digital Mixer with dPack
SoundPro Item: 44063 | Part Number: AH-AVANTIS-W-DPACK
Usually ships in 5-7 business days
- 96kHz 64 channel / 42 bus digital mixer
- XCVI FPGA core with ultra-low latency (0.7ms)
- Fully configurable mix bus architecture
- Full metal chassis
- Continuity UI seamlessly connects physical and touchscreen controls for the fastest, most intuitive workflows
- 12 RackExtra FX slots with dedicated stereo returns
- 16 DCAs
- Dual 15.6" Full HD capacitive touchscreens with gesture control
- AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
- Fully assignable layout
- 144 fader strips (24 faders, 6 layers) with optional dedicated master section
- SLink port for connection to Remote I/O Expanders and the ME Personal Mixing System
- 12 analog XLR Inputs / 12 analog XLR Outputs
- 1 Stereo AES In / 2 Stereo AES Out
- 2 I/O Ports, both capable of 128x128 operation at 96kHz - for optional cards including Dante, MADI, and gigaACE
- User configurable rotary controls
- 24 assignable SoftKeys
- Comprehensive metering with multi-point peak detection
- Internal storage for stereo playback and recording
- USB stereo playback
- BNC Word Clock
Part of Allen & Heath’s Avantis series, this 64-channel digital mixer with dPack includes all the premium features of the original Avantis console—with added functionality that enables dLive processing. dLive processing includes up to 16 instances of Dyn8, DEEP Compressors, RackExtra FX, and the Dual Stage Valve Preamp.
Dyn8 delivers four bands of dynamic EQ and four bands of multiband compression. This makes it a perfect tool for taming vocals, tightening sub-groups, and adding sonic glue to a mix. Meanwhile, DEEP compressors provide more personalization for your sound with Peak Limiter 76, OptTronik, 16T, 16VU, Mighty, and Opto. DEEP preamp Dual Stage Valve equips the Avantis dPack for adding a touch of warmth to a full-on valve crunch—and everything in between. Another great function of the Avantis dPack is the RackExtra FX, which features a Transient Controller (to cut and boost the attack and sustain input signal) and Hypabass that strengthens weaker bass to infra- and sub-bass.
