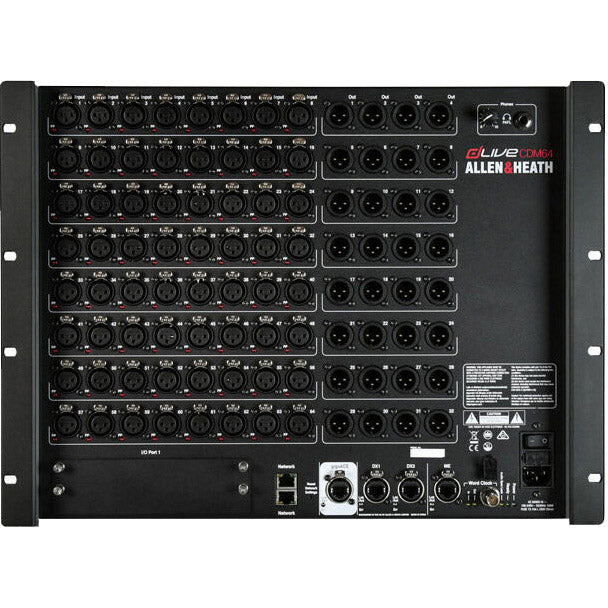

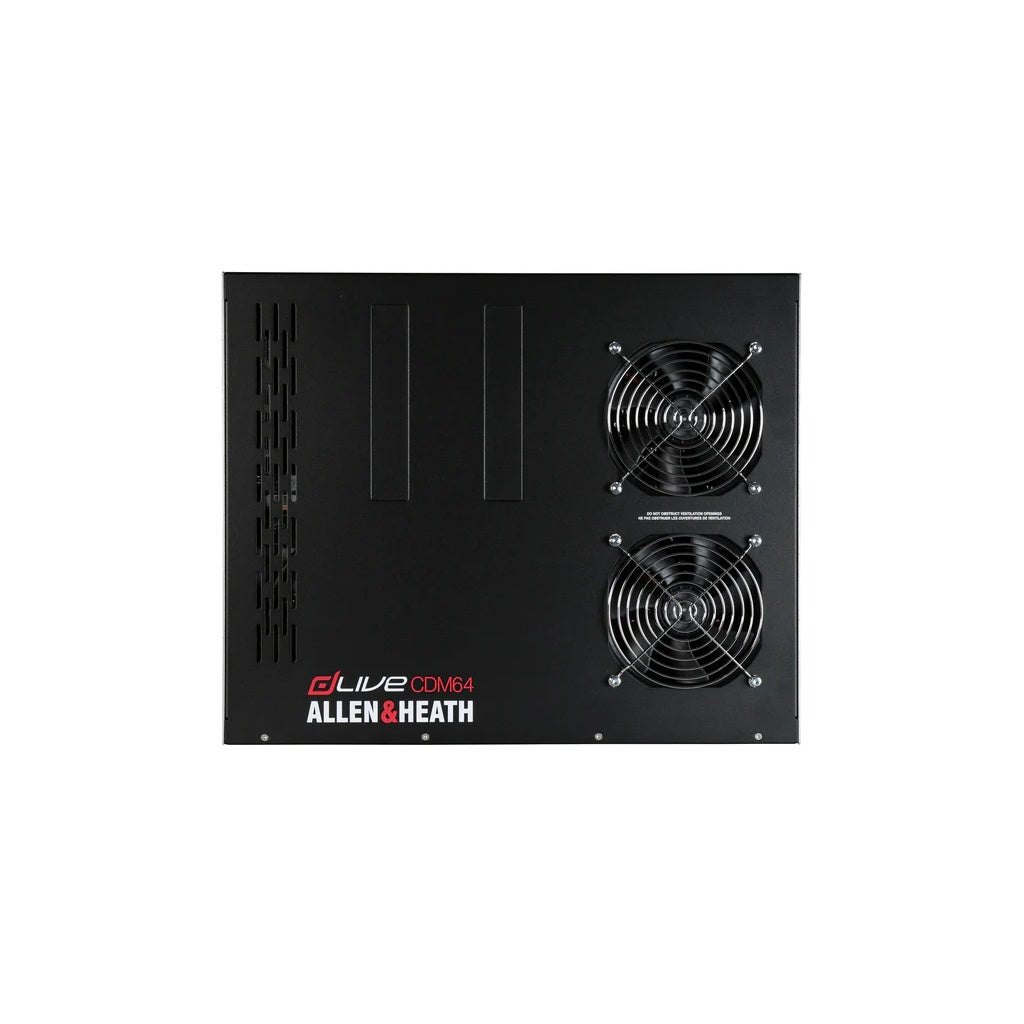

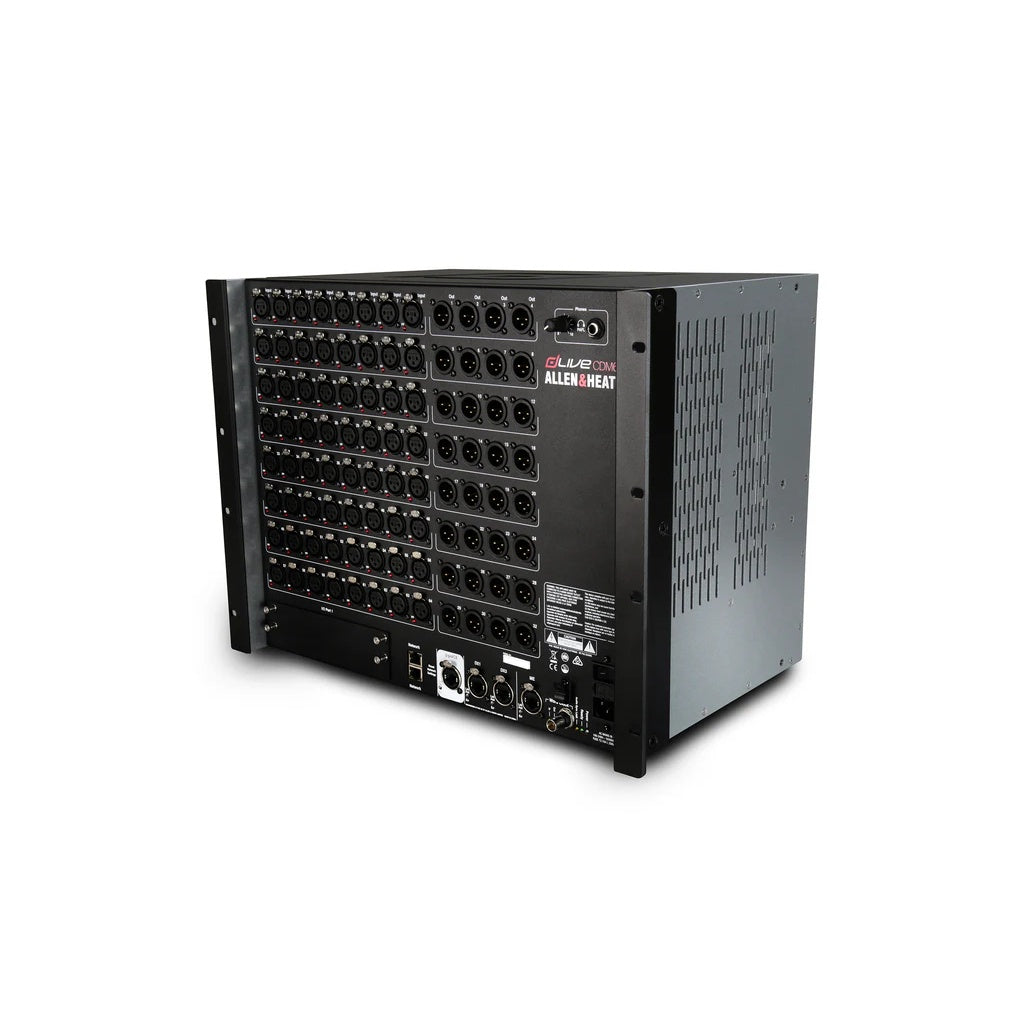

Allen & Heath dLive AH-DLIVE-CDM64-RUFX MixRack Stage Box

Allen & Heath dLive AH-DLIVE-CDM64-RUFX MixRack Stage Box

SoundPro Item: 145000 | Part Number: AH-DLIVE-CDM64-RUFX

$15,999.00
$15,999.00 $15,999.00
Your Price Sold out
MSRP: $15,999.00 | MAP: $15,999.00

Usually ships in 5-7 business days

  • 64 mic/line inputs
  • 32 line outputs
  • 1 I/O Port
Log in or register for YOUR best price

At the heart of the dLive system is the Allen & Heath dLive AH-DLIVE-CDM64-RUFX MixRack Stage Box, capable of 128x64 channels of pristine sounding 96kHz audio.

The Allen & Heath dLive AH-DLIVE-CDM64-RUFX MixRack Stage Box features the same mix engine - 128 input channels and 64 mix outputs with a configurable 64-bus architecture, class-leading 0.7ms latency and phase-aligned signal paths for maximum flexibility in all applications - but differ in the number of onboard analog I/O, redundancy options and digital I/O card slots.

The acclaimed preamp design, optimized for transparency and clarity, combined with our unique Active PAD circuit for consistent performance regardless of source, delivers the highest quality analogue signal to the MixRack’s XCVI processing core.

In the digital domain, the 96kHz signal path employs variable bit depth throughout for optimal noise performance and precision with virtually infinite dynamic range thanks to the 96-bit accumulator.

View full details
  • Inputs
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150Ω source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
  • System
    • Measured balanced: XLR in to XLR out, 20-20kHz, minimum Gain, Pad out, signal @ 0dB (meter)
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response: 20Hz - 30kHz +0/-0.8dB
    • THD+N (analog in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma
    • Latency: 0.7 ms (MixRack XLR in to XLR out, Input to Mix); -90dBu (muted, 20-40kHz) + 5 samples, Surface to Mixrack (GigaACE hop); + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
    • Mains Power 100-240V AC, 50-60Hz, 175W max
  • Outputs
    • Analog XLR Outputs: Balanced Sampling Rate 96kHz +/- 20 PPM
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise: -92dBu (muted, 20-20kHz)
  • Dimensions and Weights (WxDxH x Weight)
    • Unit: 481.6x309x354.5mm (19x12.2x14") x 13.5kg (29.7lbs)
    • Boxed: 600x430x520mm (23.7x17x20.5") x 16.5kg (36.5lbs)
