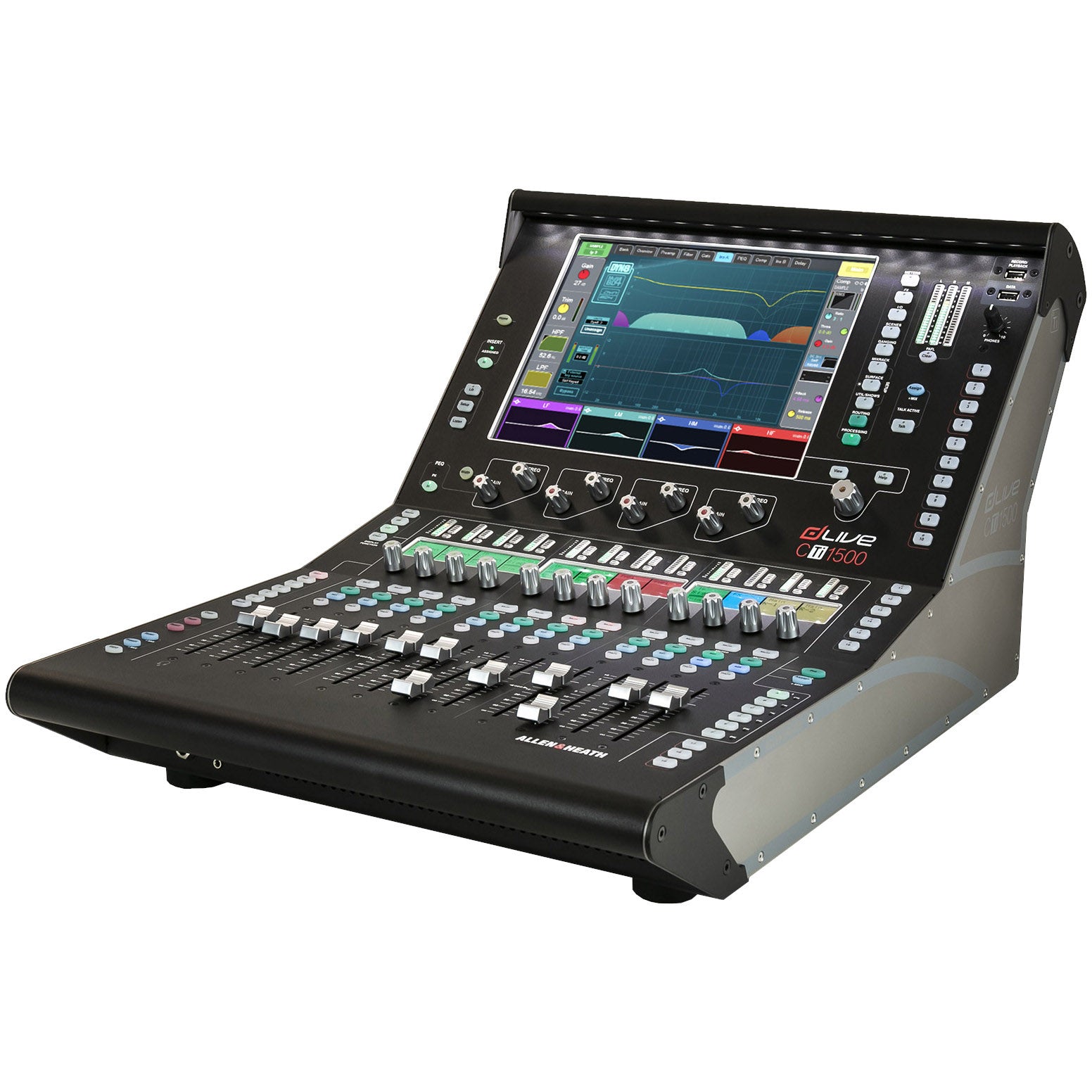

Allen & Heath dLive CTi1500 C Class MixRack Control Surface

Allen & Heath dLive CTi1500 C Class MixRack Control Surface

SoundPro Item: 54187 | Part Number: AH-DLIVE-CTI15

$15,999.00
$15,999.00 $15,999.00
Your Price Sold out
MSRP: $15,999.00 | MAP: $15,999.00

Usually ships in 5-7 business days

  • Titanium side panels and lightweight alloy metalwork
  • Weighs just 11.5kg / 25.4lbs
  • Can fly under 23kg with case*, I/O card and dust cover (*flightcase must weigh under 10kg/22lbs)
  • 12 faders
  • Fully assignable layout – 72 fader strips
  • Harmony UI integrates screen and wrap-around controls
  • 12” capacitive touchscreen
  • Gesture control – pinch, swipe, drag ‘n drop
  • Dedicated multi-mode EQ view
  • Configurable widget areas for Scenes, meters, FX and more
  • 19 assignable SoftKeys
  • Engineer’s Wedge and IEM fader strips
  • Comprehensive multipoint metering
  • Daylight visibility
  • USB stereo recording and playback
  • 6 XLR mic/line in, 6 XLR line out
  • 1 digital st AES3 in, 1 digital st AES3 out
Log in or register for YOUR best price

Allen & Heath’s dLive CTi1500 has been engineered for tour-grade structural integrity and a first-class user experience while remaining lightweight as possible.

dLive CTi1500 takes Allen & Heath's best-selling compact dLive C1500 control surface and applies ‘superleggera’ Italian performance car principles to set a new standard for lightweight control surfaces.

View full details
  • INPUT
    • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150Ω source
    • Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at 24V
    • Digital Inputs
      • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110Ω
      • SRC range 32k - 192kHz, with bypass option
  • OUTPUTS
    • Analog XLR Outputs: Balanced
    • Output Impedance: <75Ω
    • Nominal Output: +4dBu = 0dB meter reading
    • Maximum Output Level: +22dBu
    • Residual Output Noise
      • -92dBu (muted, 20-20kHz)
      • -90dBu (muted, 20-40kHz)
    • Digital Outputs
      • AES3 2 Ch XLR, 2.5Vpp balanced terminated 110Ω
      • 96kHz sampling rate, switchable to 48kHz, 44.1kHz
  • SYSTEM
    • Measured balanced XLR in to XLR out, 20-20kHz, minimum Gain, Pad out
    • Dynamic Range: 110dB
    • System Signal to Noise: -92dB
    • Frequency Response 20Hz: - 30kHz +0/-0.8dB
    • THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Meter Peak indication: -3dBFS (+19dBu at XLR out)
    • Sampling Rate: 96kHz +/- 20 PPM
    • ADC: 24-bit Delta-Sigma
    • DAC: 24-bit Delta-Sigma
    • Latency
      • 0.7 ms (MixRack XLR in to XLR out, Input to Mix)
      • + 5 samples, Surface to Mixrack (GigaACE hop)
      • + 8 samples, DX32 to Mixrack (DX hop)
    • Operating Temperature Range: 0 deg C to 35 deg C (32 deg F to 95 deg F)
    • Mains Power: 100-240V AC, 50-60Hz, 110W max
    • USB Audio playback: Mono/stereo .WAV files, 16/24bit, 44.1/48/96kHz
    • USB Audio recording: Stereo .WAV files, 24bit 96kHz
  • DIMENSIONS
    • Unboxed (WxDxH):17.4x25.4x13.27" (440x644x337mm)
    • Unboxed Weight Weight: 25.4lbs (11.5kg)
    • Boxed (WxDxH):25.8"x 32.3"x 18.5" (655x820x470mm)
    • Boxed Weight: 44lbs (20kg)
