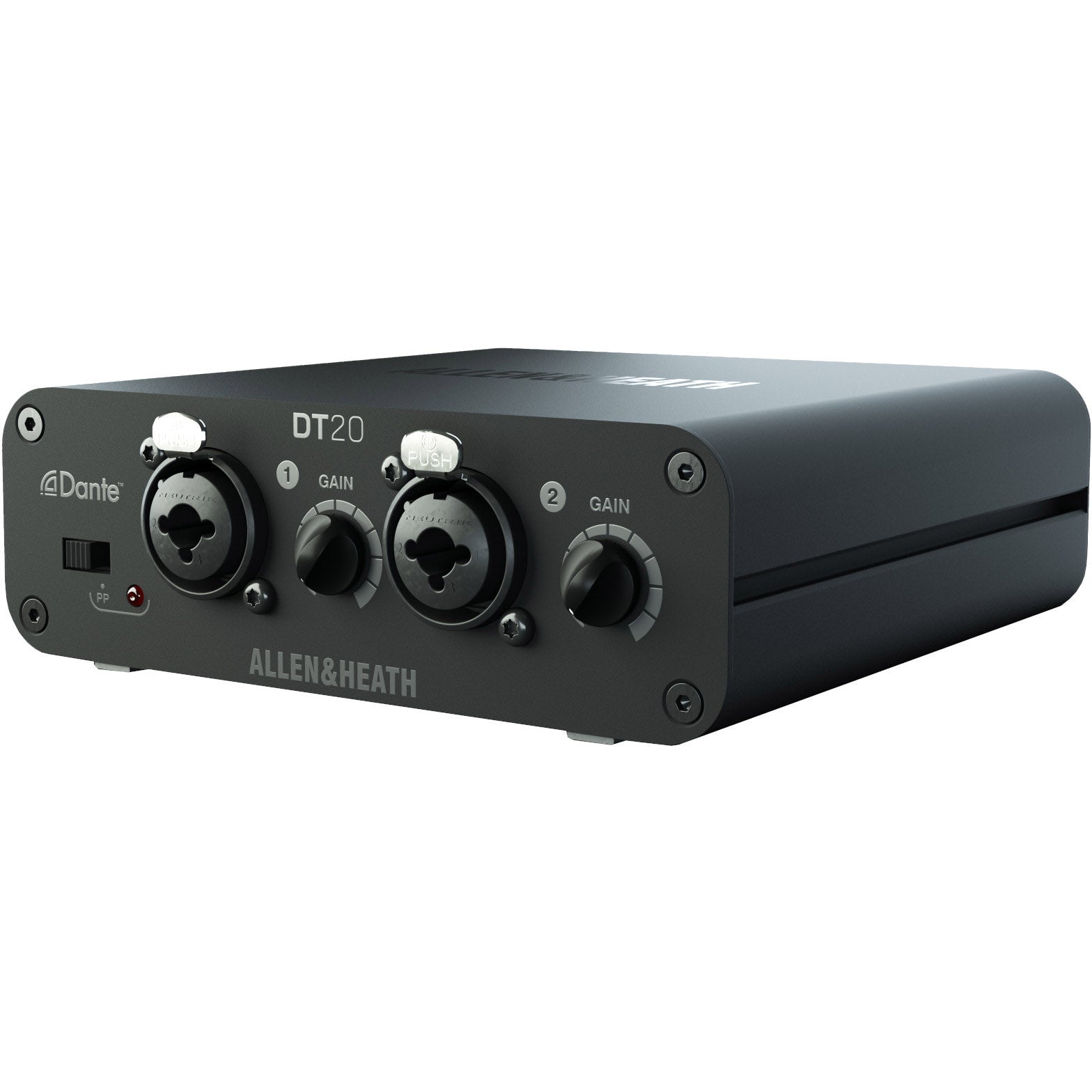

Allen & Heath DT20 Dante Input Interface

Allen & Heath DT20 Dante Input Interface

SoundPro Item: 117740 | Part Number: AH-DT-20-M

$379.00
$479.00 $379.00
Your Price Sold out
MSRP: $479.00 | MAP: $379.00

Usually ships in 5-7 business days

  • Dante input interface, 48kHz/96kHz
  • 2x combi mic/line inputs
  • Local gain control
  • 48V phantom power with LED indicator
  • PoE powered or DC 12V
  • EtherCon connector
  • Rugged aluminium box

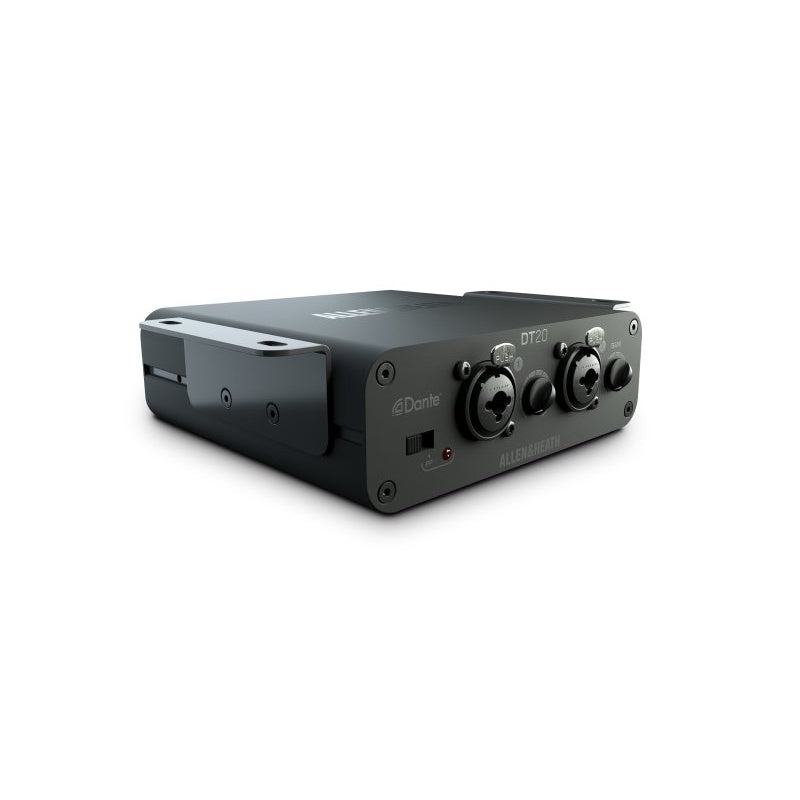

  • Optional ears for surface mounting (included in DT20-M version)

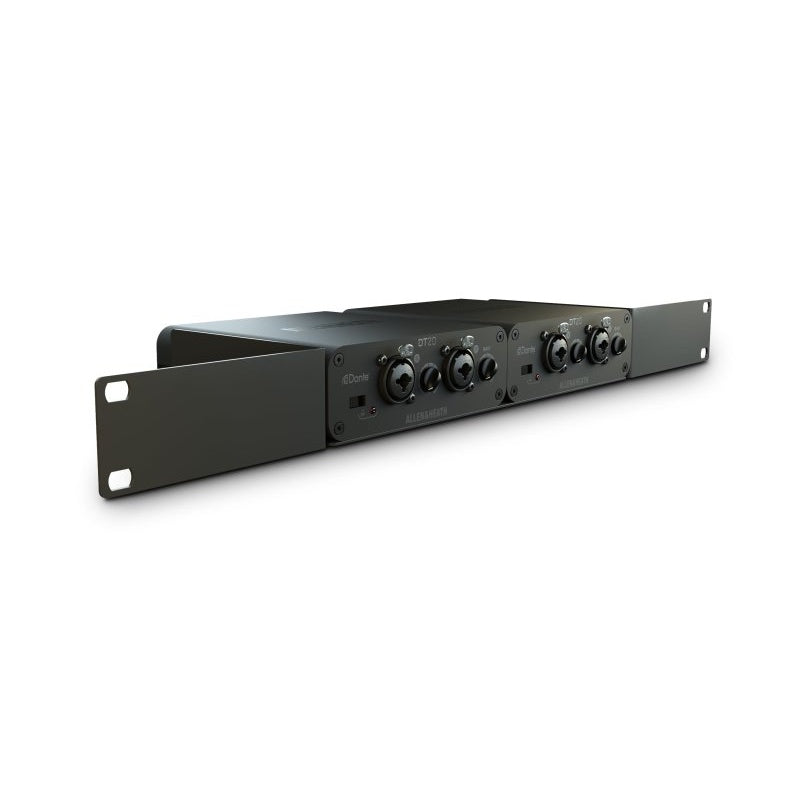

  • Optional rack mounting kit DT-RK19
  • AES67 compatible
  • Dante Domain Manager ready
Log in or register for YOUR best price

DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analog audio into a Dante network.

Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.

Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection – or rack-mounted wherever required – on stage, or at FoH.

The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).

View full details
  • Mic/Line Inputs
    • Mic Inputs: Balanced XLR, +48V phantom
    • Analog Gain: 0 to +55dB
    • Line Inputs Balanced: TRS, -20dB PAD
    • Maximum Input Level: +30dBu (TRS in)
    • Input Impedance: >4kΩ (XLR), >10kΩ (TRS)
  • Dante 48kHz/96kHz
  • Power and Temperature
    • DC Input: +12V DC 1.25A
    • Power Consumption: 10W max
    • Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
    • PoE Requirements: 802.3af 15W
  • Dimensions (WxDxH) 5.1x5.4x1.7" (130x136x43mm)
  • Weight1lbs (0.5kg)
