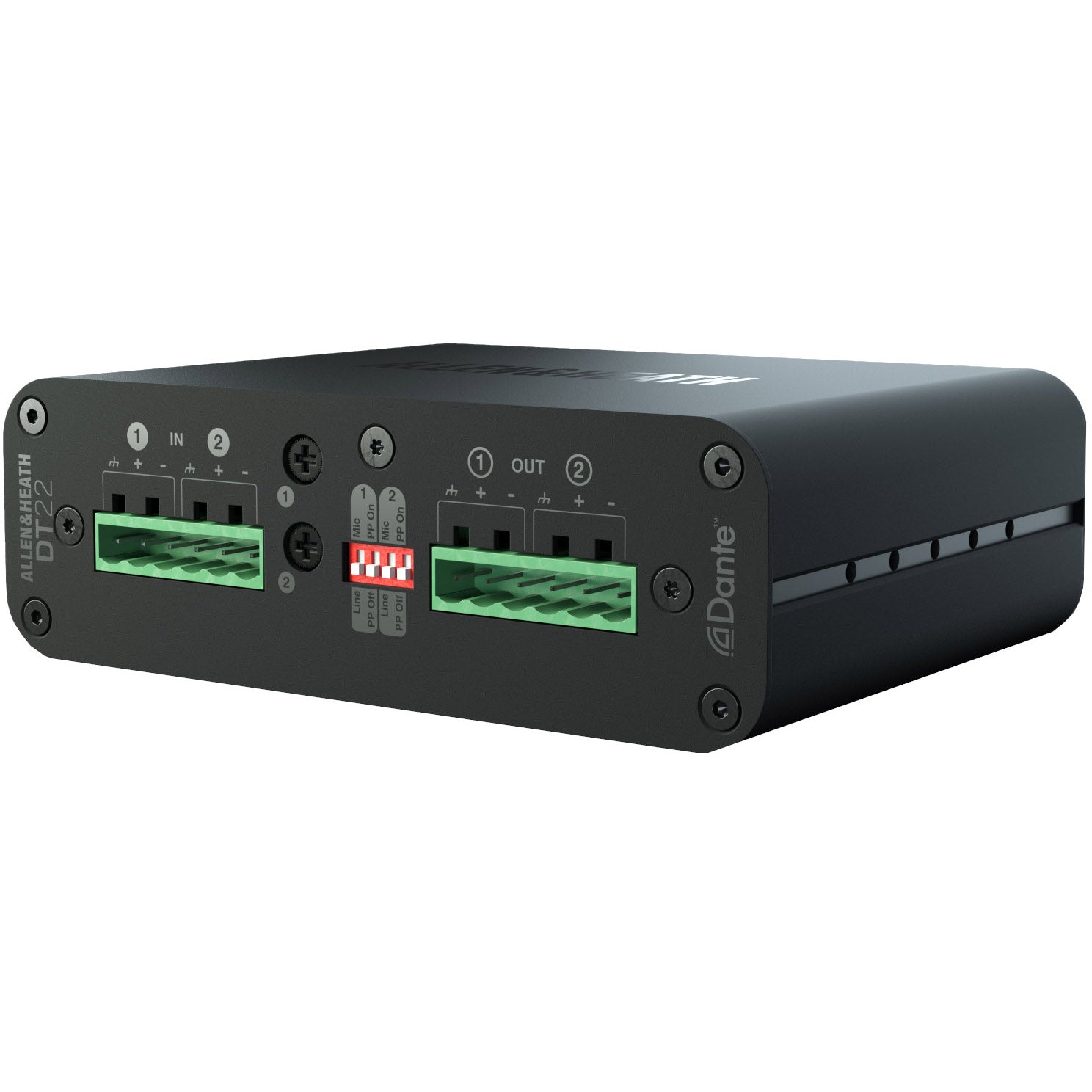

• Allen & Heath DT22 Dante I/O Interface

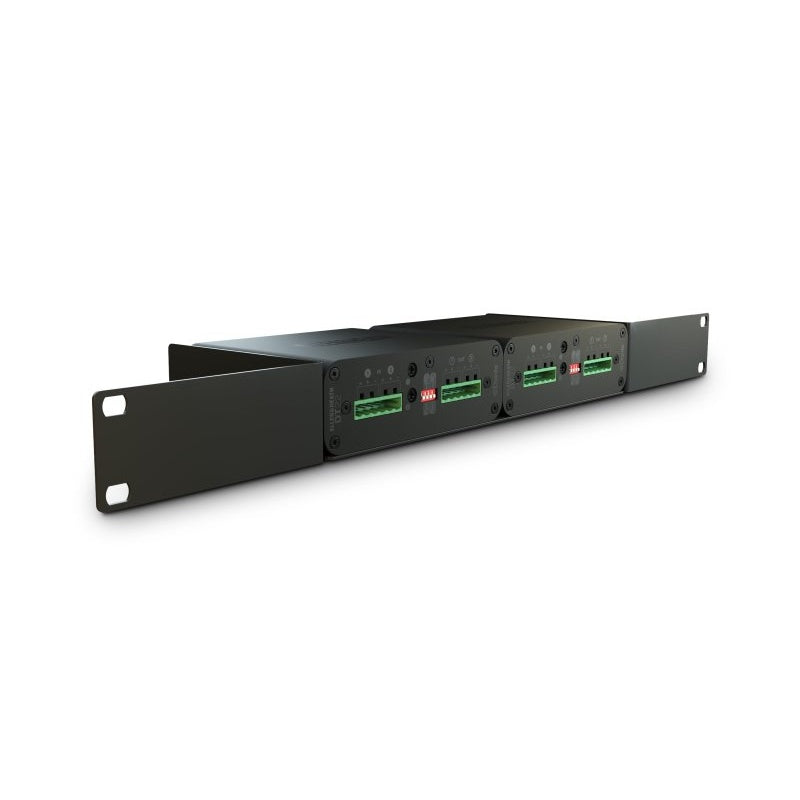

  • Two Allen & Heath DT22 Dante interfaces mounted side by side in a rack tray with green Phoenix connectors

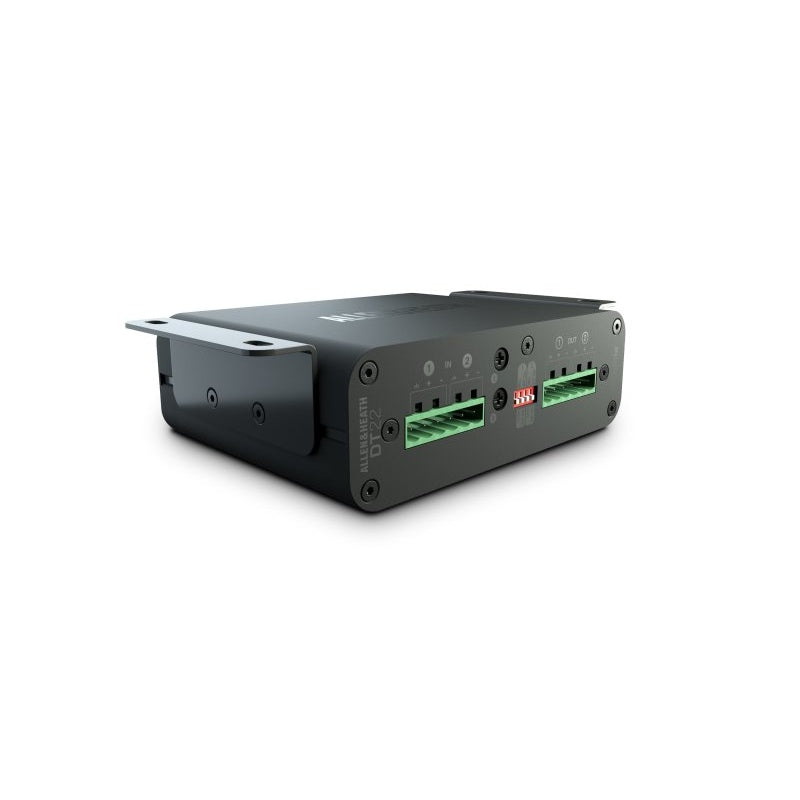

  • Allen & Heath DT22 Dante I/O interface angled view showing IN and OUT euroblock ports and red DIP switches
1 3

Allen & Heath DT22 Dante I/O Interface

Allen & Heath DT22 Dante I/O Interface

SoundPro Item: 117742 | Part Number: AH-DT-22-M

$499.00
$629.00 $499.00
Your Price Sold out
MSRP: $629.00 | MAP: $499.00

Usually ships in 5-7 business days

  • Dante 2×2 interface, 48kHz/96kHz
  • Phoenix euroblock connectors
  • Local gain control and mic/line switch
  • 48V phantom power
  • PoE powered or DC 12V
  • Rugged aluminium box
  • Includes ears for surface mounting
  • Optional rack mounting kit DT-RK19
  • AES67 compatible
  • Dante Domain Manager ready
Log in or register for YOUR best price

DT22 is a 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line IN and 2 line OUT where you need to get analog in and out of a Dante network.

DT22 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs and 2 line outputs wherever you need to get analog audio in and out of a Dante network. Equipped with standard Phoenix / euroblock connectors, DT22 is designed for fixed installation and can be easily mounted under a meeting table, for example in a breakout room or huddle space, under a podium for local mic/PC and speaker connection, or rack-mounted to interface with analog equipment such as an AV switcher.

It can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems. The unit can be PoE powered or powered via a DC 12V supply.

View full details

Specifications

Audio
Analog Gain
0 to +55dB
Maximum Input Level
+30dBu (line in)
Input Impedance
>4kΩ (mic), >10kΩ (line)
Output Impedance
<75Ω
Connectivity
Mic/Line Inputs
Balanced Phoenix, +48V PP
Line Inputs
-20dB PAD
Line Outputs
Balanced Phoenix
Nominal Output
+4dBu = 0dB meter reading
Maximum Output
+22dBu
Environmental
Power and Temperature
DC Input +12V DC 1.25A, Power Consumption 10W max, Operating Temperature Range 0°C to 40°C (32°F to 104°F), PoE Requirements 802.3af 15W, Dimensions (WxDxH)5.1x3.9x1.7” (130x100x42mm), Weight 1lbs (0.5kg)
General
Dante
48kHz/96kHz
