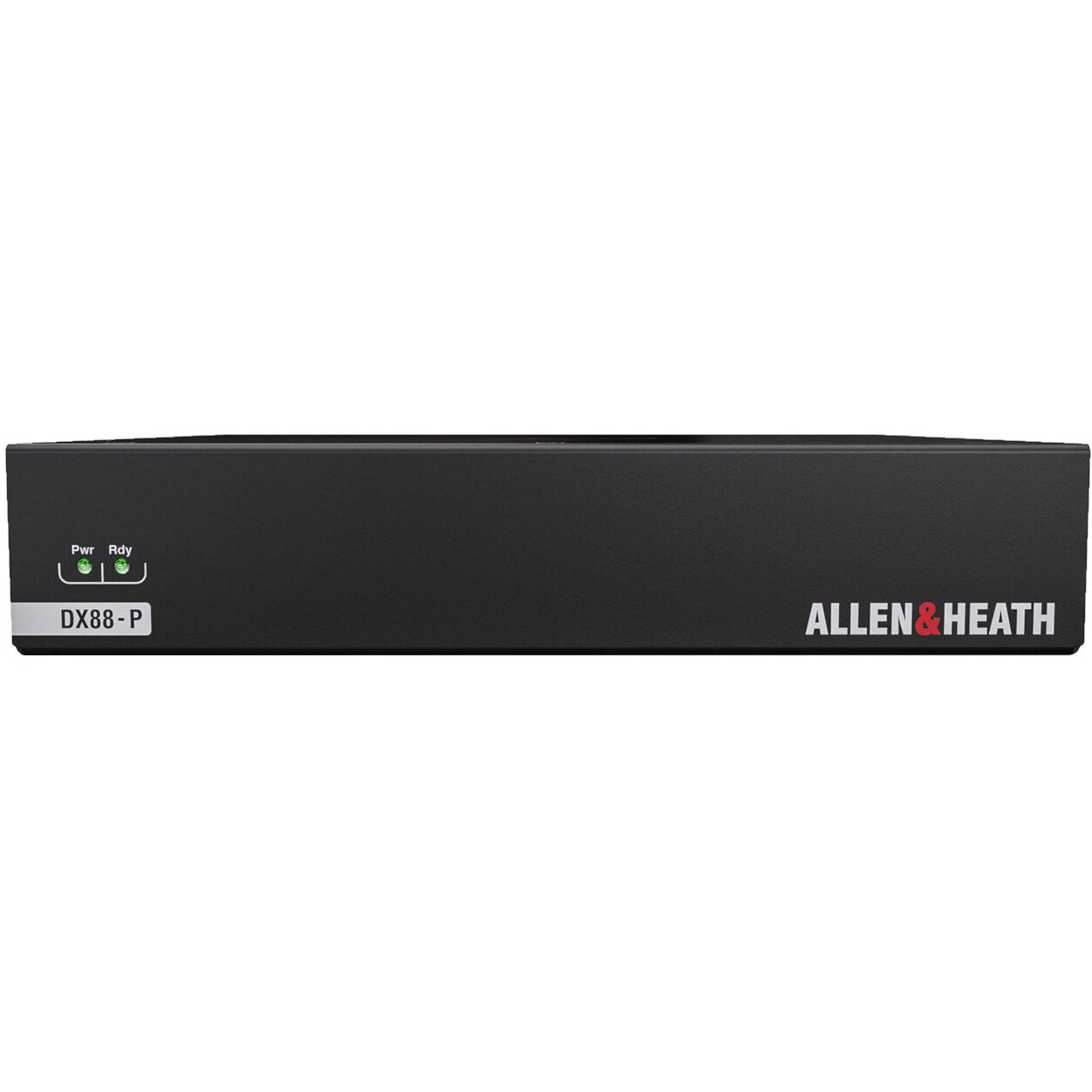

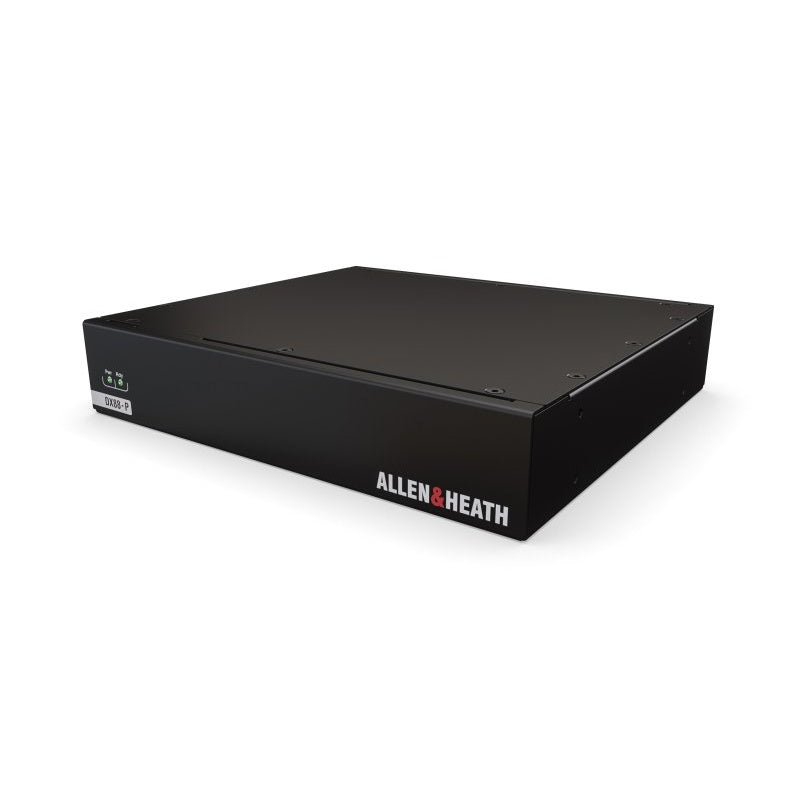

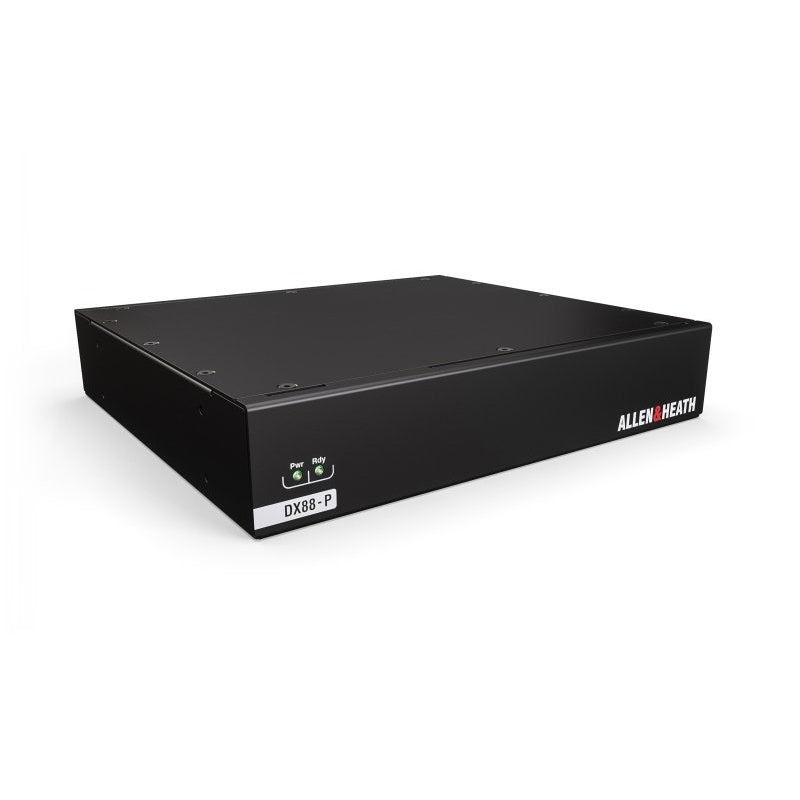

Allen & Heath DX88-P 8-In x 8-Out 96kHz Expander

Allen & Heath DX88-P 8-In x 8-Out 96kHz Expander

SoundPro Item: 140732 | Part Number: AH-DX88-P

$1,199.00
$1,499.00 $1,199.00
Your Price Sold out
MSRP: $1,499.00 | MAP: $1,199.00

Usually ships in 5-7 business days

  • 8 Phoenix/Euroblock Inputs with recallable 5-60dB gain, Phantom power and 20dB PAD
  • 8 Phoenix/Euroblock Outputs
  • Cascade mode
  • Multiple DX88-P can be added to a system (up to 8 units on a single DX Hub)
  • Optional rack mount kit
  • Plug and Play – no IP addressing required
  • Compatible with CAT5e (or higher) cables of up to 100m
Log in or register for YOUR best price

The DX88 provides 8 inputs and 8 outputs on Phoenix / Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM Audio Matrix Processors.

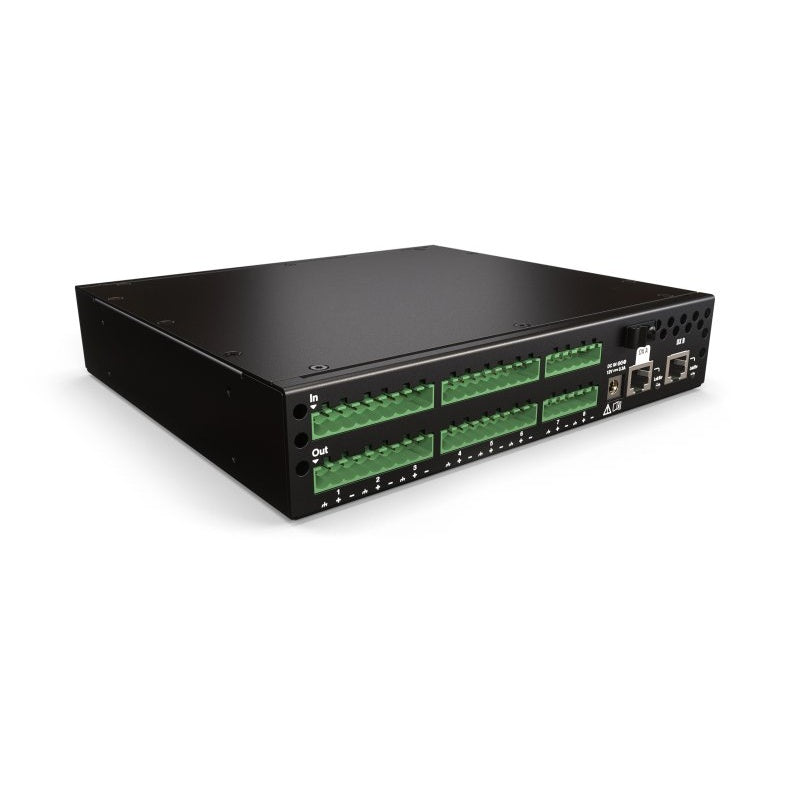

DX88 is a 96kHz DX expander enabling convenient placement of 8 mic/line inputs and 8 line outputs – via standard Phoenix / Euroblock connectors – wherever you need to get additional analogue audio in and out of a fixed install.

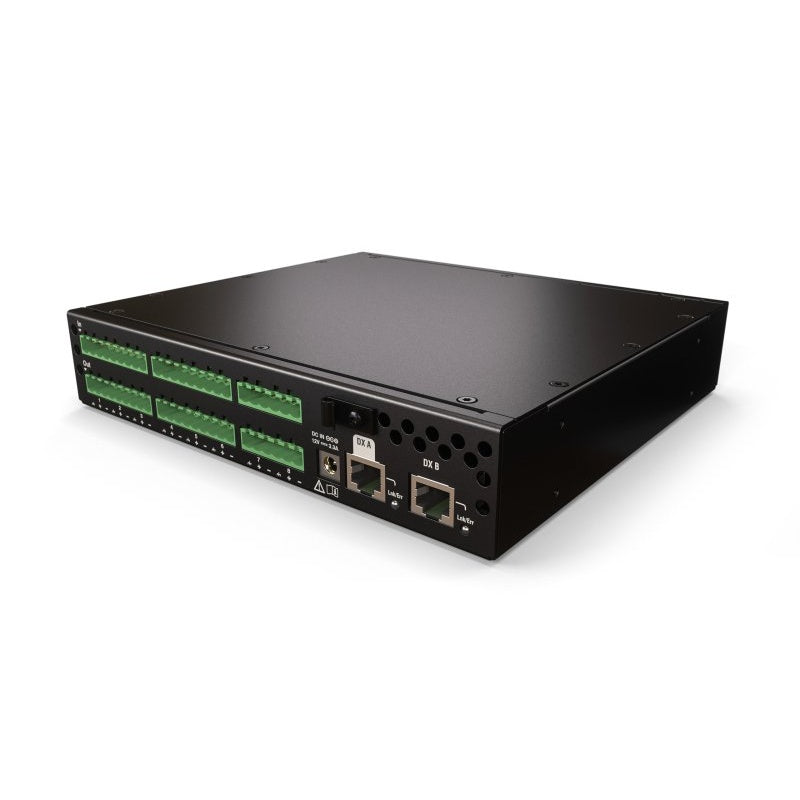

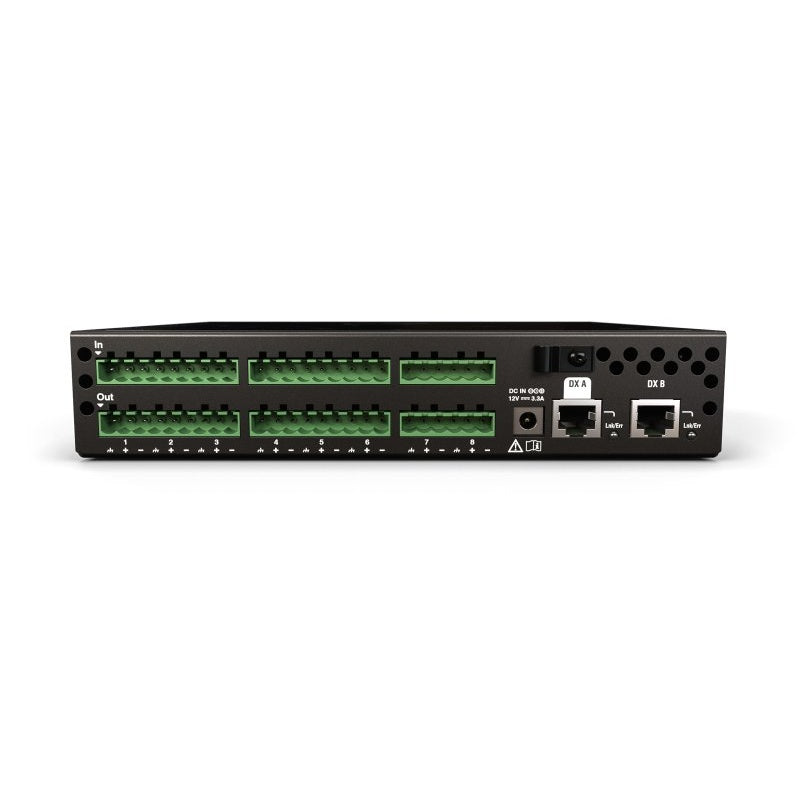

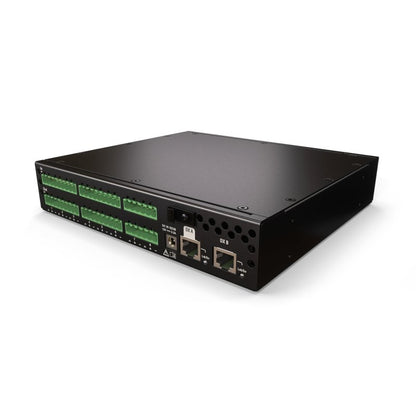

The DX88-P can be placed up to 100m away from the mixer for maximum flexibility of positioning. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via the DX A port. A second RJ45 port, DX B, is provided for daisy-chaining to a downstream DX Expander for additional remote I/O.

An optional rack mount kit is available for installation of up to two DX88-P units in a 1U 19″ slot to interface with analogue equipment such as an AV switcher. The DX88-P can also be rack mounted alongside a DX Hub or GPIO module by combining the optional rack kit with the DX Hub / GPIO rack kit.

View full details
  • Inputs
    • Mic/Line Inputs: Balanced Phoenix, +48V phantom power
    • Mic/Line Preamp: Fully recallable
    • Input Sensitivity: -60 to +15dBu
    • Analog Gain: +5 to +60dB, 1dB steps
    • Pad: -20dB Active PAD
    • Maximum Input Level: +30dBu (PAD in)
    • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
    • Mic EIN: -127dB with 150Ω source
  • Outputs
    • Analog Outputs
      • Output Impedance <75Ω
      • Nominal Output +4dBu = 0dB meter reading
      • Maximum Output Level +21dBu
      • Residual Output Noise
        • -92dBu (muted, 20-20kHz)
        • -90dBu (muted, 20-40kHz)
  • Sample Rate96kHz
  • Operating Temperature32 deg F to 104 deg F (0 deg C to 40 deg C)
  • Power12V DC via external PSU, 3.3A max, 39.6W max
  • Dimensions (WxDxH) 216.5x195.4x42.8mm
  • Weight 1.51kg
