• Allen & Heath IP6 Remote Controller

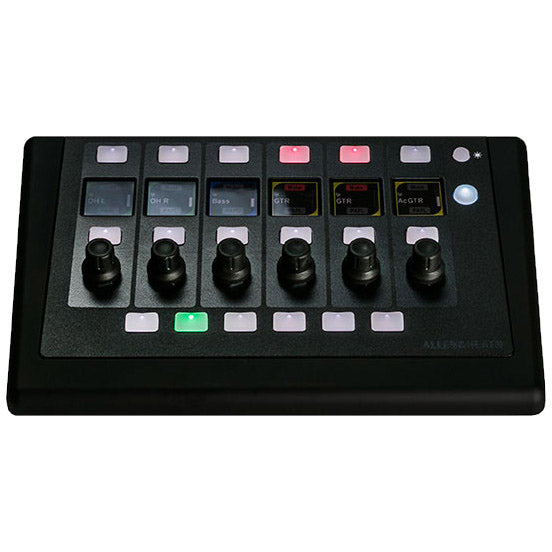

  • Allen & Heath IP6 remote controller at an angle showing six rotary encoders and backlit select buttons

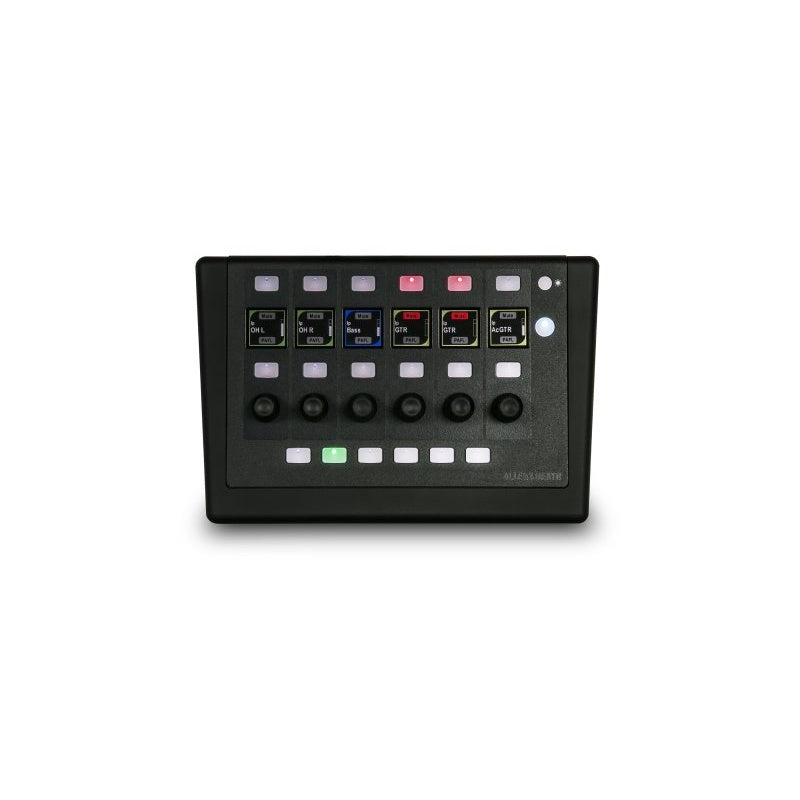

  • Allen & Heath IP6 front panel with six channel LCD displays labeled OH L, OH R, Bass, GTR and AcGTR
1 3

Allen & Heath IP6 Remote Controller

Allen & Heath IP6 Remote Controller

SoundPro Item: 90393 | Part Number: AH-IP-6

$1,199.00
$1,499.00 $1,199.00
Your Price Sold out
MSRP: $1,499.00 | MAP: $1,199.00

Usually ships in 5-7 business days

  • 6 Push n Turn Rotary encoders
  • 6x Layers
  • PoE or external 12V PSU (supplied)
  • Optional mic stand bracket available (AB8999)
  • Optional headphone holder (AB8705)
Log in or register for YOUR best price

Remotely control the Allen & Heath AHM-64 processor, dLive or Avantis mixing system with the IP6 remote.

The IP6 Remote Controller from Allen & Heath is designed for AHM-64 matrix processors or interfacing with dLive and Avantis mixing systems via standard TCP/IP network connections. Ideal for installed and live sound applications, the IP6 is also compatible with networking with other controllers, computers, and third-party devices using a standard Ethernet infrastructure.

Using AHM System Manager, dLive Director software (for PC or Mac), or an Avantis mixer or dLive Surface to configure the controls, this remote controller’s functions are great for myriad purposes. Using dLive or Avantis, the controller can be configured to adjust the Send levels, Pans, and assignments of multiple channels to a specific mix—such as for wireless in-ear monitoring, making the IP6 a great tool for onstage musicians who want greater monitoring functionality over their mix.

The IP-6 boasts 6 push-n-turn rotary encoders, allows for 6x layers, and comes with built-in Power over Ethernet+ (PoE+) and an external 12V power supply unit. It can be positioned free-standing on a desk or tabletop or mounted on a plinth, podium, or other furniture using an optional wall mount bracket (IP6-ME-MOUNT, sold separately). Other optional accessories include the AB8999 mic stand bracket and AB8705 headphone holder (sold separately).

View full details

Specifications

Dimensions
Height
55mm (2.2")
Width
150mm (5.9")
Package Dimensions
Height 170mm (6.7"), Length 330mm (13.0"), Width 300mm (11.8"), Weight 1.6kg (3.5lbs)
Electrical
Max Power Consumption
5W
Connectivity
Network Fast Ethernet
100MBps
Environmental
Operating Temperature Range
0 deg C to 35 deg C (32 deg F to 95 deg F)
Shipping
Weight
1.5kg (3.3lbs)
Identifiers
Length
227mm (8.9")
General
Ext DC in
+12V, 360mA
Power
PoE
802.3af (15.4W at source)
