• Allen & Heath XONE:96 6+2 Channel Analog DJ Mixer

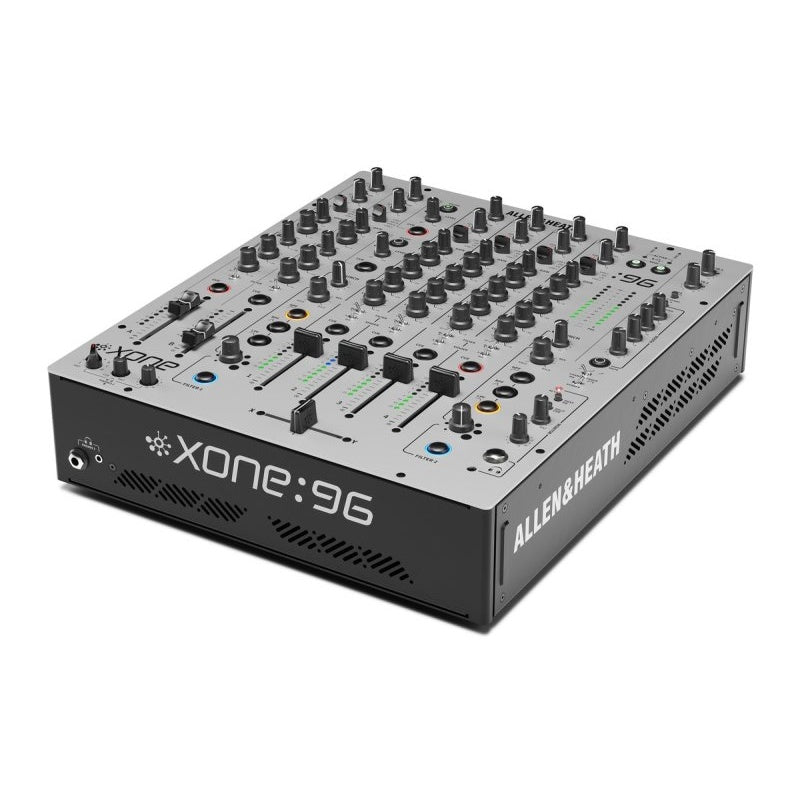

  • Allen & Heath XONE:96 analog DJ mixer angled view showing channel faders, filter knobs and front headphone jacks
1 2

Allen & Heath XONE:96 6+2 Channel Analog DJ Mixer

Allen & Heath XONE:96 6+2 Channel Analog DJ Mixer

SoundPro Item: 34413 | Part Number: AH-XONE:96

$2,499.00
$3,249.00 $2,499.00
Your Price Sold out
MSRP: $3,249.00 | MAP: $2,499.00

Usually ships in 5-7 business days

  • Dual 32-Bit 24 channel soundcard
  • Dual XONE VCF filterws with crunch
  • Tuned for the club
  • Total connectivity
  • Premium faders
Log in or register for YOUR best price

Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity.

It’s all here. The huge, detailed, space-shaking analog sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box.

A new, uncompromising analog DJ mixer, destined to be the heart of your creativity, Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines.

Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware.

Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
4.3x13.25x16.2" (109x336x410mm)
Audio
Channels
6 + 2
Connectivity
USB Soundcards: Dual 24 Channel (12 in / 12 out)
Hi-Speed USB2.0 / Mac Class Compliant, 32bit / 96kHz, MIDI over USB
Line Inputs: 4 X RCA (CH 1-4)
4 x 1/4″ TRS (CH A-D) Mono/Stereo
Phono Inputs: 4 X RCA (CH 1-4)
LN/PH Switch for DVS
USB Inputs
6 x USB (CH 1-4 + CH A – CH B)
Mic Input
2 x XLR
Master Output
1 x XLR (Balanced)
Master 2 Output
1 x 1/4″ TRS (Balanced)
Booth Output
1 x 1/4″ TRS (Balanced)
Record Output
1 x RCA (Un-balanced)
Construction
Master Insert
1 x 1/4″ TRS
Shipping
Weight
15.4 lbs (7kg)
General
Type
Analog
EQ
Channel 1-4, 4-Band EQ, Channel A-B, 3-Band Parametric EQ
MIDI Out
1 x 5-Pin DIN
Send/Return I/O
2 x 1/4″ TRS Send, 4 x 1/4″ TRS Return, 1 x LN/Hi-Z Switch (SND1/RTNA)
Filter
2 x VCF Filter, HPF / BPF / LPF, Adjustable Frequency & Resonance, Assignable CH 1-4 + CH A-B, CRUNCH (Controlled Harmonic Signal Distortion)
X-Link
1 x RJ45
Headphones
2 x 1/4″, 2 x 3.5mm
Split Cue
Monitoring
Channel Faders
60mm VCA / Replaceable
Chanel Meters
9 Segment LED
Channel Fader Curve
3 Types
X-Fader
InnoFADER / 45mm VCA / Replaceable
X-Fader Curve
3 Types
Earth Ground Terminals
x 2
Headroom
20dB
AC Mains
100 to 240V, AC 50/60Hz, Consumption 45W max
Mains Adaptor
3 pin IEC socket
