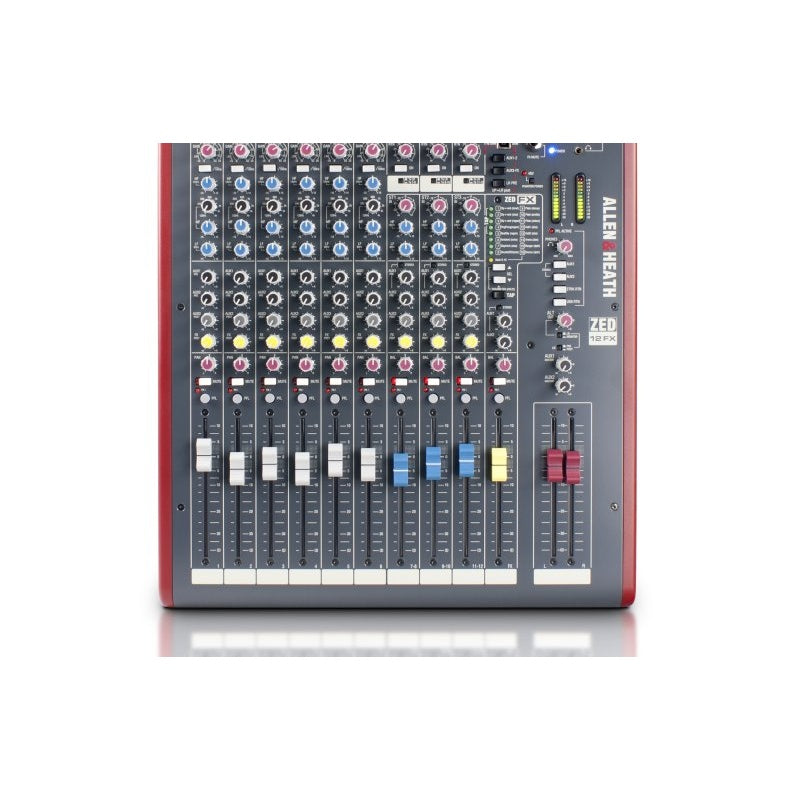

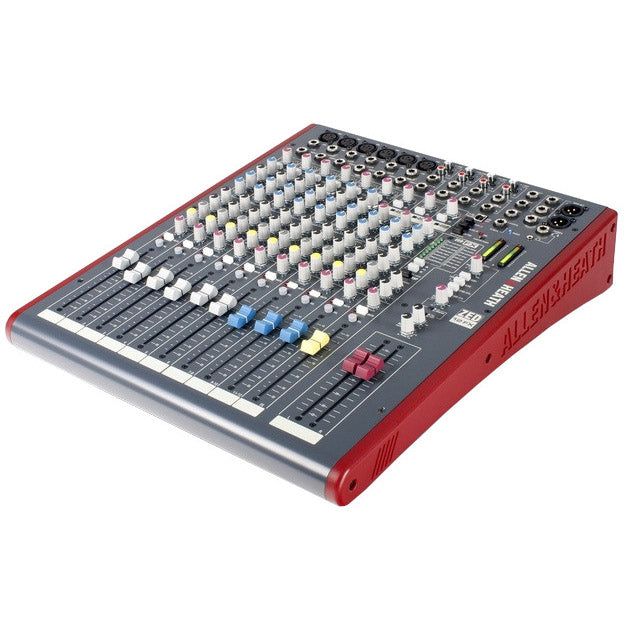

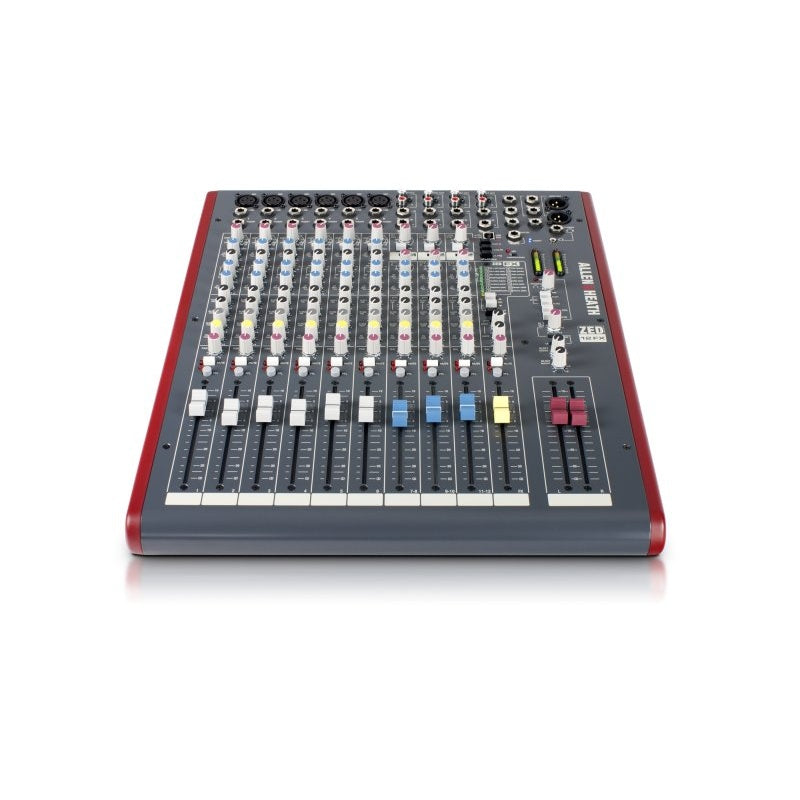

Allen & Heath ZED-12FX Multipurpose Mixer with FX
Allen & Heath ZED-12FX Multipurpose Mixer with FX
SoundPro Item: 41239 | Part Number: AH-ZED12FX
Usually ships in 5-7 business days
- 6 mono channels
- 3 stereo channels with 2-band EQ and inputs for extra sources
- 16 internal time-delay effects
- Neutrik mic XLR
- Neutrik ¼ inch jacks
- Channel insert
- Super wide gain 'DuoPre' mic line input
- 3 band EQ with MusiQ
- 2 pre-fade Aux sends
- 1 post-fade Aux send
- 1 internal FX send
- Illuminated mute
- Sound image pan
- Illuminated PFL & peak warning indicator
- ALPS 100mm faders
- Stereo returns & playback
- All inputs with level control
- 12 bar meters
- Mono/stereo function on auxes 1&2
- Monitor output section
- Alt stereo output source
- Configurable USB stereo audio in/out
- Rack ears available
Allen & Heath’s ZED-12FX Multipurpose Mixer with FX is a compact, versatile mixer that’s easy to fit into any audio setup, while its portability makes it the ideal choice for small bands taking their music mobile. With 4 auxiliary channels, swept semi-parametric EQ, Duopre amps, and more, the ZED-12FX delivers the tools you need to ensure you sound your best.
Leave your mark on your music with the ZED-12FX’s premium collection of 16 time-delay effects. Laid out for intuitive, streamlined navigation and editing, use 3 buttons with 9 display LEDs to craft your sound with time delay, reverb, and more.
Built into the ZED-12FX is a responsive 3-band, swept mid-frequency EQ design at uses MusiQ. Its optimized slope (Q factor) allows you to precision-equalize individual instruments in your band.
The ZED-12FX comes with DuoPre pre-amplifiers that use a 2-stage design and carefully controlled gain in each stage. These preamps boast a gain range of 69dB and reliably-even gain control when amplifying a signal from the mixer’s XLR input. Most of the gain comes from the first stage, which keeps unwanted noise to a minimum. Plug line level signals into the preamp’s second stage using the line input jack socket, which results in less noise when using line input or when matching a higher input impedance.
The ZED-12FX comes with configurable USB audio inputs and outputs. No need to install external soundcards—just plug in a USB lead and select USB routing on the mixer to get started right away at your recording. This feature gives you CD-quality audio to and from your Mac or PC, while switches and connections via the mixer’s jack socket terminals offer a variety of send/return options. Rounding out the ZED-12FX’s connectivity options are 2 stereo inputs for MP3/CD players or keyboards, as well as professional XLR stereo outputs and a versatile monitoring section that lets you plug in headphones and/or speakers.
