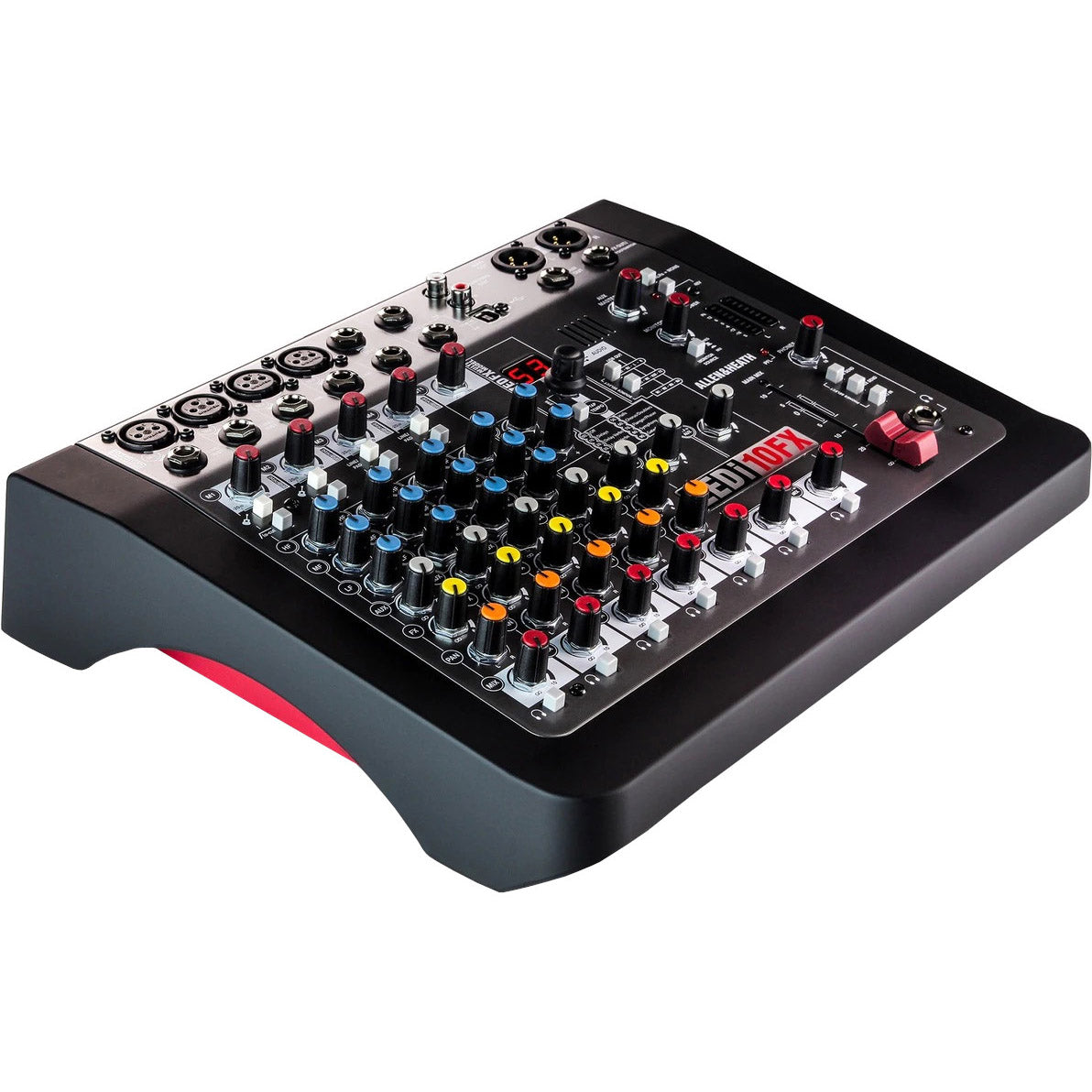

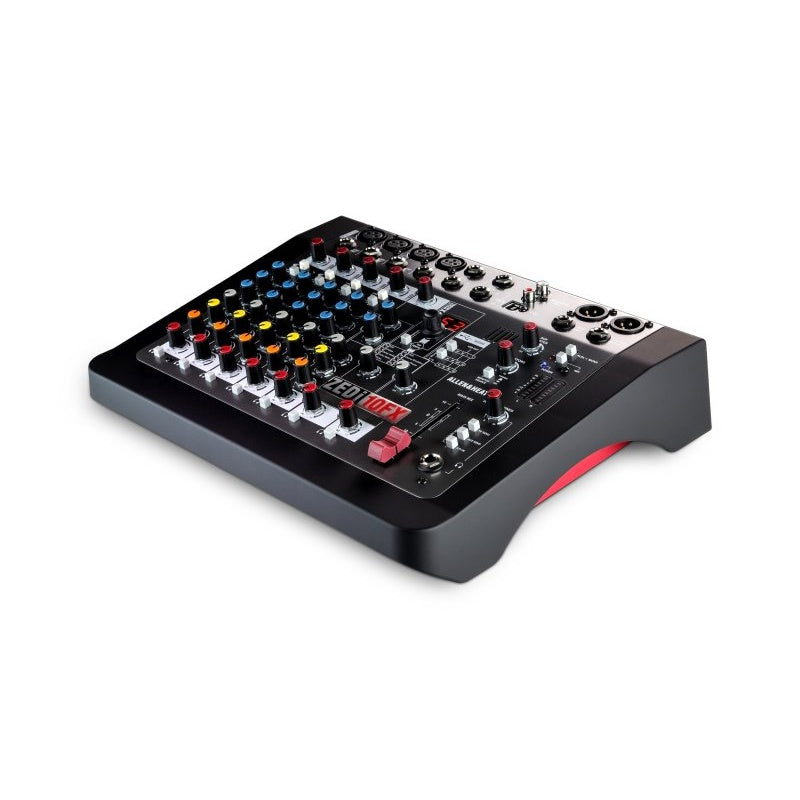

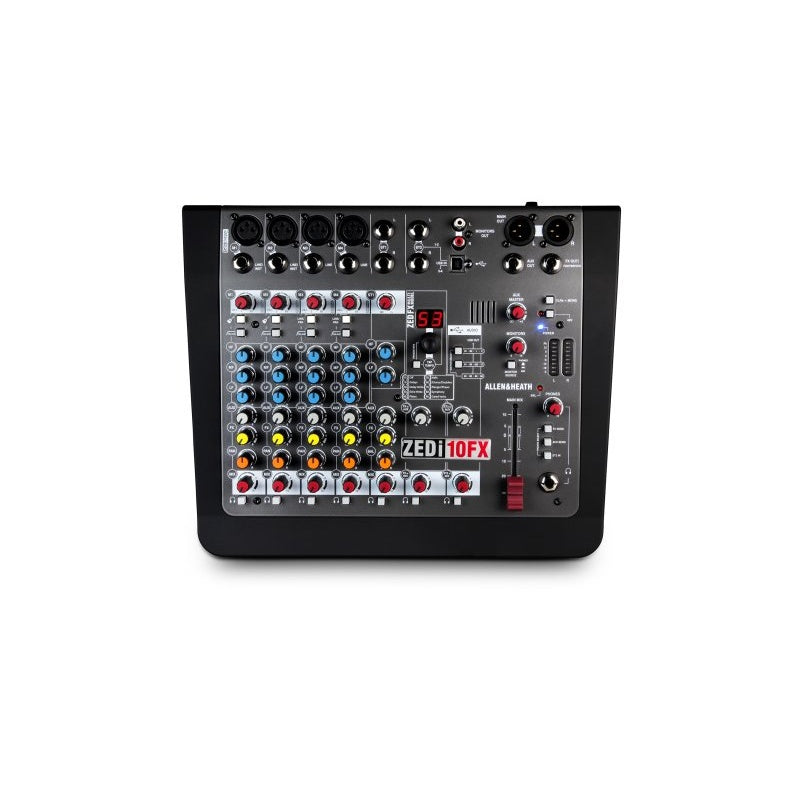

Allen & Heath ZEDi-10FX Hybrid Compact Mixer with FX
Allen & Heath ZEDi-10FX Hybrid Compact Mixer with FX
SoundPro Item: 72105 | Part Number: ZEDI-10FX
Usually ships in 5-7 business days
- Compact hybrid analog/digital mixer
- Versatile and feature-packed, it's particularly ideal for guitarists and gigging musicians
- Portable yet professional, it's great for mixing quality audio on the go
- Integrated effects give you personalization options to make your sound your own
- 4 in, 4 out USB Audio Interface (24-bit/96kHz)

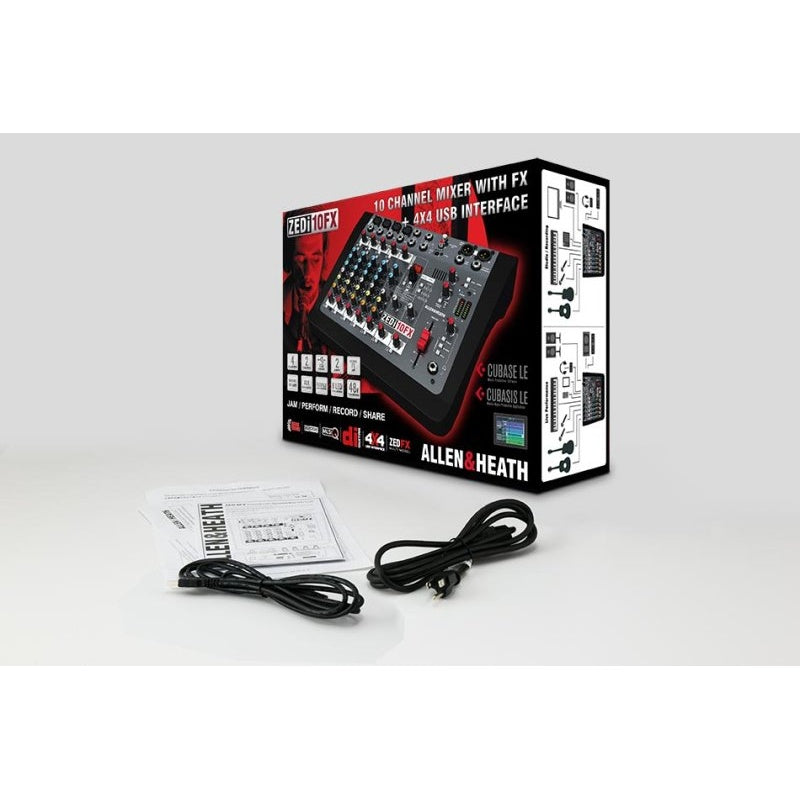

- Includes Cubase LE Software and Cubasis LE App
- 4 Mic / Line Inputs with separate XLR and TRS jack sockets
- 2 Stereo Inputs with TRS jack sockets
- 2 Guitar DI high impedance inputs, eliminating the need for DI boxes

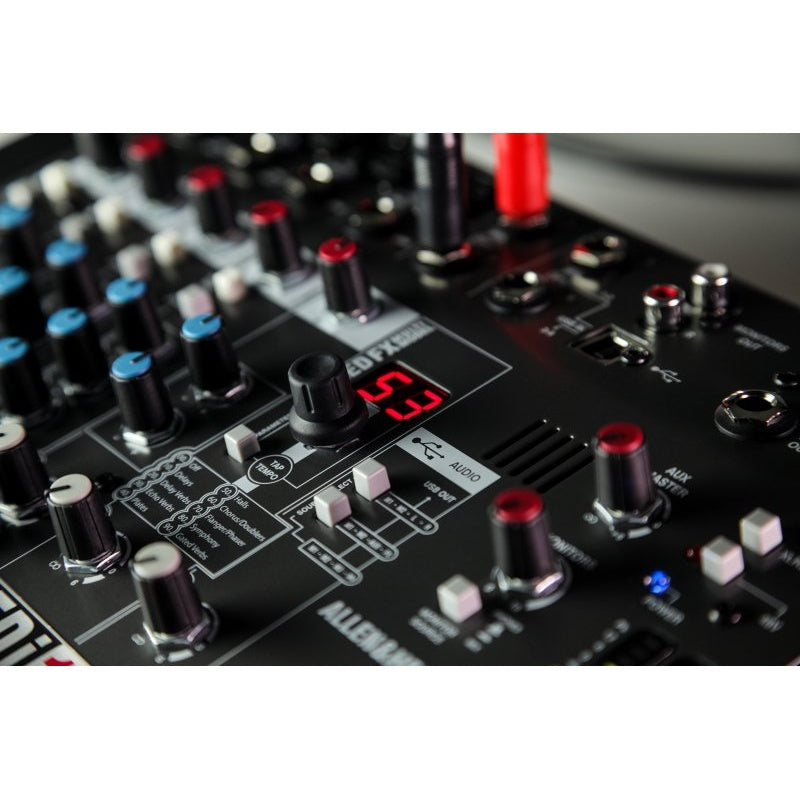

- Internal FX Engine with Tap Tempo
- Lo-cut filter for cleaning up unwanted low frequency noise
- 3 band EQ for easy creative and corrective tonal shaping
- Aux out for connecting a monitor speaker or in-ear / headphone monitoring
- 60mm smooth travel fader on main mix
- XLR main outputs
- Flexible signal monitoring
- 8 LED signal metering
- 48V Phantom Power for condenser mics
- Robust internal power supply
Enjoy the best of both worlds with the ZEDi-10FX Hybrid Compact Mixer from Allen & Heath.
This mixer is the perfect balance of the warmth, power, and hands-on control of analog with the next-generation quality of a 4x4 USB interface.
Great for a wide variety of applications, this mixer is particularly well-suited for guitarists who are aiming for portable, yet professional, quality audio.
- Operating Levels
- Input
- Mono channel 1-2 (XLR) Input (For Nominal 0dBu): -5dBu to –60dBu (+13dBu maximum)
- Mono channel 3-4 (XLR) Input (For Nominal 0dBu) Pad IN: +15dBu to –40dBu (+23dBu maximum)
- Mono channel 1-2 Instrument/Line Input (Jack socket): +14dBu to -40dBu (+17dBu maximum)
- Mono channel 3-4 Line Input (Jack socket): +15dBu to -40dBu (+23dBu maximum)
- Stereo Input (Jack sockets): 0dBu nominal (control = Off to +15dB Gain)
- Output
- L/R Outputs (XLR): 0dBu (+18dBu maximum)
- Aux & FX Output (Jack sockets): 0dBu (+18dBu maximum)
- Monitor Output L/R (RCA Phono Sockets): 0dBu (+18dBu maximum)
- Input
- Frequency Response
- Mic in to Mix L/R Out, 30dB gain: 10Hz to 30kHz +0.5/-1dB
- Instrument/Line in to Mix L/R out 0dB gain: 10Hz to 30kHz +0.5/-1dB
- Stereo in to Mix L/R out: 10Hz to 30kHz +0.5/-1dB
- THD+n
- Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out (22Hz-22kHz Filter): 0.002%
- Mic in to Mix L/R Out, 30dB gain 1kHz (22Hz-22kHz Filter): 0.005%
- Instrument in to Mix L/R out 0dB gain 0dBu 1kHz (22Hz-22kHz Filter): 0.03% 2nd Harmonic
- Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter): 0.0025%
- Headroom
- Analog Headroom from nominal (0Vu); 18dB
- USB in & out headroom from nominal (0Vu): 18dB
- Noise
- Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter): -127dBu
- Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter): -93dBu
- Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter): -90dBu
