Allen & Heath AH-DT-02-X Dante Output Interface With XLR
Allen & Heath AH-DT-02-X Dante Output Interface With XLR
SoundPro Item: 117739 | Part Number: AH-DT-02-X
Usually ships in 5-7 business days
- Two XLR Analog Outputs From Dante Network Streams
- Switchable 48 kHz And 96 kHz Sample Rate Support
- Dual Power Options: PoE Or 12 VDC External Supply
- AES67 Compatible For Standards-Based Network Routing
- Rugged Aluminum Enclosure With Isolation Feet
The Allen & Heath AH-DT-02-X is a professional Dante output interface designed for live sound engineers, system integrators, and broadcast technicians who need to route digital audio to analog XLR destinations. Whether you're running a touring console, expanding a fixed installation, or integrating Dante networks into existing analog infrastructure, this expander bridges the gap between digital and analog domains without the complexity of larger conversion matrices.

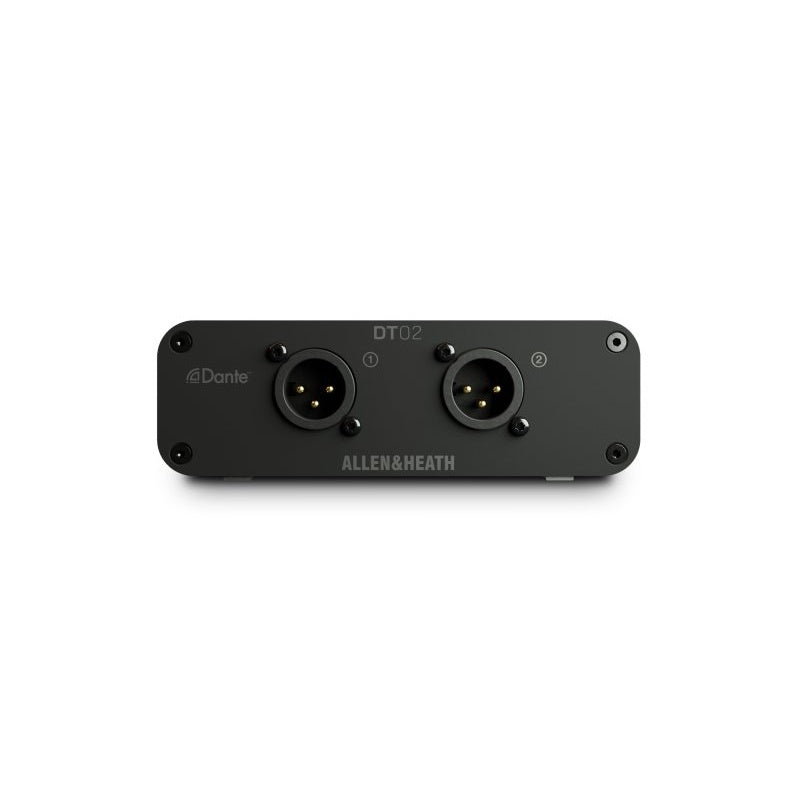

Built for reliability in demanding environments, the rugged aluminum enclosure and included rubber feet isolate vibration and protect against road wear. The dual XLR outputs deliver clean analog signals at either 48 kHz or 96 kHz, selectable to match your network and source material. PoE power capability reduces cable clutter on stage or in rack systems, while the included 12 VDC power supply provides a traditional backup option for venues without PoE infrastructure.

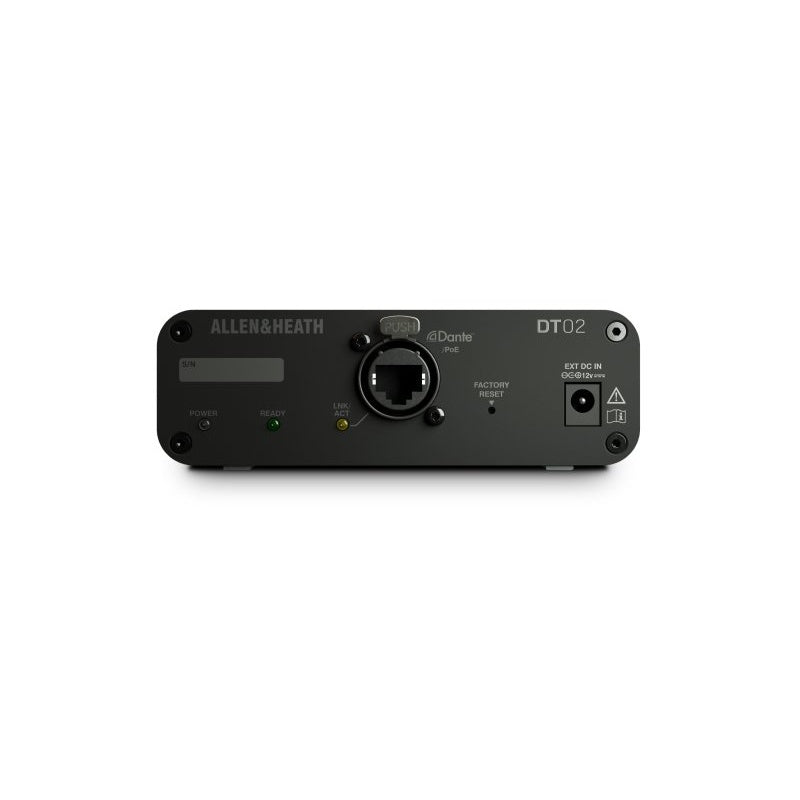

AES67 compatibility and Dante Domain Manager readiness ensure seamless integration into enterprise-grade audio networks. The compact form factor and EtherCon connector housing make this interface ideal for both portable rigs and installed sound systems where space and cable management matter.
Specifications
