Allen & Heath SQ5+ 48-Channel Digital Mixer With RackUltra FX

Allen & Heath SQ5+ 48-Channel Digital Mixer With RackUltra FX

SoundPro Item: 205960 | Part Number: AH-SQ-5-PLUS

$4,999.00
$5,799.00 $4,999.00
Your Price Sold out
MSRP: $5,799.00 | MAP: $4,999.00

Usually ships in 5-7 business days

  • Compact Footprint Fits Touring And Installed Rigs
  • 9" Touchscreen Speeds Navigation In Live Use
  • 17 Motorised Faders Improve Hands-On Mixing
  • RackUltra FX Expands Creative Processing Options
  • USB Interface Supports Recording And Streaming
  • SLink Expansion Connects Allen & Heath I/O
  • AMM Supports Conferences And Panel Discussions
Log in or register for YOUR best price

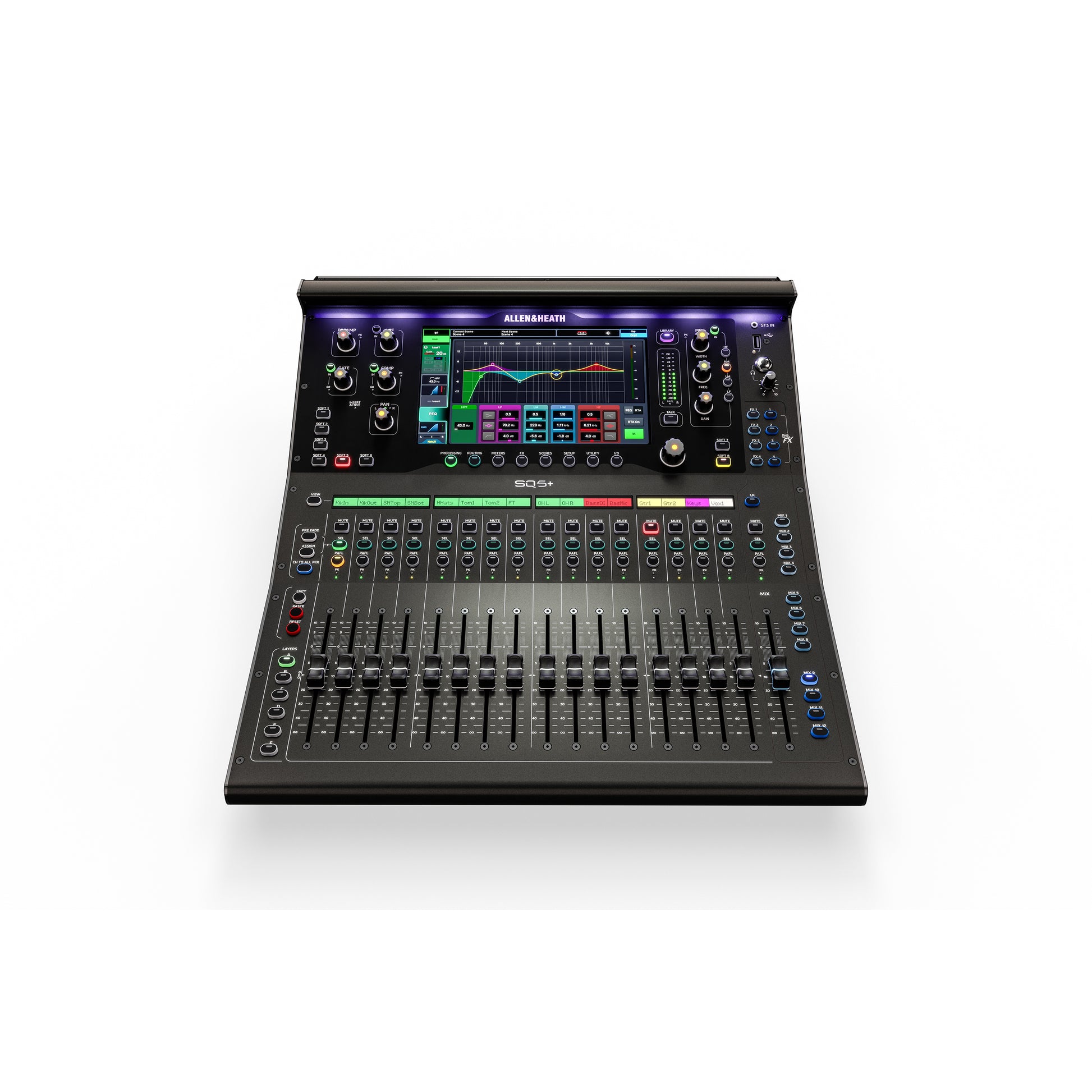

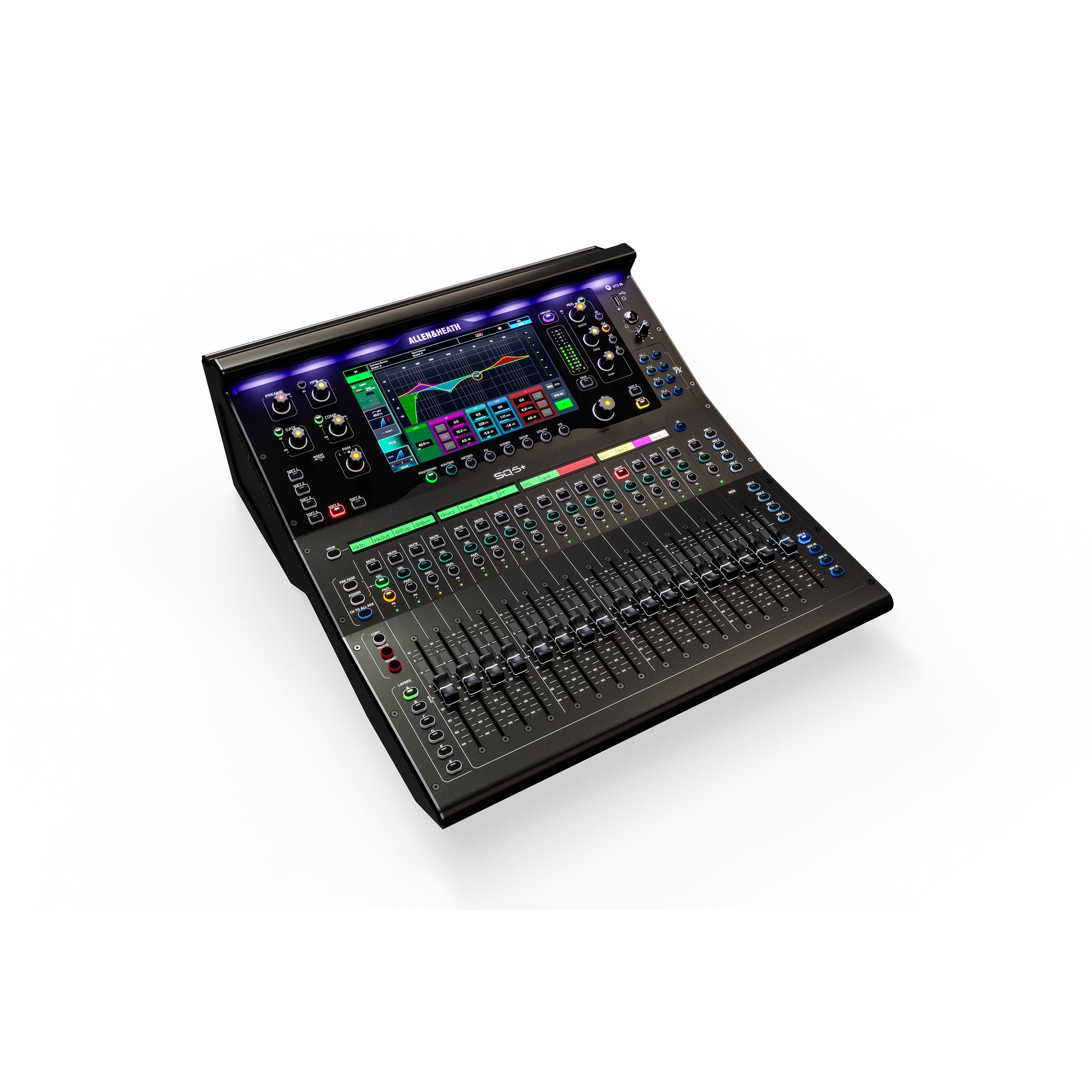

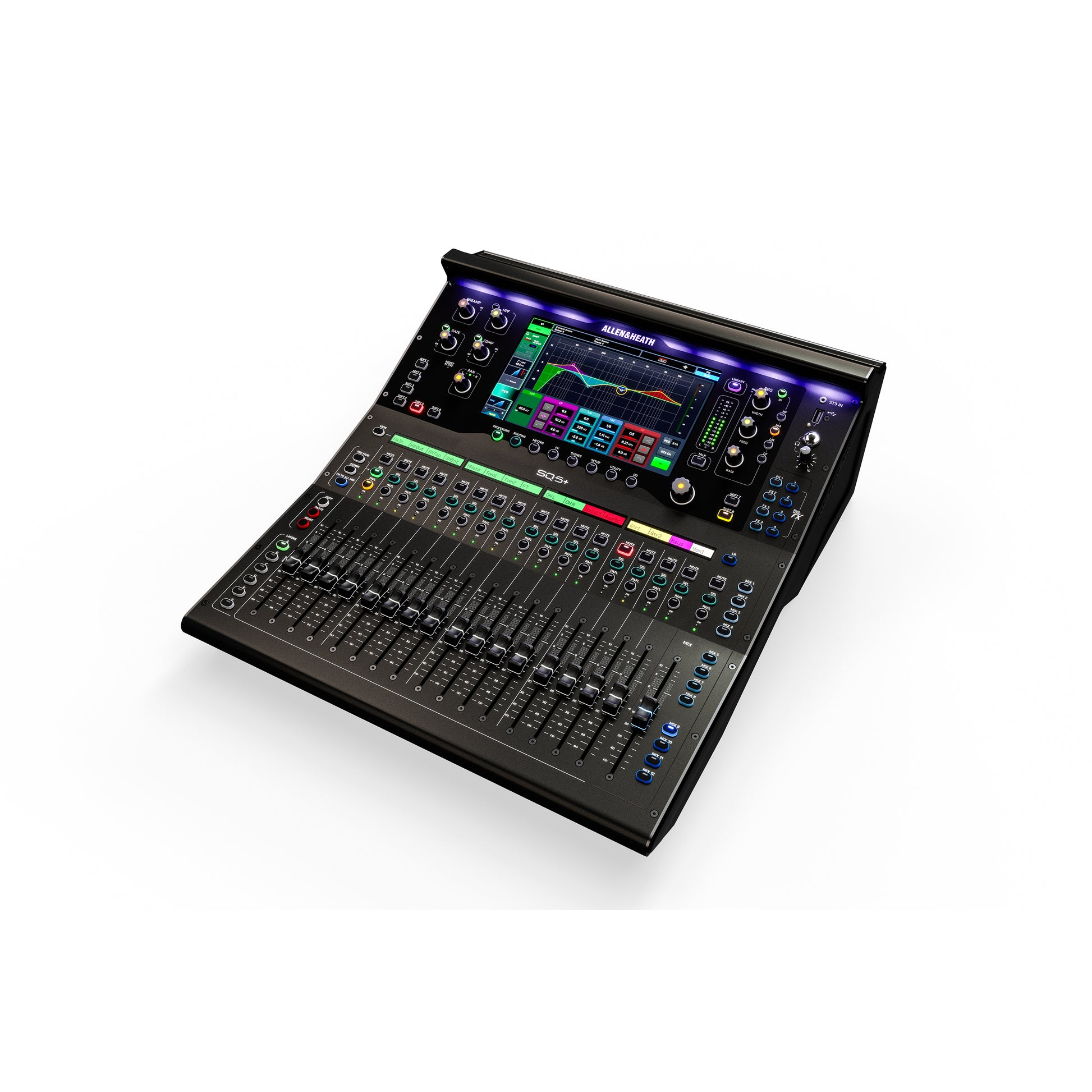

The Allen & Heath AH-SQ-5-PLUS is a compact digital mixer built for live sound, AV production, and installed audio environments that need advanced processing in a manageable footprint. Its 96kHz XCVI core supports 48 inputs to mix, while the compact surface provides 17 motorised faders, a 9" touchscreen, and assignable SoftKeys for fast operation during shows, services, and event work. For fixed systems, the chassis is also 19" rack mountable with the optional kit.

This model combines hands-on control with broad connectivity for modern workflows. A 128x128 Intelligent SLink port supports expansion across the Allen & Heath Everything I/O ecosystem, and the dedicated option card slot allows additional networking formats including Dante, Waves, MADI, and extra SLink. USB recording and playback support direct capture, multitrack production, livestreaming, and virtual soundcheck without forcing a one-size-fits-all setup.

The AH-SQ-5-PLUS is also suited to applications that need onboard mix tools beyond basic console processing. It includes 8 RackExtra FX engines and 4 RackUltra FX engines with dedicated send and return channels, plus DEEP Processing readiness. Advanced AMM capability, app-based remote control, and personal monitor mixing support make it a practical choice for conference systems, touring rigs, houses of worship, and multipurpose venues.

View full details

Specifications

Audio And Processing
Core
96kHz XCVI Core
Inputs To Mix
48x Inputs to Mix
Stereo Aux/Group Mixes
12x Stereo Aux/Group Mixes + LR
Matrix
6x Mono/Linkable Matrix
Channel And Mix Processing
Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
DEEP Processing
DEEP Processing ready
RackExtra FX Engines
8x Rack Extra FX Engines with dedicated send and return channels
RackUltra FX Engines
4x RackUltra FX Engines with dedicated send and return channels
Digital I/O
Intelligent SLink Port
128x128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
Option Card Port
1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
USB-A
Data transfer and stereo/multichannel audio record/playback - 16 Channels @ 96kHz; 32 Channels @ 48kHz
USB-B
Audio interface for multichannel record/playback - 32x32 @ 96kHz; 32x32 @ 48kHz
AES3 Output
1x AES3 Stereo Digital Output Socket

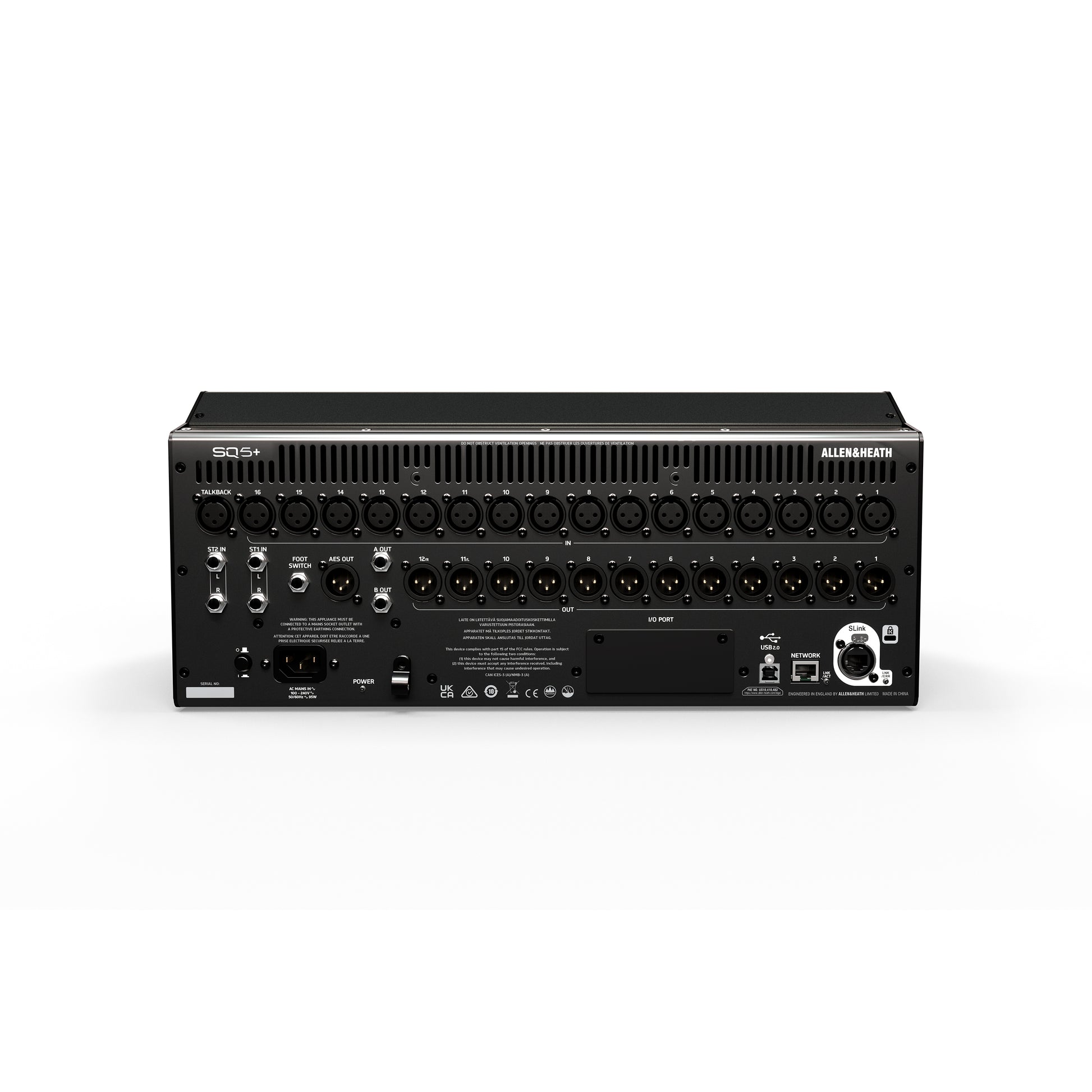

Analogue I/O
Mic/Line Inputs
16x XLR Mic/Line Input Sockets
XLR Outputs
12x XLR Output Sockets
Stereo Line Inputs
3x Stereo Line Input Sockets (4x TRS 1/4" sockets, 1x 3.5mm TRS socket)
Talkback
1x XLR Talkback Socket
TRS Outputs
2x TRS Output Sockets
Headphone Output
Stereo Headphone Output
Control
Motorised Faders
17x 100mm Motorised Faders
SoftKeys
8x SoftKeys
Channel Strip Layers
6x Channel Strip Layers
Touchscreen
9" Touchscreen with dark GUI
Footswitch
Configurable single/dual Footswitch Connection
Remote Control
Remote control via free apps - Windows/MacOS/iOS/Android
Rack Mountable
19" Rack Mountable (optional kit available)
Warranty
Warranty (Years)
2
Shipping
Shipping Length (In)
23.8
Shipping Width (In)
27.6
Shipping Height (In)
13.9
Shipping Weight (Lb)
32.8
