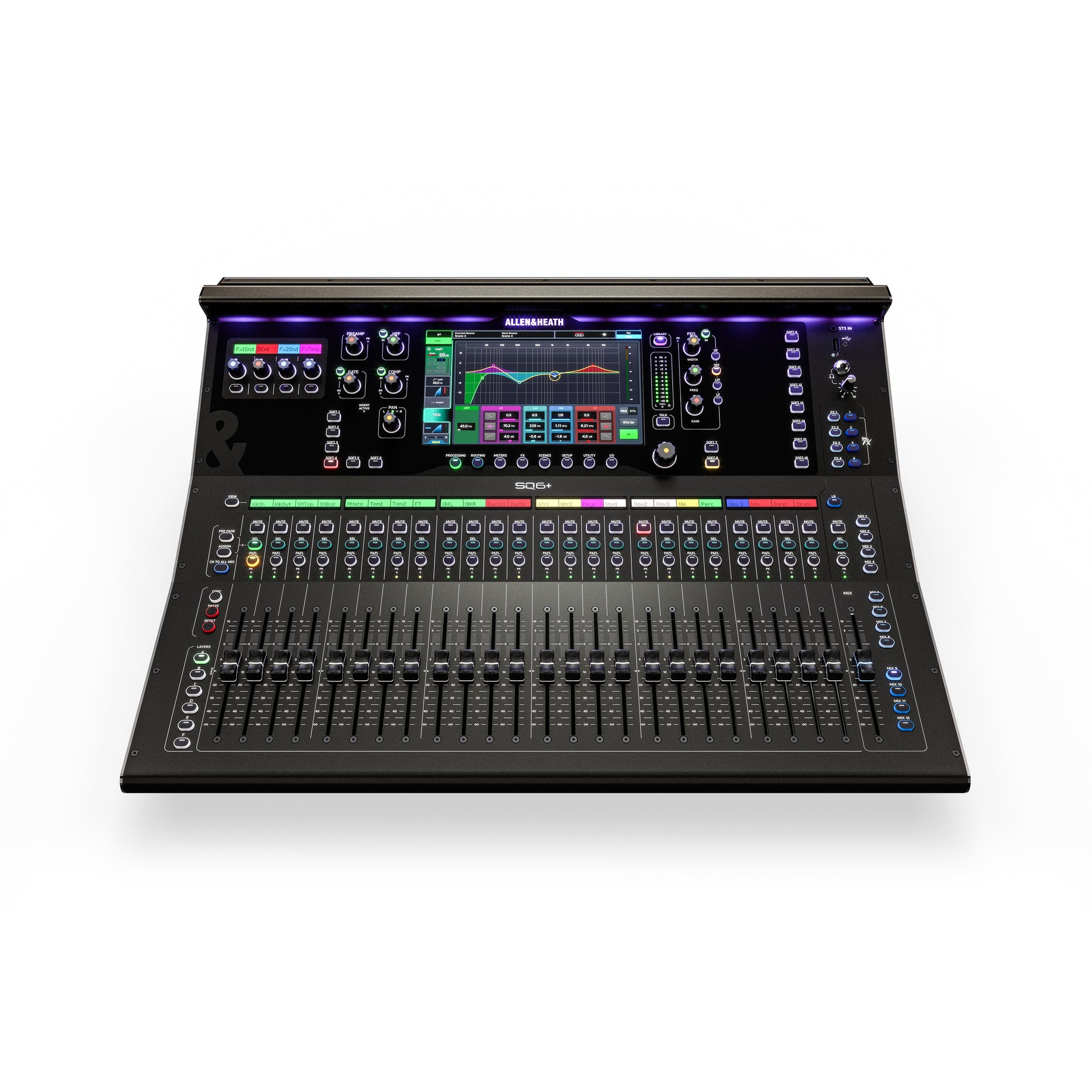

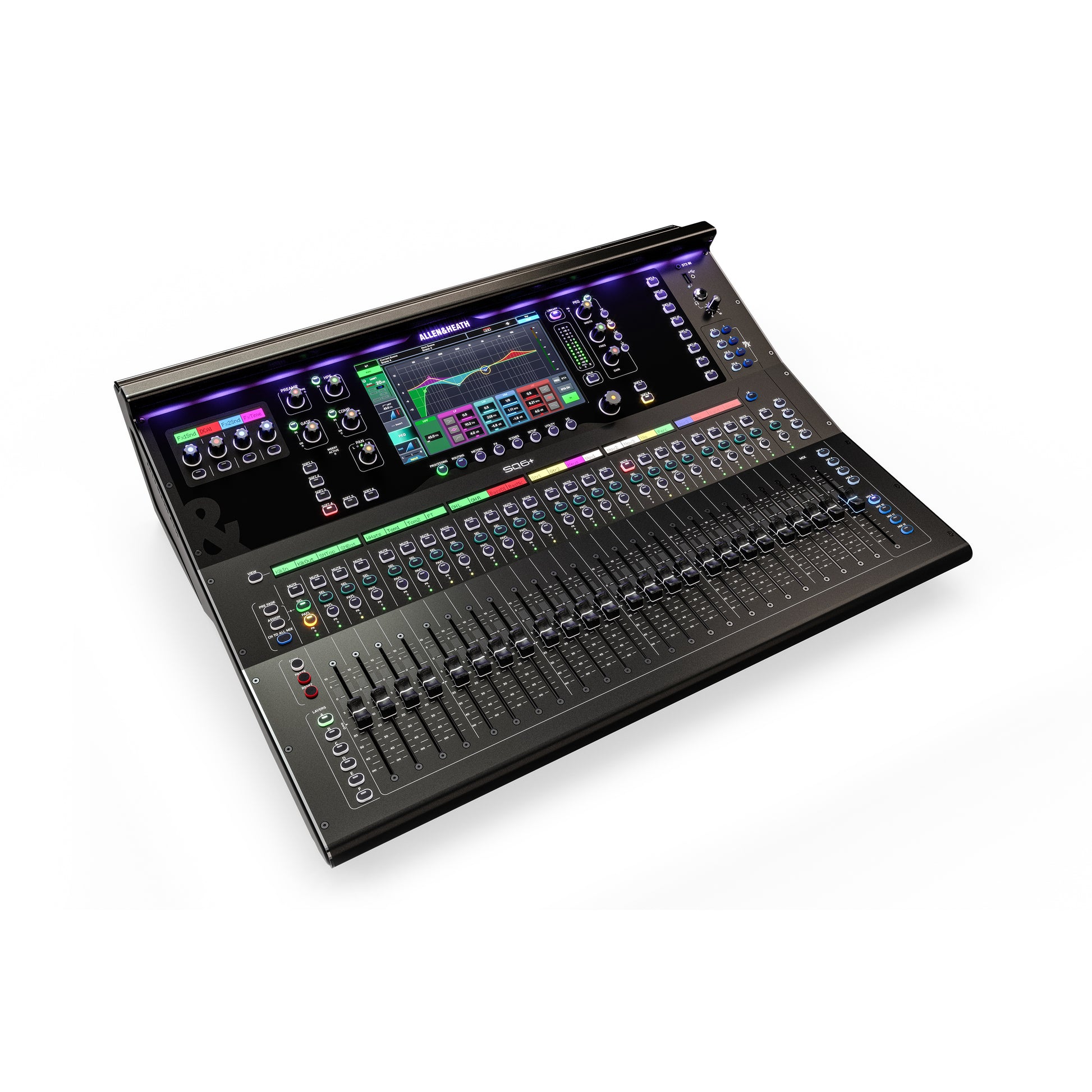

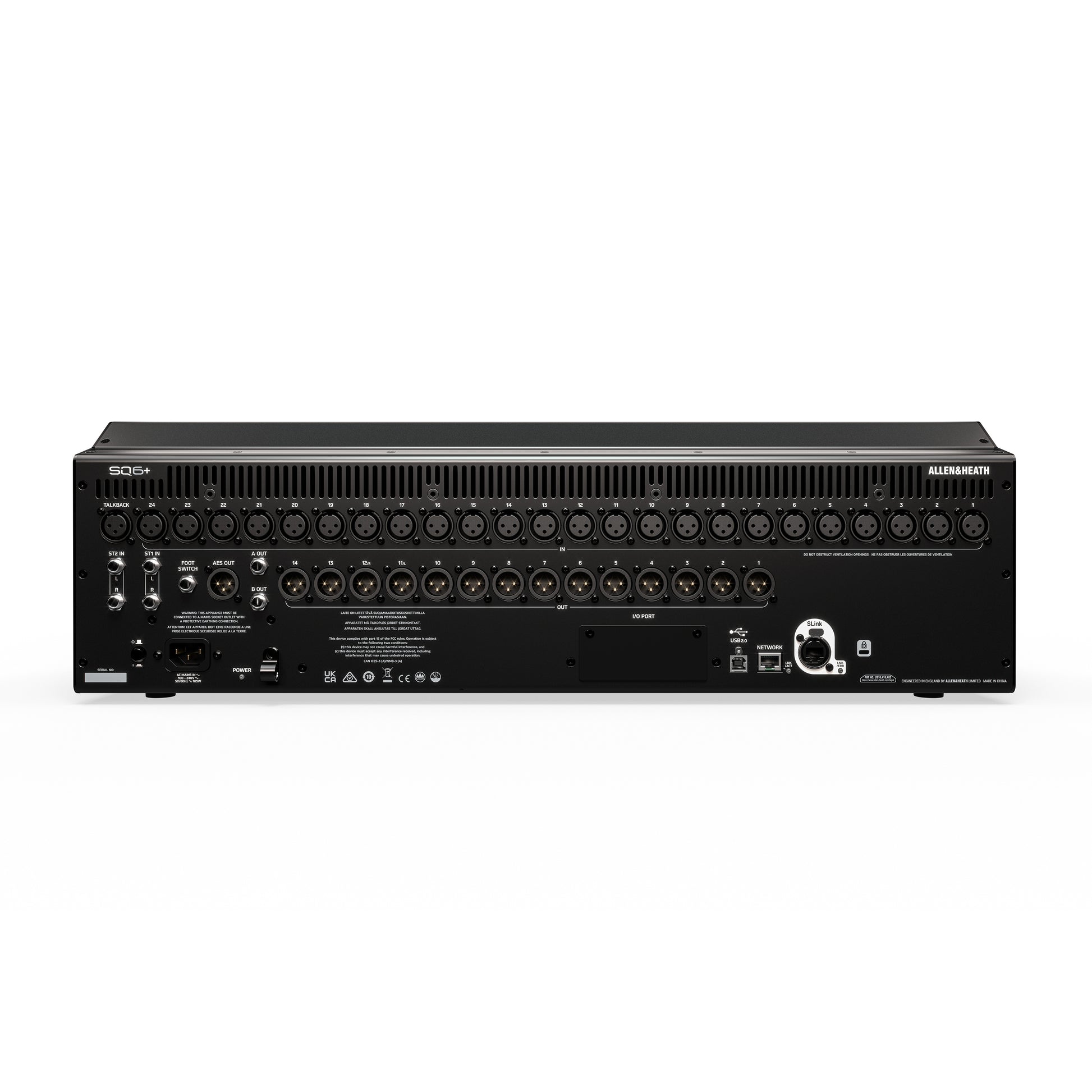

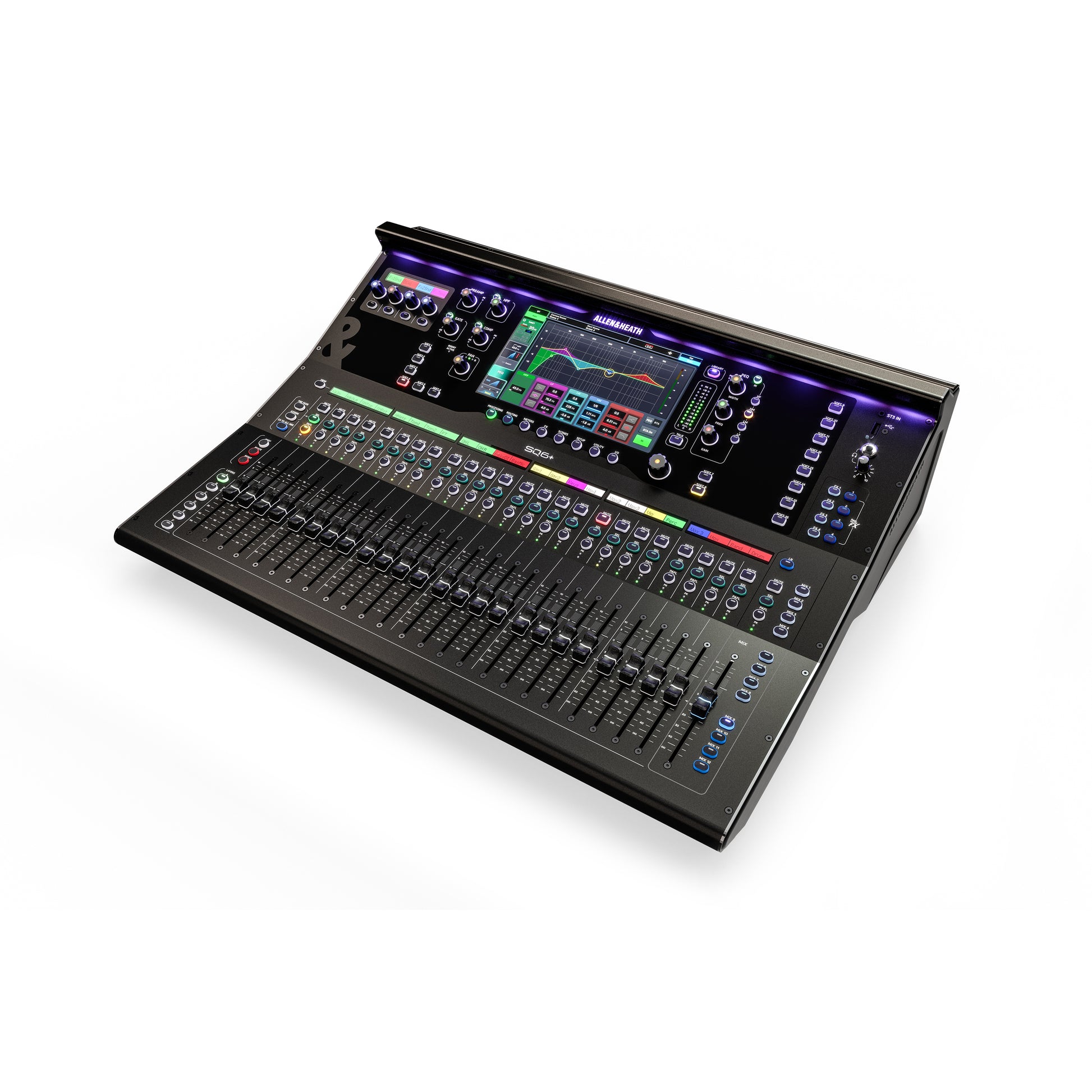

Allen & Heath SQ6+ 48-Channel Digital Mixer With RackUltra FX

Allen & Heath SQ6+ 48-Channel Digital Mixer With RackUltra FX

SoundPro Item: 205961 | Part Number: AH-SQ-6-PLUS

$5,999.00
$6,899.00 $5,999.00
Your Price Sold out
MSRP: $6,899.00 | MAP: $5,999.00

Usually ships in 5-7 business days

  • 25 Motorized Faders For Faster Hands-On Mixing
  • 9" Touchscreen Improves Visibility And Navigation
  • 4 RackUltra FX Engines Expand Creative Processing
  • 32x32 USB Interface Supports Recording And Streaming
  • SLink And Option Card Slot Increase System Flexibility
  • AMM Supports Conferencing And Panel Applications
  • All-Metal Chassis Suits Touring And Installation
Log in or register for YOUR best price

The Allen & Heath AH-SQ-6-PLUS is built for engineers who need a compact console with substantial hands-on control for live sound, production, AV, and installed systems. Its 25 motorized faders, 16 assignable SoftKeys, 4 SoftRotaries, and 9" touchscreen support faster navigation across larger scenes and more demanding mixes without giving up portability.

At the core is Allen & Heath’s 96kHz XCVI processing platform, paired with 48 input channels, 44 buses, and comprehensive onboard processing structure for channel shaping and mix management. The mixer includes both RackExtra FX and four built-in RackUltra FX engines, giving users access to an expanded effects toolkit suited to touring, speech reinforcement, and more refined vocal or mix treatment tasks. DEEP Processing support extends workflow flexibility for users working within the SQ ecosystem.

For recording, streaming, and system integration, the console provides USB multitrack audio, SQ-Drive capture and playback, an Intelligent SLink port for Allen & Heath Everything I/O connectivity, and an expansion slot for Dante, MADI, Waves, or additional SLink options. With Automatic Mic Mixer capability, remote control apps, and a durable all-metal chassis, the AH-SQ-6-PLUS is designed for real-world deployment across mobile productions and permanent installations alike.

View full details

Specifications

Audio And Processing
Core
96kHz XCVI Core
Inputs To Mix
48x Inputs To Mix
Stereo Aux/Group Mixes
12x Stereo Aux/Group Mixes + LR
Matrix
6x Mono/Linkable Matrix
Processing
Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
DEEP Processing
Ready
Rack Extra FX Engines
8x with dedicated send and return channels
RackUltra FX Engines
4x with dedicated send and return channels
Digital I/O
Intelligent SLink Port
128x128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
I/O Port
1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
USB-A
Data transfer and stereo/multichannel audio record/playback - 16 Channels @ 96kHz; 32 Channels @ 48kHz
USB-B
Audio interface for multichannel record/playback - 32x32 @ 96kHz; 32x32 @ 48kHz
AES3 Output
1x AES3 Stereo Digital Output Socket
Analogue I/O
Mic/Line Inputs
24x XLR Mic/Line Input Sockets
XLR Outputs
14x XLR Output Sockets
Stereo Line Inputs
3x Stereo Line Input Sockets (4x TRS 1/4" sockets, 1x 3.5mm TRS socket)
Talkback
1x XLR Talkback Socket
TRS Outputs
2x TRS Output Sockets
Headphone Output
Stereo Headphone Output
Control
Motorised Faders
25x 100mm Motorised Faders
SoftKeys
16x SoftKeys
SoftRotaries
4x SoftRotaries
Channel Strip Layers
6x Channel Strip Layers
Touchscreen
9" Touchscreen with dark GUI
Footswitch
Configurable single/dual Footswitch Connection
Remote Control
Remote control via free apps - Windows/MacOS/iOS/Android
Warranty
Warranty (Years)
2
Shipping
Shipping Length (In)
27.8
Shipping Width (In)
31.9
Shipping Height (In)
13.8
Shipping Weight (Lb)
43.4
