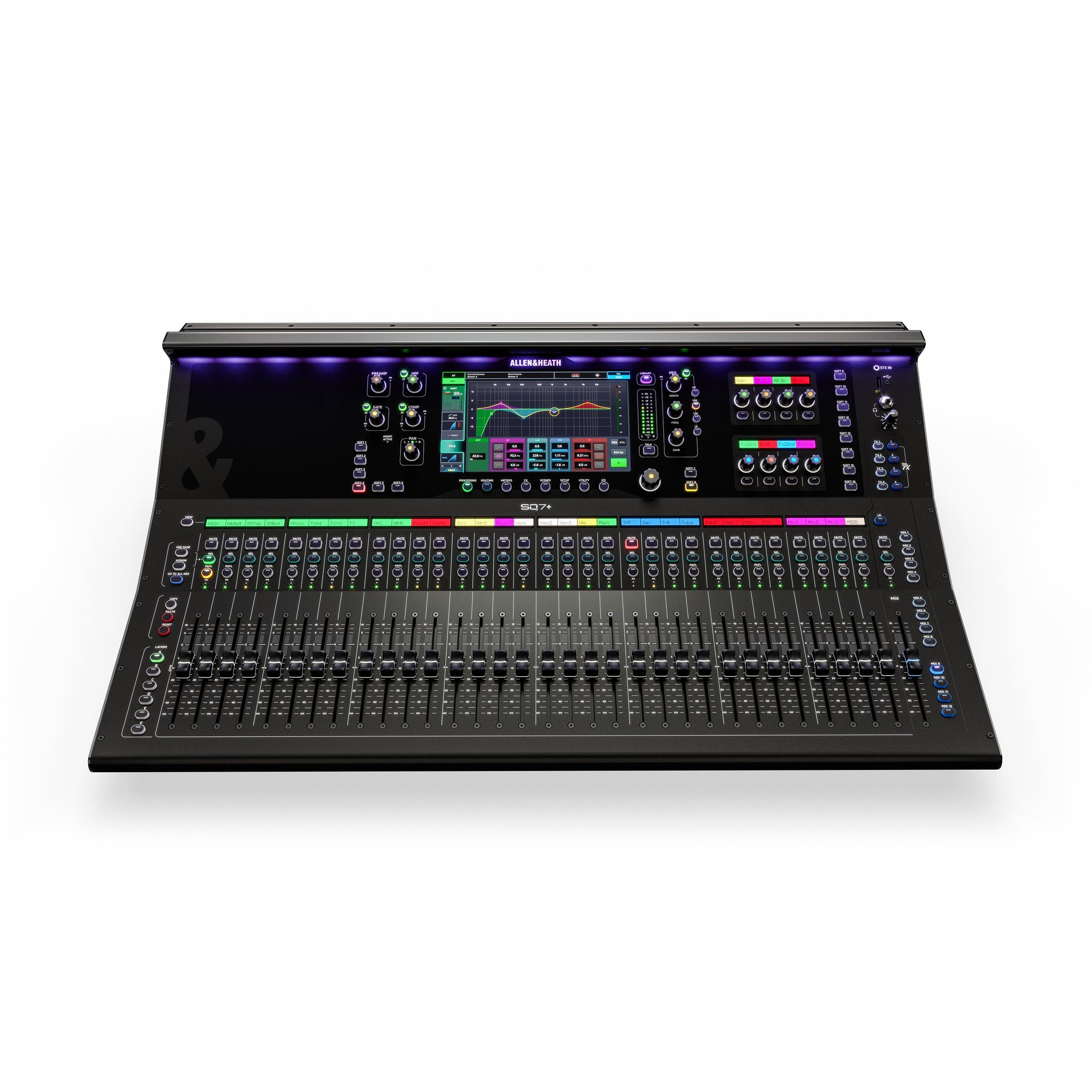

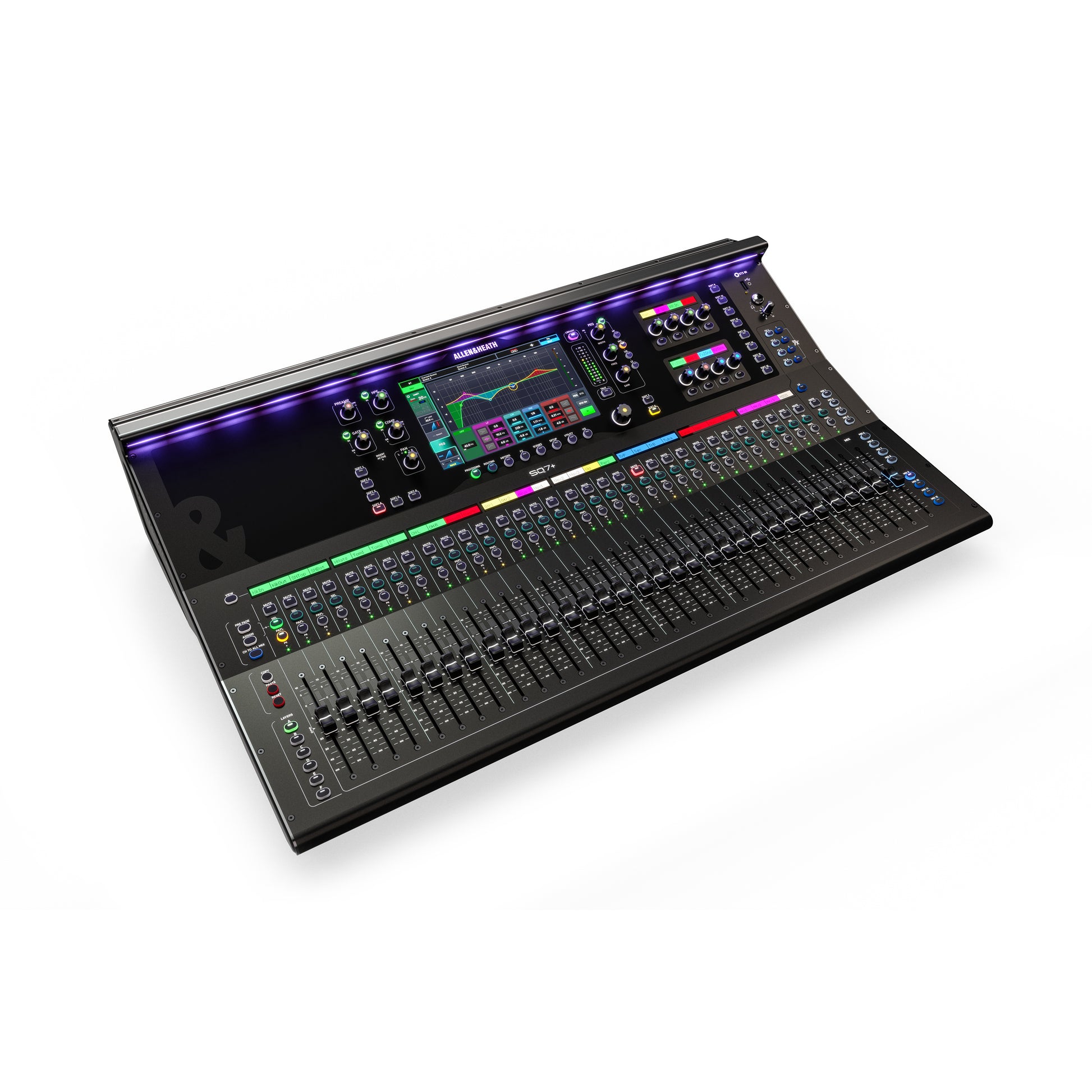

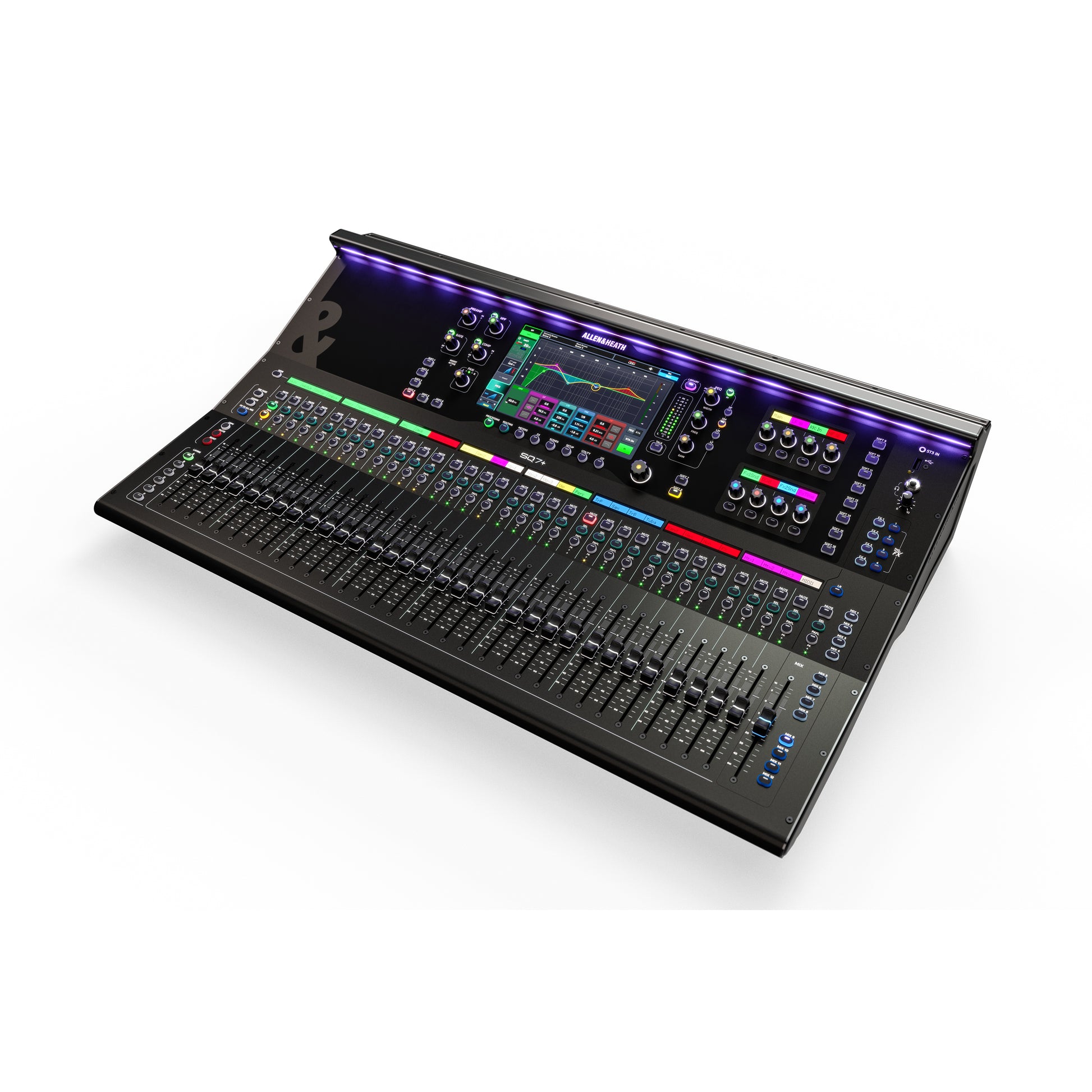

Allen & Heath SQ7+ 48-Channel Digital Mixer With RackUltra FX

Allen & Heath SQ7+ 48-Channel Digital Mixer With RackUltra FX

SoundPro Item: 205962 | Part Number: AH-SQ-7-PLUS

$6,999.00
$8,199.00 $6,999.00
Your Price Sold out
MSRP: $8,199.00 | MAP: $6,999.00

Usually ships in 5-7 business days

  • 33 Motorised Faders For Fast Hands-On Mixing
  • 9" Touchscreen Speeds Navigation In Any Venue
  • RackUltra FX Expands Creative Processing Options
  • USB Interface Supports Recording And Virtual Check
  • SLink Port Enables Broad System Expansion
  • Dual AMM Modes Suit Speech And Panel Mixing
  • All-Metal Chassis Handles Touring And Install Work
Log in or register for YOUR best price

The Allen & Heath AH-SQ-7-PLUS is a 48-channel digital mixer built for engineers who need extensive physical control without stepping up to a larger-format console. Designed for live sound, AV production, and installed systems, it combines 33 motorised faders, six channel strip layers, a 9" touchscreen, and assignable SoftKeys and SoftRotaries to keep navigation fast in high-pressure environments. Its 96kHz XCVI core supports low-latency operation and the mixer includes both RackExtra FX and four built-in RackUltra FX engines for expanded processing options.

For production workflows, the console supports multichannel recording, playback, livestreaming, and virtual soundcheck through its built-in USB audio interface, with 32x32 operation at 96kHz and 48kHz via USB-B. The integrated SQ-Drive enables direct USB recording and playback without requiring a computer, while remote control apps for Windows, macOS, iOS, and Android add flexibility for FOH, monitor mixing, and venue-wide adjustment.

The AH-SQ-7-PLUS also fits demanding system designs with 32 XLR mic/line inputs, 16 XLR outputs, stereo line inputs, AES3 stereo digital output, a 128x128 Intelligent SLink port, and an I/O expansion slot for optional Dante, Waves, MADI, or additional SLink connectivity. For conferences and broadcast-style applications, dual 24-channel Automatic Mic Mixers can operate independently or combine into a 48-channel AMM configuration.

View full details

Specifications

Audio and Processing
Core
96kHz XCVI Core
Inputs To Mix
48x Inputs to Mix
Stereo Aux/Group Mixes
12x Stereo Aux/Group Mixes + LR
Mono/Linkable Matrix
6x Mono/Linkable Matrix
Channel And Mix Processing
Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
DEEP Processing
DEEP Processing ready
Rack Extra FX Engines
8x Rack Extra FX Engines with dedicated send and return channels
RackUltra FX Engines
4x RackUltra FX Engines with dedicated send and return channels
Digital I/O
Intelligent SLink Port
128x128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
I/O Port
1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
USB-A
Data transfer and stereo/multichannel audio record/playback - 16 Channels @ 96kHz; 32 Channels @ 48kHz
USB-B
Audio interface for multichannel record/playback - 32x32 @ 96kHz; 32x32 @ 48kHz
AES3 Output
1x AES3 Stereo Digital Output Socket

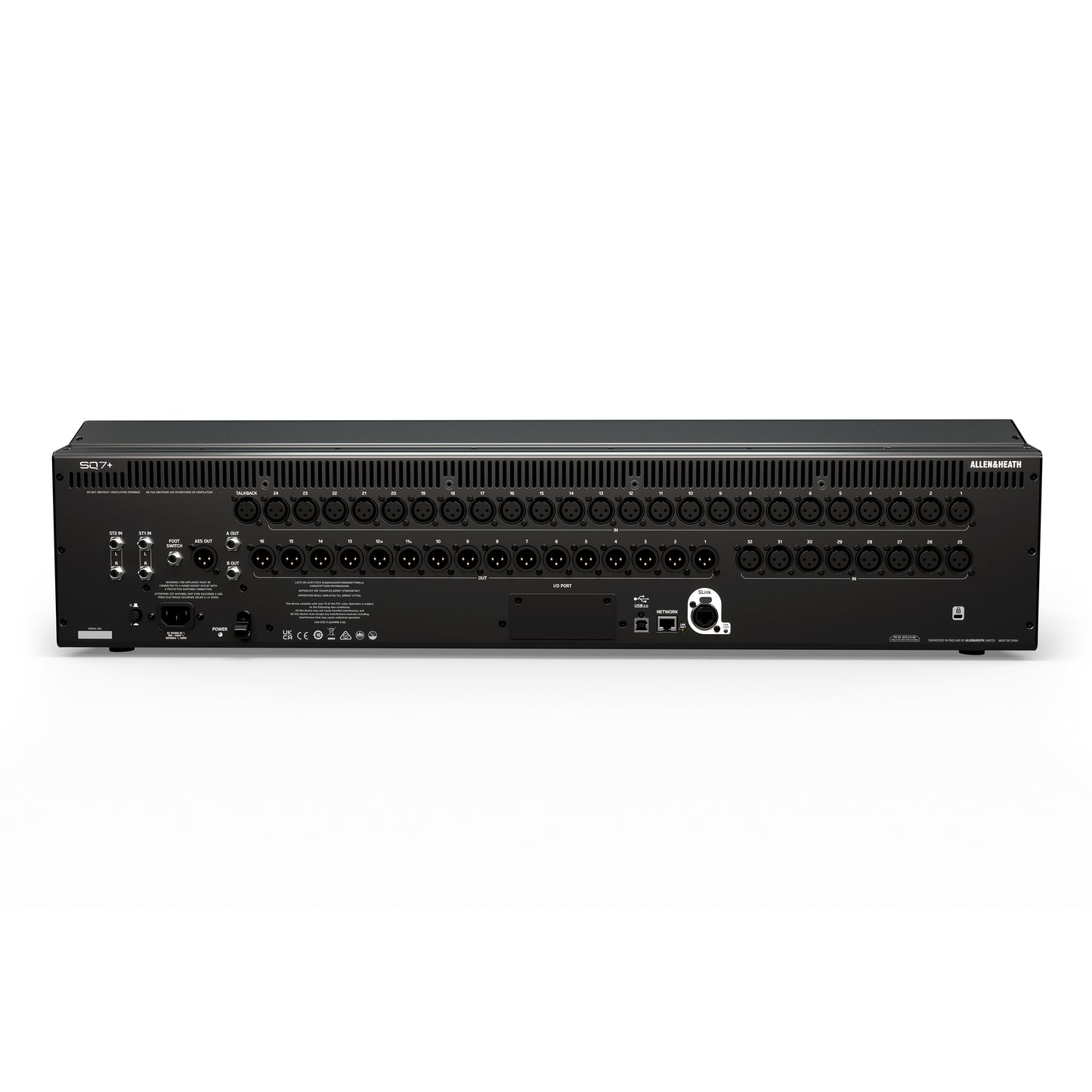

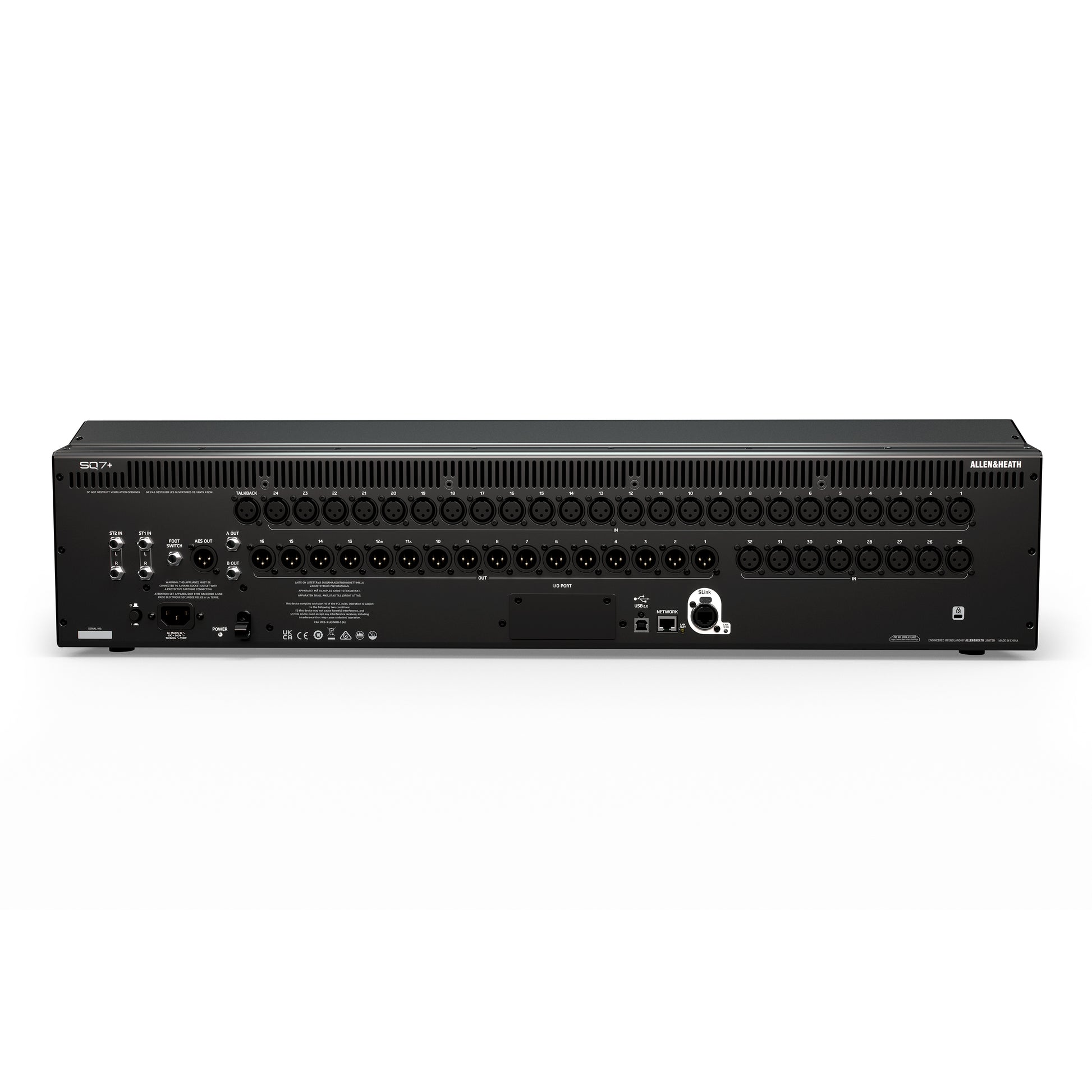

Analogue I/O
Mic/Line Inputs
32x XLR Mic/Line Input Sockets
XLR Outputs
16x XLR Output Sockets
Stereo Line Inputs
3x Stereo Line Input Sockets (4x TRS 1/4" sockets, 1x 3.5mm TRS socket)
Talkback Socket
1x XLR Talkback Socket
TRS Outputs
2x TRS Output Sockets
Headphone Output
Stereo Headphone Output
Control
Motorised Faders
33x 100mm Motorised Faders
SoftKeys
16x SoftKeys
SoftRotaries
8x SoftRotaries
Channel Strip Layers
6x Channel Strip Layers
Touchscreen
9" Touchscreen with dark GUI
Footswitch Connection
Configurable single/dual Footswitch Connection
Remote Control
Remote control via free apps - Windows/MacOS/iOS/Android
Warranty
Warranty (years)
2
Shipping
Shipping Length (in)
27.6
Shipping Width (in)
38.2
Shipping Height (in)
14.2
Shipping Weight (lb)
52.2
