Specifications
POWER
Power Requirements
AC 100 V – 240 V; 50 Hz / 60 Hz
Power Consumption
DC 15 V; 3.0 A
Power Consumption (OFF)
0.3 W
DIMENSIONS & WEIGHT
Max External Dimensions (W×D×H)
340.0 × 213.3 × 72.8 mm; 13.4 × 8.4 × 2.9 in
Main Unit Weight
2.3 kg; 5.1 lbs
OPERATING CONDITIONS
Operating Temperature
+5 °C – +35 °C
Operating Humidity
5% – 85%; no condensation
AUDIO
Sampling Rate
96 kHz
A/D; D/A Converter
32 bit
Frequency Response
20 Hz – 40 kHz
S/N Ratio (A-weighted)
CONNECTION switch (MST): 115 dB; CONNECTION switch (SEND/RETURN): 114 dB; CONNECTION switch (CDJ): 108 dB
Total Harmonic Distortion (20 Hz – 20 kHz BW)
0.0018 %
Standard Input / Output Level
CONNECTION switch (MST): +4 dBu / +4 dBu; CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu; CONNECTION switch (CDJ): -6 dBu / -12 dBu
Input Impedance
47 kΩ
Output Impedance
680 Ω or less
Rated Output Level / Load Impedance
CONNECTION switch (MST): 21 dBu / 10 kΩ; CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ; CONNECTION switch (CDJ): 3 dBu / 10 kΩ

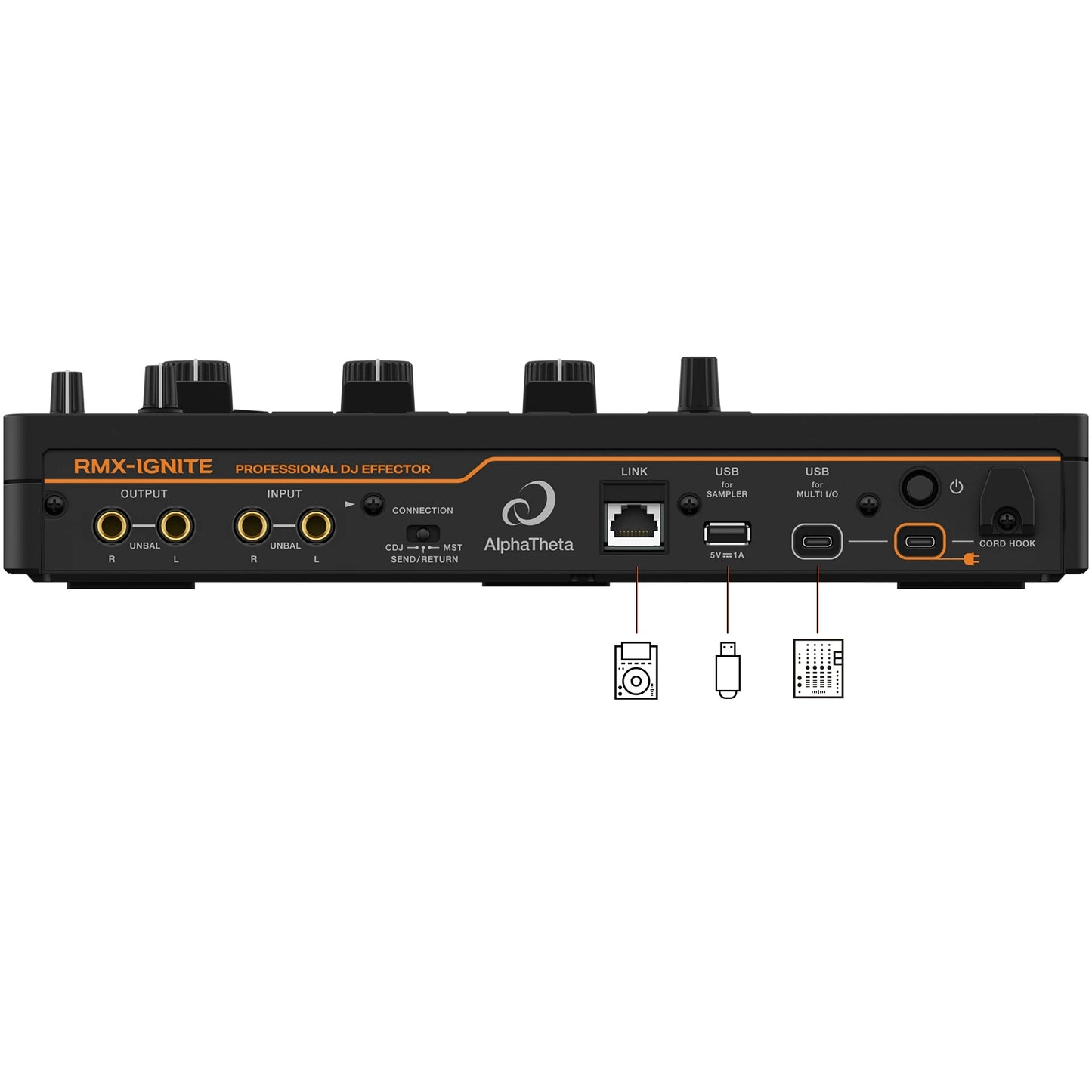

INPUT / OUTPUT TERMINALS
Input
1/4″ TS jack × 1
Output
1/4″ TS jack × 1
USB Type-A
1 set; for SAMPLER; power supply 5 V / 1 A or less
USB Type-C
2 sets; for MULTI I/O; AC adapter
LINK
LAN (100BASE-TX) × 1
SUPPORTED FILE FORMATS
WAV
Bit depth: 16 bit; 24 bit; Sampling frequency: 44.1 kHz; 48 kHz; 88.2 kHz; 96 kHz
AIFF
Bit depth: 16 bit; 24 bit; Sampling frequency: 44.1 kHz; 48 kHz; 88.2 kHz; 96 kHz
