AMX FG1010-354 Vpx-1401 4X1 4K60 Presentation Switcher
AMX FG1010-354 Vpx-1401 4X1 4K60 Presentation Switcher
SoundPro Item: 40888 | Part Number: FG1010-354
Usually ships in 5-7 business days
- Connectivity Technology: Cable
- Number of Input Devices Supported: 4
- Device Supported: Display
- Number of Displays Supported: 2
- Graphics Modes: 4K
- Maximum Video Resolution: 4096 x 2160
- HDMI In: Yes
- HDMI Out: Yes
- VGA In: Yes
- USB: Yes
- Connectivity (RJ-45): Yes
- Number of Connectivity (RJ-45) Ports: 2
- Number of USB Ports: 1
- Number of HDMI Inputs: 3
- Number of HDMI Outputs: 1
- Number of VGA Inputs: 1
- Media Type Supported: Twisted Pair
- Maximum Operating Distance: 328.08 ft
- Height: 1.2"

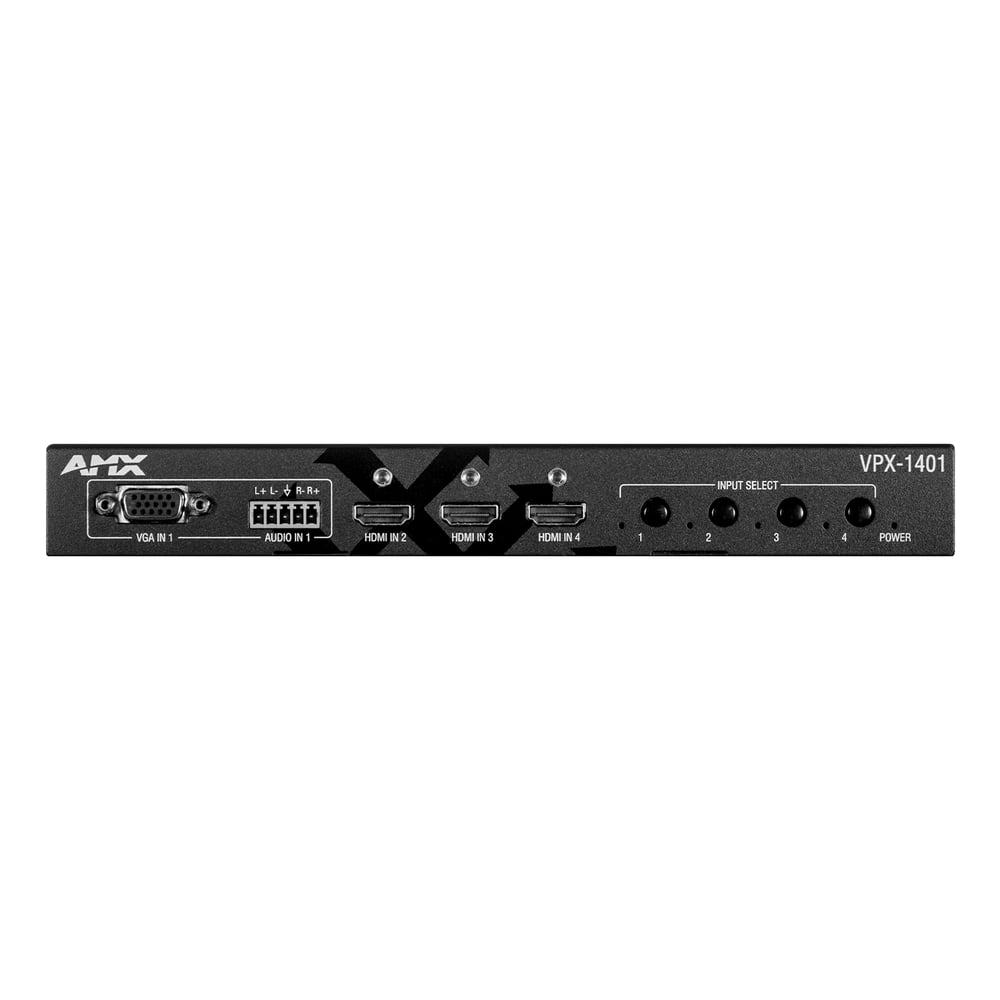

The AMX VPX-1401 is a simple but powerful 4x1 scaling presentation switcher that targets small conference rooms and classrooms. The VPX-1401 supports resolutions up to 4K60 4:4:4, and offers HDCP 2.2 compatibility to support the most current sources and displays. The VPX-1401 includes 3 HDMI inputs and 1 VGA input. The VPX Series switchers include built-in scaling, allowing automatic scaling of signals to match the ideal resolution of the display. In addition to the HDMI output, there is also a mirrored HDBaseT output for use with the DXL-RX-4k60 to bring switched video and audio from the table to the display, and also brings USB 2.0 signals from an AMX Acendo Vibe conferencing soundbar or other USB 2.0-based camera/speaker devices back to the table for use by visiting laptops. Extracted audio output with volume control is also available, providing an option to feed powered speakers or an amplified soundbar near the display. There are a variety of options to control the VPX-1401 as well. Front panel controls are available, as is contact closure for use with AMX MyTurn Source Selector Buttons. The VPX-1401 is also NetLinx Native, allowing simplified integration with AMX automation systems.
Specifications
