AMX FG1020-050 Pr01-Rx

AMX FG1020-050 Pr01-Rx

SoundPro Item: 40894 | Part Number: FG1020-050

$1,406.00
$1,406.00 $1,406.00
Your Price Sold out
MSRP: $1,406.00 | MAP: $1,406.00

Usually ships in 5-7 business days

  • 4K60 Support with Built-in Scaling - Experience pixel-for-pixel video reproduction of 4K60 source video
  • Scaling - Automatically converts signals up or down to match the resolution of the display
  • HDBaseT Support - Uses the global standard for transmission of ultra-HD A/V, Ethernet, controls, USB and up to 100W of power over a single, long-distance cable
  • NetLinx Native - Easy integration with AMX automation systems
  • It is compatible with HDMI and HDCP formats

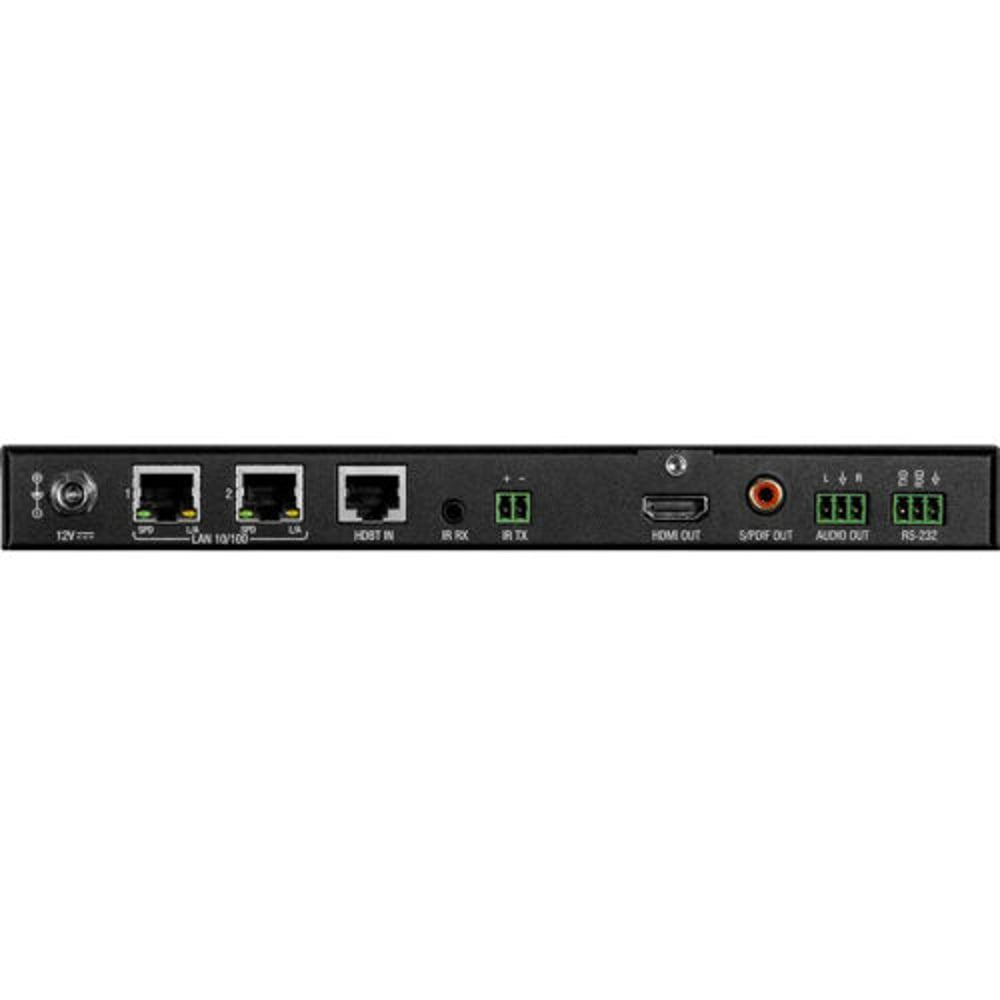

  • It includes LAN10/100 Ethernet Port connection with two RJ-45 Connectors and a TCP/IP Port
  • The device comes with V-Style surface mount brackets for installation
  • Additional accessories include a power adaptor, two types of Phoenix connectors, and a receiver
Log in or register for YOUR best price

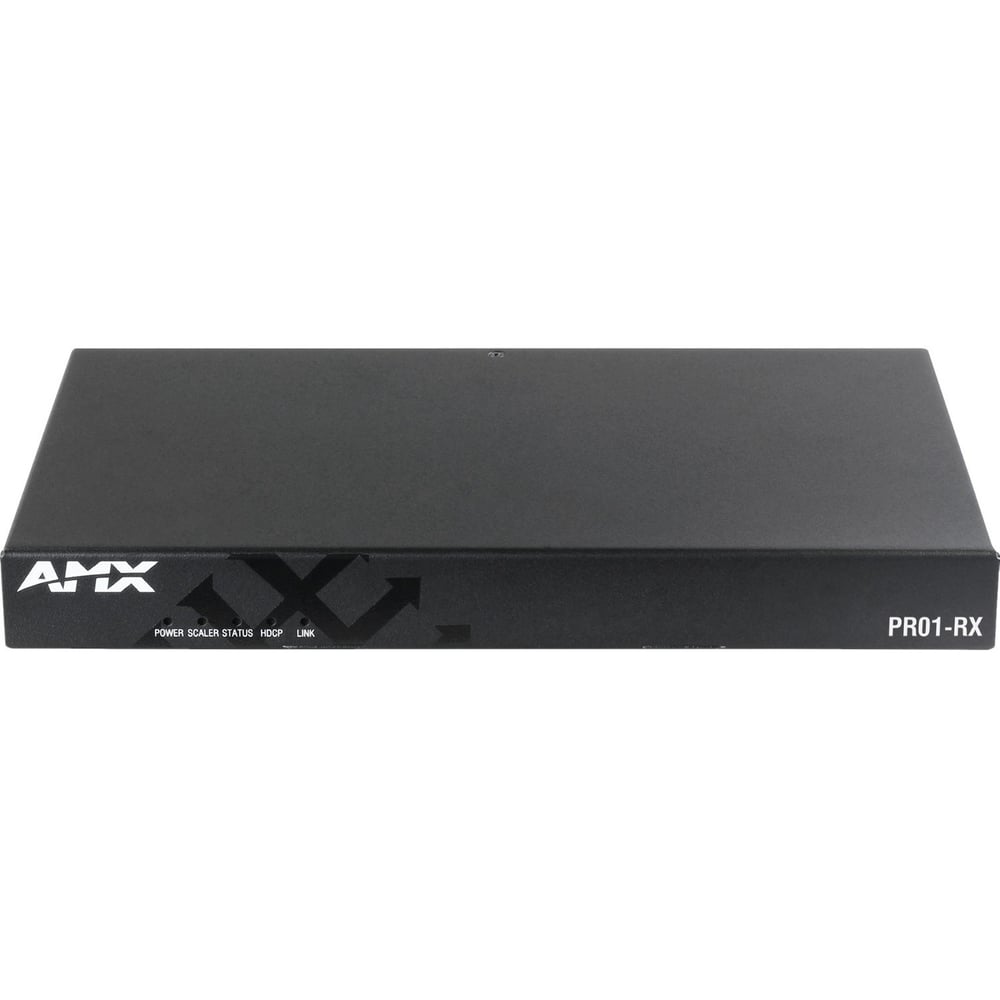

The AMX PR01-RX is an economical receiver and scaler solution for AMX Precis 8x8 HDMI Matrix Switcher. The cost-effective solution features built-in scaling, network pass-through, and configuration. It is an ideal device for distributing video outputs over longer distances with resolution up to 4096x2160p. The built-in scaling on the PRO1-RX provides clean transitions when switching between sources and production. Additionally, the complete packages include V-style surface mount brackets for easy installation.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG1020-050
Brand Name
AMX
Product Line
Precis
Product Model
PR01-RX
Product Name
Precis HDBaseT Receiver and Scaler
Product Type
Audio/Video Switchbox
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
1
Device Supported
Display
Number of Displays Supported
1
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
HDMI Out
Yes
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
3
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Maximum Operating Distance
328 ft
Physical Characteristics
Form Factor
Surface-mountable
Miscellaneous
Package Contents
Precis HDBaseT Receiver and Scaler 1 x 12V/3APower Adapter 1 x US AC Cable 1 x EU AC Cable 1 x UK AC Cable 2 x 3P-3.5MM Phoenix Connectors 1 x 2P-3.5MM Phoenix Connectors 1 x IR Receiver 2 x Mounting Ear 4 x M2.5 Screw (For Mounting Ears)
Country of Origin
Mexico
