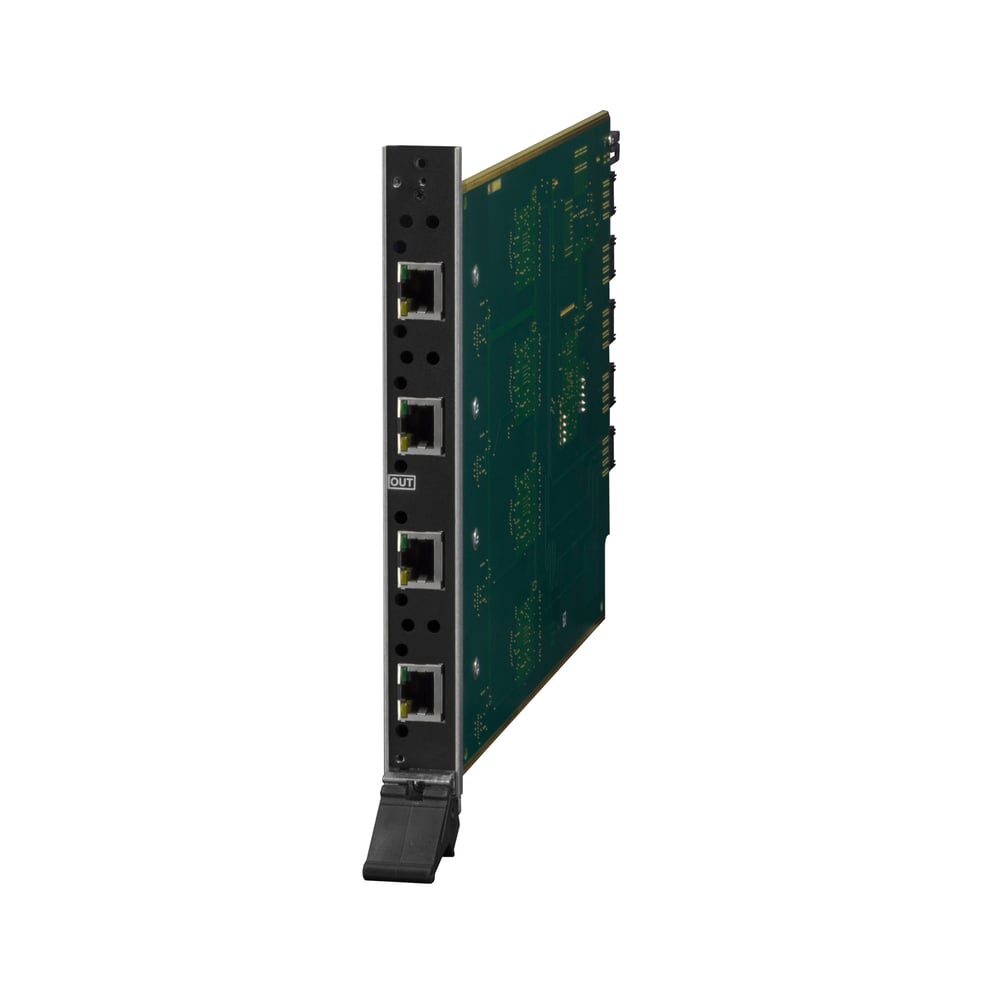

AMX FG1058-580-FX Dgx-O-Dxl Dxlink Twisted Pair Enova Dgx Output Board
AMX FG1058-580-FX Dgx-O-Dxl Dxlink Twisted Pair Enova Dgx Output Board
SoundPro Item: 40124 | Part Number: FG1058-580-FX
Usually ships in 5-7 business days
- Only One Cable - Send audio and video while passing control, Ethernet and power over one twisted pair cable
- Send HDMI signals up to 100 Meters - Extend the reach of the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
- Standard Twisted Pair Cable - Save time and effort in installation by leveraging pre-existing cost effective twisted pair cable, see the Cabling for Success with DXLink white paper for more details
- Hot Swappable - Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
- HDCP Compliant
- Remotely Powered Receivers - DXLink Power is available from the DXLink Output Board to power DXLink Receivers
- 3D Support* - Pass through latest video formats including 3D and Deep Color
- Surround Sound Support - Pass through high definition surround sound including Dolby Digital, DTS and up to 8-channel L-PCM at 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
The AVS-ENOVADGX32-VO-DXLINK is a HDCP compliant twisted pair cable output board for the Enova DGX 16 and Enova DGX 32. It has four connections per DXLink Output Board and is designed to transmit audio and video to DXLink Receivers while passing bi-directional control and Ethernet over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Output Board to power DXLink Receivers.
