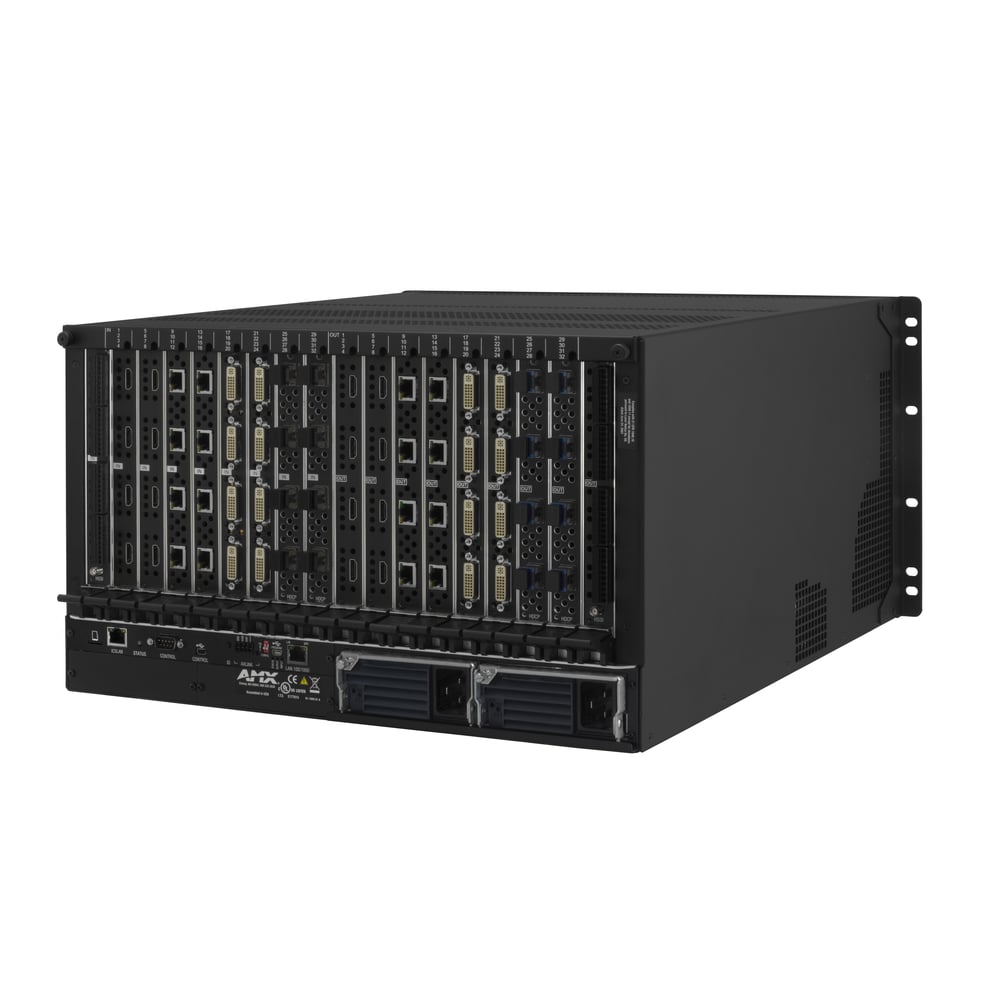

AMX FG1061-32-FX Dgx3200-Enc Enova Dgx 3200 Enclosure

AMX FG1061-32-FX Dgx3200-Enc Enova Dgx 3200 Enclosure

SoundPro Item: 40147 | Part Number: FG1061-32-FX

$31,980.00
$31,980.00 $31,980.00
Your Price Sold out
MSRP: $31,980.00 | MAP: $31,980.00

Usually ships in 5-7 business days

Log in or register for YOUR best price
The new Enova DGX 3200 Enclosure (DGX3200-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx® NX Integrated Controller, redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio -switching boards. There are four connections per video board, and each enclosure holds eight video input boards and eight video output boards for a maximum matrix of 32x32. The Enova DGX 3200 adds several new capabilities such as automatic setup of DXLink endpoints, single IP addressing for multiple endpoints, and a new web interface to greatly simplify installation and configuration. The new advanced Audio Switching Boards add audio breakaway capabilities and parametric EQ on each DGX output.

The Enova DGX 3200 is far beyond a modular media switcher with built-in controller - it functions as the centerpiece of a complete integrated solution that manages and distributes analog and digital audio and video including HDMI/HDCP, control and Ethernet. Easily integrate HDCP into system designs and enjoy hassle-free plug-and-play operation. No tools, no delays and no key constraints - it just works with AMX's exclusive InstaGate Pro® Technology. Built for today's and tomorrow's needs, a comprehensive set of Enova DGX boards can be used in conjunction with DXLink and DGX Transmitters and Receivers to provide an end-to-end distribution system over twisted pair cable or fiber. An integrated NetLinx NX Controller and embedded Ethernet switch enables management of the entire solution including source equipment and display devices located throughout the environment - all from a single point of control.

In addition to eliminating HDCP delays, InstaGate Pro allows traditionally key limited sources to be switched freely to all connected HDCP compliant displays - eliminating HDCP key limitations that plague large applications. Built-in SmartScale® Technology on every output provides video that is perfectly scaled for each connected display, eliminating the integration challenges that can occur when sources and displays have different supported resolutions - making it easy to specify, easy to install and easy to use. With the powerful combination of analog-to-digital signal conversion, video scaling and high speed digital switching the system delivers perfect video every time - regardless of signal type.

As part of a complete distribution system, easily send analog or digital audio and video including HDMI with HDCP signals, plus control 10 Km over single mode fiber or 300 meters over multimode fiber; send all this plus power up to 100 meters over standard twisted pair cable to and from the Enova DGX using the DXLink Twisted Pair and Fiber Transmitters/Receivers.

View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG1061-32
Brand Name
AMX
Product Line
Enova
Product Model
DGX3200-ENC
Product Name
Enova DGX 3200 Enclosure
Product Type
Switchbox Chassis
Additional Product Specifications
Full Product Specifications
Click to view
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
32
Device Supported
Display
Number of Displays Supported
32
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
2
Number of USB Ports
1
Media & Performance
Maximum Operating Distance
32808.40 ft
Physical Characteristics
Form Factor
Rack-mountable
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
