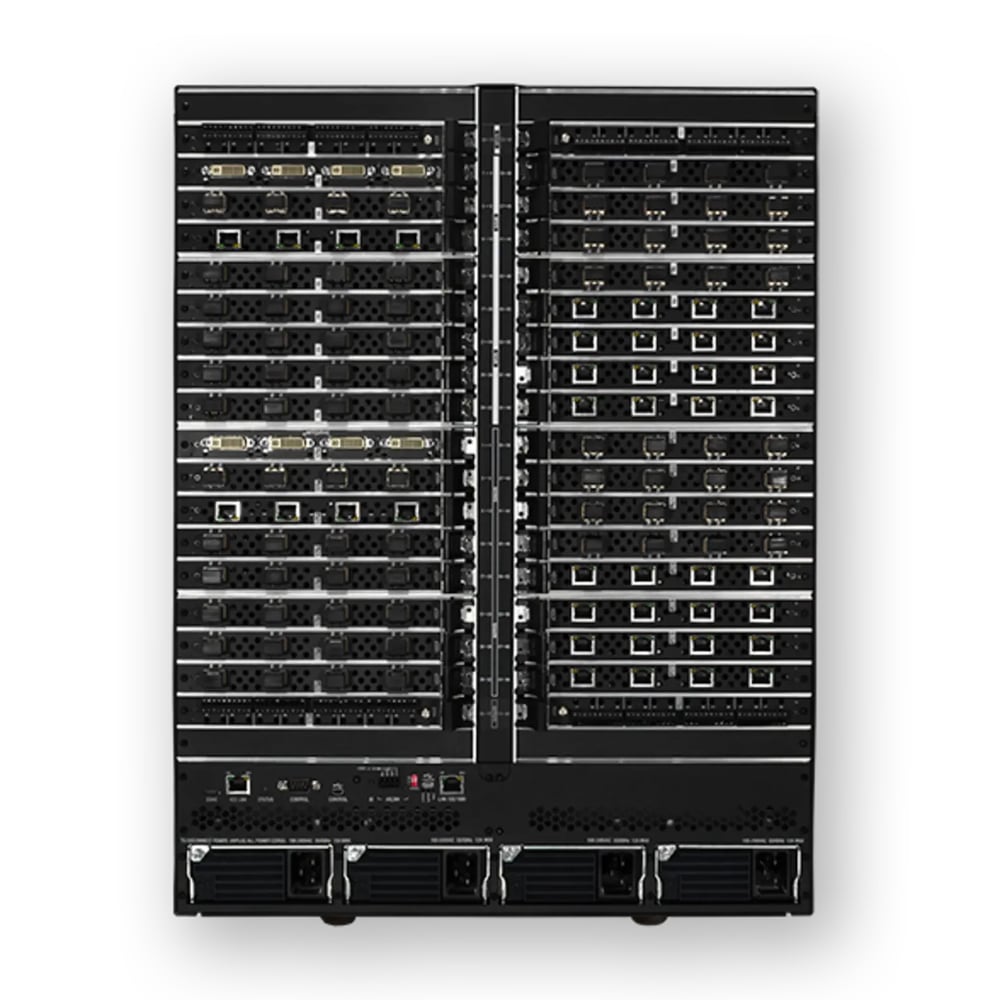

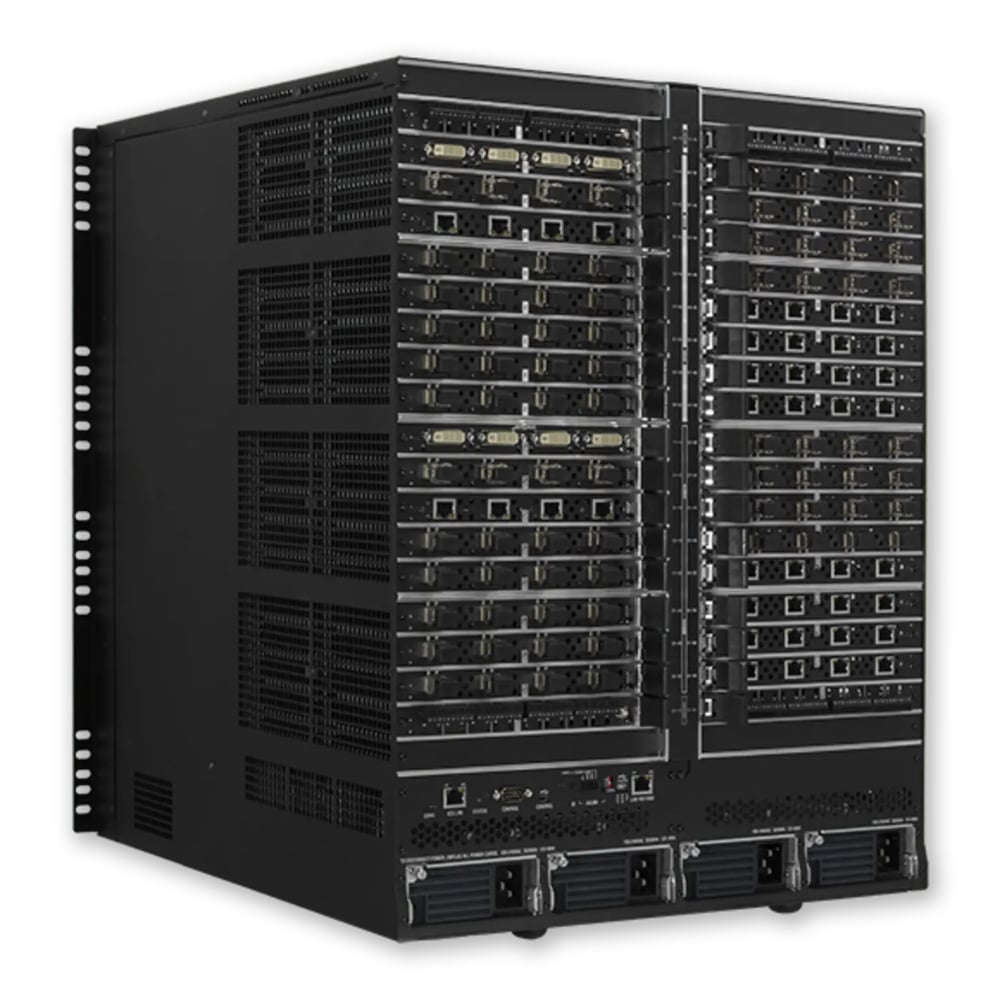

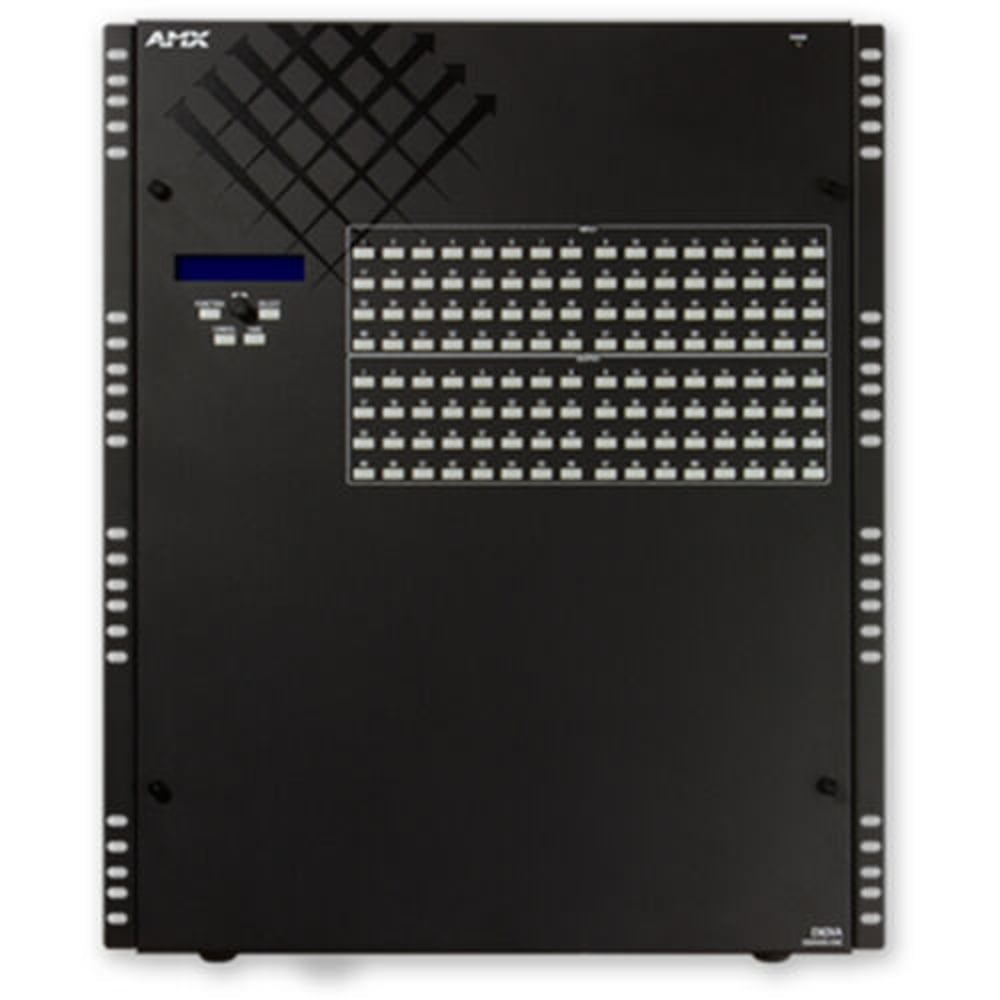

AMX FG1061-64-FX Enova Dgx 6400 Digital Media Enclosure With Integrated Nx Controller,

Usually ships in 5-7 business days

• HDMI/HDCP Switching - End-to-end distribution of HDMI/HDCP without interruption or key constraints using InstaGate Pro Technology
• 4K and Ultra High Definition (UHD) Content Ready - Designed to support future resolutions for years to come
• HDCP Compliance Over Fiber - Compatible DXLink Fiber boards transmit uncompressed video, including HDCP protected content, up to 10 Km at 10 Gbps (single mode fiber options transmit 10 Km, multimode 300 m)
• Fiber Your Way - DXLink Fiber boards are available in single mode or multimode; simplex or duplex
• AV and Control over Twisted Pair, Fiber or Both - Send audio, video, bi-directional control and Ethernet over twisted pair or fiber cable, or integrate both into the same system
• Embedded NetLinx NX Integrated Control Processor - Allows any connected device to be managed, monitored or controlled
• Integrated Ethernet Switch - Pass Ethernet through the attached DXLink Twisted Pair or Fiber Transmitters and Receivers
• Analog to Digital Video Conversion with Scaled Outputs - Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display
• Onboard Web Configuration for all Aspects of the DGX System - Greatly simplifies the setup and configuration of Enova DGX systems including DXLink endpoints drastically reducing installation time
• Automatic Setup of DXLink Endpoints - Simplified installation by auto-discovering DXLink devices when they are connected to an Enova DGX
• Single IP Address Required for Multiple Endpoints - Reduces the need for IT administrators to provision numerous IP addresses across the system for transmitters and receivers
• Unrivaled Network Security - With Dual NIC to isolate AMX or third-party AV equipment from the primary network, IPv6 and wired 802.1X for protected network access, and user-defined LDAP login group support, the Enova DGX provides rock-solid security
• Independent Routing of Audio and Video Using Audio Switching Boards - Provides increased flexibility to combine and separate audio from video in a variety of applications
• AxLink Port - Makes it easier to connect AxLink devices like keypads directly to the Enova DGX
• InstaGate Pro Technology - Easily integrate HDCP into system designs and enjoy hassle-free matrix switching to all compliant displays. No tools, no delays, and no key constraints - it just works
• SmartScale Technology - Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters
• DXLink Twisted Pair Input and Output Boards - HDCP Compliant boards send audio, video, control, Ethernet and power over one standard twisted pair cable up to 200 m - 100 m to the matrix switcher and 100 m after the matrix switcher
• Easily Convert Analog to Digital Signals - Use the Enova DGX Digital Media Switcher in conjunction with DXLink Multi-Format Transmitters (Twisted Pair or Fiber), and easily integrate legacy analog sources and automatically convert their signals to digital
• Hot Swappable Video Input / Output Boards - Easily add or replace I/O boards at any time after deployment - the system automatically recognizes the new configuration and activates the boards
• 3D Support - Pass through latest video formats including 3D and Deep Color
