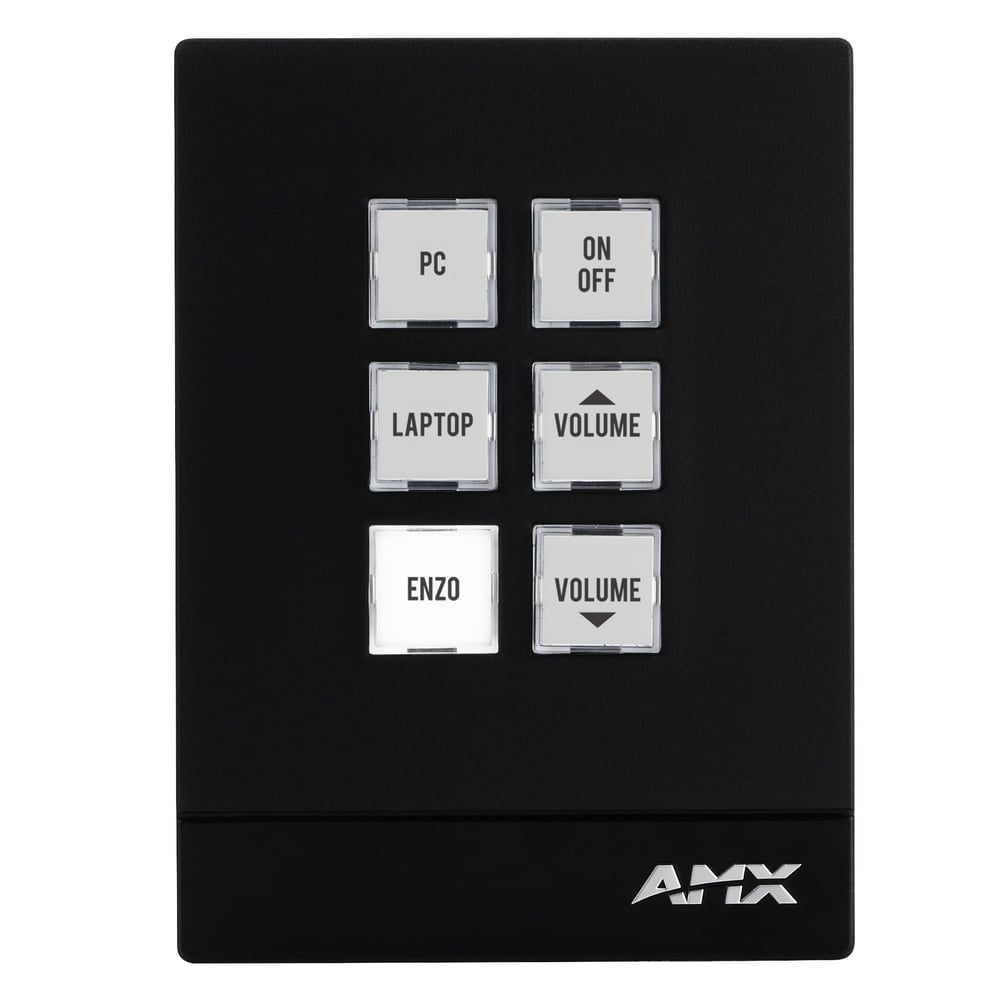

AMX FG2102-06P-BL Mcp-106 Massio 6-Button Controlpad

AMX FG2102-06P-BL Mcp-106 Massio 6-Button Controlpad

SoundPro Item: 40202 | Part Number: FG2102-06P-BL

$931.00
$931.00 $931.00
Your Price Sold out
MSRP: $931.00 | MAP: $931.00

Usually ships in 5-7 business days

  • Product Color: Black
  • Form Factor: Wall Mountable
  • Height: 4.7"
  • Width: 3.4"
  • Depth: 0.5"
  • Weight (Approximate): 3.88 oz
  • Application/Usage: Conference Room
  • Application/Usage: Classroom
  • Environmentally Friendly: Yes
  • Environmental Certification: WEEE
  • Environmental Certification: RoHS
Log in or register for YOUR best price

The MCP-106 / 6-Button Massio™ ControlPad is a high performance ControlPad that combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 1 gang US, UK or EU back box to provide dedicated room control. Massio ControlPads provide high performance, intuitive usability and modern styling, and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software. The MCP-106 shares its controller technology with AMX's flagship NX-series, enabling it to provide the latest networking and security features, along with outstanding processing power.

View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG2102-06P-BL
Brand Name
AMX
Product Line
Massio
Product Model
MCP-106
Product Name
Massio 6-Button ControlPad (US, UK, EU)
Product Type
A/V Control Panel
Physical Characteristics
Color
Black
Form Factor
Wall Mountable
Miscellaneous
Package Contents
Massio 6-Button ControlPad (US, UK, EU) 1 x Metal Mounting Bracket 1 x 2-pin Female Connector 1 x 3-pin Female Connector 1 x Sheet of 70 Pre-printed Button Labels 2 x M3.5 x 30MM Screws 2 x #6-32 x 1.25 Screws
Additional Information
DIMENSIONS (HWD) Portrait: 4 11/16" x 3 7/16" x 9/16" (119 mm x 87.5 mm x 13.9 mm) Landscape: 3 7/16" x 4 11/16" x 9/16" (87.5 mm x 119 mm x 13.9 mm) WEIGHT Approximately .25 lbs (.11 kg) MOUNTING Mount onto standard 1 gang US, UK, or EU back boxes POWER CONSUMPTION Typical: 4.5 Watts Voltage, DC (Typical): PoE (37V-57V) Voltage DC Range: 37 V-57 V per 802.3af spec Power Connector: (1) RJ-45 Ethernet POWER SUPPLY External, Required: Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included ENVIRONMENTAL Temperature (Operating): 32° F to 104° F (0° C to 40° C) Temperature (Storage): 14° F to 140° F (-10° C to 60°C) Humidity (Operating): 5% to 85% RH ETHERNET Ethernet Connection: (1) 10/100; Port provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information. CONTROL PORTS & INDICATORS RS-232 Port: (1), 3-position 3.5mm Screw Terminal; 300 - 115,200 baud IR Serial Port: (1), 2-position 3.5mm Screw Terminal; IR Transmit / 1-way Serial ports Support high-frequency carriers up to 1.142 MHz Program Port: (1) USB Mini-B, USB ID Pushbutton: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode MEMORY Flash: 4 GB Memory Card: 4 GB SD DDRAM: 256 MB REGULATORY COMPLIANCE FCC CFR Title 47 Part 15 CE EN 55022 CE EN 55024 CE EN 60950-1 IEC 60950-1 UL 60950-1 C-Tick CISPR 22 IC CISPR 22 VCCI CISPR 22 RoHS WEEE GENERAL Front Panel Components: 6 Buttons Color / Styles Available: Portrait, Black: MCP-106P-BL (FG2102-06P-B) Portrait, White: MCP-106P-WH (FG2102-06P-W) Landscape, Black: MCP-106L-BL (FG2102-06L-B) Landscape, White: MCP-106L-WH (FG2102-06L-W)
Application/Usage
Conference Room
Classroom
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
