AMX FG423-49 Psr7-V, Versatile Mount 7 Amp Power Supply
AMX FG423-49 Psr7-V, Versatile Mount 7 Amp Power Supply
SoundPro Item: 40023 | Part Number: FG423-49
Usually ships in 5-7 business days
- Input Voltage: 120 V AC
- Input Voltage: 230 V AC
- Output Voltage: 12 V DC @ 5.5 A
- Form Factor: Surface Mount
- Form Factor: Rack-mountable
- Height: 1.6"
- Width: 5.7"
- Depth: 5.1"
- Weight (Approximate): 1.45 lb
- Compatibility: AMX Products: Modero® X Series Line Touch Panels NetLinx NX Integrated Central Controllers
- Modero® X Series Line Touch Panels
- NetLinx NX Integrated Central Controllers
- Limited Warranty: 1 Year
The PSR7-V power supply provides 5.5 amps of 12VDC power and is an optional power supply for Modero® X Series line of touch panels and NetLinx NX Integrated Central Controllers. It includes three 3.5 mm phoenix connectors with retention screws.
Accessories include a V-style module rack tray and surface mount brackets which allow the PSR7-V power supply to be securely mounted to flat surfaces such as under a table or on a wall. Up to three power supplies can be mounted side-by-side using a 1 RU space.
COMMON APPLICATIONS
Ideal for professional AV installations, the PSR7-V power supply helps to protect valuable components against over-voltage, over-current, short-circuit, transient and thermal damage.
FEATURES
- Protection - Against over-voltage, over-current, short-circuit, transient and thermal; switching regulated and overload protected.

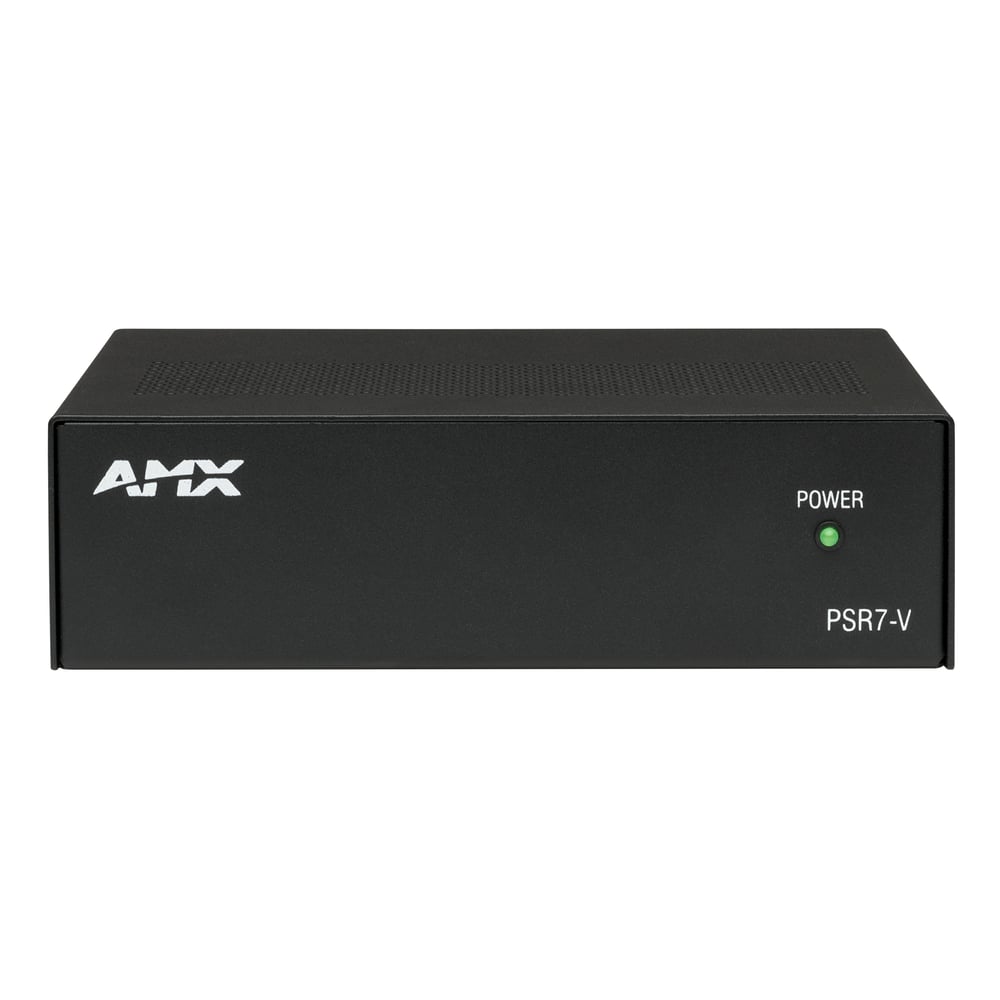

- Power Indicator - Green LED indicates DC on the output in fault tolerant range.

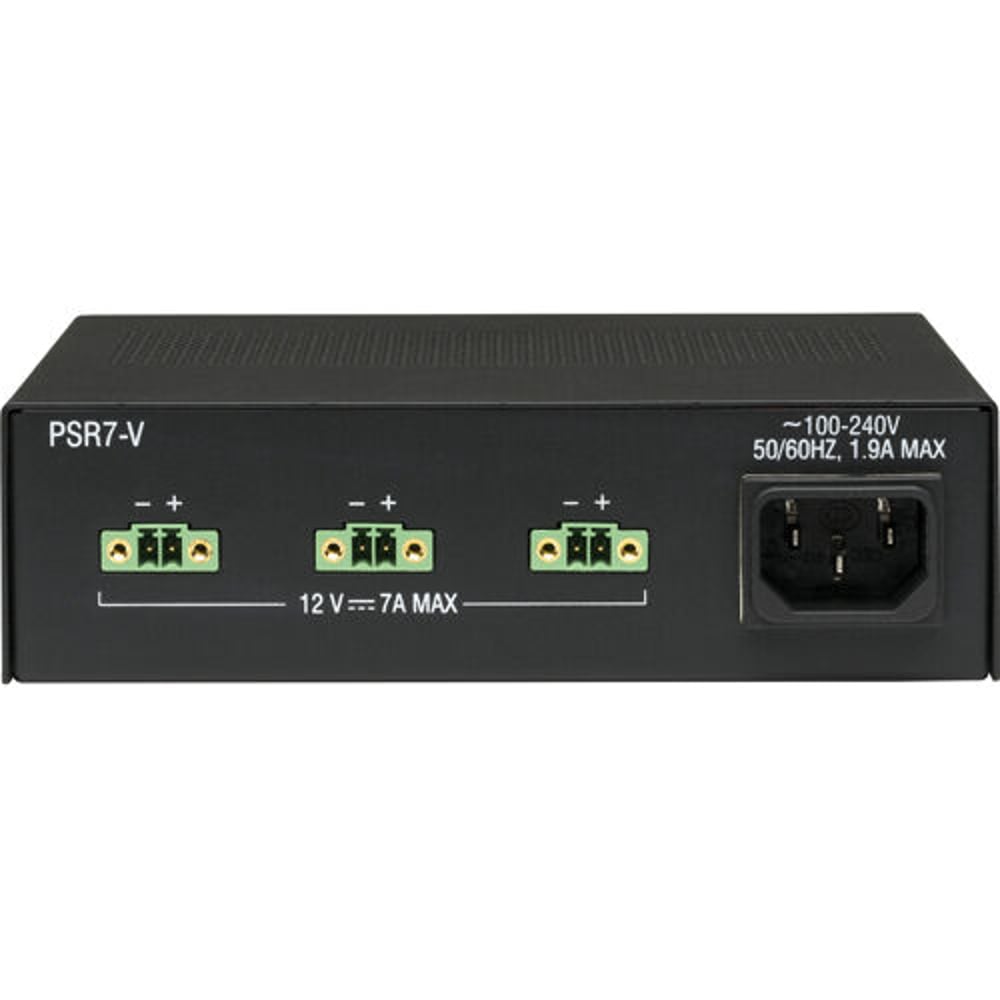

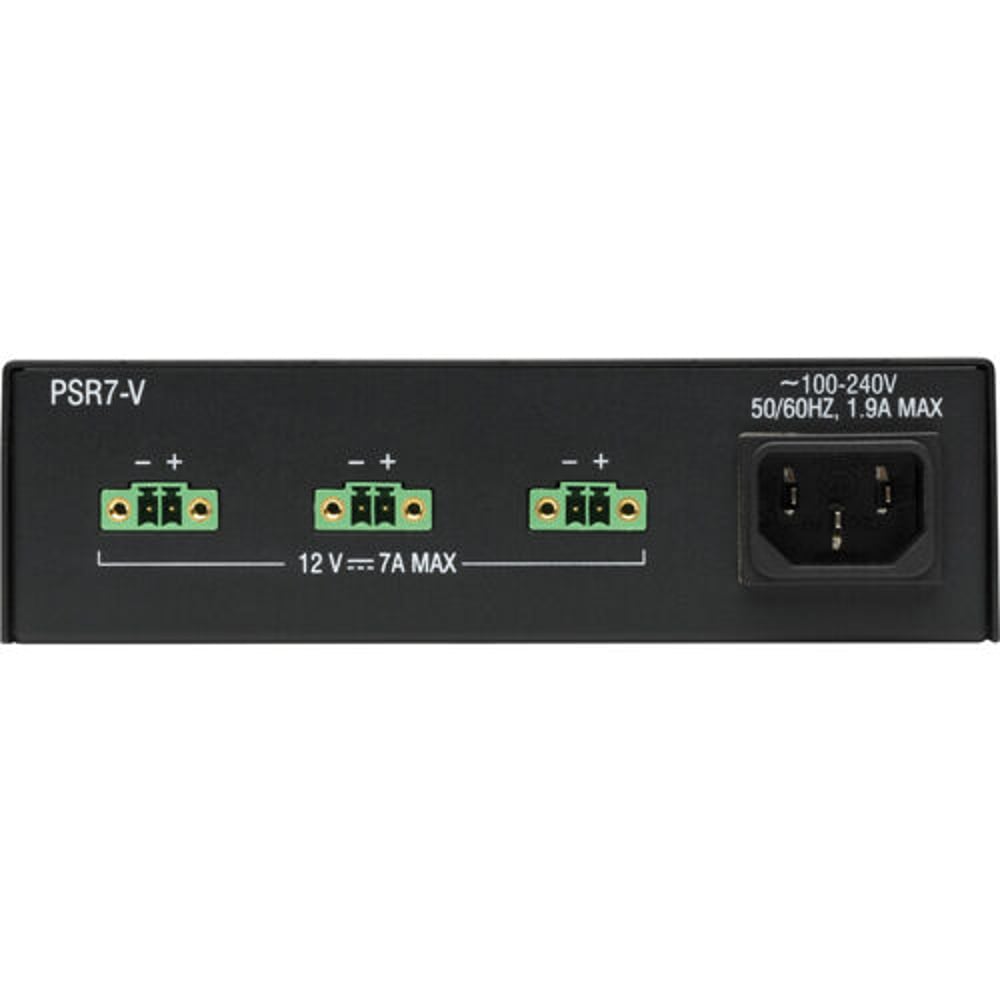

- Connectors - Includes 3 x Mini 2-pin captive wire connector (3.5 mm).
- Input Power Cord - IEC power cord provided as a separate part, dependent on country requirements.
