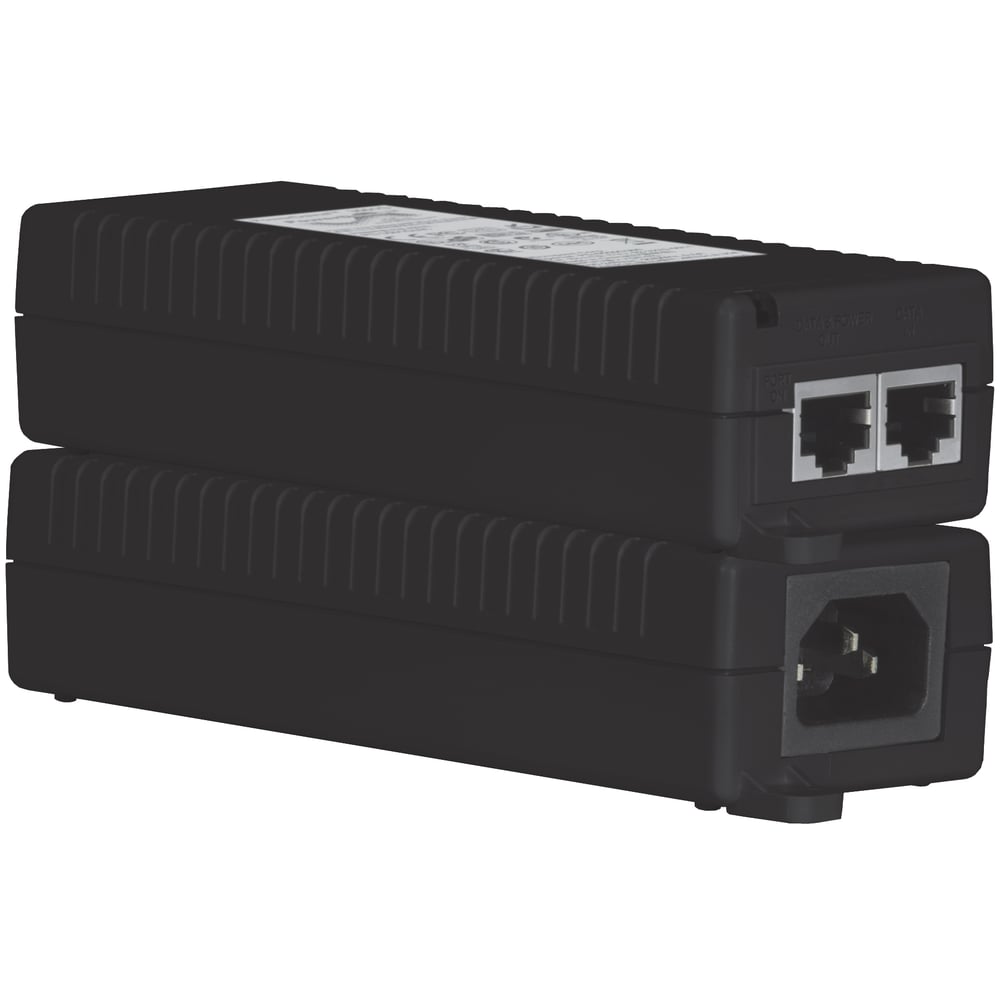

AMX FG423-83 Poe Injector For Modero X® Series Poe Injector, 802.3Af Compliant

AMX FG423-83 Poe Injector For Modero X® Series Poe Injector, 802.3Af Compliant

SoundPro Item: 40024 | Part Number: FG423-83

$180.00
$180.00 $180.00
Your Price Sold out
MSRP: $180.00 | MAP: $180.00

Usually ships in 5-7 business days

  • Input Voltage: 110 V AC
  • Input Voltage: 220 V AC
  • Maximum Output Voltage: 48 V DC
  • Maximum Input Current: 500 mA
  • Maximum Output Current: 375 mA
  • Maximum Output Power: 15.40 W
  • Input Ports: 1 x 10/100/1000Base-T
  • Output Ports: 1 x 10/100/1000Base-T
  • Product Color: Matte Black
  • Height: 5.5"
  • Width: 2.1"
  • Depth: 1.3"
  • Weight (Approximate): 7 oz
  • Compatibility: AMX Modero X Series Touch Panels
  • Certifications & Standards: 802.3 AFFCC Part 15 Class BCE EN55022 Class BEN55024LVD EN 60950-1VCCIUL/cUL UL60950-1GS IEC 60950-1
  • 802.3 AF
  • FCC Part 15 Class B
  • CE EN55022 Class B
  • EN55024
  • LVD EN 60950-1
  • VCCI
  • UL/cUL UL60950-1
  • GS IEC 60950-1
  • Environmentally Friendly: Yes
  • Environmental Certification: WEEE
Log in or register for YOUR best price

With the PoE Injector, transmit both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) enabled device. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same Cat5 Ethernet cable at a distance of up to 100 meters (328 feet).

View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG423-83
Brand Name
AMX
Product Model
PS-POE-AF-TC
Product Name
PS-POE-AF-TC PoE Injector for Modero X Series
Product Type
PoE Injector
Power Description
Input Voltage
110 V AC
220 V AC
Output Voltage
48 V DC
Input Current
500 mA
Output Current
375 mA
Frequency
50 Hz
60 Hz
Output Power
15.40 W
Interfaces/Ports
Input Ports
1 x RJ-45 10/100/1000Base-T
Output Ports
1 x RJ-45 10/100/1000Base-T
Physical Characteristics
Color
Matte Black
Dimensions
5.5" Height x 2.1" Width x 1.3" Depth
Weight (Approximate)
7.00 oz
Miscellaneous
Additional Information
Load Diagnostic LEDProtections:Over CurrentShort CircuitOver Load Shutdown
Compatibility
AMX Modero X Series Touch Panels
Certifications & Standards
802.3 AFFCC Part 15 Class BCE EN55022 Class BEN55024LVD EN 60950-1VCCIUL/cUL UL60950-1GS IEC 60950-1
Green Compliant
Yes
Green Compliance Certificate/Authority
WEEE
