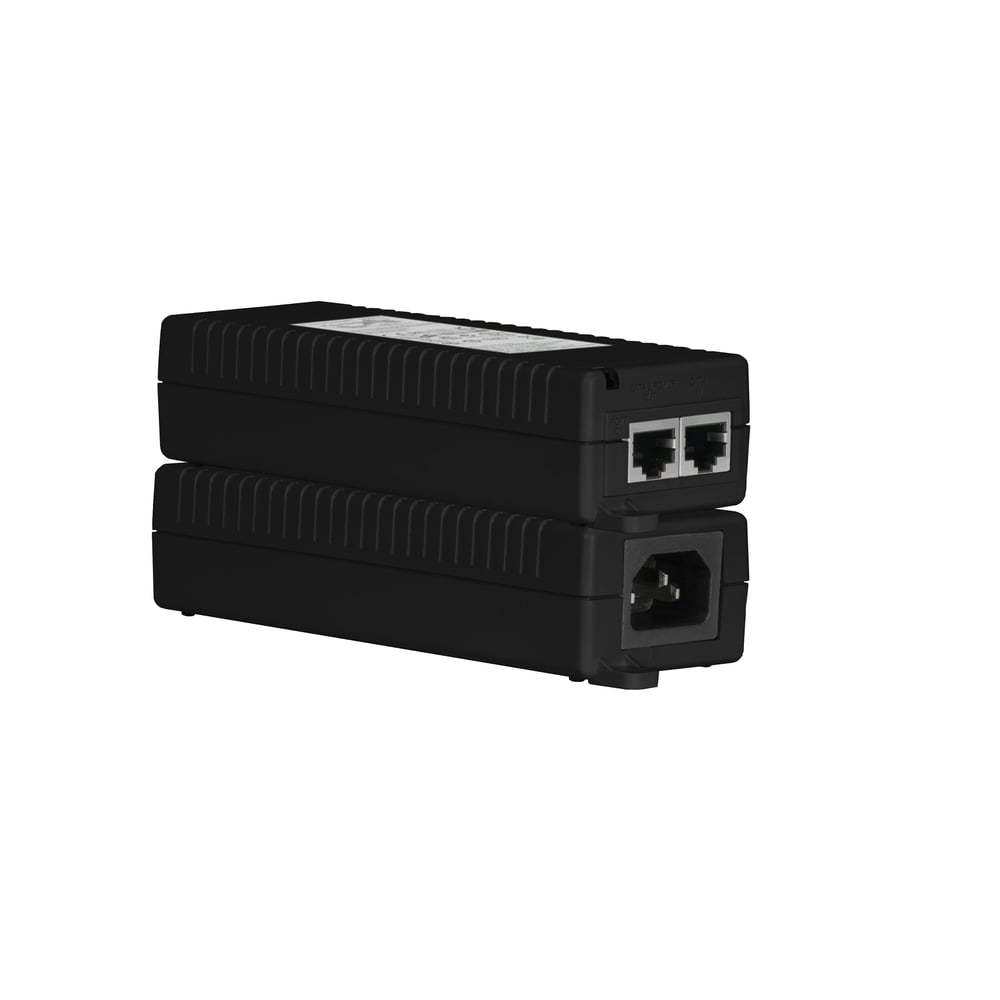

AMX FG423-84 Ps-Poe-At-Tc, High Power Poe Injector For Mvp-9000I

AMX FG423-84 Ps-Poe-At-Tc, High Power Poe Injector For Mvp-9000I

SoundPro Item: 40025 | Part Number: FG423-84

$282.00
$282.00 $282.00
Your Price Sold out
MSRP: $282.00 | MAP: $282.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

With the high power PS-POE-AT-TC Injector, transmit both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) touch panel. Required for use with the MVP-9000i and DXLink Twisted Pair Transmitters and Receivers, it is also compatible with the MXT-1000, MXD-1000, MXT-700, MXD-700 and MXD-430. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same twisted pair cable at a distance of up to 100 meters (328 feet). The PS-POE-AT-TC PoE Injector sends power and data on demand to wall or table docking stations of compatible touch panels via a single Ethernet connection.

View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG-423-84
Brand Name
AMX
Product Model
PS-POE-AT-TC
Product Name
High Power PoE Injector, 802.3AT Compliant
Packaged Quantity
1
Product Type
PoE Injector
Technical Information
Protection Type
Internal Primary Current Fuse
Over Current
Power Description
Input Voltage
120 V AC
230 V AC
Maximum Output Voltage
55 V DC
Maximum Input Current
800 mA
Maximum Output Current
600 mA
Minimum Frequency
50 Hz
Maximum Frequency
60 Hz
Maximum Output Power
30 W
Interfaces/Ports
Input Ports
1 10/100/1000Base-T
Output Ports
1 10/100/1000Base-T
Physical Characteristics
Color
Matte Black
Form Factor
External
Miscellaneous
Compatibility
AMX: MVP-9000i MXT-1000 MXD-1000 MXT-700 MXD-700 MXD-430 DX-TX, DXLink DX-TX-DWP, DXLink DX-TX-WP, DXLink DX-RX, DXLink
Certifications & Standards
IEEE 802.3at (PoE) RoHS / WEEE CE FCC Part 15, Class B EN 55022 Class B EN 55024 VCCI C-Tick UL/cUL per IEC 60950-1 GS Mark per IEC 60950-1
Green Compliant
Yes
Green Compliance Certificate/Authority
WEEE
RoHS
GS
Warranty
Limited Warranty
3 Year
